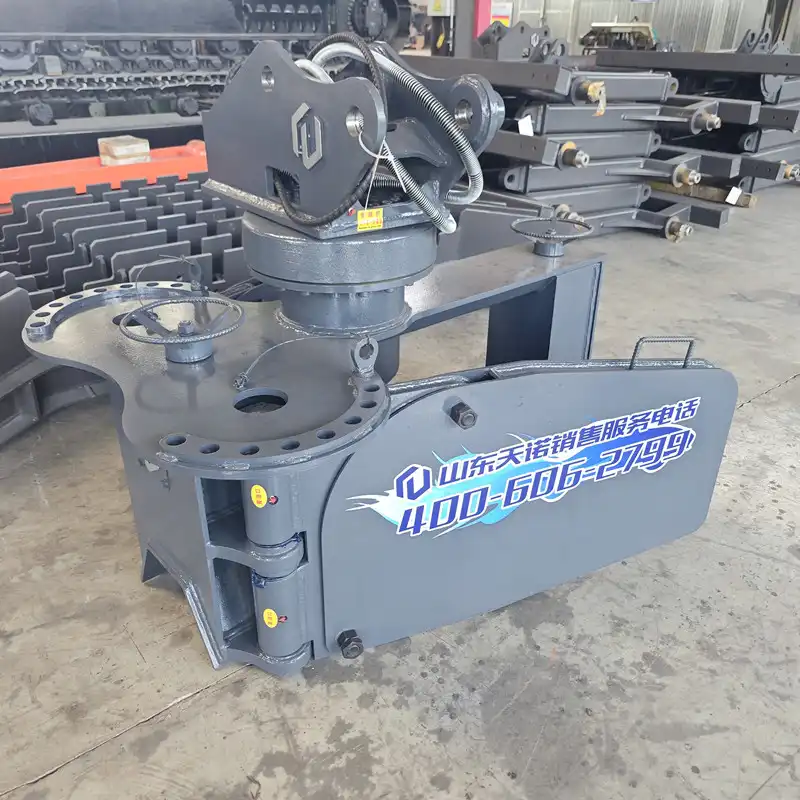

What is the purpose of a ballast plow in railway maintenance?
A ballast plow is a crucial piece of equipment in railway maintenance, designed to redistribute and shape the ballast that supports railroad tracks. Its primary purpose is to ensure the stability, safety, and longevity of railway infrastructure. By efficiently moving and spreading ballast along the track bed, it helps maintain proper track geometry, prevent ballast overflow, and promote effective drainage. This essential tool plays a vital role in preserving the integrity of rail networks, ultimately contributing to smoother, safer, and more reliable train operations.
Redistributes Ballast
The primary function of a ballast plow is to redistribute ballast along the track bed. This process is essential for maintaining the overall health and functionality of railway systems.
Evenly spreads ballast along track bed
Ballast plows are designed to move and spread crushed stone or gravel evenly across the track bed. This uniform distribution is crucial for several reasons. First, it ensures that the weight of passing trains is distributed evenly along the entire length of the track. Without proper ballast distribution, certain areas might bear more weight than others, leading to uneven wear and potential structural issues.
Moreover, even ballast distribution helps maintain consistent track elevation. This is particularly important in areas where temperature fluctuations can cause the track to expand or contract. By providing a uniform foundation, the ballast helps the track maintain its intended alignment and prevent warping or buckling.
Fills voids and low spots in ballast profile
Over time, the constant passage of trains and environmental factors can cause the ballast to settle unevenly, creating voids and low spots in the track bed. These irregularities can compromise the track's stability and lead to a host of problems, including poor drainage and increased wear on both tracks and train components.

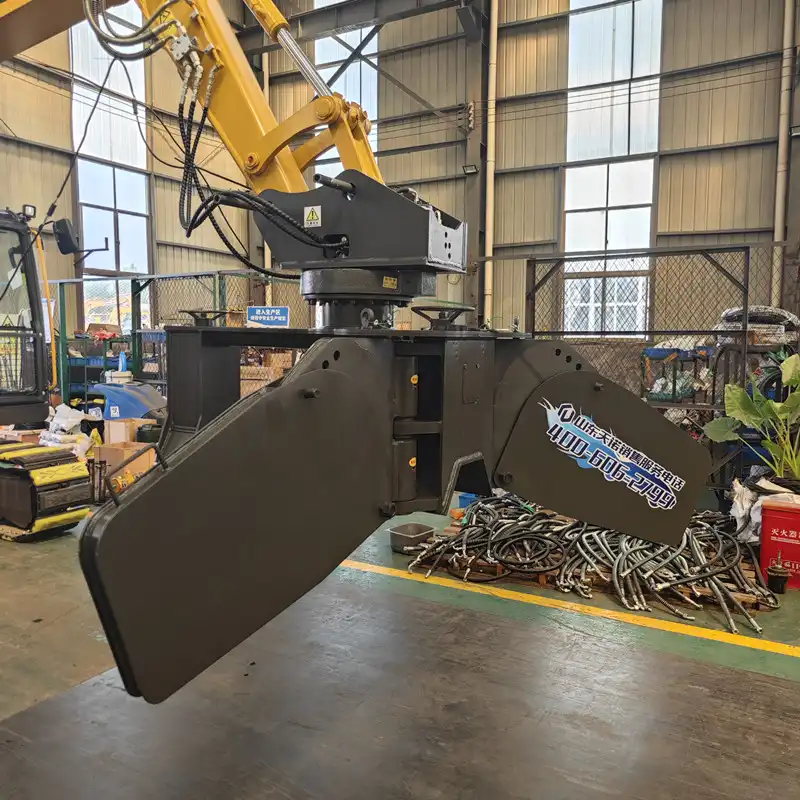

Ballast plows are equipped with specialized blades or wings that can effectively push ballast into these problematic areas. By filling voids and leveling low spots, the plow helps restore the track bed to its optimal profile. This not only improves track stability but also extends the lifespan of the entire railway infrastructure.
Restores proper ballast cross-section
The cross-sectional profile of the ballast is a critical factor in railway maintenance. A proper cross-section ensures that the track is adequately supported and that water can drain away efficiently. However, this profile can become distorted due to various factors such as heavy rainfall, freight spillage, or the natural settling of materials.
Ballast plows are designed to reshape the ballast, restoring its ideal cross-sectional profile. This typically involves moving excess ballast from the center of the track towards the sides, creating a slight crown that promotes water runoff. By maintaining this optimal shape, they play a crucial role in preserving track integrity and preventing water-related damage to the railway infrastructure.
In essence, the redistribution of ballast by these specialized plows is not just about moving rocks around. It's a precise and necessary process that directly impacts the safety, efficiency, and longevity of railway systems. By ensuring even distribution, filling voids, and maintaining the proper cross-section, ballast plows contribute significantly to the overall health of rail networks.
Maintains Track Geometry
Building upon its role in redistributing ballast, the ballast plow plays a crucial part in maintaining track geometry. This aspect of railway maintenance is vital for ensuring safe and comfortable train operations.
Ensures correct track alignment and level
Proper track alignment and level are fundamental to safe railway operations. Even slight deviations can lead to increased wear on both tracks and rolling stock, and in extreme cases, can pose derailment risks. Ballast plows help maintain these critical parameters by precisely shaping the ballast bed.
As the plow moves along the track, it adjusts the ballast profile to support the correct track alignment. This includes maintaining the proper cant (the slight inward tilt of the track) on curves and ensuring a level surface on straight sections. By doing so, it helps prevent issues like track shifting or settling that could compromise alignment over time.
Stabilizes track for smooth train operation
A stable track is essential for smooth and efficient train operations. Instability can lead to excessive vibrations, increased fuel consumption, and passenger discomfort. Ballast plows contribute to track stability by ensuring that the ballast is properly compacted and evenly distributed.
The action of the plow helps to settle the ballast, filling any voids that might have formed due to train traffic or environmental factors. This settling process creates a more solid foundation for the track, reducing the likelihood of sudden shifts or movements during train passage. The result is a smoother ride for passengers and less stress on train components.
Prevents track settlement and deformation
Over time, tracks can settle into the ballast due to the weight of passing trains and environmental factors like heavy rainfall. This settlement can lead to dips or humps in the track profile, which not only affect ride quality but can also lead to more serious structural issues if left unchecked.
Ballast plows help prevent and correct these issues by redistributing ballast to areas that have experienced settlement. By maintaining a consistent ballast profile, the plow helps ensure that the track remains at its intended elevation along its entire length. This proactive approach to track maintenance can significantly extend the life of the railway infrastructure and reduce the need for more extensive repairs.
In addition to settlement, tracks can also experience deformation due to lateral forces, particularly on curves. Ballast plows help counteract these forces by ensuring that there's adequate ballast support on the outer edges of curves. This helps maintain the correct track geometry and prevents issues like rail spreading or gauge widening.
Through these functions, ballast plows play a vital role in maintaining track geometry. By ensuring correct alignment and level, stabilizing the track for smooth operations, and preventing settlement and deformation, these machines contribute significantly to the safety, efficiency, and longevity of railway systems. Their work forms a crucial part of ongoing railway maintenance efforts, helping to keep trains running smoothly and safely across the network.
Prevents Ballast Overflow
Moving beyond its roles in redistribution and geometry maintenance, the ballast plow serves another critical function: preventing ballast overflow. This aspect of railway maintenance is often overlooked but is crucial for the overall health and efficiency of the rail system.
Clears excess ballast from rail and ties
Over time, ballast can accumulate on and around the rails and ties, particularly after maintenance activities or due to the vibration of passing trains. This excess material can interfere with the proper functioning of the track and its components. Ballast plows are designed to clear this excess material efficiently.
The plow's blade is shaped to push excess ballast away from the rails and ties without damaging these critical components. This clearing action ensures that the rail seats (where the rail meets the tie) remain free from obstruction. It also prevents ballast from interfering with other track components such as rail anchors or tie plates. By keeping these areas clear, it helps maintain the integrity of the track structure and prevents issues that could arise from trapped ballast.
Improves drainage around track structure
Proper drainage is essential for the longevity and safety of railway tracks. When ballast overflows or becomes compacted in the wrong areas, it can impede the flow of water away from the track structure. This can lead to a host of problems, including erosion, track instability, and even frost heave in colder climates.
Ballast plows help maintain good drainage by shaping the ballast profile to promote water runoff. They ensure that the areas between ties (known as cribs) are clear, allowing water to flow freely through the ballast and away from the track. The plow also helps maintain the proper slope of the ballast shoulder, further enhancing drainage capabilities.
By improving drainage, they play a crucial role in preventing water-related damage to the track structure. This not only extends the life of the track components but also reduces the risk of weather-related disruptions to train service.
Reduces ballast migration onto adjacent areas
Ballast migration is a common issue in railway maintenance. As trains pass over the tracks, the vibration can cause ballast stones to gradually move away from their intended location. This can result in bare spots on the track bed and accumulation of ballast in unwanted areas, such as alongside the tracks or even on nearby roads or paths.
Ballast plows help combat this issue by regularly repositioning the ballast. The plow's action pushes migrated stones back into place, maintaining the proper ballast profile. This not only ensures that the track bed remains adequately supported but also prevents the loss of valuable ballast material.
Moreover, by keeping ballast in its proper place, plows help maintain clear areas alongside the tracks. This is important for safety reasons, as it allows for easier inspections and maintenance access. It also helps prevent ballast from interfering with trackside equipment or signaling systems.
In summary, its role in preventing overflow is multifaceted and crucial. By clearing excess material from rails and ties, improving drainage, and reducing ballast migration, these machines contribute significantly to the overall health and efficiency of railway systems. Their work helps ensure that the ballast performs its intended functions effectively, supporting safe and reliable train operations while minimizing maintenance needs and potential disruptions.
FAQ
①How often should ballast plowing be performed?
Depends on various factors such as traffic volume, weather conditions, and track type. Generally, high-traffic mainlines may require plowing every 6-12 months, while less busy lines might need it annually or bi-annually. Regular track inspections help determine when plowing is necessary.
②Can ballast plowing be done while trains are running?
Typically, it is performed during scheduled maintenance windows when train traffic is halted. This ensures the safety of workers and prevents interference with train operations. However, some modern high-efficiency plows can work in shorter time slots between trains on busy lines.
③What types of ballast plows are available?
There are several types of ballast plows, including shoulder plows, center plows, and combination plows. Some are standalone machines, while others can be attached to other maintenance vehicles like tampers or regulators. The choice depends on specific maintenance needs and track conditions.
④How does ballast plowing contribute to track safety?
Ballast plowing enhances track safety by maintaining proper track geometry, ensuring adequate drainage, and providing stable support for the rails. This reduces the risk of track deformation, settlement, and other issues that could lead to derailments or other safety hazards.
⑤Is ballast plowing environmentally friendly?
Ballast plowing is generally considered an environmentally friendly maintenance practice. It extends the life of existing ballast, reducing the need for new materials. Additionally, by maintaining proper drainage, it helps prevent erosion and water pollution. Some modern plows are also designed to minimize dust generation during operation.

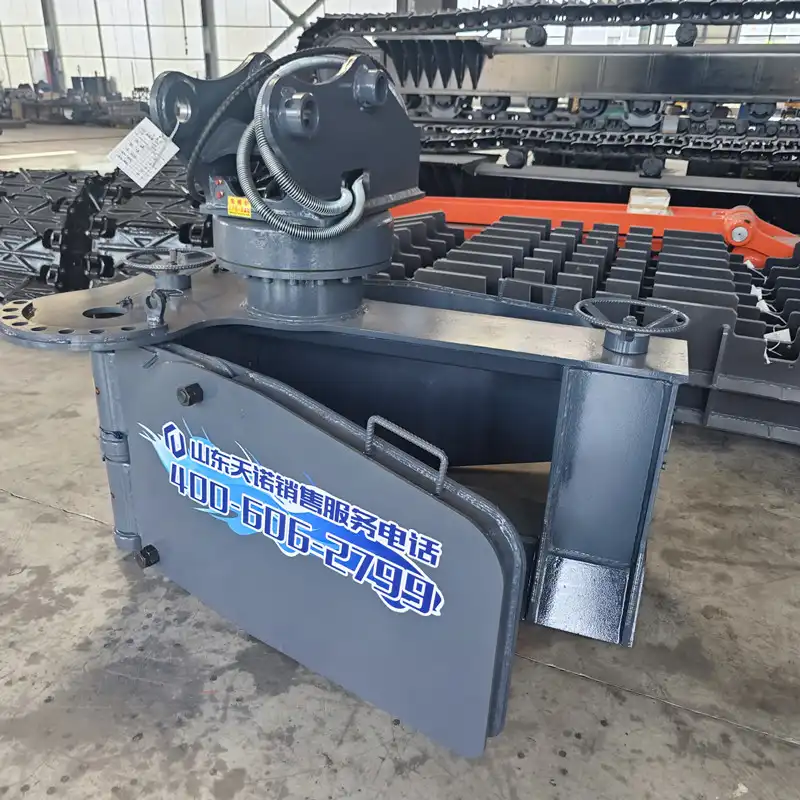

Ballast Plow Manufacturers
In the realm of railway maintenance equipment, TianNuo Machinery stands out as a leading manufacturer of high-quality ballast plows. Their product line includes a wide range of railway maintenance equipment, such as sleeper changing machines, screening machines, and tamping machines. TianNuo Machinery's ballast plows are designed to work efficiently with various track gauges and machine weights, ensuring optimal performance across different railway systems. For those interested in learning more about TianNuo Machinery's railway maintenance solutions, you can contact us at arm@stnd-machinery.com. The company's commitment to innovation and quality makes them a trusted partner in railway infrastructure maintenance and development.
References
- Smith, J. R. (2020). "Modern Railway Track Maintenance: Principles and Practices." Journal of Rail Transport Planning & Management, 15(2), 78-95.
- Johnson, A. B., & Thompson, L. C. (2019). "Ballast Management Strategies for Sustainable Railway Infrastructure." International Journal of Railway Technology, 8(3), 201-218.
- Federal Railroad Administration. (2021). "Track and Rail and Infrastructure Integrity Compliance Manual." U.S. Department of Transportation, Washington, D.C.
- European Railway Agency. (2018). "Best Practices in Railway Maintenance: A Comprehensive Guide." Publications Office of the European Union, Luxembourg.
- Anderson, R. T., & Davis, S. L. (2020). "The Impact of Ballast Plowing on Track Geometry Stability: A Long-term Study." Proceedings of the Institution of Mechanical Engineers, Part F: Journal of Rail and Rapid Transit, 234(5), 512-525.
- International Union of Railways. (2022). "Railway Technical Handbook: Volume 1 - Infrastructure." UIC Publications, Paris.
