What is the reach of a long-reach excavator?
The reach of a long-arm excavator typically ranges from 15 to 100 feet (4.5 to 30 meters), depending on the model and configuration. These specialized machines extend far beyond standard excavators, which usually reach only 30-35 feet (9-10.5 meters). A long arm excavator combines impressive horizontal and vertical reach capabilities with exceptional digging depth, making it ideal for complex projects like deep water dredging, riverbank restoration, and demolition work in hard-to-access areas. For instance, Tiannuo's specialized long arm models offer maximum reaches of 15,300mm to 17,300mm (50-57 feet), with digging depths of 11,200mm to 12,200mm (37-40 feet), and excavation heights reaching up to 15,300mm (50 feet). These extended capabilities allow contractors to access areas that would otherwise require multiple machines or extensive temporary works, significantly improving project efficiency and safety while reducing overall operational costs.

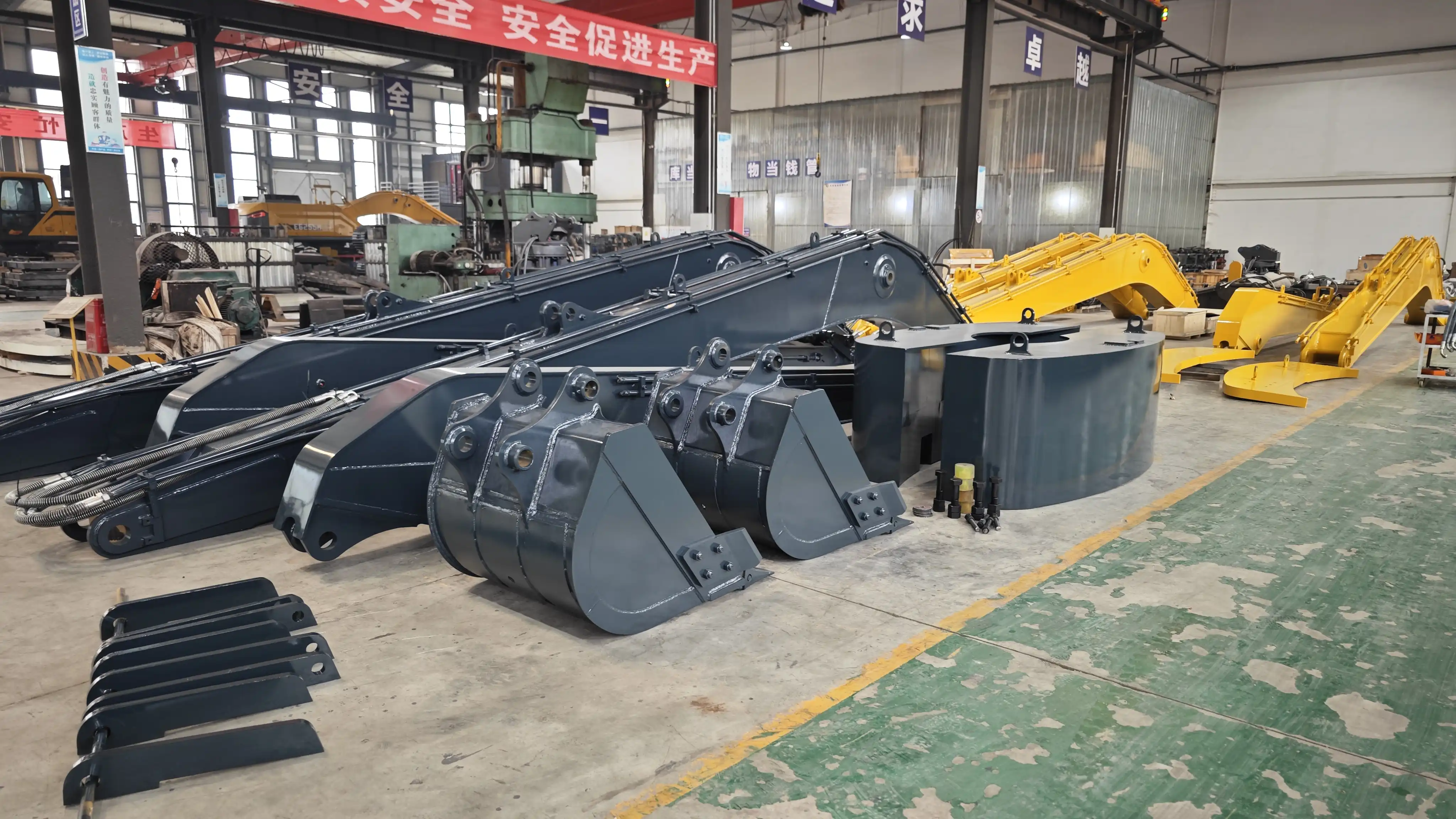

Reach Definition
Understanding the reach of a long arm excavator requires examining three critical dimensions that define its operational capabilities: horizontal reach, vertical reach, and digging depth. Each dimension serves specific purposes and offers unique advantages for specialized applications across construction, dredging, and maintenance sectors.

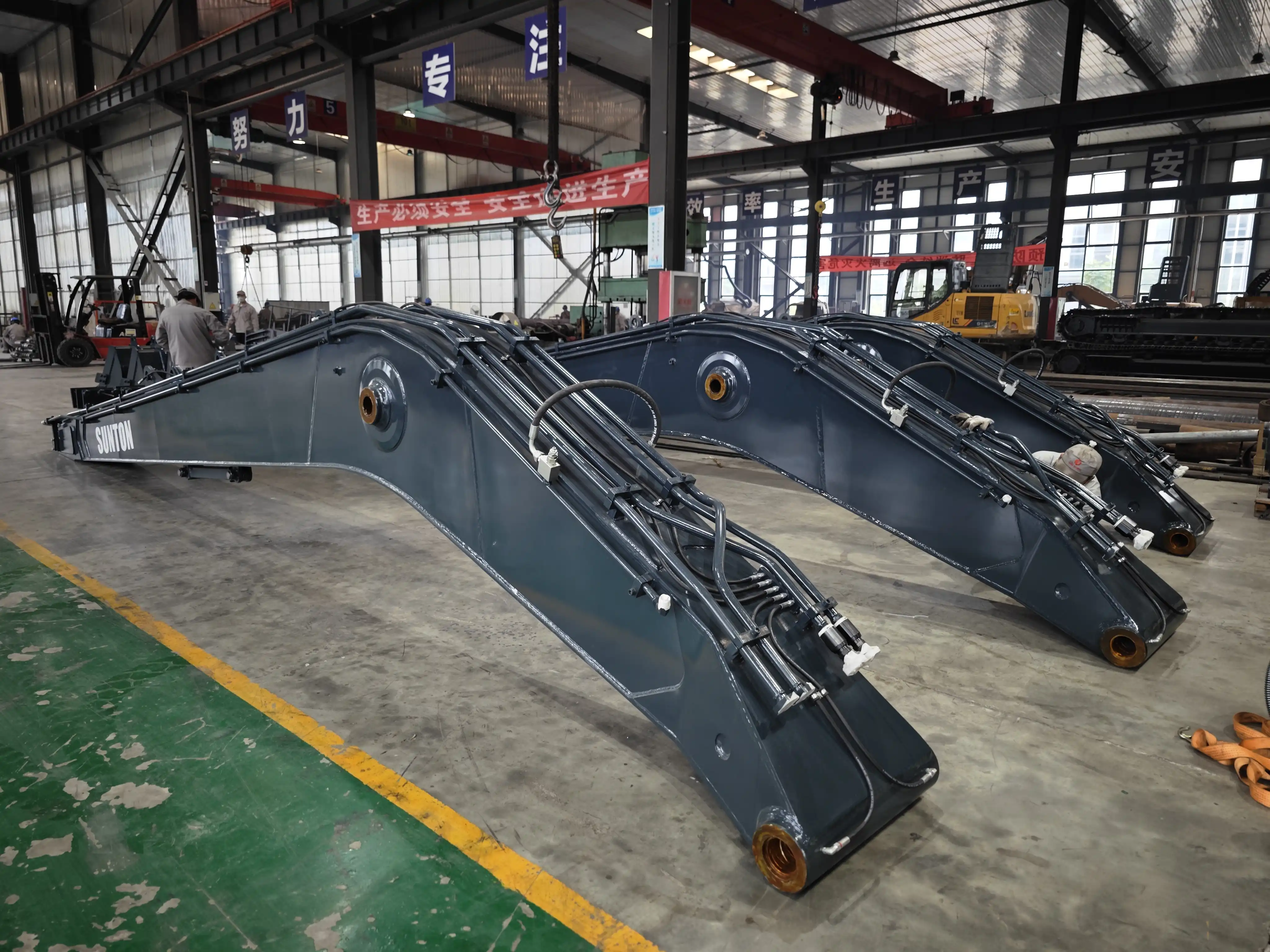

Horizontal Reach
Horizontal reach measures the maximum distance an excavator can extend its arm and bucket away from the center of its rotating platform when positioned parallel to the ground. This specification proves crucial when working across obstacles like rivers, highways, or buildings.
For long arm excavators, horizontal reach typically extends from 40 to 100 feet (12 to 30 meters), depending on the machine size and configuration. Premium models from manufacturers like Tiannuo provide horizontal reach capabilities of up to 15,300mm to 17,300mm (50-57 feet).
Horizontal reach becomes particularly valuable in applications such as:
- Riverbank stabilization where direct access is limited
- Highway median work without disrupting traffic flow
- Dredging operations from shorelines
- Demolition work where safety zones must be maintained
- Railway maintenance requiring reach across multiple tracks
Each additional meter of horizontal reach exponentially increases the workable area accessible from a single position, reducing costly machine relocations and improving productivity.

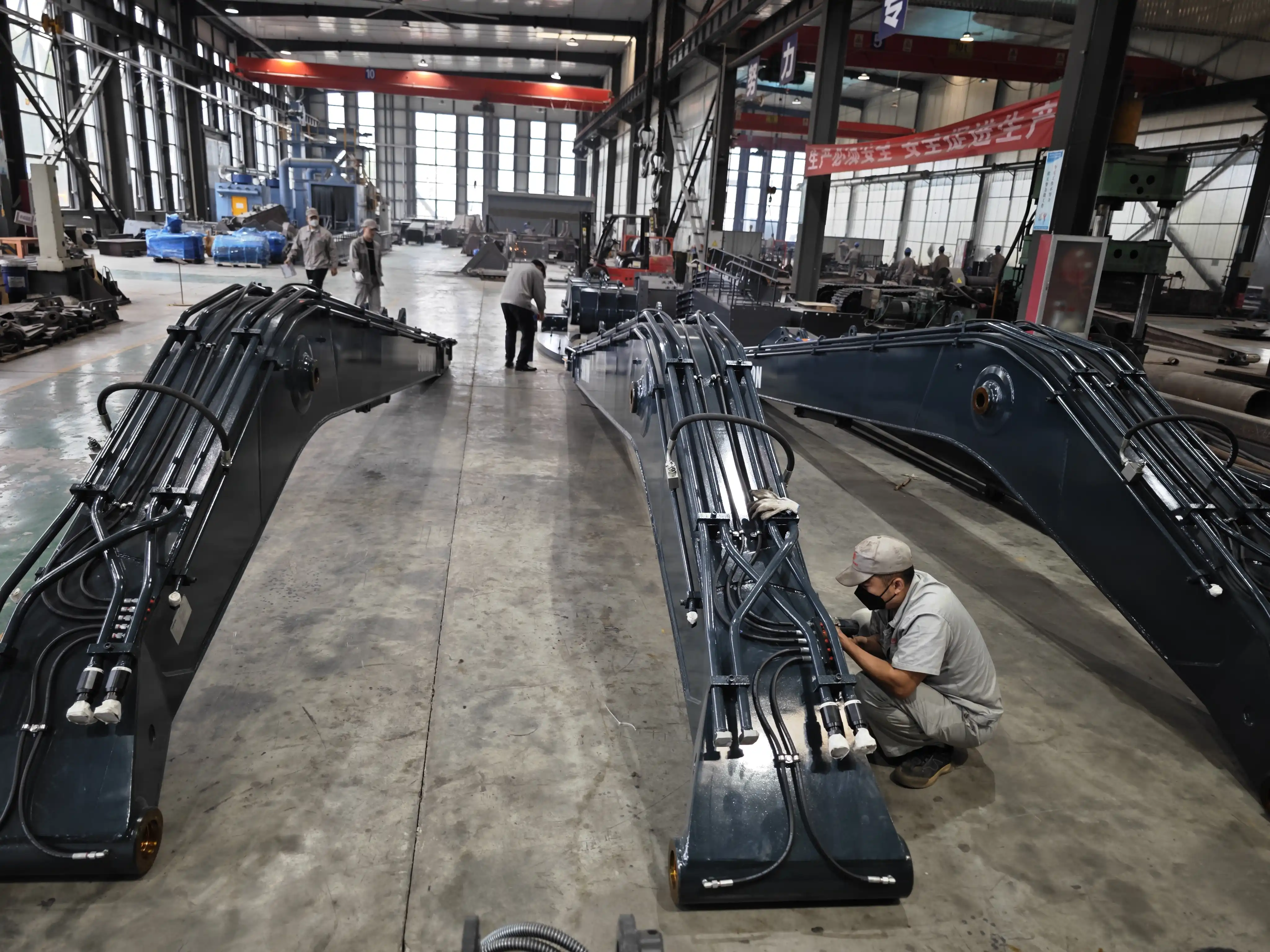

Vertical Reach
Vertical reach indicates the maximum height an excavator arm can extend upward, measured from ground level to the highest point the bucket can achieve. This dimension determines the excavator's capability for overhead operations.
In long arm excavator models, vertical reach typically ranges from 40 to 65 feet (12 to 20 meters). Tiannuo's specialized configurations offer maximum excavation heights up to 13,500mm to 15,300mm (44-50 feet).
Superior vertical reach enables:
- Demolition of multi-story structures
- Tree management and forestry applications
- Installation of deep foundation elements
- Maintenance of elevated railway structures
- Material placement at significant heights
The vertical reach dimension becomes particularly important when evaluating a machine's versatility across different project types, especially those involving work at varying elevations.

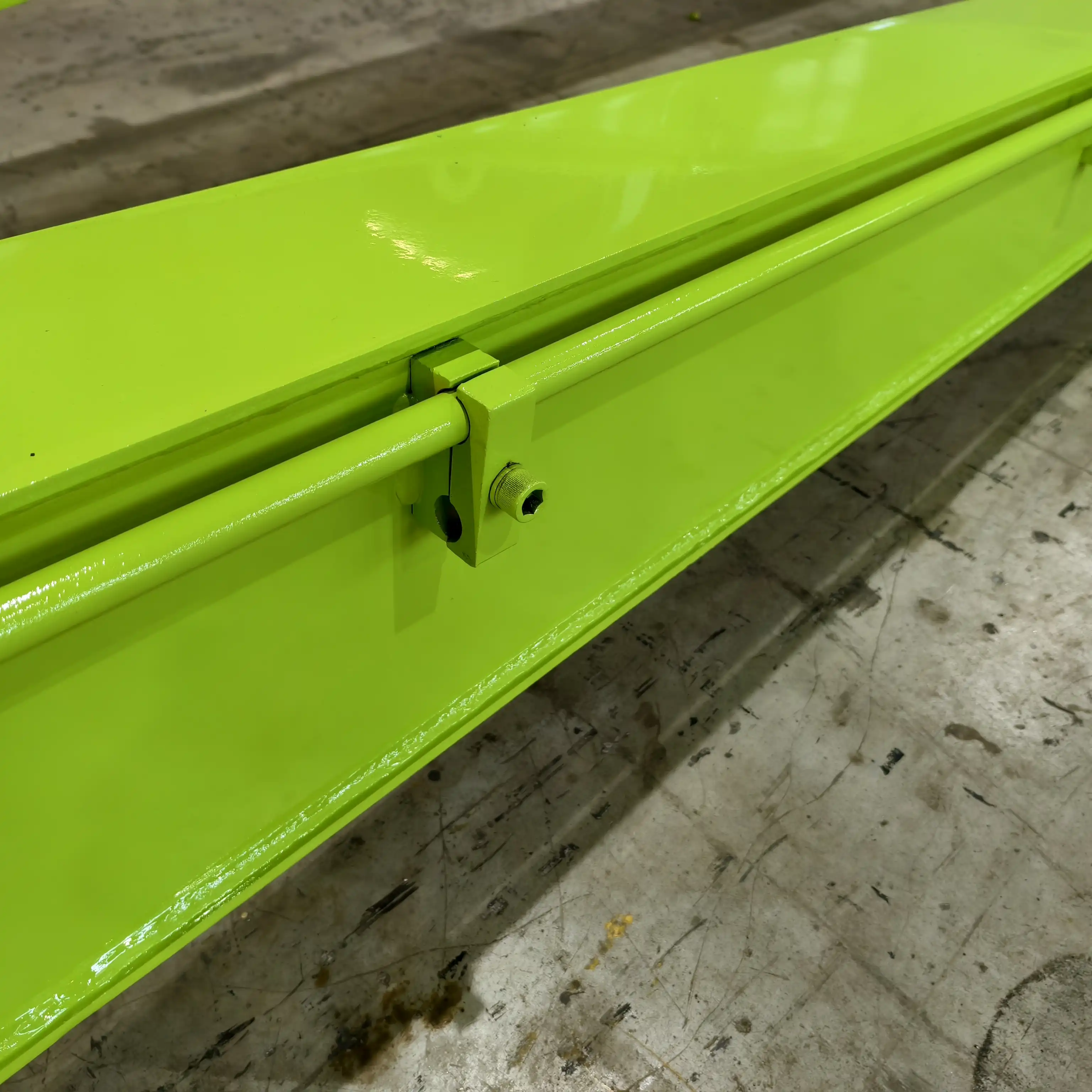

Digging Depth
Digging depth represents the maximum distance below ground level that an excavator can effectively excavate. For long arm excavators, this specification often determines their suitability for specialized underground applications.
These specialized machines typically offer digging depths between 25 to 60 feet (7.5 to 18 meters), with Tiannuo models achieving depths of 11,200mm to 12,200mm (37-40 feet).
Enhanced digging depth capabilities prove essential for:
- Deep utility installation
- Pond or lake dredging operations
- Foundation work for large structures
- Underground infrastructure maintenance
- Deep environmental remediation projects
The combination of exceptional horizontal reach, vertical reach, and digging depth gives long arm excavators unmatched versatility for challenging projects where standard equipment proves inadequate.
Long Arm Excavator "Effective Operating Range"
The effective operating range of a long arm excavator encompasses more than just linear measurements. It represents the three-dimensional workspace where the machine can efficiently perform tasks with appropriate force, precision, and stability. Understanding this comprehensive operational envelope helps project managers select the right equipment for specific challenges.
Maximum Effective Reach vs. Structural Reach
While manufacturers often advertise impressive reach specifications, the effective operating range, where the machine maintains optimal performance, may differ significantly from maximum structural reach limits.
The maximum effective reach defines the zone where a long arm excavator can:
- Maintain sufficient bucket force for productive digging
- Support lifted loads without compromising stability
- Operate with precision for detailed work
- Avoid excessive wear on components
- Function without risking structural integrity
This effective range typically decreases as the arm extends further from the machine's center of gravity. At maximum extension, a long-arm excavator might have adequate reach but reduced digging force or lifting capacity.
Tiannuo addresses this challenge through advanced counterweight systems and reinforced boom structures that enhance stability throughout the operating range, maintaining efficiency even at extended reaches of 15,300mm to 17,300mm (50-57 feet).
Factors Affecting Operating Range
Several factors influence the practical operating range of a long arm excavator:
- Machine weight and counterbalance configuration
- Undercarriage width and track design
- Hydraulic system capacity and pressure ratings
- Ground conditions and slope
- Attachment weight and design
- Operator skill and technique
For instance, operating on soft ground reduces stability and may necessitate a reduced working radius. Similarly, heavier attachments decrease the effective reach where the machine can operate safely at full capacity.
Professional excavator manufacturers like Tiannuo design their long arm excavator models with these factors in mind, optimizing the relationship between reach specifications and real-world performance through:
- Enhanced hydraulic systems that maintain force at extended reaches
- Optimized counterweight distribution
- Wider tracks for improved stability
- Custom-engineered arm geometries for specific applications
- Reinforced pivot points and boom structures
Three-Dimensional Work Envelope
The complete operating range of a long arm excavator forms a three-dimensional envelope that determines where the machine can effectively work. This envelope combines:
- Horizontal arc (swing radius)
- Maximum forward reach
- Maximum height
- Maximum depth
- Minimum working radius (how close to the machine it can operate)
Understanding this full work envelope helps project managers position equipment optimally and plan operations efficiently. Modern long arm excavator designs prioritize versatility within this work envelope, with features like:
- Multi-section booms for improved maneuverability
- Quick-change attachment systems
- Adjustable counterweights
- Variable positioning outriggers
- Enhanced operator visibility systems
These innovations expand the effective operating range beyond simple linear measurements, creating machines that deliver exceptional performance across diverse applications from railway maintenance to environmental restoration.
How to choose the "precise reach" according to project requirements?
Selecting a long arm excavator with the appropriate reach specifications requires careful analysis of project requirements and site conditions. The ideal machine balances reach capabilities with practical considerations like transportability, cost-effectiveness, and specific application demands.
Analyzing Project Scope and Site Conditions
Before determining reach requirements, thoroughly assess:
- Maximum required working distance from machine positioning
- Depth of excavation or demolition needed
- Height of structures being worked on
- Access limitations and obstacles
- Soil conditions and stability
- Safety clearance requirements
- Duration of extended reach operations
A comprehensive site survey helps identify the minimum reach specifications required. For railway maintenance projects, measuring the distance from accessible positioning points to the farthest work area establishes baseline reach requirements.
Many projects benefit from creating a detailed site map showing work zones relative to equipment positioning options. This visual analysis helps identify potential reach limitations and determines whether a standard or long-arm excavator is necessary.
When working with Tiannuo, engineering teams analyze these factors to recommend appropriate configurations, whether standard reach, medium extension, or full long arm models with reaches up to 17,300mm (57 feet).
Balancing Reach with Other Operational Factors
While maximum reach might seem like the primary consideration, several other factors influence the optimal long arm excavator selection:
- Transportability: Longer configurations require special transportation arrangements
- Setup time: Extended reach models often require additional assembly
- Versatility: Ultra-long configurations may limit the range of suitable attachments
- Precision requirements: Longer reaches can reduce fine control capabilities
- Project duration: Longer setup times may not justify short-duration work
- Budget constraints: Extended reach models typically command premium pricing
For instance, a project requiring occasional long-reach work might benefit from a modular system where standard excavators can be temporarily configured with extended components rather than a dedicated long arm excavator.
Railway maintenance operations often balance these factors by selecting machines that can be efficiently transported between work sites while providing sufficient reach for track maintenance from stable positions beside the rails.
Application-Specific Reach Requirements
Different applications demand specific reach characteristics from a long-arm excavator:
Dredging Operations:
- Prioritize maximum horizontal reach and digging depth
- Consider water depth and reach from stable shoreline positions
- Account for material density when calculating effective reach
Demolition Projects:
- Focus on vertical reach and precision at height
- Consider dust suppression attachment requirements
- Ensure sufficient reach for safe distancing from falling debris
Railway Maintenance:
- Calculate reach requirements across multiple tracks
- Account for clearance from energized lines
- Consider reach needs for both track bed and overhead work
Environmental Restoration:
- Evaluate reach requirements for accessing sensitive areas
- Consider ground pressure limitations
- Balance reach with attachment versatility for various tasks
Construction Support:
- Analyze reach needs for foundations and excavations
- Consider material placement requirements
- Evaluate potential for multiple application uses
By carefully matching long arm excavator capabilities to specific project requirements, contractors optimize both performance and cost-effectiveness. Tiannuo's range of extended arm configurations with reaches from 15,300mm to 17,300mm (50-57 feet) allows precise matching of equipment to application requirements, ensuring optimal productivity without unnecessary expense.
FAQ
①What is the average reach of a standard excavator compared to a long arm excavator?
Standard excavators typically have a maximum reach of 30-35 feet (9-10.5 meters), while long arm excavators can extend from 40 feet to over 100 feet (12-30+ meters) depending on the model and configuration.
②How does the increased reach affect stability and lifting capacity?
As reach increases, stability and lifting capacity generally decrease proportionally. Most long arm excavator designs compensate with larger counterweights, wider tracks, or outrigger systems to maintain stability at extended reaches.
③Can long arm excavators be transported between job sites easily?
Larger long arm excavator models typically require disassembly for transportation, with specialized trailers and sometimes permits needed for moving oversized components. Some modular designs allow for easier transportation and reassembly on site.
Learn About Tiannuo
The reach capabilities of long-arm excavators represent a critical factor in their application versatility and project suitability. By understanding the distinctions between horizontal reach, vertical reach, and digging depth, contractors can select equipment that precisely matches their operational requirements.
Modern long arm models offer unprecedented reach capabilities that transform how challenging projects are approached. From railway maintenance to environmental restoration, these specialized machines provide access to work areas that would otherwise require expensive temporary structures or multiple equipment solutions.
Tiannuo's advanced long arm excavator models exemplify this evolution in reach capability, with configurations offering maximum reaches of 15,300mm to 17,300mm (50-57 feet), digging depths up to 12,200mm (40 feet), and excavation heights reaching 15,300mm (50 feet). These specifications, combined with engineered stability systems and reinforced components, deliver effective operation throughout the extended work envelope.
For projects requiring specialized reach capabilities, consulting with experienced equipment providers ensures optimal machine selection based on a comprehensive site assessment and application requirements. For more information about selecting the ideal long arm for your specific project needs, contact our team at rich@stnd-machinery.com.
