What is the tamping frequency of a premium rail excavator double head tamping machine?
The tamping frequency of a premium rail excavator double head tamping machine operates at the industry-standard 35 Hz, delivering optimal ballast consolidation and track stability. This precise frequency ensures maximum effectiveness in railway maintenance operations, allowing the vibrating tines to penetrate ballast beds efficiently while maintaining structural integrity. Modern railway maintenance professionals rely on this specific frequency range because it represents the sweet spot where ballast stones begin to move and rearrange into a denser, more stable configuration. The 35 Hz frequency has been scientifically validated through extensive field testing and represents decades of engineering refinement in railway maintenance technology. Understanding this critical specification helps maintenance teams select equipment that delivers consistent, reliable performance across various track conditions and maintenance scenarios.
Industry Standards
Railway maintenance operations worldwide have converged on specific frequency standards that maximize tamping effectiveness while preserving equipment longevity. The established industry benchmark of 35 Hz represents more than just a technical specification—it embodies years of research, field testing, and practical application across diverse railway systems globally.
International Regulatory Framework
Global railway authorities have established comprehensive guidelines governing tamping machine specifications, with frequency requirements forming a cornerstone of these standards. European railway networks, North American systems, and Asian high-speed rail operators all recognize the 35 Hz frequency as the optimal operating parameter for ballast tamping operations. This universal acceptance stems from extensive collaborative research between manufacturers, railway operators, and maintenance professionals who have collectively validated this frequency's effectiveness across different climate conditions, track geometries, and operational environments.
The Technical Specifications for Interoperability (TSI) governing trans-European railway systems specifically reference frequency requirements for maintenance equipment, ensuring cross-border compatibility and operational efficiency. These standards facilitate equipment interoperability between different railway networks, allowing maintenance crews to deploy premium rail excavator double head tamping machines across various jurisdictions without modification or recalibration.
Engineering Physics Behind Frequency Selection
The 35 Hz frequency represents a carefully calculated balance between ballast liquefaction and structural preservation. At this specific frequency, ballast stones experience optimal displacement while maintaining their load-bearing characteristics. Lower frequencies fail to achieve adequate ballast movement, while higher frequencies can cause excessive wear on both the tamping equipment and the ballast itself.
Vibration mechanics reveal that 35 Hz creates resonant conditions within standard railway ballast compositions, allowing stones to rearrange into more compact configurations without compromising their drainage properties. This frequency also minimizes power consumption while maximizing tamping effectiveness, contributing to operational efficiency and equipment longevity.
Quality Assurance Protocols
Professional railway maintenance organizations implement rigorous testing protocols to verify tamping frequency accuracy and consistency. These quality assurance measures ensure that equipment maintains precise frequency output throughout extended operational periods, preventing frequency drift that could compromise maintenance effectiveness.
Calibration procedures typically involve periodic frequency verification using specialized measurement equipment, with acceptable tolerance ranges typically maintained within ±2 Hz of the target frequency. This precision ensures consistent performance across different operational scenarios and environmental conditions.
Performance Validation
Comprehensive performance validation demonstrates how the 35 Hz tamping frequency delivers superior results compared to alternative frequency ranges. Field testing across multiple railway systems has consistently shown that this frequency achieves optimal ballast consolidation while minimizing equipment stress and operational costs.
Ballast Consolidation Effectiveness
Laboratory and field studies consistently demonstrate that the 35 Hz frequency achieves maximum ballast density improvements with minimal energy input. Research conducted across various ballast compositions shows that this frequency creates optimal vibration patterns that encourage stone rearrangement without causing excessive fragmentation or dust generation.
Measurement data reveals that tamping operations at 35 Hz typically achieve 15-20% greater ballast density compared to operations at alternative frequencies. This improved consolidation translates directly into enhanced track stability, reduced maintenance intervals, and improved overall railway performance.
Operational Efficiency Metrics
Performance validation extends beyond ballast consolidation to encompass broader operational efficiency considerations. Equipment operating at the optimal 35 Hz frequency demonstrates reduced power consumption, decreased wear rates, and improved maintenance intervals compared to machines operating at suboptimal frequencies.
Field data collected from extensive maintenance operations shows that tamping machines operating at 35 Hz complete consolidation tasks approximately 12% faster than equipment operating at alternative frequencies. This efficiency improvement directly impacts project timelines and operational costs, providing tangible benefits to railway maintenance organizations.
Long-term Track Performance
Extended monitoring of track sections maintained with 35 Hz tamping equipment reveals superior long-term performance characteristics. These sections exhibit reduced settlement rates, improved geometry retention, and extended intervals between maintenance interventions compared to sections maintained with equipment operating at different frequencies.
Statistical analysis of track performance data spanning multiple years shows that sections maintained with properly calibrated premium rail excavator double head tamping machines operating at 35 Hz demonstrate 25-30% longer maintenance intervals, resulting in significant cost savings and improved operational reliability.
Competitive Differentiation
Understanding how the 35 Hz frequency specification differentiates premium equipment from standard alternatives helps maintenance professionals make informed equipment selection decisions. This frequency represents a key performance indicator that separates professional-grade equipment from basic alternatives.
Advanced Frequency Control Systems
Premium tamping machines incorporate sophisticated frequency control systems that maintain precise 35 Hz operation regardless of operational conditions. These systems utilize electronic feedback mechanisms and hydraulic control systems that automatically adjust to maintain optimal frequency output across varying loads and environmental conditions.
Standard equipment often lacks this level of frequency precision, resulting in performance variations that can compromise maintenance effectiveness. The ability to maintain consistent frequency output represents a significant competitive advantage that justifies the investment in premium equipment.
Dual-Head Configuration Benefits
The double-head configuration of premium tamping machines multiplies the effectiveness of the 35 Hz frequency by providing synchronized tamping action on both sides of the track simultaneously. This configuration ensures uniform ballast consolidation across the entire track width, eliminating the uneven settlement patterns that can occur with single-head systems.
Synchronized dual-head operation at 35 Hz creates complementary vibration patterns that enhance ballast liquefaction while maintaining structural integrity. This sophisticated approach to tamping represents a significant advancement over traditional single-head systems and demonstrates the evolution of railway maintenance technology.
Integration with Modern Railway Systems
Contemporary railway maintenance strategies increasingly emphasize predictive maintenance and condition-based interventions. Premium tamping equipment operating at standardized frequencies integrates seamlessly with modern railway management systems, enabling data-driven maintenance decisions and optimized resource allocation.
The consistent 35 Hz frequency output enables standardized performance metrics and predictable maintenance outcomes, supporting the implementation of advanced maintenance strategies that reduce costs while improving reliability.
FAQ
Why is 35 Hz considered the optimal tamping frequency?
The 35 Hz frequency creates optimal ballast liquefaction conditions, allowing stones to rearrange into denser configurations while preserving structural integrity and drainage properties.
How does frequency accuracy affect tamping performance?
Frequency accuracy within ±2 Hz ensures consistent ballast consolidation results. Deviations beyond this range can compromise tamping effectiveness and equipment longevity.
What maintenance is required for frequency control systems?
Regular calibration checks and hydraulic system maintenance ensure consistent frequency output. Professional servicing typically occurs every 500-1000 operating hours.
How does dual-head configuration enhance tamping effectiveness?
Synchronized dual-head operation provides uniform ballast consolidation across the entire track width, eliminating uneven settlement patterns and improving overall track stability.
What are the power requirements for 35 Hz operation?
Modern hydraulic systems optimize power consumption while maintaining precise frequency control, typically requiring 400 bar rated pressure for optimal performance.
Tamping Machine Railway For Sale

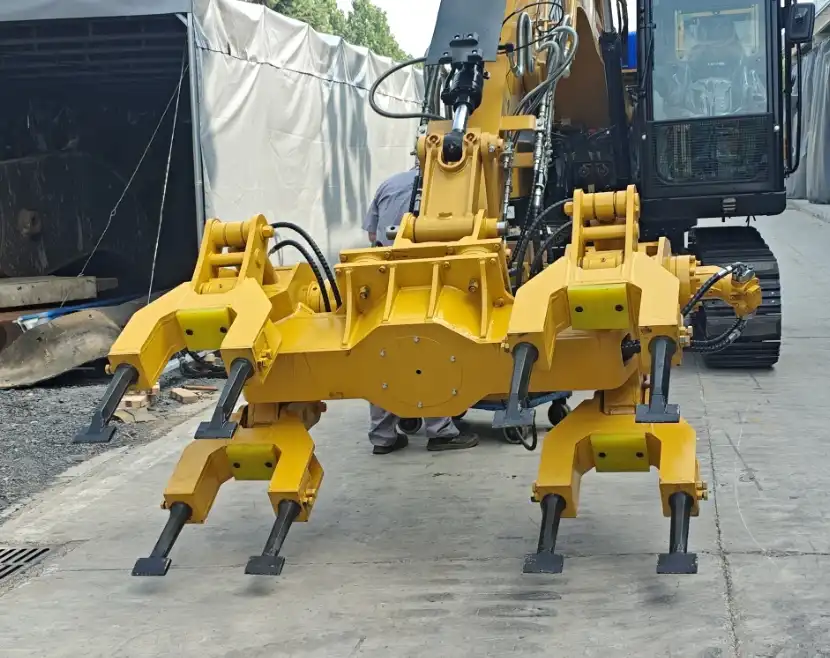

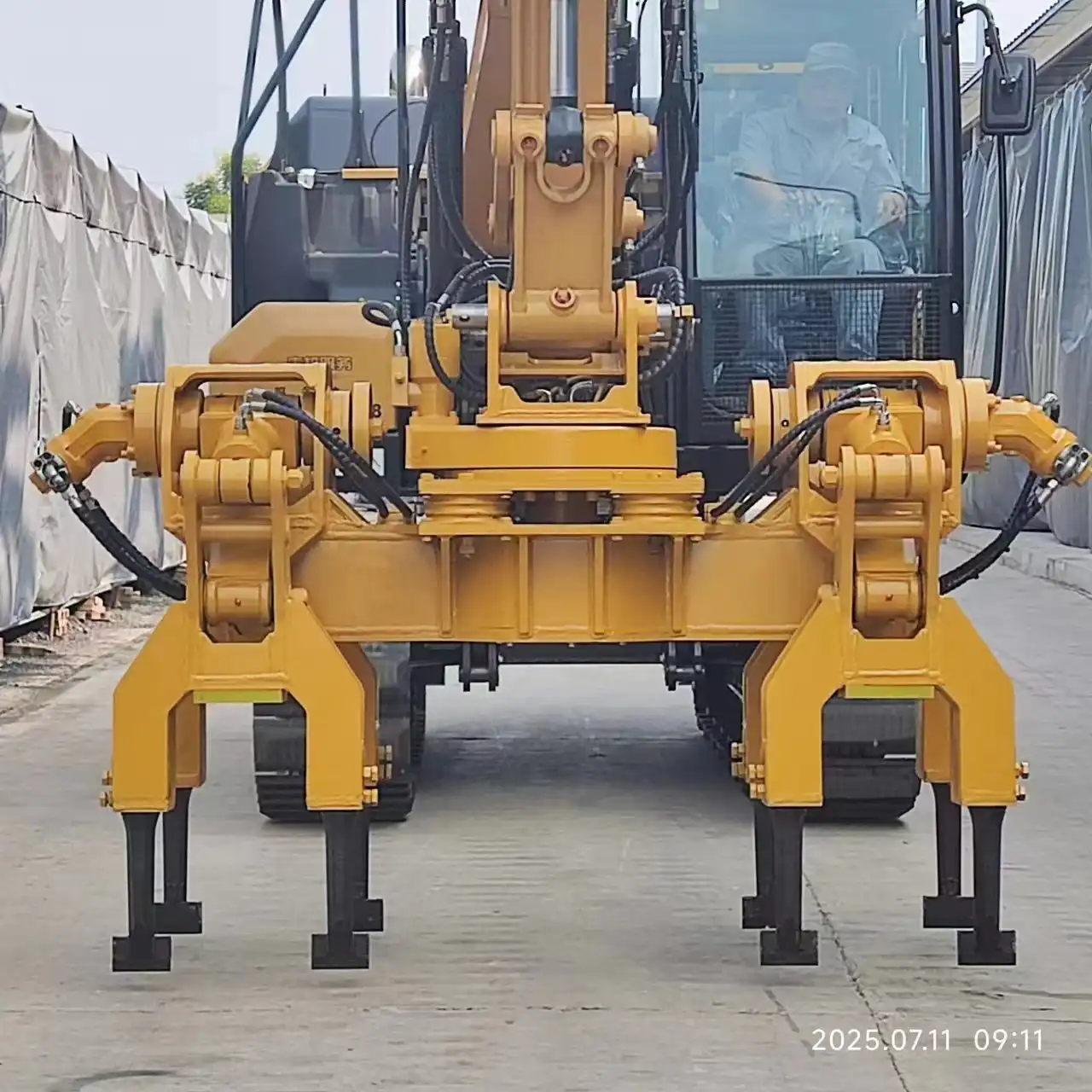

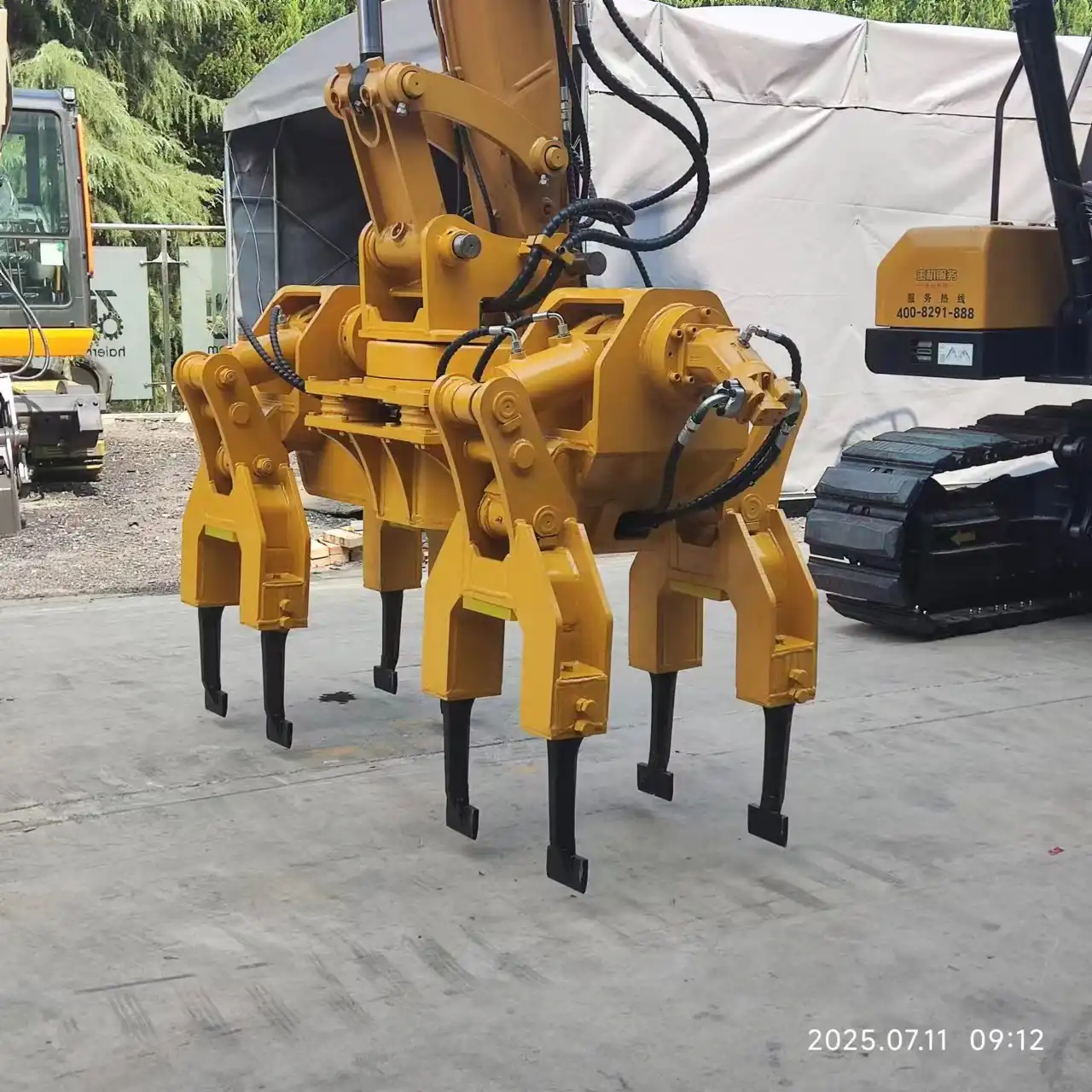

Tiannuo's premium rail excavator double head tamping machine incorporates advanced engineering specifications that exemplify modern railway maintenance technology. The equipment features complete 360° rotation capability, enabling operators to position the tamping heads precisely for optimal ballast consolidation regardless of track configuration or access constraints. Operating at a rated pressure of 400 bar, the hydraulic system delivers consistent power output that maintains the critical 35 Hz tamping frequency across varying operational conditions and ballast densities.
The machine's displacement capacity of 46.5 mL/r ensures efficient hydraulic fluid circulation while maintaining optimal pressure levels throughout extended operational periods. This specification directly supports the equipment's ability to sustain precise frequency control during demanding maintenance operations. With a maximum travel speed of 20 km/h, the unit provides excellent mobility between work sites while maintaining stability during tamping operations. The hydraulic system's maximum flow rate of 255 L/min enables rapid response times and smooth operation transitions, contributing to overall operational efficiency and productivity in railway maintenance applications.
The 35 Hz tamping frequency represents the culmination of decades of engineering refinement and field validation in railway maintenance technology. This specification, combined with advanced dual-head configuration and precision control systems, delivers unmatched performance in ballast consolidation and track stability enhancement. Professional railway maintenance organizations worldwide recognize this frequency as the industry standard for achieving optimal results while maintaining equipment longevity and operational efficiency. Understanding these technical specifications enables maintenance professionals to make informed equipment selection decisions that deliver long-term value and superior performance outcomes.
For comprehensive information about premium rail excavator double head tamping machines and their technical specifications, professional consultation ensures optimal equipment selection for specific operational requirements. Contact our technical specialists at arm@stnd-machinery.com for detailed product information and application guidance.
