What Is Tunnel Arm On An Excavator?
An excavator tunnel arm represents a specialized attachment designed specifically for working in confined spaces and underground environments where standard excavator arms prove ineffective. This innovative equipment modification transforms conventional excavators into precision tools capable of navigating tight spaces, low-clearance areas, and complex underground construction scenarios. Its configuration allows operators to maintain full excavation capabilities while working within spatial constraints that would otherwise make projects impossible.

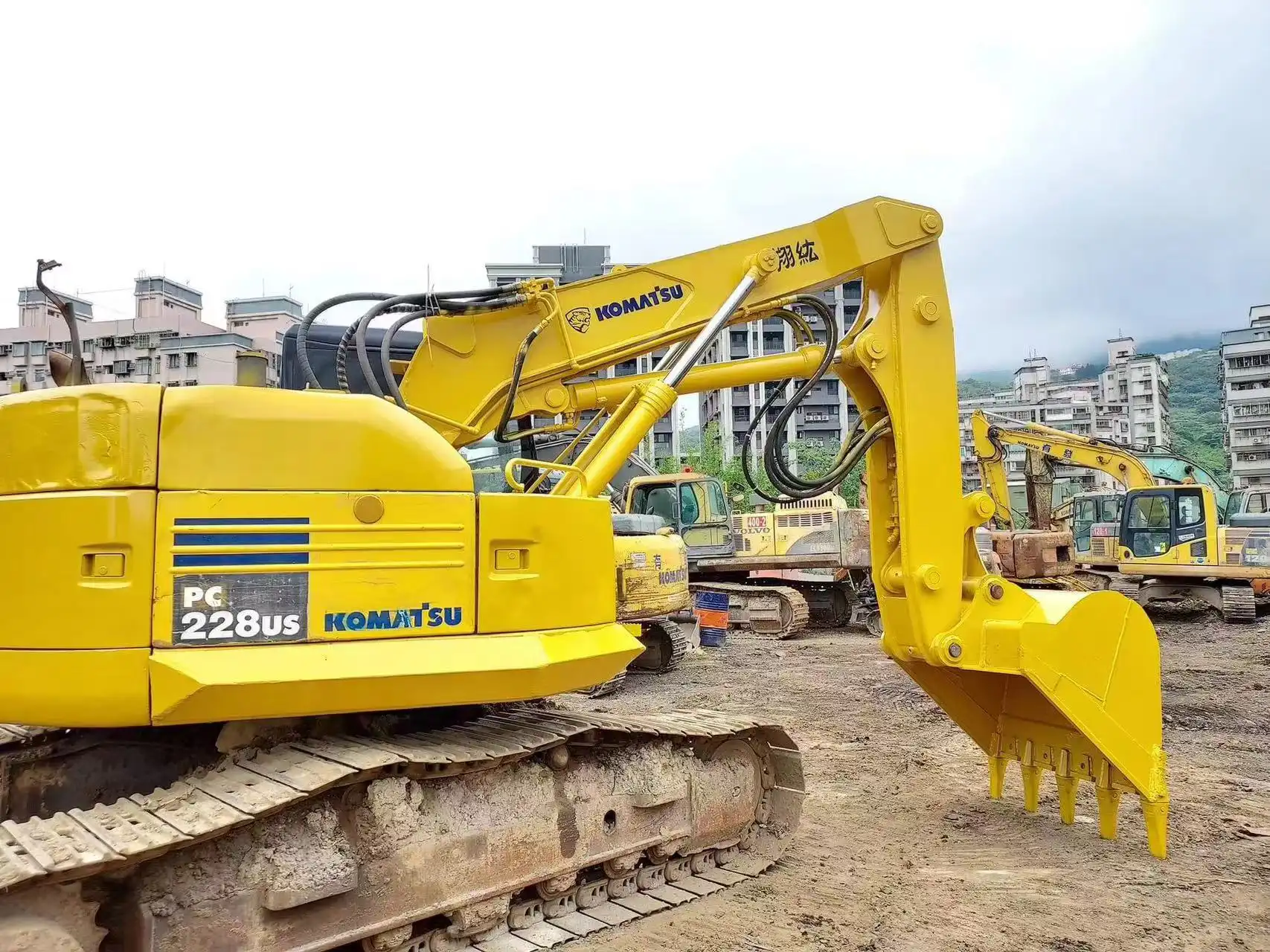

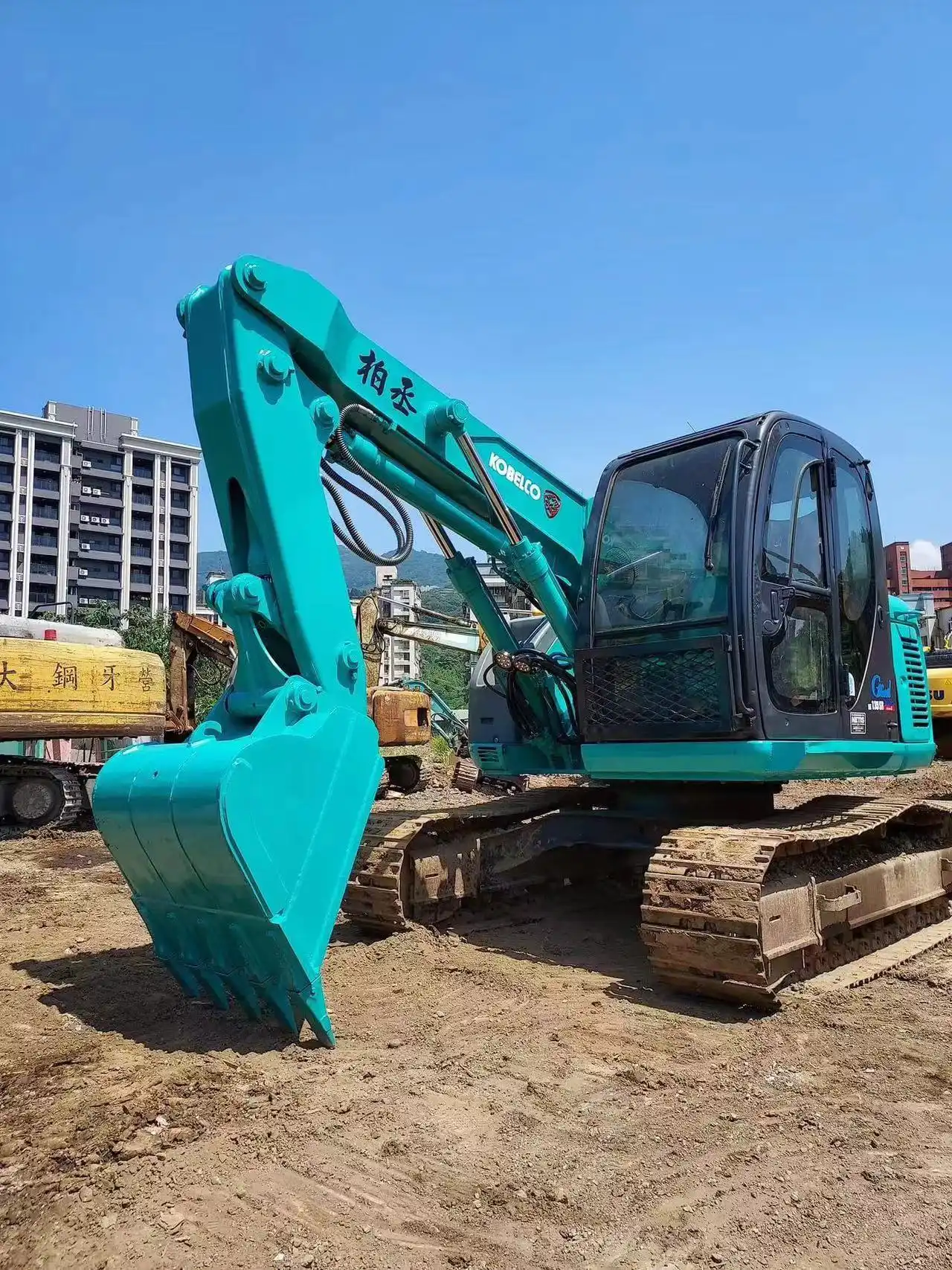

The tunnel arm features a distinctive shortened boom and arm design that reduces the overall height profile while maintaining maximum digging force and precision control. Unlike traditional excavator configurations, tunnel arms sacrifice some reach distance in favor of enhanced maneuverability and the ability to operate in environments with limited vertical clearance.
Core Definition
Understanding the fundamental characteristics of excavator tunnel arms requires examining their unique design philosophy and operational capabilities. These specialized attachments represent a significant departure from conventional excavator configurations, offering solutions for challenging construction environments.
Structural Configuration and Dimensions
The structural design of tunnel arms emphasizes compactness without compromising operational effectiveness. Unlike standard excavator arms that prioritize maximum reach, tunnel arms feature shortened boom sections and modified arm geometry that reduces overall height while maintaining adequate working envelope. This configuration typically reduces the excavator's profile by 30-40% compared to standard configurations, enabling operation in spaces with ceiling heights as low as 3-4 meters.
The dimensional optimization involves careful engineering calculations that balance reach capabilities with height restrictions. The boom angle is typically adjusted to provide maximum digging depth while ensuring the excavator can operate within confined vertical spaces. This engineering approach requires specialized hydraulic cylinder positioning and modified pivot points that maintain structural integrity while achieving the desired compact profile.
Operational Characteristics
Tunnel arms maintain remarkable operational versatility despite their compact design. The digging force remains comparable to standard excavator configurations, ensuring that performance is not significantly compromised by the dimensional modifications. The hydraulic systems are specifically calibrated to provide optimal power distribution across the shortened boom and arm assembly, maintaining precise control characteristics essential for underground work.
The operational envelope of tunnel arms differs significantly from standard excavators, with emphasis placed on depth capability rather than horizontal reach. This design philosophy makes tunnel arms particularly effective for vertical excavation tasks, deep foundation work, and applications requiring precise material handling in confined spaces. The reduced swing radius also enhances maneuverability in tight working areas.
Application-Specific Adaptations
Modern tunnel arms incorporate numerous application-specific features that enhance their effectiveness in specialized environments. These adaptations might include reinforced structural components to handle the increased stress concentrations associated with confined space operations, specialized lighting systems for underground work, and enhanced operator visibility features that accommodate the unique sight lines required for tunnel operations.
The control systems in tunnel arms often feature modified sensitivity settings that provide enhanced precision for delicate underground work. These modifications ensure that operators can maintain the fine control necessary for working around existing utilities, structural supports, and other sensitive infrastructure commonly encountered in tunnel environments.
Design & Technical Features
The engineering excellence behind excavator tunnel arms encompasses sophisticated design elements that enable reliable performance in demanding underground environments. These technical features represent years of development focused on overcoming the unique challenges presented by confined space excavation.
Hydraulic System Optimization
The hydraulic architecture of tunnel arms requires specialized engineering to maintain performance within the constraints of shortened boom geometry. Advanced hydraulic circuit designs ensure optimal flow distribution while accommodating the modified cylinder positioning required for compact operation. The system pressure and flow rates are carefully calibrated to provide maximum digging force despite the geometric limitations imposed by the shortened configuration.
Hydraulic cylinder placement in tunnel arms often involves innovative mounting solutions that maintain structural integrity while achieving the desired compact profile. These cylinders must provide adequate force throughout the modified operating envelope while ensuring smooth operation across the full range of motion. The hydraulic lines are typically routed through protected channels to prevent damage in confined working environments.
Structural Engineering and Materials
The structural design of excavator tunnel arms requires exceptional engineering expertise to maintain strength and durability within the constraints of shortened geometry. High-strength steel alloys are typically employed to ensure adequate load-bearing capacity while minimizing weight penalties associated with the compact design. The structural analysis must account for the altered stress distributions that result from the modified boom and arm configuration.
Reinforcement strategies in tunnel arms often involve strategic placement of additional structural elements in high-stress areas. These reinforcements must be carefully integrated to maintain the compact profile while providing the necessary strength to handle demanding excavation tasks. The welding techniques employed in tunnel arm construction typically exceed standard specifications to ensure long-term reliability in challenging operating environments.
Material selection extends beyond basic strength requirements to include considerations for corrosion resistance and fatigue performance. Underground environments often present aggressive conditions that can accelerate wear and deterioration, making material selection critical for long-term performance. Specialized coatings and surface treatments are frequently employed to enhance durability and extend service life.
Safety and Control Systems
Safety systems in tunnel arms incorporate numerous features designed to protect both operators and equipment during confined space operations. These systems typically include overload protection mechanisms that prevent damage from excessive forces, stability monitoring systems that alert operators to potentially dangerous operating conditions, and emergency shutdown capabilities that can quickly halt operations if hazardous conditions develop.
The control systems in excavator tunnel arms often feature enhanced ergonomic designs that accommodate the unique operating requirements of confined space work. These might include specialized display systems that provide clear visibility of critical operating parameters, intuitive control layouts that reduce operator fatigue during extended underground operations, and communication systems that maintain contact with surface personnel during tunnel work.
Key Advantages
The unique capabilities of excavator tunnel arms deliver significant advantages that make them indispensable for specialized construction applications. These benefits extend beyond simple dimensional modifications to encompass enhanced operational capabilities and project efficiency improvements.
Enhanced Maneuverability in Confined Spaces
The compact design of tunnel arms provides unprecedented maneuverability in environments where conventional excavators cannot operate effectively. This enhanced maneuverability translates directly into improved project capabilities, allowing construction teams to tackle complex underground projects that would otherwise require alternative excavation methods or extensive site modifications.
The reduced height profile enables excavator tunnel arms to operate in basements, underground parking structures, and tunnel environments with minimal clearance requirements. This capability eliminates the need for extensive site preparation or structural modifications that would be required to accommodate standard excavator configurations. The ability to work in existing structures without major modifications significantly reduces project costs and timeline requirements.
The improved maneuverability also extends to horizontal movement within confined spaces. The shortened boom configuration reduces the turning radius required for equipment positioning, enabling efficient operation in tight working areas. This characteristic proves particularly valuable in urban construction projects where space constraints limit equipment movement and positioning options.
Maintained Performance in Challenging Environments
Despite their compact design, excavator tunnel arms maintain exceptional performance characteristics that rival standard excavator configurations. The digging force and precision control remain largely unchanged, ensuring that operators can complete demanding excavation tasks without performance compromises. This maintained performance capability makes tunnel arms viable alternatives for projects requiring both confined space operation and high-performance excavation.
The hydraulic systems in tunnel arms are specifically optimized to deliver consistent performance across varying operating conditions. This optimization ensures reliable operation in underground environments where temperature variations, humidity levels, and dust conditions might affect equipment performance. The robust hydraulic design provides consistent power delivery regardless of environmental challenges.
Its structural integrity enables them to handle demanding excavation tasks while maintaining long-term reliability. The engineering approaches employed in tunnel arm design ensure that performance standards are maintained throughout the equipment's operational life, providing consistent capabilities that construction teams can depend on for critical project phases.
FAQ
①What makes an excavator tunnel arm different from a standard excavator arm?
Tunnel arms feature shortened boom and arm sections that reduce overall height while maintaining digging force, specifically designed for confined space operations where standard excavators cannot fit.
②Can tunnel arms handle the same workload as standard excavator configurations?
Yes, tunnel arms maintain comparable digging force and operational capabilities despite their compact design, though with reduced reach compared to standard configurations.
③What types of projects typically require excavator tunnel arms?
Tunnel arms are essential for subway construction, underground utility installation, basement excavation, mining operations, and any project requiring excavation in confined spaces.
④Are tunnel arms compatible with different excavator models?
Designed to be compatible with major excavator brands and models, though specific compatibility should be verified based on hydraulic specifications and mounting requirements.
⑤What safety features are included in modern excavator tunnel arms?
Overload protection, stability monitoring, reinforced structural components, and enhanced control systems designed specifically for confined space operations.
About Tiannuo
Tiannuo's excavator tunnel arm solutions combine cutting-edge engineering with practical design features that address the real-world challenges of confined space excavation. Our tunnel arms are constructed from high-strength steel and offer maximum reach capabilities up to 15 meters while maintaining lifting capacity up to 30 tons. These systems are compatible with all major excavator brands and include essential safety features such as overload protection and reinforced stability systems.
Our engineering team understands that every confined space project presents unique challenges, which is why we offer customization options that ensure optimal performance for specific applications. Whether your project involves underground construction, basement excavation, or specialized demolition work, our tunnel arm solutions provide the capabilities and reliability necessary for successful project completion. To learn more about how our excavator arm systems can enhance your project capabilities, please contact us at tn@stnd-machinery.com.
