What material is the excavator piling boom made of?

The excavator piling boom represents one of the most critical components in modern construction equipment, specifically engineered for demanding foundation work and deep excavation projects. Understanding the materials used in its construction becomes essential for professionals who rely on these machines daily. The answer lies in the sophisticated combination of high-strength steel alloys and advanced manufacturing techniques that ensure maximum durability and performance.

Modern piling booms are constructed from high-strength, low-alloy structural steel, with the most common grades being Q345 and Q355 steel. These materials provide the exceptional strength-to-weight ratio necessary for handling the immense stresses encountered during piling operations. The boom's construction involves multiple steel components, including main plates, reinforcement structures, and precision-welded joints that work together to create a robust framework capable of withstanding years of intensive use in challenging construction environments.

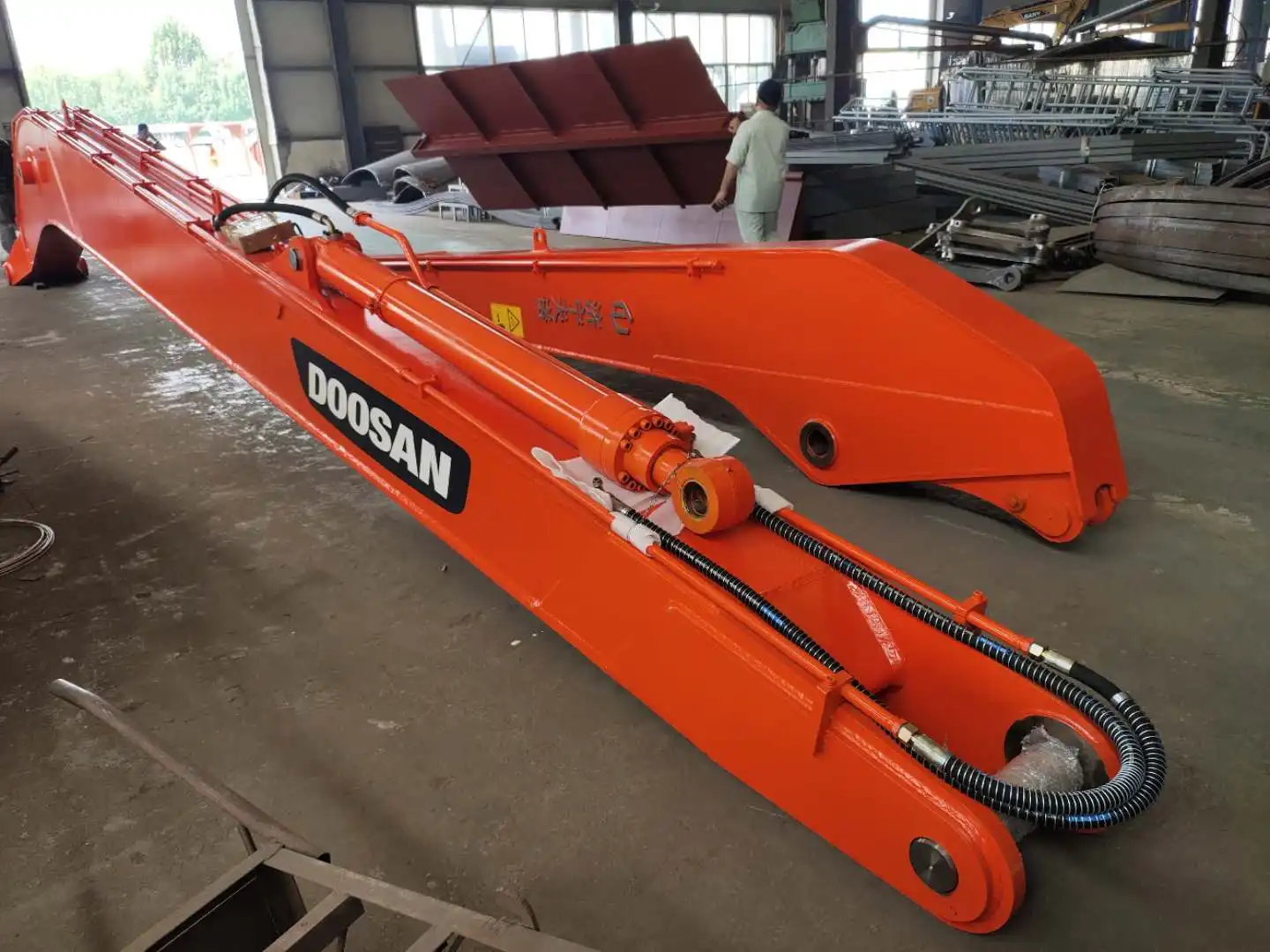

Main Arm and Forearm Plates

The foundation of any reliable excavator piling boom starts with its main structural plates, which form the backbone of the entire assembly. These plates undergo rigorous manufacturing processes that transform raw steel into precisely engineered components capable of handling extreme operational demands.

High-Strength Steel Selection

The selection of appropriate steel grades represents a critical decision in excavator piling boom manufacturing. The steel plate for fabricated box sections is generally a 290 MPa structural steel to a specification something like ASTM A513/A519/A572, though modern manufacturing has evolved to incorporate even stronger materials. Q345 steel, with its yield strength of 345 MPa, has become increasingly popular due to its excellent balance of strength and workability. Meanwhile, Q355 steel offers enhanced performance characteristics, particularly in applications requiring superior load-bearing capacity.

The choice between these materials depends on specific application requirements and operational conditions. Q345 steel provides adequate strength for most standard piling operations while maintaining cost-effectiveness. However, when projects demand maximum durability and performance, Q355 steel becomes the preferred choice due to its superior mechanical properties and enhanced resistance to fatigue.

Plate Thickness and Configuration

Proper plate thickness selection ensures optimal performance while maintaining manageable weight characteristics. Engineers carefully calculate the required thickness based on expected load distributions and stress concentrations. The main arm plates typically range from 16mm to 25mm in thickness, depending on the specific boom design and intended application.

The configuration of these plates involves complex geometric considerations that optimize strength while minimizing material usage. Modern manufacturing techniques allow for variable thickness profiles, where high-stress areas receive additional material thickness while less critical sections remain lighter. This approach maximizes strength where needed most while keeping overall weight manageable.

Heat Treatment and Processing

Heat treatment processes play a crucial role in achieving the desired mechanical properties in excavator piling boom plates. Controlled heating and cooling cycles modify the steel's microstructure, enhancing its strength, toughness, and resistance to wear. The normalization process ensures uniform grain structure throughout the material, eliminating internal stresses that could lead to premature failure.

Additional processing steps, including shot blasting and surface preparation, remove scale and contaminants while creating optimal surface conditions for subsequent welding operations. These preparatory steps prove essential for achieving high-quality welds that maintain structural integrity throughout the boom's service life.

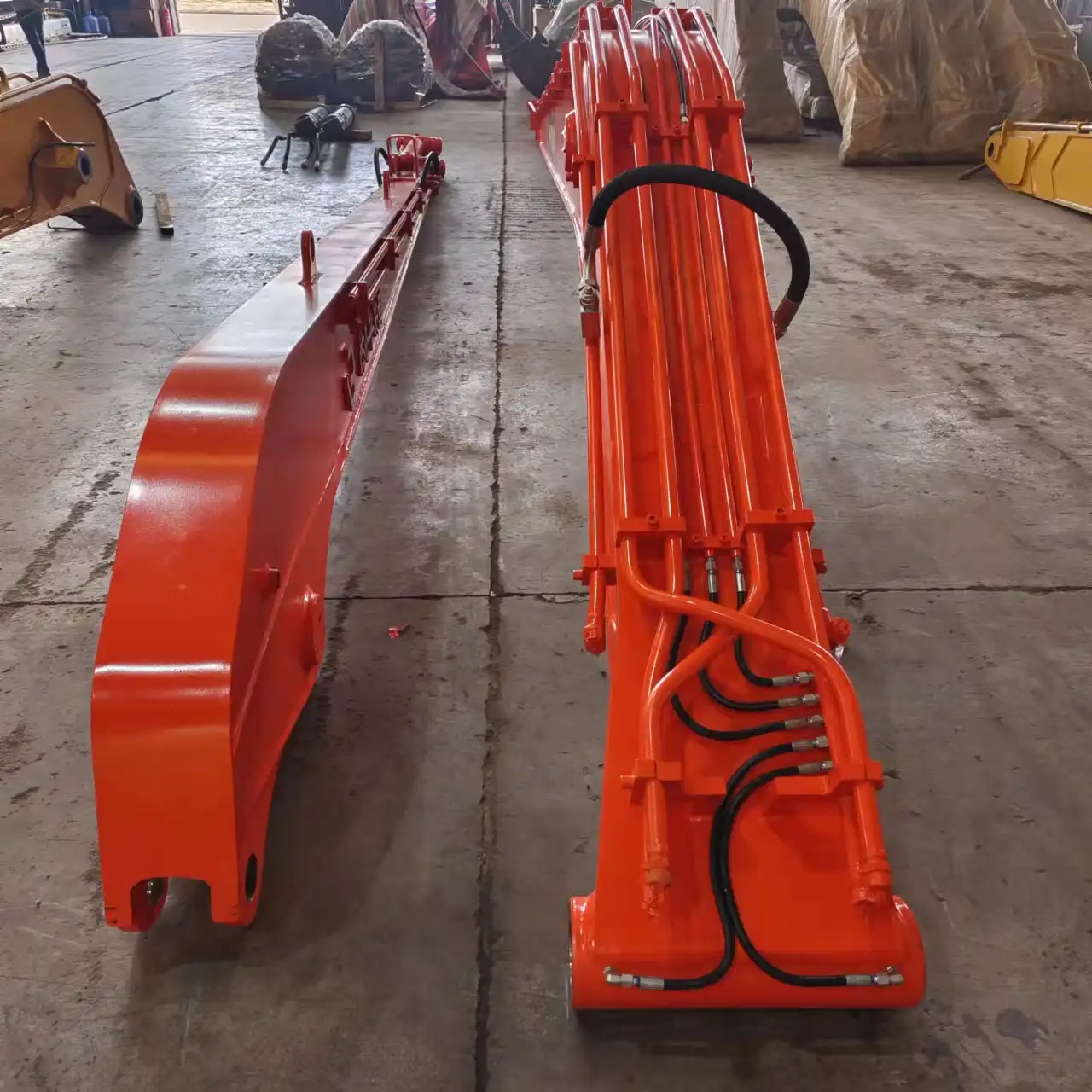

Iron Pipes on the Arm

The cylindrical components within excavator piling boom assemblies serve multiple functions, from housing hydraulic systems to providing structural reinforcement. These iron pipes require careful material selection and manufacturing to ensure reliable performance under demanding conditions.

Hydraulic Cylinder Housing

Hydraulic cylinders represent the powerhouse of piling boom operations, requiring robust housing materials that can withstand extreme pressures and repeated loading cycles. The cylinder barrels are typically manufactured from high-strength steel tubes with precision-machined internal surfaces to ensure smooth operation and minimal wear.

The material selection for hydraulic components involves considerations beyond basic strength requirements. Corrosion resistance becomes particularly important in environments where moisture and chemical exposure are common. Special steel alloys with enhanced corrosion resistance properties ensure long-term reliability and reduced maintenance requirements.

Structural Reinforcement Tubes

Beyond hydraulic applications, various tubular components provide structural reinforcement throughout the piling boom assembly. These tubes are strategically positioned to resist torsional forces and provide additional rigidity where needed most. The wall thickness and diameter of these tubes are carefully calculated to provide optimal strength-to-weight ratios.

Manufacturing these components requires precision forming techniques that maintain consistent wall thickness and dimensional accuracy. Cold-forming processes are often employed to enhance material properties while achieving the required geometries. The seamless construction of these tubes eliminates potential weak points that could compromise structural integrity.

Connection and Mounting Systems

The integration of tubular components into the overall excavator piling boom structure requires sophisticated mounting systems that distribute loads effectively. These connections must accommodate the dynamic nature of piling operations while maintaining structural integrity under varying load conditions.

Advanced mounting designs incorporate features that allow for thermal expansion and contraction, preventing stress concentrations that could lead to failure. The materials used in these connection systems must match the performance characteristics of the primary structural components to ensure uniform load distribution.

Welding

The welding processes employed in excavator piling boom construction represent perhaps the most critical aspect of manufacturing quality. These joints must withstand enormous stresses while maintaining structural integrity throughout the equipment's operational life.

Welding Techniques and Procedures

Excavator piling boom manufacturing employs advanced welding techniques that ensure consistent quality and maximum joint strength. Gas Metal Arc Welding (GMAW) and Shielded Metal Arc Welding (SMAW) are commonly used, with specific technique selection based on material thickness and accessibility requirements.

The welding procedures follow strict protocols that control heat input, travel speed, and post-weld treatment. These parameters are carefully optimized to achieve full penetration welds while minimizing distortion and maintaining favorable metallurgical properties in the heat-affected zones.

Electrode Selection and Compatibility

Proper electrode selection ensures compatibility between the weld metal and base materials. E7018 electrodes are frequently employed due to their excellent mechanical properties and resistance to hydrogen-induced cracking. These electrodes provide welds that match or exceed the strength of the base materials while maintaining good toughness characteristics.

The selection process considers factors such as base material composition, required mechanical properties, and operating environment. Matching the weld metal properties to the base material ensures uniform performance throughout the welded structure.

Quality Control and Testing

Comprehensive quality control measures ensure that every weld meets stringent performance requirements. Non-destructive testing methods, including ultrasonic testing and magnetic particle inspection, verify weld integrity without compromising the structure.

Visual inspection procedures examine weld profiles, surface conditions, and overall workmanship. These inspections identify potential defects before they can compromise operational safety or performance. Post-weld stress relief treatments may be employed to minimize residual stresses and optimize mechanical properties.

FAQ

①What is the typical lifespan of an excavator piling boom?

A well-maintained excavator piling boom can last 8-15 years depending on usage intensity and maintenance practices. Regular inspections and proper lubrication significantly extend service life.

②How does material quality affect piling boom performance?

Higher-grade materials like Q355 steel provide superior strength and fatigue resistance, resulting in better performance and longer service intervals compared to standard materials.

③What maintenance is required for excavator piling boom materials?

Regular cleaning, lubrication of moving parts, and inspection of welds and structural components help maintain material integrity and prevent premature failure.

④Can piling boom materials be repaired if damaged?

Most structural damage can be repaired through proper welding techniques, though repairs must be performed by qualified technicians following manufacturer specifications.

⑤Why is welding quality so important in piling boom construction?

Welding joints experience the highest stress concentrations during operation. Poor welds can lead to catastrophic failure, making quality welding essential for safety and reliability.
