What parameters should the sleeper clamp be compatible with the excavator?
When it comes to railway maintenance and construction, the compatibility between an excavator sleeper clamp and the excavator itself is crucial for efficient and safe operations. The key parameters that ensure this compatibility include dimensional specifications, hydraulic system requirements, and weight capacity considerations. By matching these parameters correctly, operators can maximize productivity, minimize downtime, and ensure the longevity of both the excavator and the sleeper clamp attachment.
Key Dimensions for Excavator-Clamp Compatibility
Arm Width and Pin Diameter: Ensuring Proper Fit
The first critical dimension to consider is the arm width of the excavator. This measurement must align precisely with the mounting bracket of the sleeper clamp. A mismatch here can lead to instability and potential safety hazards. Equally important is the pin diameter, which secures the clamp to the excavator arm. These pins must be of the correct size to ensure a snug fit, preventing any wobble or play during operation.
Clamp Opening Range: Matching Sleeper Sizes
Different railway systems use sleepers of varying sizes. The clamp opening range must be versatile enough to accommodate these differences. A good sleeper clamp should have an adjustable opening that can handle the most common sleeper dimensions used in your specific railway network. This adaptability ensures that the same clamp can be used across various projects, increasing its utility and cost-effectiveness.
Reach and Depth: Optimizing Excavator Performance
The reach of the excavator arm, combined with the added length of the sleeper clamp, determines the operational radius of the equipment. It's essential to calculate this total reach to ensure that the excavator can access all necessary areas of the track without repositioning frequently. Additionally, the depth at which the clamp can operate is crucial, especially when working with ballast or in areas with limited clearance.
By carefully considering these dimensional aspects, railway maintenance teams can ensure that their excavator sleeper clamp operates at peak efficiency. Proper sizing not only enhances performance but also contributes to the overall safety of the worksite. As we move forward, we'll explore how the hydraulic system plays a vital role in the seamless integration of the sleeper clamp with the excavator.
Hydraulic System Requirements for Seamless Integration
Flow Rate and Pressure: Powering the Sleeper Clamp
The hydraulic system of an excavator is the lifeblood of its attachments, including the excavator sleeper clamp. The flow rate, measured in liters per minute (LPM), determines how quickly the clamp can open and close. A higher flow rate generally means faster operation, which can significantly impact productivity on large-scale railway maintenance projects. However, it's crucial to match the flow rate to the clamp's specifications to prevent damage from excessive pressure.
Auxiliary Hydraulic Lines: Connecting Clamp to Excavator
Most modern excavators come equipped with auxiliary hydraulic lines, but it's essential to verify that these lines are compatible with the sleeper clamp's requirements. The number of lines needed (typically one or two) and their positioning on the excavator arm can affect the ease of installation and operation. Some advanced sleeper clamps may require additional lines for features like rotation or tilt functions, which should be factored into the compatibility assessment.
Control Valve Compatibility: Ensuring Smooth Operation
The control valve system in the excavator must be able to manage the excavator sleeper clamp's hydraulic demands effectively. This includes having the right number of spools and the ability to modulate flow and pressure as needed. Some sleeper clamps may require proportional control for precise movements, which not all excavator hydraulic systems can provide out of the box.
Understanding these hydraulic system requirements is crucial for achieving seamless integration between the excavator and the sleeper clamp. Proper hydraulic compatibility ensures not only efficient operation but also reduces wear and tear on both the excavator and the attachment. As we consider the hydraulic aspects, it's important to remember that the weight capacity of the setup is equally critical, which we'll explore next.
Weight Capacity: Matching Clamp to Excavator Size
Lifting Capacity: Balancing Excavator and Clamp Strength
The lifting capacity of an excavator is a fundamental parameter that must be carefully matched with the weight of the excavator sleeper clamp and the sleepers it will be handling. Overloading an excavator can lead to tipping hazards and accelerated wear on the machine's components. It's crucial to consider the excavator's lift chart, which shows the maximum weight it can safely handle at different reach distances and heights.
Clamp Weight: Impact on Excavator Stability and Performance
The weight of the excavator sleeper clamp itself is a significant factor in the overall equation. A heavier clamp reduces the available payload for the sleepers, potentially limiting the excavator's efficiency. Moreover, the added weight at the end of the arm affects the excavator's center of gravity, which can impact its stability, especially when working on uneven terrain common in railway environments.
Material Density: Considering Sleeper Types and Weights
Different sleeper materials, such as wood, concrete, or composite, have varying densities and weights. The sleeper clamp and excavator combination must be capable of handling the heaviest sleepers used in your railway system. It's also worth considering future needs, as trends in sleeper materials may change over time, potentially requiring different weight handling capabilities.
By carefully evaluating these weight capacity factors, railway maintenance teams can ensure that their excavator and sleeper clamp pairing is not only compatible but also optimized for safety and efficiency. The right balance between these parameters contributes to smoother operations and reduced downtime.
Selecting the right parameters for excavator sleeper clamp compatibility is crucial for efficient and safe railway maintenance operations. By carefully considering dimensional specifications, hydraulic system requirements, and weight capacity factors, maintenance teams can ensure optimal performance and longevity of their equipment. Remember, a well-matched excavator and sleeper clamp combination not only enhances productivity but also contributes to overall worksite safety and cost-effectiveness.
FAQ
Q1: How often should I inspect the compatibility of my excavator sleeper clamp?
A1: Regular inspections are crucial. It's recommended to perform a thorough check at least once every six months or after any significant repairs or modifications to either the excavator or the clamp.
Q2: Can I use a sleeper clamp designed for one excavator model on a different model?
A2: While it's sometimes possible, it's not recommended without careful evaluation. Different excavator models may have varying hydraulic specifications and arm dimensions, which could affect compatibility and performance.
Q3: What are the signs that my excavator sleeper clamp is not compatible?
A3: Signs include slow or jerky movements, excessive hydraulic oil heating, difficulty in maintaining grip on sleepers, and unusual wear patterns on the attachment points.
Q4: Is it possible to modify an excavator to make it compatible with a specific sleeper clamp?
A4: In some cases, modifications can be made, such as adding auxiliary hydraulic lines or adjusting the control system. However, this should only be done by qualified professionals and may affect the excavator's warranty.
Q5: How does the choice of sleeper material affect the selection of a compatible excavator sleeper clamp?
A5: Different sleeper materials (wood, concrete, composite) have varying weights and dimensions. The clamp must be able to accommodate these differences in size and weight, which may influence the required hydraulic power and lifting capacity of the excavator.
Excavator Sleeper Clamp Supplier

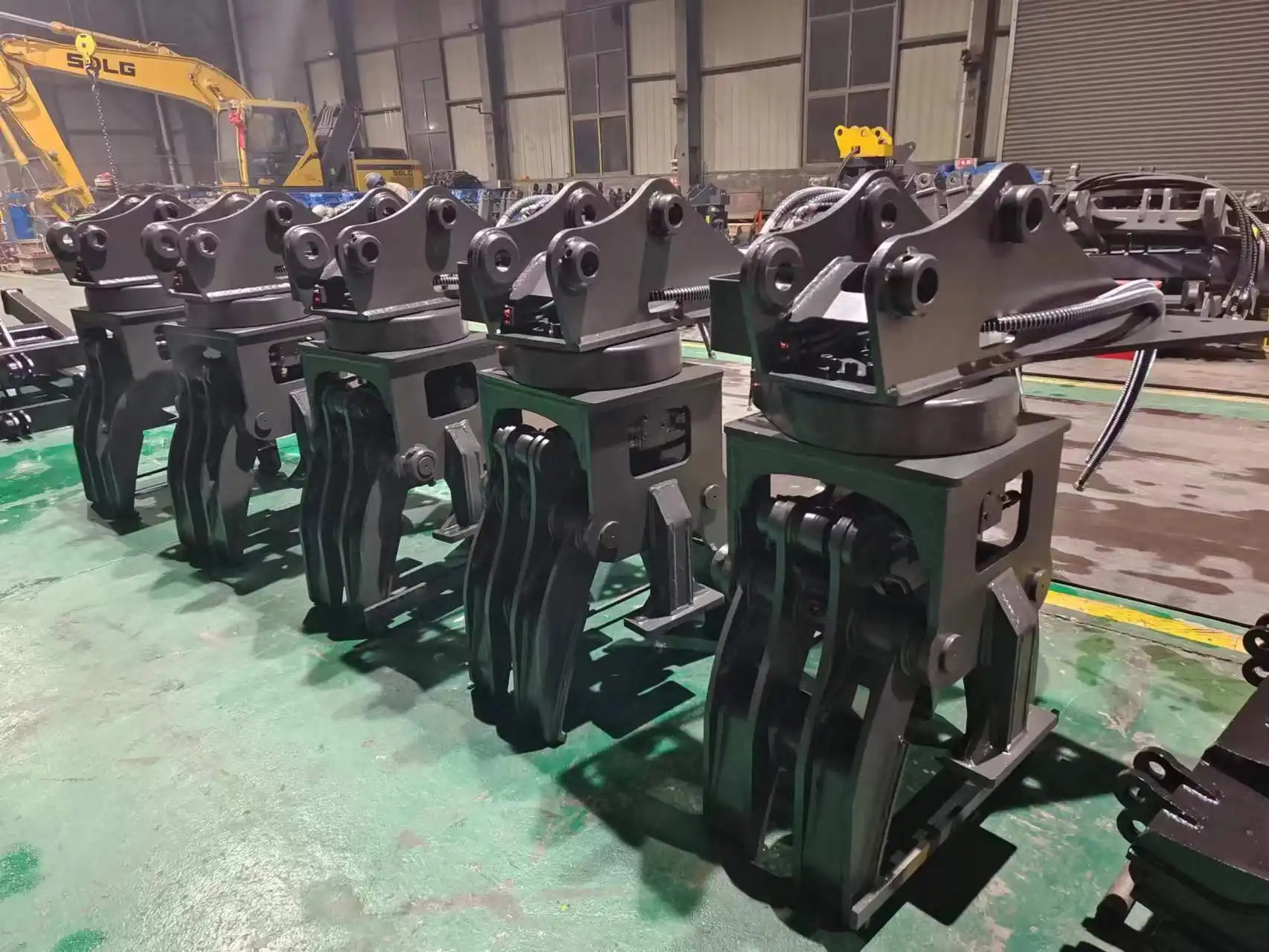

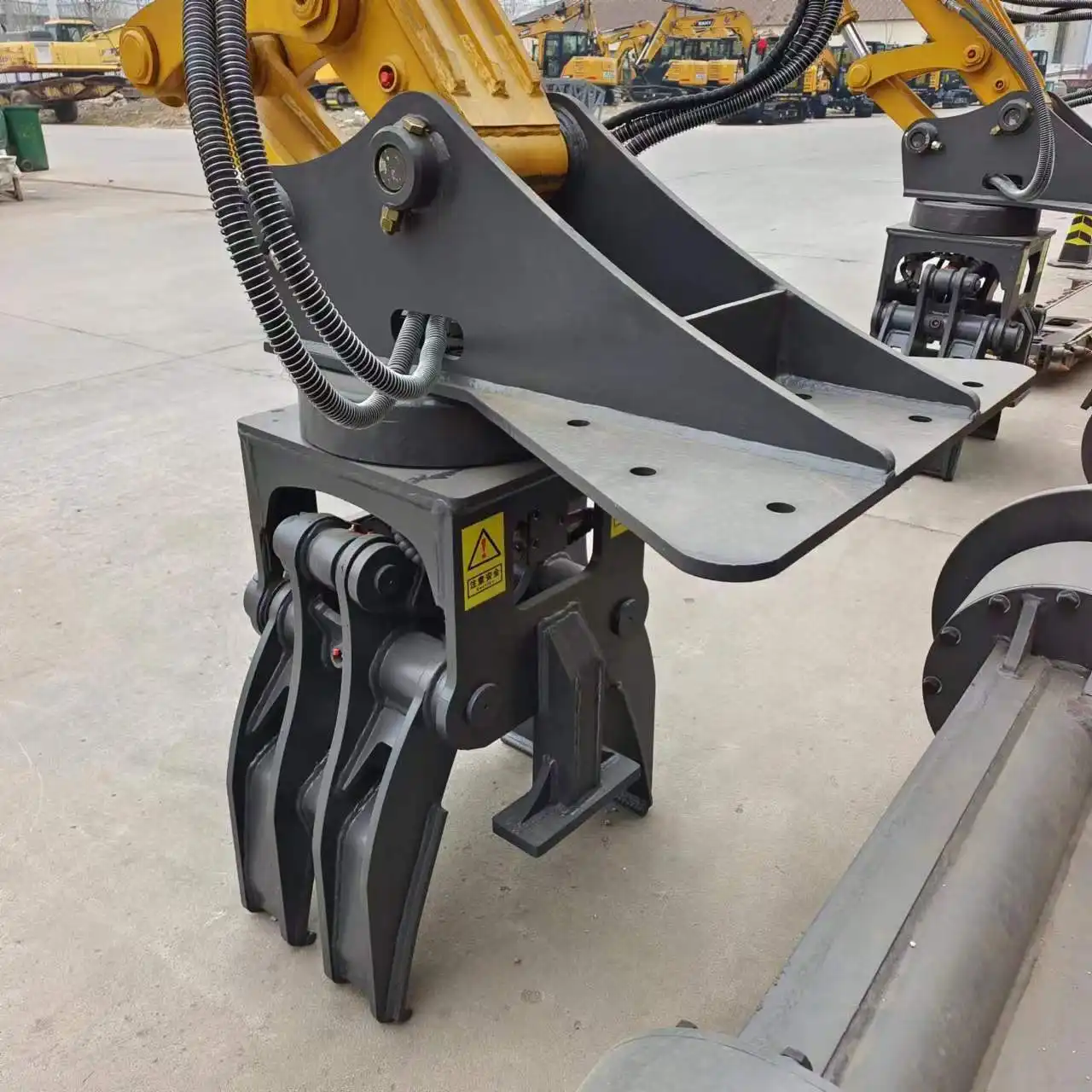

Tiannuo Machinery specializes in manufacturing high-quality excavator sleeper clamps and a wide range of railway maintenance equipment. Our product line includes sleeper changing machines, screening machines, and various excavator accessories designed to meet the diverse needs of the railway construction and maintenance industry. We offer the TNHZJ75 model, suitable for 60-20T host machines and compatible with track gauges of 1000 mm, 1067 mm, 1435 mm, and 1520 mm. This versatile clamp features two sleeper clamps with a 650 mm opening and 360° rotation capability. For more information about our railway maintenance solutions, contact us at arm@stnd-machinery.com.
