What rail gauge does the excavator rail clamp fit?
When you're working on railway maintenance or construction projects, one question that frequently comes up is: what rail gauge does an excavator rail clamp fit? The answer isn't as simple as you might think. Most rail clamps are designed to accommodate the standard 1435mm gauge, which is used across much of the world's railway network. However, many manufacturers, including specialized companies like Tiannuo Machinery, also produce custom clamps for different rail gauges including 1520mm, 1000mm, and 1067mm systems. The key is understanding your specific railway requirements and ensuring your equipment matches the track specifications you'll be working with. Whether you're dealing with standard gauge railways in Europe and North America or narrow gauge systems in mining operations, there's likely a rail clamp solution designed for your needs.
1435mm (Standard)
Understanding Standard Gauge Railways
The 1435mm gauge, commonly known as standard gauge, represents the backbone of global railway infrastructure. This measurement, taken between the inner edges of the rails, became the international standard through historical developments dating back to early British railway construction. Today, you'll find this gauge across major railway networks in North America, Europe, China, and many other regions worldwide.
For railway maintenance crews and construction teams, working with standard gauge presents both advantages and considerations. The widespread adoption of this gauge means that excavator rail clamp systems designed for 1435mm tracks enjoy economies of scale in manufacturing, resulting in more readily available parts and competitive pricing. Most major equipment manufacturers maintain extensive inventories of standard gauge attachments, reducing lead times for urgent projects.
Technical Specifications for Standard Gauge Clamps
Standard gauge excavator rail clamps incorporate precise engineering to ensure secure attachment to 1435mm tracks. The clamping mechanism typically features adjustable jaws that accommodate variations in rail head width and wear patterns. Professional-grade clamps for this gauge usually provide clamping forces ranging from 20 to 35 kN, depending on the excavator size and intended application.
The hydraulic systems powering these clamps operate within specific pressure ranges, typically 16-21 MPa, ensuring reliable engagement without damaging the rail infrastructure. Safety features become particularly important with standard gauge applications, as these railways often carry high-speed passenger traffic or heavy freight loads. Locking pins and pressure hold valves prevent accidental release during operations.
Applications and Benefits of Standard Gauge Systems
Working with standard gauge railways opens opportunities across diverse project types. Railway maintenance operations benefit from the universal compatibility of equipment and tooling. Construction crews appreciate the standardized approach to track work, whether they're installing new infrastructure or upgrading existing lines.
The economic advantages extend beyond equipment costs. Training personnel becomes more efficient when crews can work confidently across different railway networks using familiar gauge specifications. Logistics companies find that standard gauge compatibility simplifies fleet management and reduces the complexity of maintaining specialized equipment for different track systems.
Custom Rail Gauge
Diverse Global Rail Gauge Requirements
While standard gauge dominates many railway networks, numerous regions rely on different track specifications for historical, geographical, or operational reasons. The 1520mm gauge, prevalent across Russia and former Soviet states, requires specialized excavator rail clamp designs to accommodate the wider track spacing. Similarly, narrow gauge systems at 1000mm and 1067mm serve crucial roles in mining operations, industrial facilities, and mountainous terrain where space constraints make standard gauge impractical.
Understanding these gauge variations becomes essential for companies working in international markets or specialized industries. Mining operations frequently employ narrow gauge railways for ore transport, while certain passenger rail systems maintain legacy gauges that require ongoing maintenance support. Each gauge presents unique engineering challenges for clamp manufacturers.
Engineering Challenges with Non-Standard Gauges
Designing effective rail clamps for custom gauges involves more than simply scaling standard designs. The geometry of rail heads, the spacing between tracks, and the structural loads differ significantly across gauge types. Narrow gauge systems often operate in confined spaces, requiring more compact clamp designs that still deliver adequate holding force.
Wide gauge systems like the 1520mm Russian standard present different challenges. The increased track spacing affects the clamp's mechanical advantage and may require modified hydraulic systems to maintain proper clamping pressure. Engineers must also consider the different rail profiles and metallurgy used in various gauge systems, as these factors influence clamp jaw design and surface treatments.
Customization Process and Considerations
Successful custom gauge projects begin with thorough site assessment and specification development. Experienced manufacturers work closely with customers to understand not just the track gauge, but also the specific rail profiles, operating conditions, and safety requirements. This collaborative approach ensures that custom clamps integrate seamlessly with existing excavator systems while meeting local railway standards.
The customization process typically involves detailed engineering drawings, prototype development, and field testing before full production. Quality manufacturers provide comprehensive documentation and support throughout this process, recognizing that custom gauge applications often involve critical infrastructure where reliability cannot be compromised.

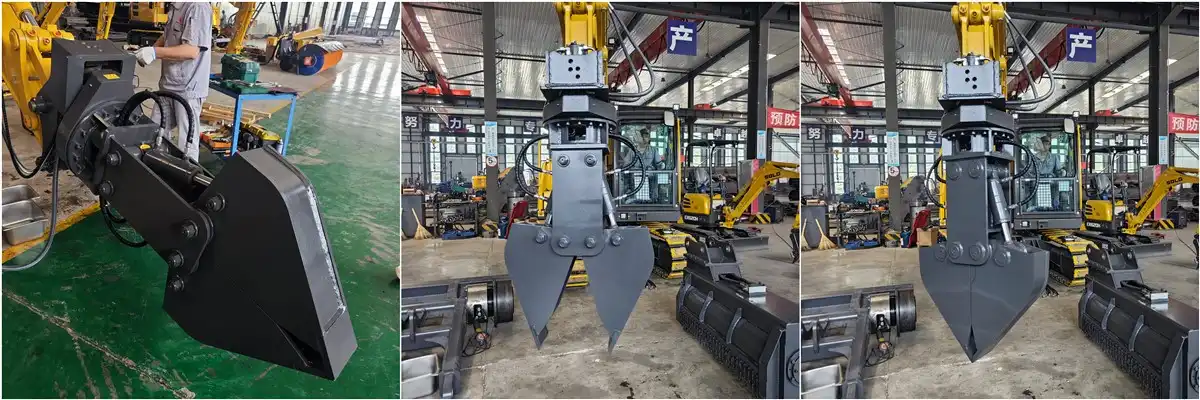

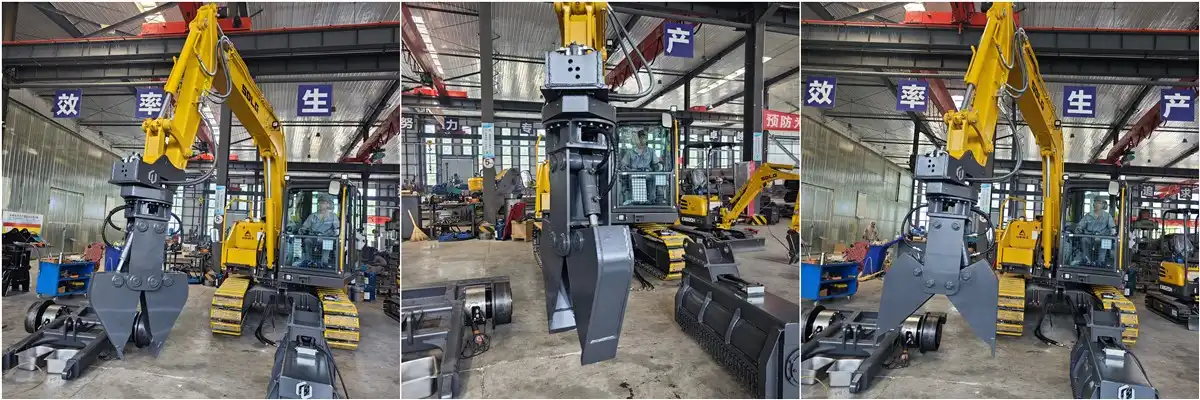

Tiannuo's Excavator Rail Clamp For Sale
Advanced Manufacturing and Quality Standards
Tiannuo Machinery has established itself as a reliable manufacturer of excavator rail clamps through decade-long commitment to quality and innovation. The company's manufacturing process incorporates high-strength alloy steel construction, ensuring durability under demanding railway maintenance conditions. Each excavator rail clamp undergoes rigorous testing protocols, including hydraulic pressure testing and compatibility trials with various excavator models.
The production facility maintains ISO 9001:2015 certification, reflecting systematic quality management throughout the manufacturing process. This certification provides assurance to purchasing managers and engineers who require documented quality procedures for their procurement decisions. The company's quality control measures include material certificates, pressure test reports, and third-party inspection capabilities when required by customer specifications.
Technical Excellence and Customization Capabilities
Tiannuo's excavator rail clamps feature hydraulic and manual operation options, providing flexibility for different operational requirements. The integrated hydraulic systems connect seamlessly with existing excavator hydraulics, eliminating the need for extensive modifications. Clamping forces up to 30 kN accommodate various excavator sizes and application demands, while adjustable configurations ensure optimal performance across different rail conditions.
The company's engineering team specializes in custom solutions for non-standard applications. Whether you're working with narrow gauge mining railways or wide gauge freight systems, Tiannuo can develop clamps that meet your specific requirements. The customization process includes detailed consultation, engineering support, and comprehensive testing to ensure reliable performance in your operating environment.
Customer Support and Global Reach
Understanding that railway maintenance often involves time-sensitive operations, Tiannuo maintains efficient production schedules with lead times typically ranging from 7-20 working days. The company's global shipping capabilities ensure that excavator rail clamp systems reach customers worldwide with appropriate export-grade packaging and documentation.
Technical support extends beyond delivery, with comprehensive operation manuals and remote training available for customer teams. This support proves particularly valuable for companies implementing new clamp systems or training personnel on specialized applications. The company's experienced team can provide guidance on installation, operation, and maintenance procedures to maximize equipment lifespan and performance.
FAQ
①Q: Can excavator rail clamps work with different rail profiles?
A: Yes, quality clamps feature adjustable jaws designed to accommodate various rail head profiles and wear patterns commonly found in railway systems.
②Q: How long do excavator rail clamps typically last?
A: With proper maintenance, professional-grade clamps can provide 5+ years of reliable service under standard operating conditions.
③Q: What safety features should I look for in rail clamps?
A: Essential safety features include locking pins, pressure hold valves, and fail-safe mechanisms that prevent accidental release during operations.
④Q: Can clamps be retrofitted to existing excavators?
A: Most clamps can be adapted to existing excavators through custom mounting brackets and hydraulic connections designed for your specific machine model.
⑤Q: What maintenance do rail clamps require?
A: Regular maintenance includes hydraulic system checks, lubrication of moving parts, and inspection of safety mechanisms according to manufacturer guidelines.
Selecting the right excavator rail clamp for your railway projects requires careful consideration of gauge specifications, operational requirements, and quality standards. Whether you're working with standard 1435mm gauge systems or custom applications, partnering with experienced manufacturers ensures reliable performance and long-term value. Tiannuo Machinery's comprehensive approach to design, manufacturing, and customer support makes them a trusted choice for railway maintenance professionals worldwide. For detailed specifications and custom solutions, contact our team at rich@stnd-machinery.com.
