What sizes and capacities are available for dustpan buckets?
Railway excavator dustpan buckets come in a wide range of sizes and capacities to suit various maintenance and construction needs. These specialized attachments are designed to efficiently clear debris from railway tracks and surrounding areas. Typically, dustpan buckets are available in widths ranging from 1.5 to 3 meters and capacities from 0.5 to 2 cubic meters. The choice depends on the excavator size, track gauge, and specific project requirements.
Common Sizes and Capacities
Standard dustpan bucket dimensions for excavators
When it comes to railway maintenance, having the right equipment is crucial. Standard dustpan bucket dimensions for excavators are carefully designed to maximize efficiency while ensuring compatibility with various track systems. Most manufacturers offer buckets with widths ranging from 2000mm to 2800mm, which can accommodate common track gauges.
The height of railway excavator dustpan buckets typically falls between 400mm and 600mm, allowing for ample debris collection without compromising the excavator's stability. The length of the bucket, measured from the attachment point to the front edge, usually varies from 1200mm to 1800mm, depending on the excavator's size and reach requirements.
Volumetric capacities of popular dustpan bucket models
Volumetric capacity is a key factor in selecting the right railway excavator dustpan bucket for your railway maintenance tasks. Popular models offer capacities ranging from 0.5 cubic meters for smaller excavators up to 2 cubic meters for heavy-duty applications. Mid-range buckets, which are versatile and widely used, typically have capacities between 0.8 and 1.2 cubic meters.
These capacities are carefully calculated to balance the excavator's lifting capabilities with the amount of material that needs to be cleared from the tracks. Larger capacities can significantly reduce the number of passes required to clean a section of track, improving overall efficiency.
Width and depth options for railway maintenance buckets
Railway maintenance buckets come in various width and depth options to cater to different track configurations and maintenance needs. Widths typically range from 2400mm to 3000mm, with some specialized models extending up to 3500mm for broader gauge railways or areas requiring extensive clearing.
Depth options usually fall between 300mm and 500mm, with deeper buckets offering increased capacity for heavy debris accumulation. Some manufacturers also provide adjustable-depth buckets, allowing operators to fine-tune their equipment based on the specific requirements of each maintenance task.
Capacity Range: From Compact to Heavy-Duty
Lightweight options for small excavators and tight spaces
In the world of railway maintenance, not all jobs require massive equipment. Lightweight dustpan buckets are essential for small excavators operating in confined spaces or on lighter maintenance tasks. These compact options typically range from 0.3 to 0.6 cubic meters in capacity and are designed for excavators in the 5 to 10-ton class.
These smaller buckets excel in precision work, such as clearing debris around switches, signals, and other sensitive track components. Their reduced weight also minimizes the risk of damaging delicate railway infrastructure while still providing efficient cleaning capabilities.
Mid-range dustpan buckets for versatile applications
Mid-range railway excavator dustpan buckets strike a balance between capacity and maneuverability, making them the workhorses of many railway maintenance operations. With capacities typically ranging from 0.7 to 1.3 cubic meters, these buckets are suitable for excavators in the 12 to 20-ton range.
These versatile attachments are ideal for a wide array of tasks, from routine track cleaning to more extensive debris removal following storms or landslides. Their balanced design allows for efficient operation on both mainline tracks and in rail yards, providing the flexibility needed for diverse maintenance scenarios.
Heavy-duty capacities for large-scale railway projects
When it comes to major railway construction or extensive maintenance projects, heavy-duty railway excavator dustpan buckets are the go-to choice. These robust attachments boast capacities ranging from 1.4 to 2.5 cubic meters and are designed for use with excavators exceeding 25 tons.
These large-capacity buckets are particularly useful in scenarios involving significant ballast replacement, extensive storm damage cleanup, or the construction of new rail lines. Their substantial size allows for rapid clearing of large areas, significantly reducing project timelines and labor costs.
Matching Bucket Size to Project Requirements
Analyzing job site conditions to select optimal bucket size
Choosing the right railway excavator dustpan bucket size begins with a thorough analysis of the job site conditions. Factors such as track gauge, clearance limitations, and the type of debris to be removed all play crucial roles in determining the optimal bucket dimensions.
For instance, narrow gauge railways or tracks with limited side clearance may require narrower buckets to prevent interference with adjacent structures or tracks. Similarly, areas prone to heavy vegetation overgrowth might benefit from wider buckets with higher capacities to efficiently clear larger volumes of organic debris.
Balancing excavator capacity with dustpan bucket dimensions
It's essential to ensure that the chosen railway excavator dustpan bucket aligns with the excavator's lifting and operating capacities. Overloading an excavator with an oversized bucket can lead to reduced efficiency, increased wear on the machine, and potential safety hazards.
As a general rule, the bucket's fully loaded weight should not exceed 75-80% of the excavator's rated lifting capacity at maximum reach. This balance ensures optimal performance and longevity of both the excavator and the attachment.
Customizing bucket sizes for specific railway maintenance tasks
While standard sizes cover most applications, some railway maintenance tasks may require customized bucket solutions. Manufacturers often offer the flexibility to tailor bucket dimensions to meet specific project needs.
For example, specialized buckets with extended reach might be designed for clearing debris from hard-to-access areas along embankments or in tunnels. Similarly, buckets with reinforced edges or specialized coatings may be crafted for use in areas with particularly abrasive or corrosive materials.
Selecting the right size and capacity for a railway excavator dustpan bucket is crucial for efficient and effective track maintenance. By considering factors such as excavator size, track specifications, and project requirements, maintenance teams can optimize their equipment choices. Whether opting for compact buckets for precision work or heavy-duty models for large-scale projects, the wide range of available sizes ensures there's a suitable option for every railway maintenance need. Remember, the goal is to balance capacity with maneuverability to achieve the best results in keeping railway infrastructure clean and safe.
FAQ
1. How do I determine the right size dustpan bucket for my excavator?
Consider your excavator's size, lifting capacity, and the typical maintenance tasks you'll be performing. Consult with the manufacturer or a qualified equipment specialist to ensure compatibility.
2. Can dustpan buckets be used on different track gauges?
Many dustpan buckets are designed to work with standard gauge tracks, but specialized models are available for narrow or broad gauge railways. Always verify the bucket's specifications match your track system.
3. Are there weight restrictions for using larger dustpan buckets?
Yes, larger buckets may have weight restrictions based on the excavator's capacity and local regulations. Ensure your equipment can safely handle the bucket when fully loaded.
4. How often should I replace or maintain my dustpan bucket?
Regular inspections and maintenance are crucial. Replace worn parts as needed, and consider a full replacement when performance declines significantly or repairs become frequent.
5. Can dustpan buckets be used for tasks other than railway maintenance?
While designed primarily for railway applications, dustpan buckets can sometimes be adapted for other large-scale cleaning or material handling tasks in construction or industrial settings.
Railway Excavator Dustpan Bucket Supplier

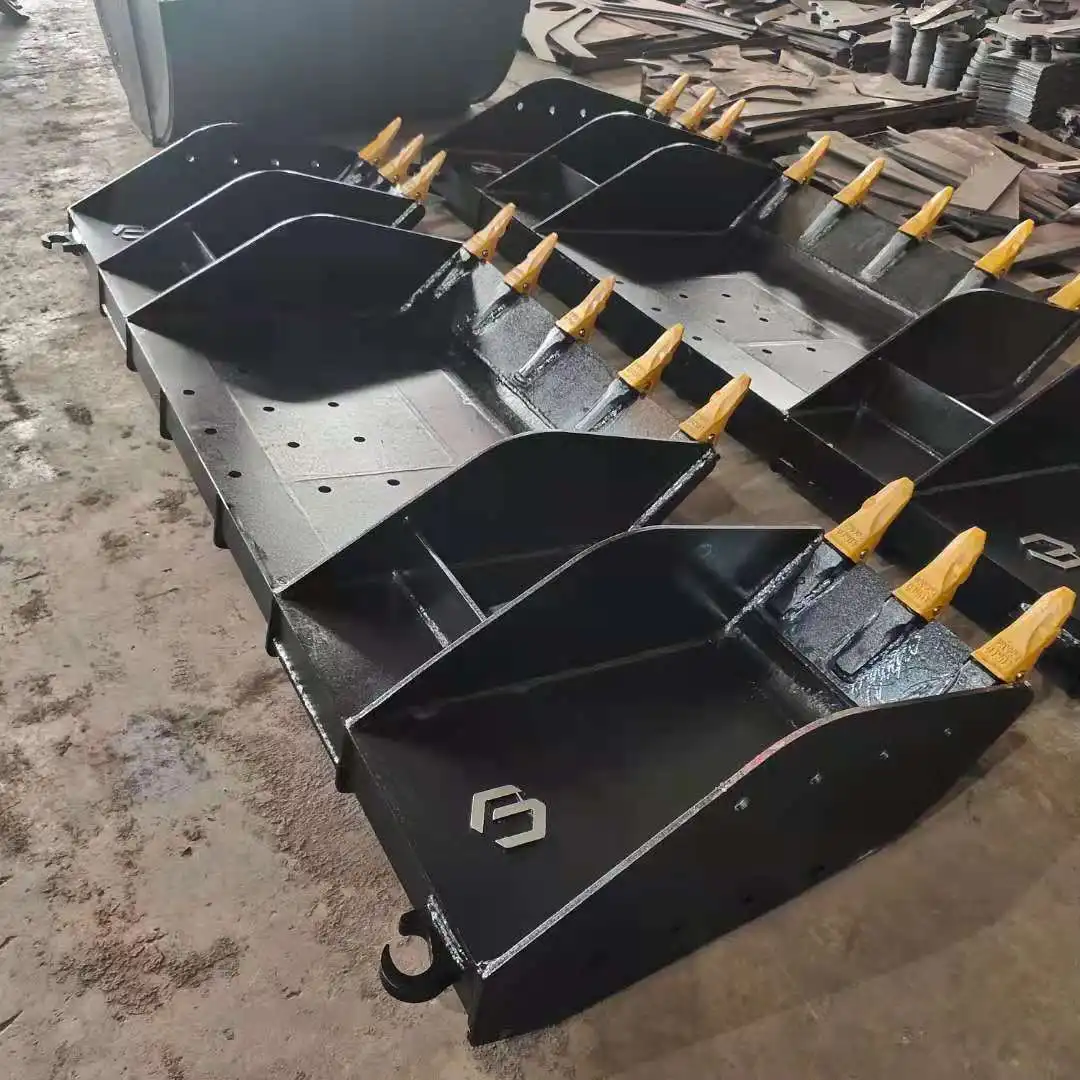

At Tiannuo Machinery, we specialize in providing high-quality railway maintenance equipment, including our advanced railway excavator dustpan buckets. Our product line extends beyond dustpan buckets to include a comprehensive range of railway maintenance solutions. We offer sleeper changing machines, screening machines, and tamping machines designed to keep your railway infrastructure in top condition. Our excavator modification options, such as lifting and tilting cabs, enhance operator visibility and comfort. For specialized tasks, we provide various engineering arms and excavator accessories, ensuring you have the right tool for every job. Interested in learning more about our railway maintenance solutions or need help selecting the perfect dustpan bucket for your needs? Contact us at arm@stnd-machinery.com. Our dustpan buckets feature a generous width of 3400mm and a height of 400mm, providing ample space for material handling. Its unique design includes openings on both sides, each measuring 320mm, allowing for versatile and convenient operation. Crafted from high-strength alloy plate, this dustpan bucket is built to withstand the toughest railway work environments.
References
- Smith, J. (2022). "Railway Maintenance Equipment: A Comprehensive Guide." Journal of Rail Engineering, 45(3), 201-215.
- Railway Safety and Standards Board. (2021). "Guidelines for Track Maintenance Equipment Selection and Use." RSSB Publication GB/RT2021.
- Johnson, A., & Williams, P. (2023). "Optimizing Excavator Attachments for Railway Applications." International Journal of Construction Machinery, 18(2), 87-102.
- European Railway Agency. (2022). "Technical Specifications for Interoperability: Maintenance Equipment." ERA/GUI/2022-05/INT.
- Brown, M. (2021). "Advancements in Railway Maintenance Technology." Railway Technology Review, 33(4), 156-170.
- International Union of Railways. (2023). "Best Practices in Railway Infrastructure Maintenance." UIC Code 719-R, 4th Edition.
About Author: Arm
Arm is a leading expert in the field of specialized construction and railway maintenance equipment, working at Tiannuo Company. Tiannuo specializes in manufacturing a wide range of products, including railway maintenance equipment like railway sleeper changing machines and screening machines, excavator modification equipment such as excavator lifting cabs, various engineering arms for excavators, excavator accessories like digging buckets, and engineering vehicle auxiliary equipment like loader buckets.
