Which type of piling boom is suitable for excavators of different tonnages?
Selecting the right excavator piling boom is crucial for optimal performance across various tonnage ranges. Different excavator sizes require specific boom types to maximize efficiency and safety in piling operations. From compact mini-excavators to heavy-duty machines, the choice of piling boom significantly impacts reach, depth capabilities, and overall project success.
Matching boom types to excavator sizes
Standard booms for mid-range excavators
Mid-range excavators, typically between 20 to 35 tons, often utilize standard excavator piling booms. These booms offer a balanced combination of reach and power, making them versatile for various piling applications. Standard booms usually feature a two-piece design with a main boom and dipper arm, providing good maneuverability and depth capabilities.
For excavators in this range, standard excavator piling booms typically offer reaches of 8 to 12 meters, depending on the specific model and configuration. They're well-suited for common piling tasks in construction and infrastructure projects, offering a good balance between performance and cost-effectiveness.
Specialized piling booms for heavy-duty machines
Heavy-duty excavators, weighing 35 tons and above, often require specialized piling booms to handle more demanding tasks. These booms are engineered to withstand higher stresses and provide greater reach and depth capabilities. Specialized excavator piling booms for large excavators can extend up to 18 meters or more, allowing for deep foundation work and challenging piling scenarios.
These booms often feature reinforced structures and advanced hydraulic systems to manage the increased loads. They're ideal for major infrastructure projects, deep foundation work, and heavy-duty piling in challenging soil conditions. The extra reach and stability of these specialized booms make them indispensable for large-scale construction and mining operations.
Compact solutions for mini and midi excavators
Mini and midi excavators, ranging from 1 to 10 tons, require compact excavator piling boom solutions that maintain maneuverability while offering adequate piling capabilities. These smaller booms are designed for precision work in tight spaces, often found in urban construction or landscaping projects.
Compact piling booms for these smaller machines typically offer reaches of 3 to 6 meters. Despite their size, they're engineered to provide impressive performance for their class, allowing for efficient piling work in confined areas or on smaller-scale projects. These booms often feature quick-change systems for easy attachment swaps, enhancing their versatility on job sites.
Performance variations across tonnage ranges
Reach and depth capabilities of different boom types
The reach and depth capabilities of piling booms vary significantly across different excavator tonnages. Smaller excavators with compact booms might achieve depths of 3-5 meters, suitable for shallow foundation work or utility installations. Mid-range excavators equipped with standard piling booms can typically reach depths of 8-12 meters, covering a wide range of common piling applications.

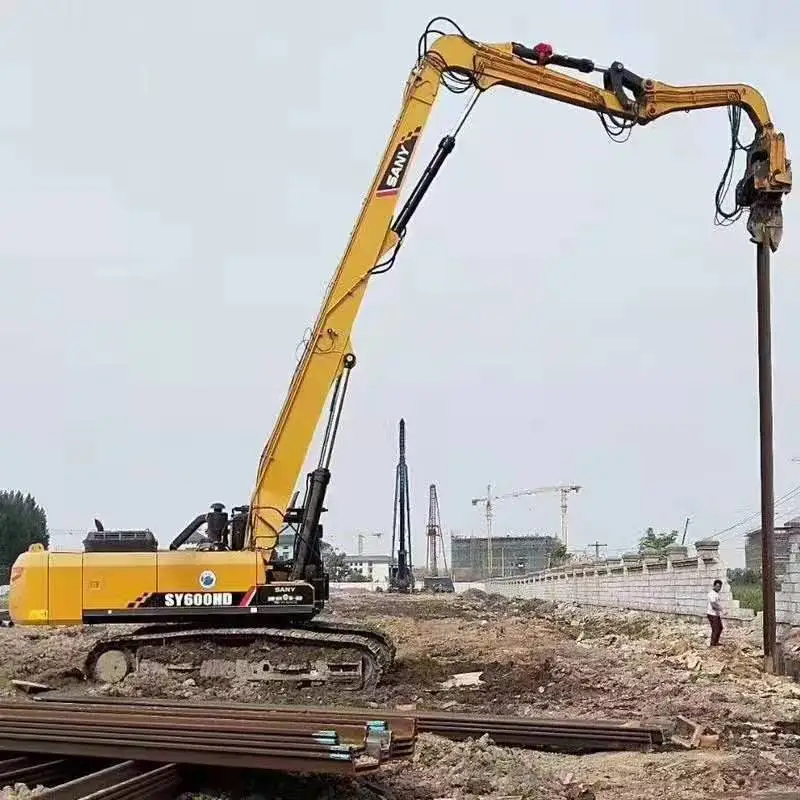

Heavy-duty excavators with specialized excavator piling booms can achieve impressive depths of 15-20 meters or more. This extended reach is crucial for deep foundation work in skyscraper construction or major infrastructure projects. The relationship between excavator size and boom capability is not always linear, as advancements in boom design and materials can sometimes allow smaller machines to achieve surprising depth and reach performance.
Lifting capacity differences in piling applications
Lifting capacity is a critical factor in piling operations, and it varies considerably across excavator sizes. Mini excavators might handle piling equipment weighing up to 1-2 tons, suitable for small-scale projects or working in confined spaces. Mid-range excavators typically offer lifting capacities of 5-10 tons, allowing them to manage most standard piling hammers and sheet piles efficiently.
Large excavators with specialized excavator piling booms can lift loads of 15 tons or more, essential for handling heavy piling equipment or large diameter piles. It's important to note that lifting capacity isn't solely determined by the excavator's size or boom type; factors like boom configuration, hydraulic power, and counterweight also play significant roles in determining the maximum safe lifting capacity for piling operations.
Stability considerations for various excavator sizes
Stability is paramount in piling operations, and it varies significantly across different excavator sizes and boom types. Smaller excavators, while more maneuverable, have inherent stability limitations due to their compact size and lighter weight. They often require careful positioning and may need additional stabilization measures when working at maximum reach.
Mid-range excavators offer improved stability, allowing for more confident operations across a wider range of conditions. Their larger footprint and increased weight provide a solid base for most piling tasks. However, when working at maximum reach or with heavy loads, operators must still be mindful of potential tipping hazards.
Heavy-duty excavators with specialized piling booms are designed with stability as a primary concern. They often feature wider tracks, heavy counterweights, and advanced hydraulic systems to maintain balance even when handling substantial loads at extended reaches. Some models incorporate outriggers or stabilizer legs for enhanced stability during critical piling operations.
Customization options for specific project needs
Adjustable boom configurations for versatility
Modern excavator piling booms offer impressive adaptability through adjustable configurations. These systems allow operators to modify the boom's geometry to suit specific project requirements. Telescopic booms, for instance, can extend or retract to provide optimal reach and working envelope for various piling tasks.
Some advanced booms feature modular designs, allowing for the addition or removal of boom sections. This flexibility enables contractors to fine-tune their equipment for each unique project, optimizing performance and efficiency. Adjustable boom angles and pivoting mechanisms further enhance versatility, allowing machines to work effectively in confined spaces or at challenging angles.
Attachments enhancing piling boom functionality

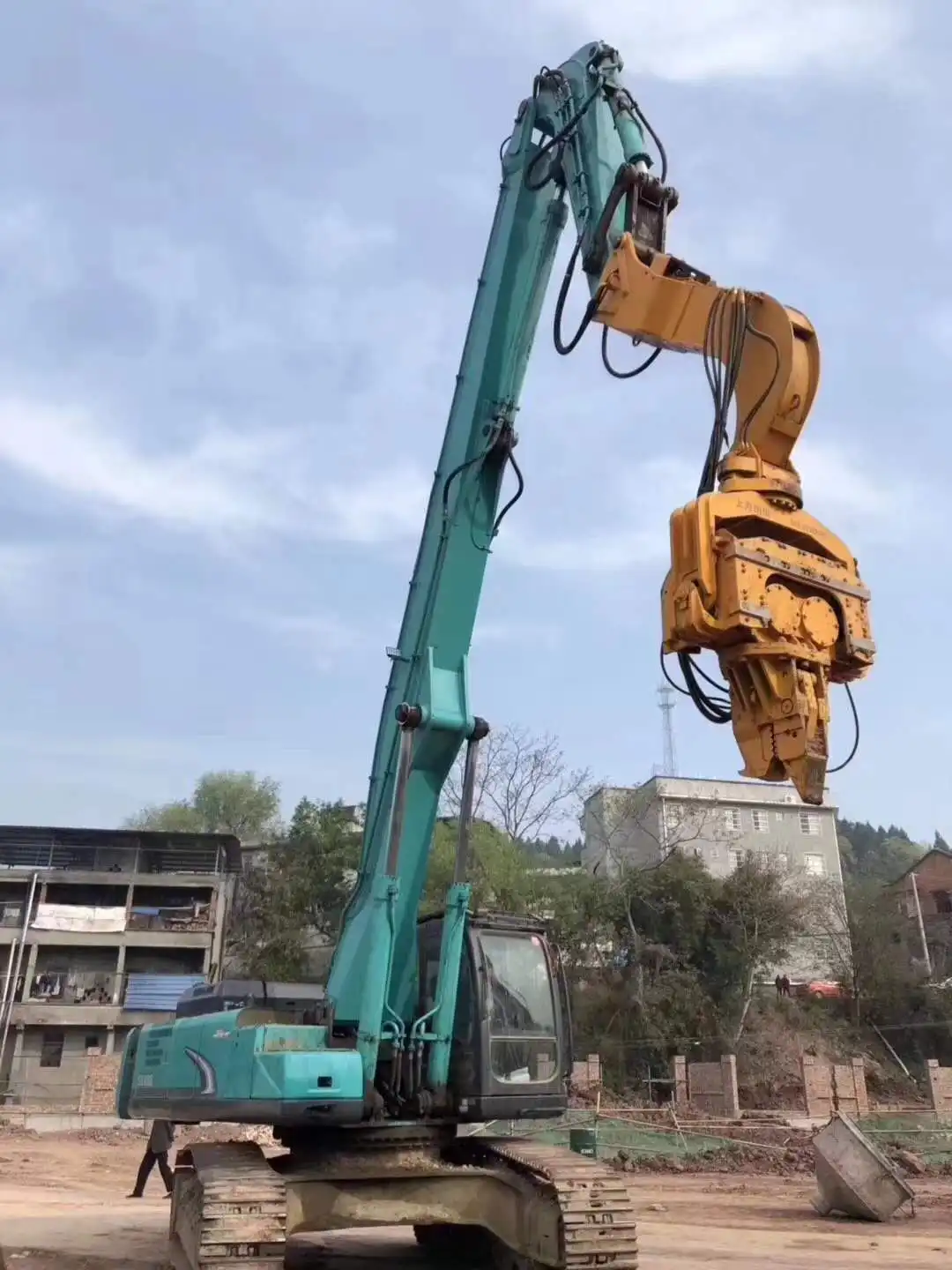

A wide array of attachments can significantly enhance the functionality of piling booms across all excavator sizes. Vibratory hammers, for example, can be attached to booms to drive sheet piles or tubular piles efficiently. Hydraulic impact hammers are essential for driving concrete or steel piles in various soil conditions.
Auger attachments transform excavator piling booms into effective tools for creating bored piles, particularly useful in softer soil conditions. Pile grippers and manipulators allow for precise positioning and handling of piles, improving accuracy and safety on the job site. For specialized applications, custom attachments can be designed to meet unique project requirements, further expanding the versatility of booms.
TianNuo's tailored solutions for unique requirements
TianNuo Machinery stands out in the industry for its commitment to providing tailored excavator piling boom solutions. Understanding that each project comes with its own set of challenges, TianNuo offers customization services to meet specific client needs. Their engineering team collaborates closely with customers to design and manufacture booms that address unique operational requirements.
TianNuo's expertise extends to developing specialized attachments and modifications that enhance the performance of standard piling booms. Whether it's increasing reach for deep foundation work or designing a compact solution for urban construction, TianNuo's tailored approach ensures that clients have the optimal equipment for their specific piling tasks. This commitment to customization has made TianNuo a trusted partner in the construction and mining industries, where adaptability and precision are paramount.
Choosing the right piling boom for your excavator is crucial for project success. By matching boom types to excavator sizes, understanding performance variations across tonnage ranges, and exploring customization options, you can optimize your piling operations for efficiency and safety. Remember, the ideal excavator piling boom balances reach, depth capabilities, and stability with your specific project requirements. For tailored solutions that meet your unique needs, consider partnering with experienced manufacturers like TianNuo Machinery. Their expertise in custom excavator piling boom design ensures you have the right tool for every job, regardless of the challenges you face.
FAQ
1. What factors should I consider when choosing a piling boom for my excavator?
When selecting a piling boom, consider your excavator's size and capacity, the typical depth and diameter of piles you'll be working with, soil conditions in your project areas, and any space constraints on your job sites. Also, factor in the types of piling methods you'll be using, such as driven piles or bored piles, as these may require different boom configurations or attachments.
2. Can I use a standard excavator boom for piling work?
While standard excavator booms can sometimes be used for light piling work, specialized excavator piling booms are generally recommended for efficiency and safety. Piling booms are designed to handle the specific stresses and movements involved in pile driving and extraction, offering better performance and longevity for these tasks.
3. How does the choice of piling boom affect project timelines?
The right piling boom can significantly improve project efficiency. A well-matched boom allows for faster pile installation, reduces the need for equipment repositioning, and can handle a wider range of pile sizes and types. This can lead to shorter project timelines and reduced overall costs.
4. Are there safety considerations specific to using piling booms?
Yes, safety is crucial when using excavator piling booms. Operators must be trained in proper use, understand load limits, and be aware of stability issues, especially when working at maximum reach. Regular maintenance and inspections are essential to ensure the boom and its attachments remain in safe working condition.
5. How do environmental factors influence piling boom selection?
Environmental factors like soil type, water table levels, and site accessibility can greatly influence piling boom selection. For instance, soft soils might require booms with greater stability features, while sites with limited access might necessitate more compact or adjustable boom configurations. Always consider the specific environmental challenges of your project when choosing a piling boom.

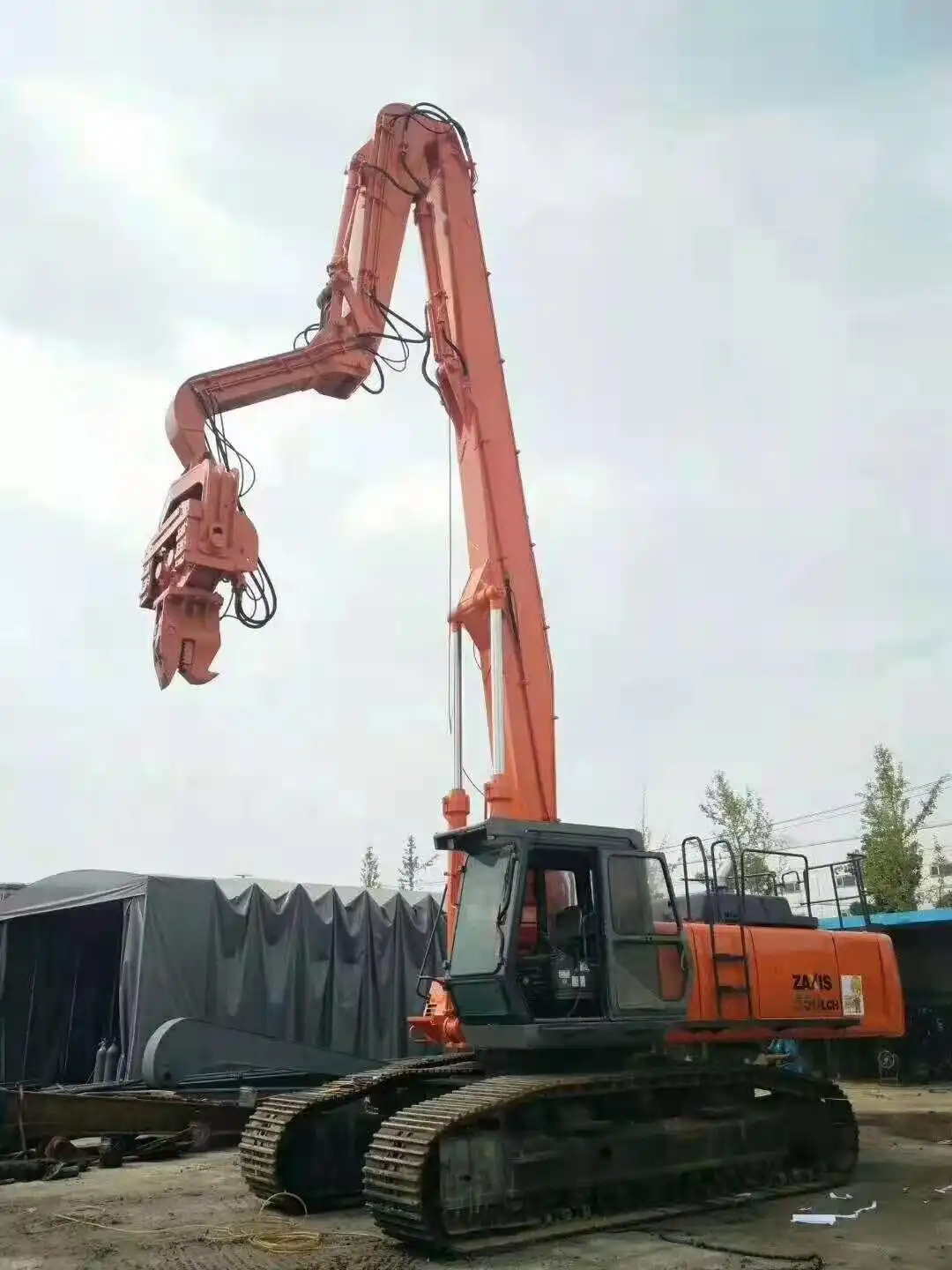

Excavator Piling Boom Factory
TianNuo Machinery is a leading manufacturer specializing in a wide range of construction equipment modifications. Our product line includes piling arms suitable for excavators from 36 to 45 tons, with boom lengths ranging from 13,000mm to 18,000mm. These piling arms are engineered for precision and efficiency, capable of reaching depths up to 17,500mm.
Our expertise extends beyond piling equipment. We offer comprehensive solutions for railway maintenance, including sleeper changing machines, screening machines, and ballast cleaning equipment. For the excavator market, we provide various modifications such as lifting and tilting cabs, extended arms, and specialized attachments like rock buckets and wood clamps.
At TianNuo, we understand the diverse needs of the construction, mining, and forestry industries. That's why we offer customizable solutions to meet specific project requirements. Our piling arms are crafted from high-strength alloy plates and feature national standard cold-drawn seamless pipes for durability and performance.
For more information on our excavator piling booms and other specialized equipment, contact us at raymiao@stnd-machinery.com. Let TianNuo Machinery be your partner in enhancing your excavator's capabilities and efficiency in piling operations.
