Why is a raised chassis required for train unloading?

Elevated Chassis for Train Unloading—Enabling Excavators to "Straddle" Trains for Operation, Putting an End to Inefficient Unloading
Why is an Elevated Chassis for Train Unloading Necessary?
In settings such as ports, railway freight yards, power plants, and coal mines, the unloading of trains has long been a persistent headache. Traditional manual coal unloading methods require multiple workers to spend several hours clearing a single railcar; this approach is not only inefficient and costly but also poses significant safety risks.

Using a standard excavator to scrape material from the side of a train presents its own set of problems:

Limited Visibility:** The excavator's cab sits lower than the railcar, resulting in "blind unloading" that leaves substantial residual material at the bottom of the car.

Difficult Floor Cleaning:** Residual material requires a secondary manual cleanup process, which is both time-consuming and labor-intensive.

Safety Hazards:** During operation, there is a high risk of accidental collision with the railcars or the tracks.

Environmental Pollution:** Material scraped onto the ground generates severe dust clouds and necessitates a secondary transfer process.

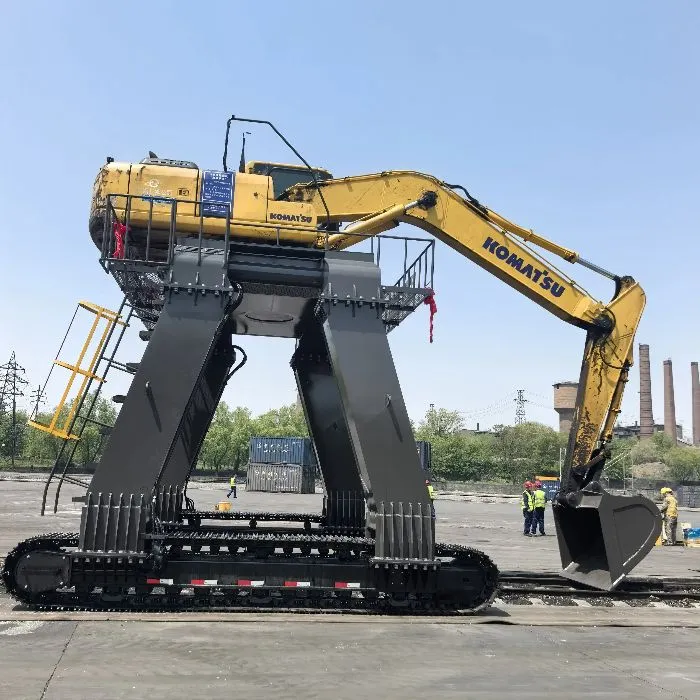

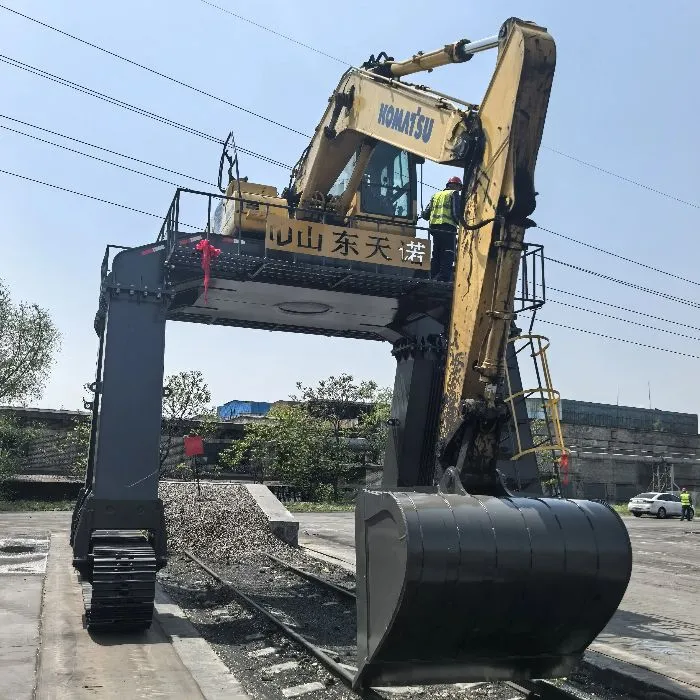

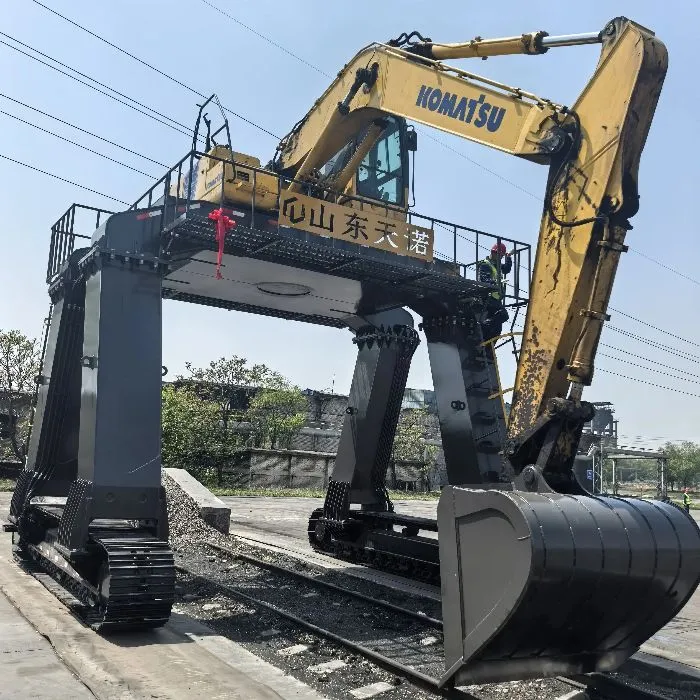

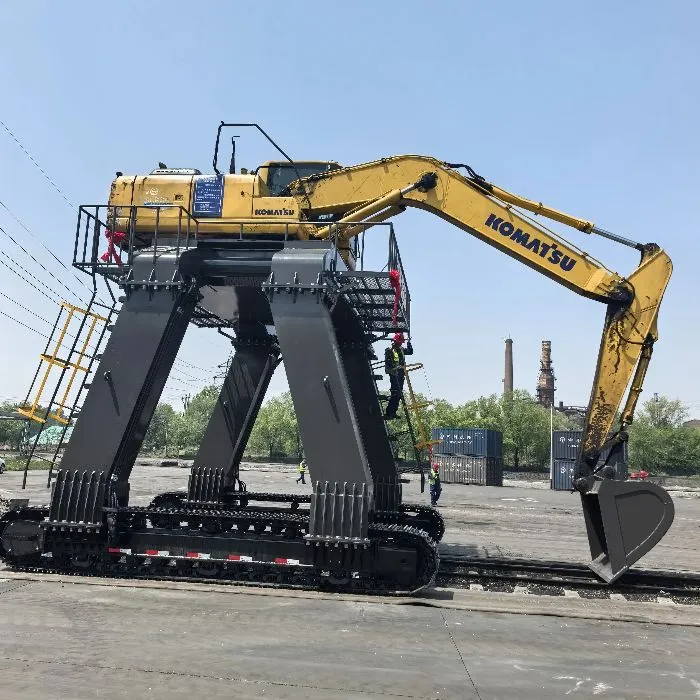

The Elevated Chassis for Train Unloading—also known as "Excavator Stilts" or a "Gantry Frame"—was developed to address these issues. By equipping an excavator with four tall support legs and an extended crawler chassis, the machine's overall height is raised to over 4.3 meters, allowing the excavator to directly "straddle" the train cars while performing unloading operations.

Key Specifications and Operational Efficiency
Parameter | Typical Specification
Effective Clearance Height | 4200–4300 mm
Effective Clearance Width | 4200–4600 mm
Applicable Excavator Tonnage | 20–30 Ton Class
Recommended Bucket Capacity | 1.5–2.0 Cubic Meters
Unloading Time per Railcar | 3–8 Minutes
Astonishing Operational Efficiency:** When equipped with a large 2-cubic-meter bucket, a single railcar can be completely unloaded in just 5 to 8 minutes. Compared to manual coal unloading, efficiency is boosted by 5 to 10 times, while labor intensity and personnel costs are drastically reduced.

Three Modification Options: Which One Will You Choose? Currently, there are three primary methods for modifying an excavator chassis to increase its height, each with its own set of advantages and disadvantages:

Option 1: Modification of the Original Chassis (Lowest Cost)**

The original excavator tracks are widened and lengthened.

Pros: Lower cost, starting from approximately 110,000 RMB.

**Cons:** The excavator must be shipped to the factory for modification; the modification is irreversible.

**Suitable for:** Customers whose excavators are permanently stationed at a specific railway logistics hub for long-term operations.

**Option 2: Replacement with a Dedicated Chassis (Modular)**

The manufacturer provides a complete, raised chassis assembly to replace the vehicle's original travel mechanism.

**Pros:** The original chassis is preserved and can be reinstalled to restore the machine to its original state.

**Cons:** The original chassis must be removed during the installation process.

**Suitable for:** Customers requiring a quick, short-term modification solution.

**Option 3: Crane-Mounted Structure (Most Flexible) ⭐ Recommended**

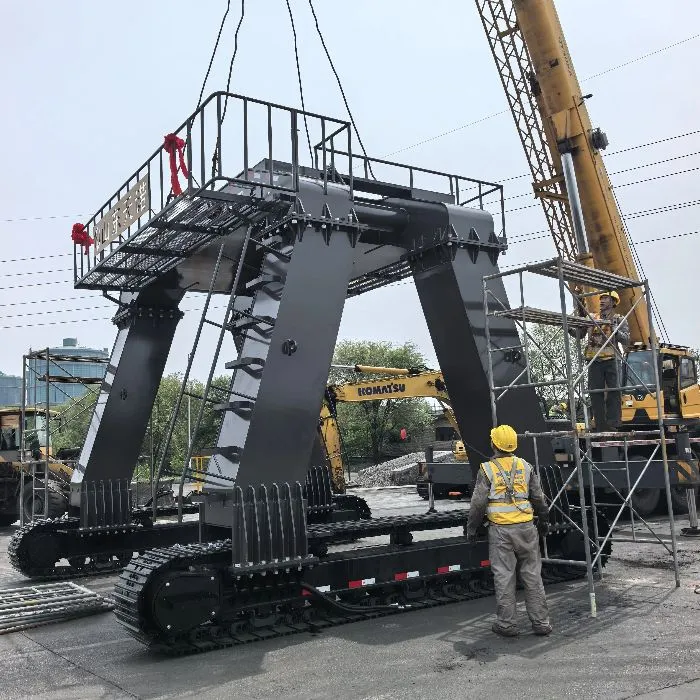

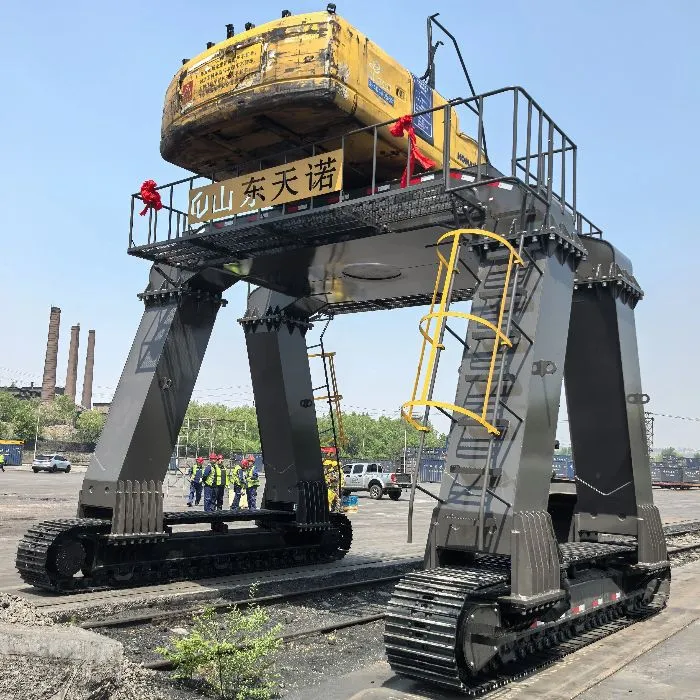

The manufacturer provides a standalone, self-propelled chassis; the excavator is simply hoisted onto it.

**Pros:** Requires no modification to the original excavator; the machine can be hoisted onto the platform for train unloading operations and hoisted off for other engineering tasks.

**Suitable for:** Customers who need to handle a variety of working conditions and prioritize high equipment utilization rates.

**💡 Selection Advice:** If you need to perform both train unloading operations *and* other tasks—such as earthmoving or rock breaking—we strongly recommend choosing Option 3. Although the initial investment is slightly higher, it offers the greatest versatility and provides the best long-term value for money.

**5 Key Points to Confirm Before Purchasing**

**1. Train Car Type and Dimensions**
Different train car models have varying requirements regarding chassis width and height. Before placing an order, please specify the following: the type of train car (e.g., open-top wagon or high-sided wagon), the internal width of the car, and the height of the side walls. A compliant product should be compatible with all standard domestic railway wagons.

**2. Excavator Brand and Tonnage**
This modification is suitable for excavators in the 20–30 ton class. It can be applied to mainstream brands—such as Sany, Liugong, Lingong, Longgong, and Shantui—as well as major Japanese, European, and American brands. We recommend providing a photograph of the machine's nameplate or the specific equipment model number to ensure the manufacturer can provide a precise match.

**3. Chassis Structural Strength**
Raising the chassis elevates the machine's overall center of gravity, thereby placing higher demands on the structural strength of the chassis assembly. **Essential Checks:**

*   **Material Verification:** Confirm that the material used is high-strength steel (such as Q460).

*   **Protective Barriers:** Verify that the four outriggers are equipped with protective railings (ensuring a higher safety factor).

*   **Extended Tracks:** Confirm that the tracks have been extended (increasing the ground contact area and enhancing stability).

**4. Hydraulic System Compatibility**
After raising the chassis, the hydraulic lines for the travel system must be extended. Confirm that the manufacturer provides the corresponding high-pressure hoses and connectors, allowing for a direct, seamless connection during installation.

**5. Safety Verification**

*   Confirm that the manufacturer provides a stability calculation report or offers an on-site test run.

*   Verify the presence of multi-point safety protection devices to prevent accidental rollovers during operation.

*   Inquire about the use of any patented technologies.

⚠️ **Special Note:** Raising the center of gravity inherently increases safety risks. It is imperative to choose a reputable, legitimate manufacturer; do not compromise safety for the sake of lower costs by purchasing products from unregulated, makeshift workshops.

**Frequently Asked Questions (FAQ)**
**Q:** Will raising the chassis affect the excavator's stability?
**A:** Yes. This is a challenge inherent to all such modifications. Reputable manufacturers address this by extending the tracks, adding counterweights, and optimizing the structural design to rebalance the center of gravity. When making a purchase, pay close attention to the manufacturer's specific safety design details.

**Q:** Can second-hand excavators be used for this modification?
**A:** Yes. Second-hand excavators in the 20–30 ton class are a primary source for these modifications, offering a more cost-effective solution.

**Q:** Can the machine still be used for other engineering tasks after modification?
**A:** Yes—specifically with **Solution 3 (the "Lifting-Type" configuration)**. You can simply lift off the raised chassis assembly and swap back to the original excavator tracks to resume standard operations.

**Q:** What is the expected service life?
**A:** This depends on the specific operating conditions. Products constructed from high-strength steel can typically last for 5 to 8 years or more, provided they undergo proper maintenance.

**Who Is This Suitable For?**
✅ Port-side coal and ore transshipment hubs
✅ Railway freight terminals
✅ Large-scale thermal power plants
✅ Steelworks raw material yards
✅ Coal washing and processing plant dispatch stations

If you are currently struggling with inefficient train unloading processes or high labor costs, an excavator equipped with a raised chassis for train unloading may be the most worthwhile investment option for your business.
