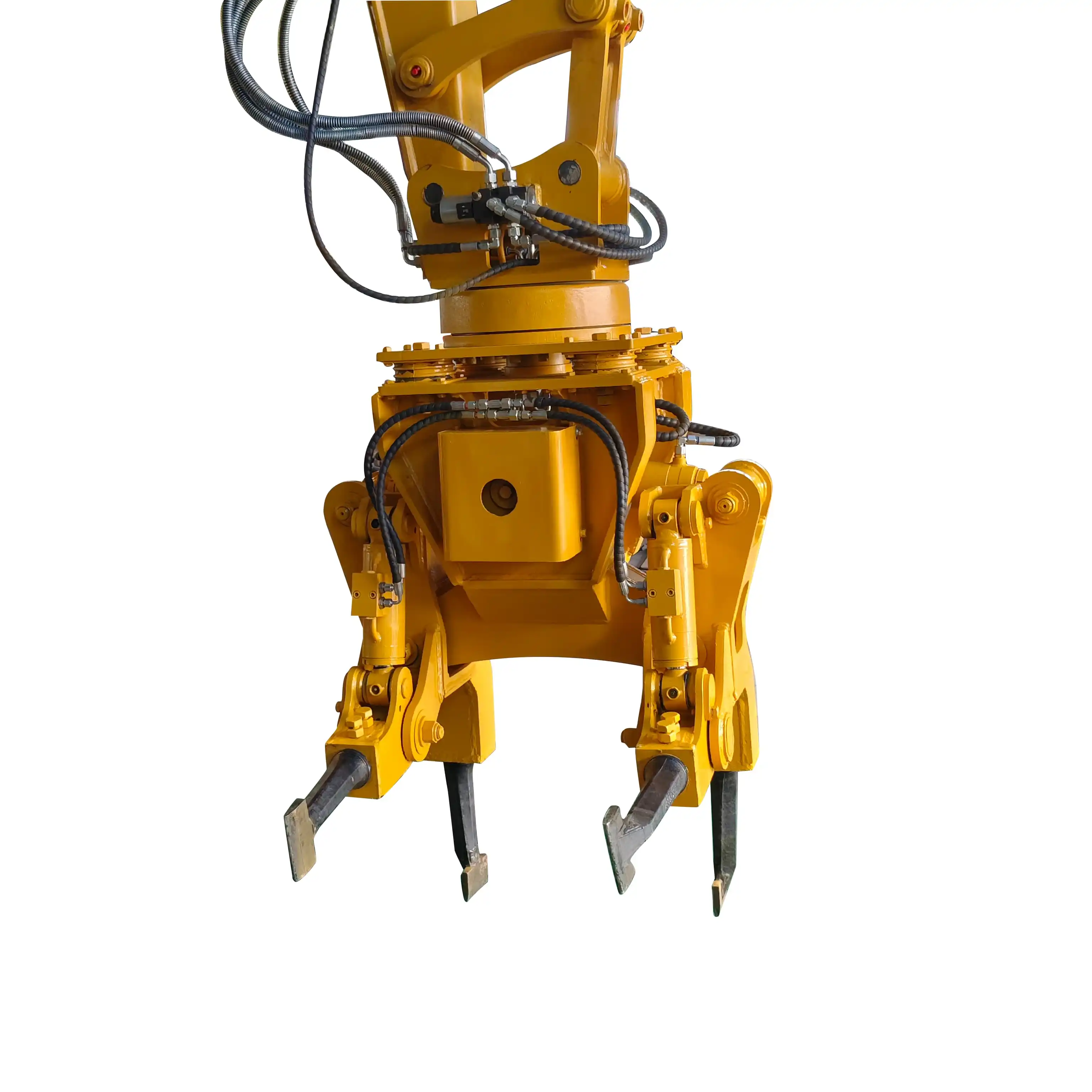

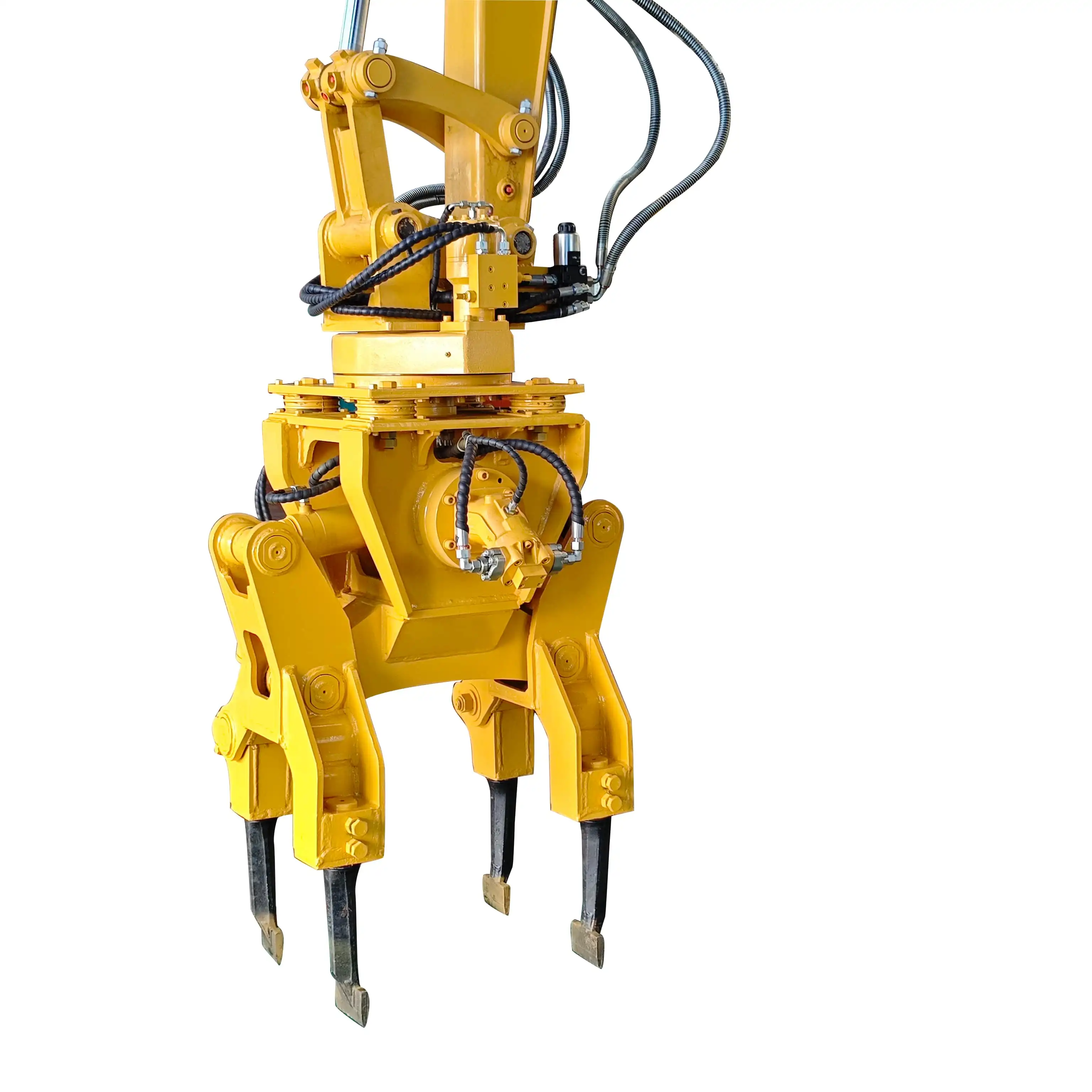

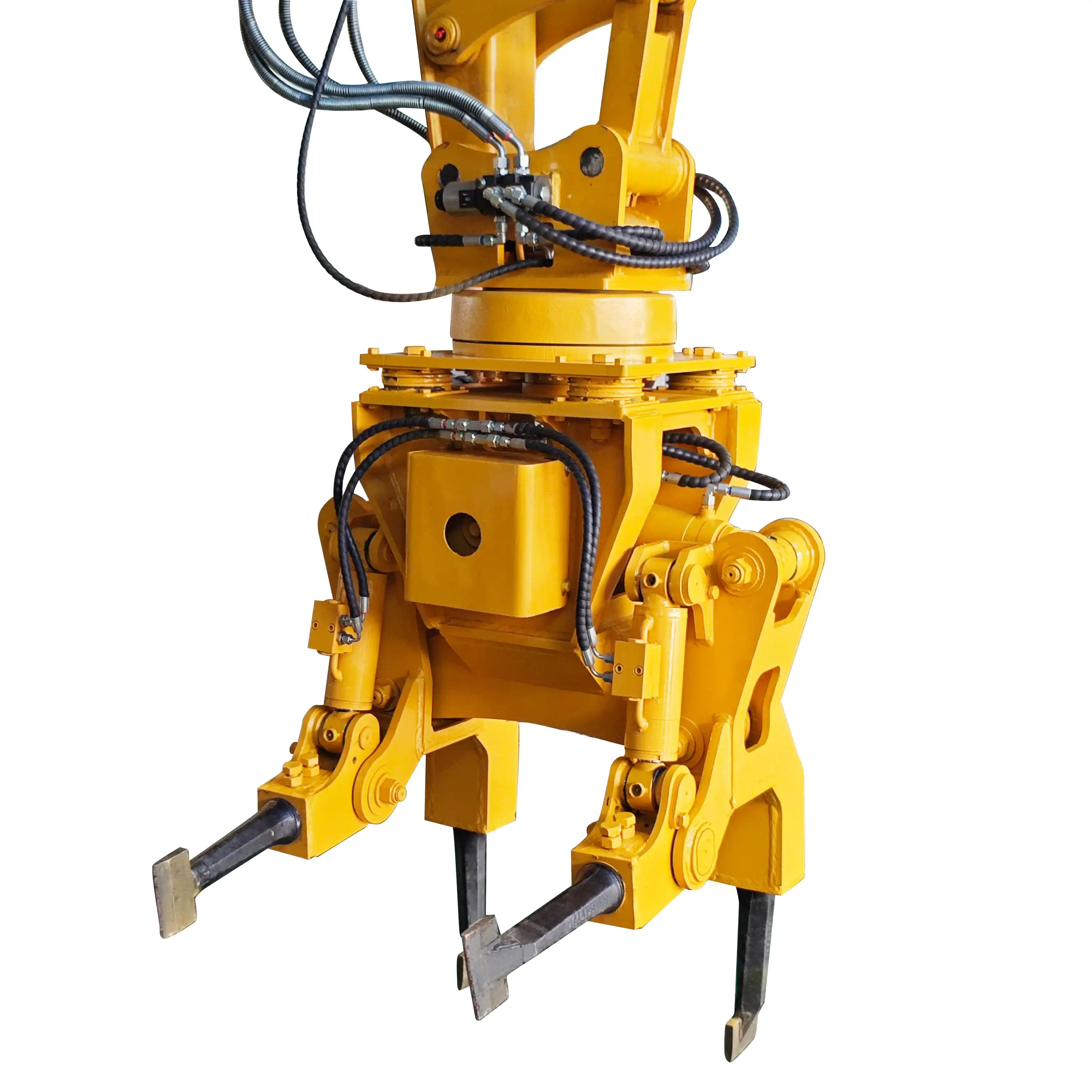

Railroad switch ballast tamper
- Product Description
The Railroad Switch Ballast Tamper is a specialized machine designed for efficient and precise tamping operations in railway turnouts (switches and crossings). Its compact design and powerful vibration system ensure that ballast under the sleepers is compacted evenly, providing stable track geometry and extending track life.
Key Features

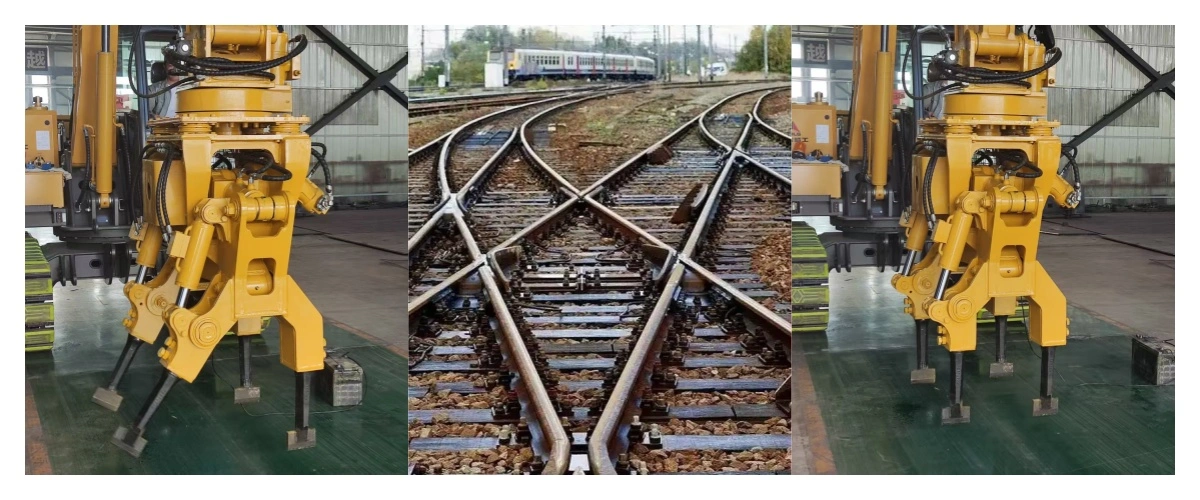

1.Compact Design for Switch Zones
Specifically engineered for railway turnouts and crossings, the tamping unit features a narrow frame and flexible arm structure, allowing it to easily work between rails, frogs, and switch components where large tampers cannot reach.

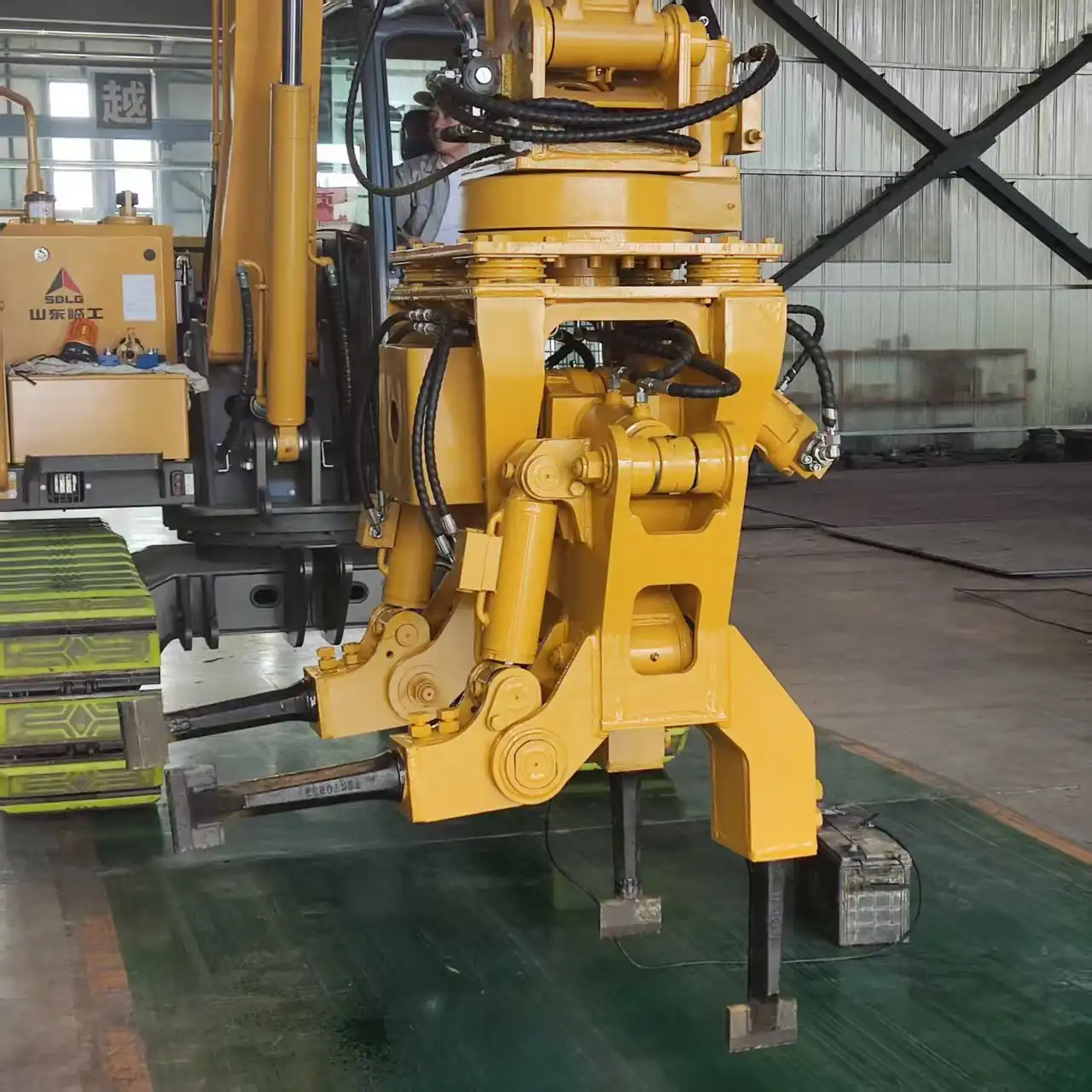

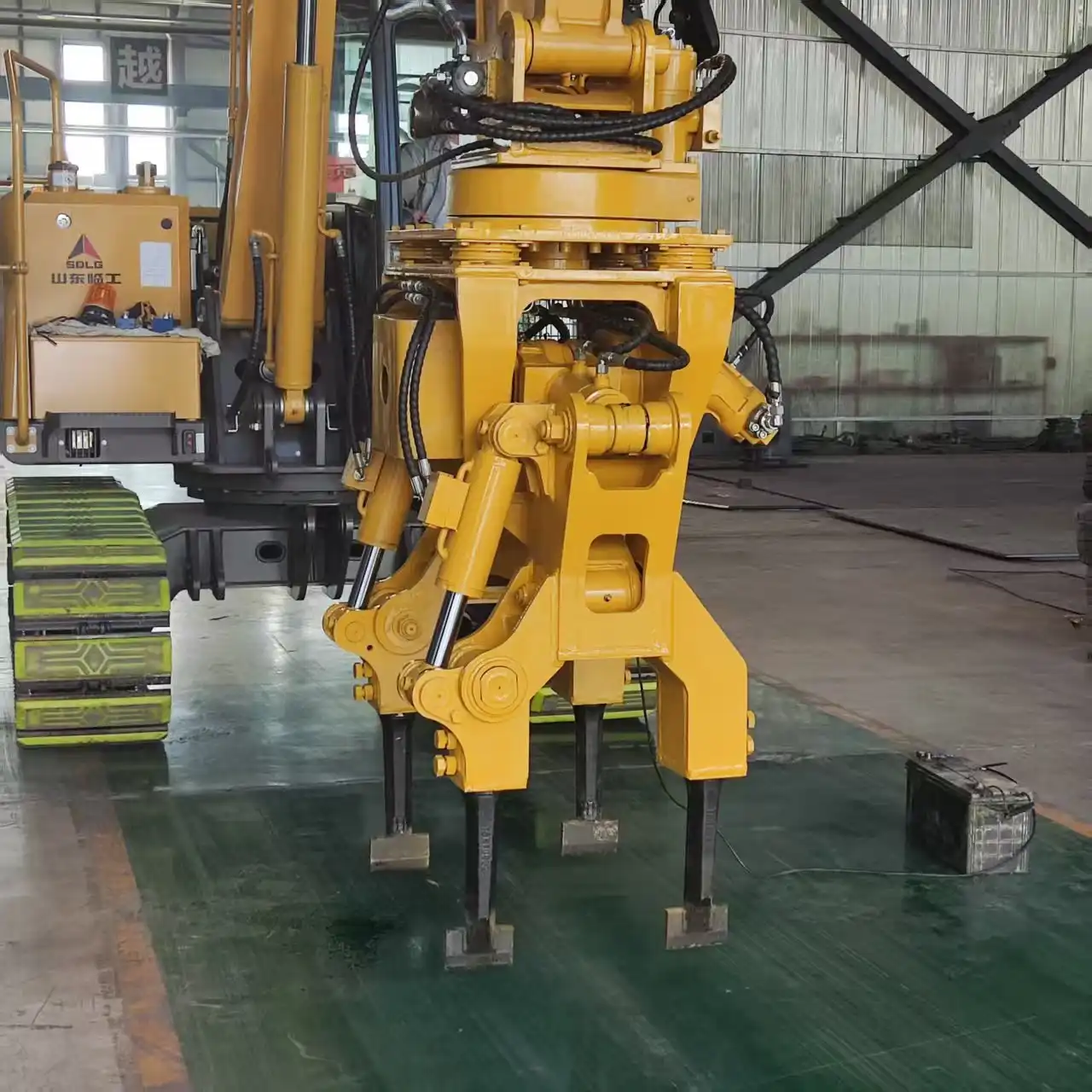

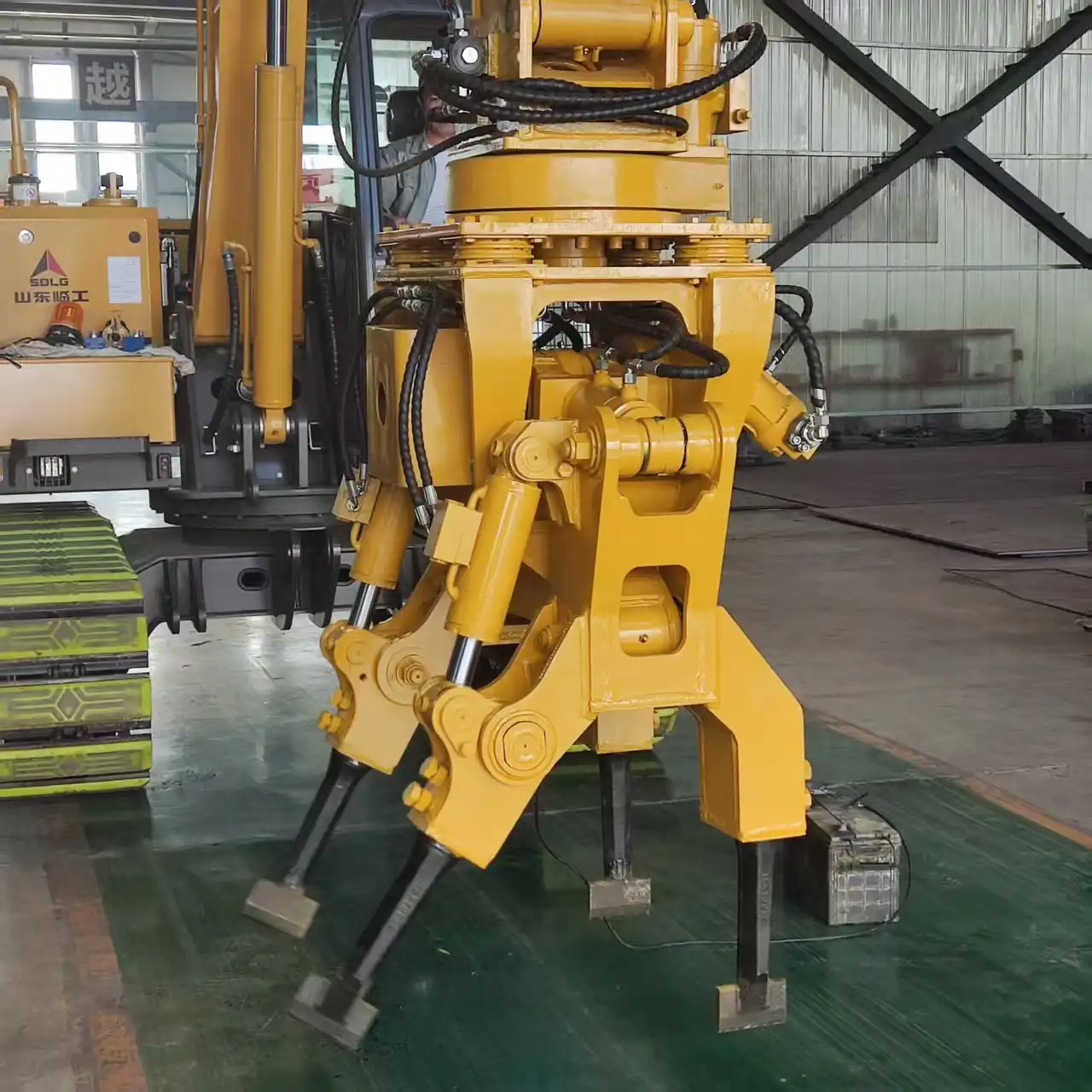

2.Precision Control via Excavator Boom
The tamper is designed to be mounted on an excavator, using the boom to control lifting, rotation, and positioning. This enables accurate tamping around complex switch geometry with minimal manual effort.

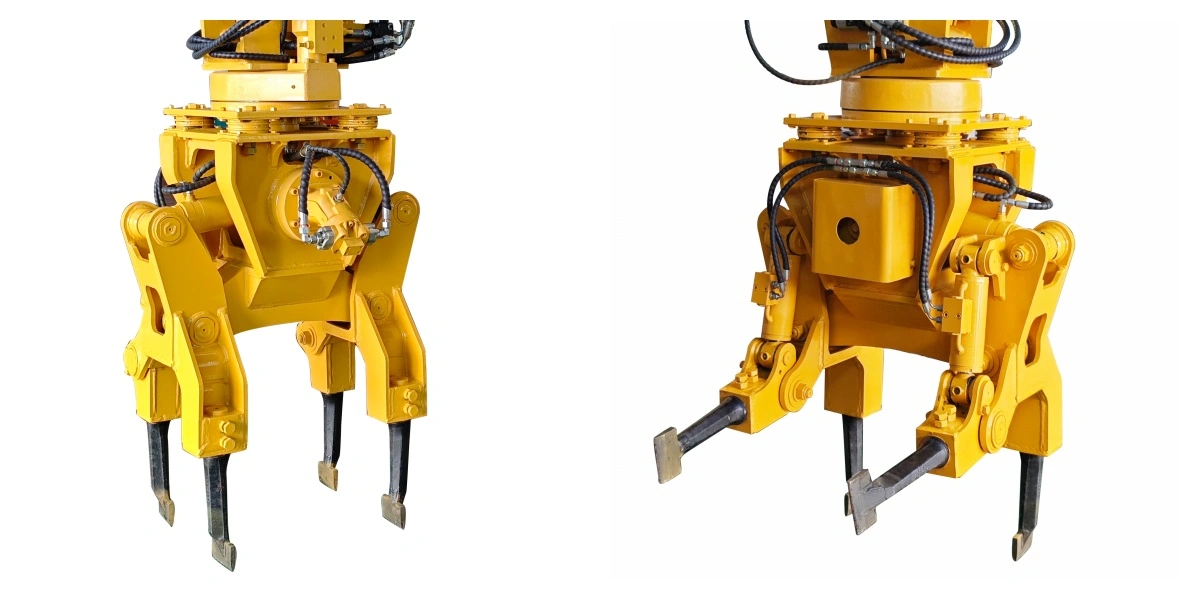

3.Reinforced Tamping Picks
Each tamping pick is produced by hammer process, providing superior impact resistance and long service life even under continuous heavy-duty vibration.
4.Enhanced Track Stability
The machine used high torque motor ，ensures precise ballast compaction beneath sleepers, effectively restoring track geometry and improving long-term stability, especially in turnouts and junctions where dynamic loads are higher.
Specification
| Item/Model | TNDCDGJ75 | TNDCDGJ150 |
| Applicable tonnage(ton) | 7-10 | 13-18 |
| Applicable track gauge(mm) | 1000/1435/1520 | 1000/1435/1520 |
| Vibration frequency(hz) | 30 | 40 |
| Number of tamping head(pcs) | 4 | 4 |
| Rotation Angle | 360 | 360 |
| Outrigger tilting angle | 85 | 85 |
| Outrigger tilting height（mm） | 470 | 470 |
| Maximum tamping depth（mm） | 400 | 400 |
| Clamping range（mm） | 375-625 | 375-625 |
| Motor max rotating speed（r/min） | 5600 | 5000 |
| Motor displacement（ml/r） | 45.6 | 56 |
| Motor rate pressure（bar） | 400 | 400 |
| Weight | 980 | 1200 |
| Size | 850*1020*1850 | 950*1180*1890 |
Applications：
Mainline Track Maintenance: Regular upkeep of high-speed and freight rail corridors.
Transit Systems: Metro, light rail, and tramway track stabilization.
Construction Projects: Post-renewal tamping for new tracks or upgraded sections.
Mining and Industrial Rail: Heavy-duty applications in rugged environments.
FAQ
Q1: How often does the product need maintenance?
A1: Regular maintenance is recommended every 500 hours of operation, including checks on hydraulic systems, lubrication, and inspection of wear parts. Tiannuo provides comprehensive maintenance guides and support.
Q2: Can the product be customized?
A2: Yes, we offer customization to meet the specific requirements of your railway maintenance projects. Contact us to discuss your needs.
Q3: What is the delivery time for the product?
A3: Our standard delivery time is 6-8 weeks, depending on the level of customization required.
Contact Us
Ready to optimize your railway maintenance operations with a high-performance Railroad Switch Ballast Tamper? Reach out to us at arm@stnd-machinery.com to discuss your needs and receive a personalized quote.
