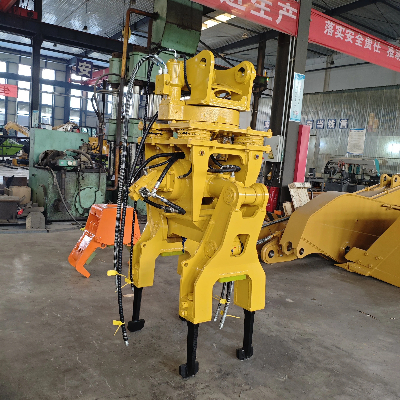

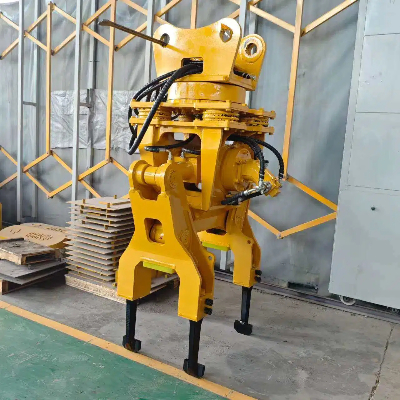

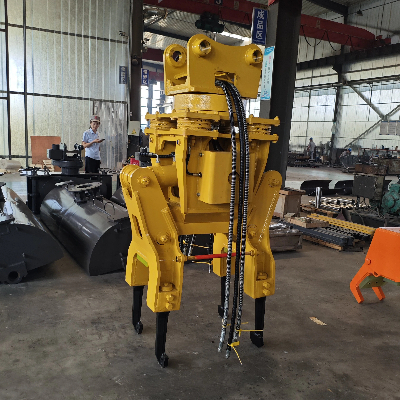

High-Efficiency Single-Head Ballast Tamper for Excavators Railway Maintenance Attachment

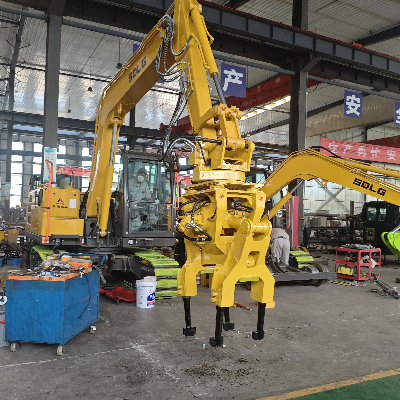

For modern railway construction and maintenance, efficiency and precision are paramount. Our Single-Head Ballast Tamper, a robust hydraulic attachment for excavators, is engineered to deliver superior compaction performance after sleeper replacement or during routine track maintenance. This attachment transforms your excavator into a powerful railway maintenance tool, ensuring optimal ballast consolidation for safe and durable track infrastructure.
Key Application and Working Principle
The primary function of our single-head tamper is to compact the track ballast (the crushed stone beneath the railway sleepers) to provide a stable foundation. The attachment uses a high-frequency vibration unit to force the tamping tools (or "tines") into the ballast, squeezing and packing it under and around the sleeper. This process, known as vibratory squeeze tamping, effectively eliminates voids and ensures the track maintains its precise geometry.
Ideal for Spot Tamping: Perfect for targeted maintenance, switch and crossing work, and ballast tightening after undercutting.
Enhanced Durability: The use of high-quality steel and wear-resistant materials ensures a long service life even under continuous heavy use.
Technical Specifications - Single-Head Tamper (TNDCDGJ Series)
Our Single-Head Ballast Tamper is available in two primary configurations to suit different excavator sizes. Please refer to the detailed specifications below:
| Item / Model | Unit | TNDCDGJ75 | TNDCDGJ150 |
|---|---|---|---|
| (Applicable Tonnage) | ton | 7-10 | 13-18 |
| (Applicable Track Gauge) | mm | 1000 / 1435 / 1520 | 1000 / 1435 / 1520 |
| (Vibration Frequency) | Hz | 30 | 40 |
| (Number of Tamping Heads) | pcs | 4 | 4 |
| (Rotation Angle) | degree | 360° | 360° |
| (Outrigger Tilting Angle) | degree | 85° | 85° |
| (Outrigger Tilting Height) | mm | 470 | 470 |
| (Max Tamping Depth) | mm | 400 | 400 |
| (Clamping Range) | mm | 375-625 | 375-625 |
| (Motor Max Speed) | r/min | 5600 | 5000 |
| (Motor Displacement) | mL/r | 45.6 | 56 |
| (Motor Rated Pressure) | bar | 400 | 400 |
| (Weight) | kg | 980 | 1200 |
| (Size) | mm | 850*1020*1850 | 950*1180*1890 |
Why Choose Our Single-Head Ballast Tamper?
Versatility: With a 360° rotation and a clamping range that accommodates various track gauges, this tamper is adaptable to a wide range of railway projects.
Deep Penetration: Achieve a maximum tamping depth of 400mm, ensuring thorough compaction below the sleeper.
Powerful Performance: Equipped with a high-speed motor (up to 5600 r/min) and a high-pressure hydraulic system, it delivers a powerful compaction force for a stable track bed.
