After replacing railway sleepers, ballast cleaning – ballast scraper.

In railway overhaul construction, sleeper replacement is of paramount importance. However, after sleeper replacement, a large amount of ballast, gravel, and old sleeper debris often accumulates inside and around the sleeper box. If cleaning is not timely and thorough, it will not only affect the compaction effect of subsequent tamping operations but also directly threaten train operation safety.

Traditional manual cleaning methods are not only labor-intensive and inefficient, but also difficult to guarantee work quality within the tight "maintenance window" time. How can ballast cleaning after sleeper replacement be made safer and more efficient? Shandong Tiannuo provides the answer—the ballast scraper, turning track excavators into railway maintenance experts!

Why is ballast cleaning necessary after sleeper replacement?

Sleeper replacement disrupts the original track bed structure. If there is too much debris inside the sleeper box, the tamping pick cannot penetrate to the preset depth during subsequent tamping operations, and the track bed elasticity cannot be restored to uniformity. This can lead to train swaying at best, and serious accidents at worst.

The ballast scraper was developed precisely for this purpose. Installed at the front of the boom of a railroad excavator, it uses hydraulic drive to quickly scrape and level excess ballast in the track center and on both sides, clearing obstacles for subsequent operations.

Tiannuo Track Center Scraper: Designed Specifically for Railway Conditions

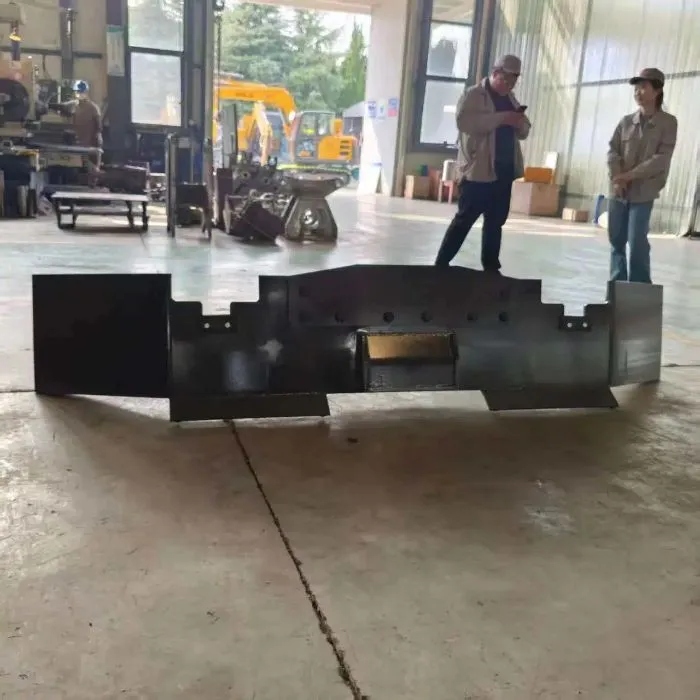

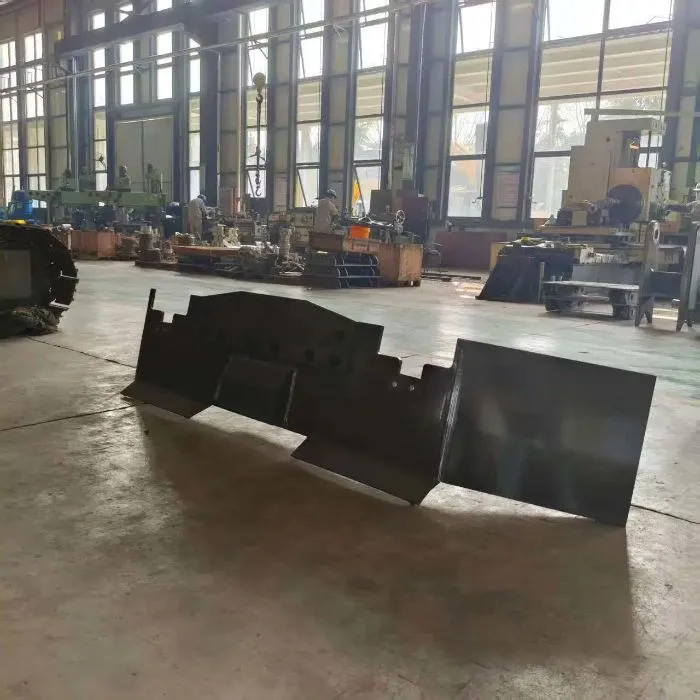

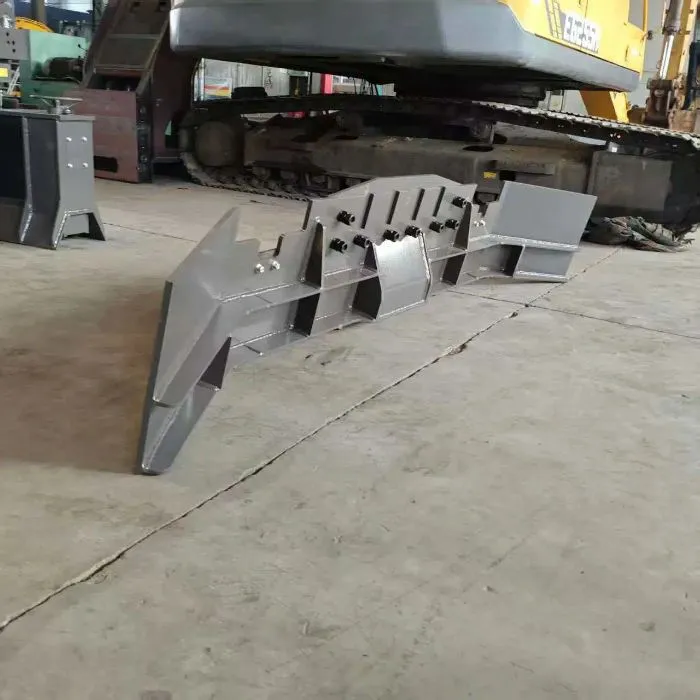

Tiannuo Machinery offers two models, TNDXGZ75 and TNDJGZ75, to meet the ballast cleaning needs of different scenarios, based on construction requirements.

1. Wide Coverage, One-Step Cleaning

Model Width Applicable Scenarios

TNDXGZ75 2800mm Standard Track Center Cleaning

TNDJGZ75 3400mm Wider Coverage, Suitable for Simultaneous Cleaning of Track Center and Sides

The ultra-wide 3400mm design allows for one-pass coverage of the track center and side shoulders, significantly reducing back-and-forth work time and truly achieving "one-pass cleaning".

2. Adjustable Angle, Flexible Adaptation
Both products feature a 30° tilt angle adjustment function, allowing for flexible adjustment of the scraping angle according to the track bed slope and construction requirements. This ensures that the ballast height is flush with the sleepers after cleaning, avoiding "ballast shortage" or "ballast accumulation."

3. Precise Fit, Ready to Use Immediately
The Tiannuo track core scraper is specifically designed for railroad excavators, making installation convenient and requiring no complex modifications.

Applicable Track Gauge: Standard 1435mm (Other gauges can be customized to meet the needs of different lines such as meter gauge and broad gauge)

Applicable Sleepers: Full coverage of Type II and Type III sleepers and bridge sleepers

Auxiliary Wheel Design: Equipped with 2 traveling wheels to reduce impact on sleepers during operation and protect the track bed structure.

4. Robust and Durable, Adaptable to Harsh Working Conditions
Railway construction sites face harsh working conditions, with sharp and hard ballast. The Tiannuo ballast scraper is designed with durability in mind:

Using high-strength, wear-resistant steel, it can withstand high impacts and abrasion.

Its compact structure, with a height of only 460mm, ensures operational stability with its low center of gravity.

Weighing 245kg (TNDXGZ75) and 350kg (TNDJGZ75), it guarantees strength without placing excessive load on the main unit.

Perfect Partner: Ballast Scraper + Sleeper Clamp

The Tiannuo ballast scraper is particularly suitable for use with sleeper clamps. During sleeper replacement, the sleeper clamps remove the old sleeper and lay the new one; the ballast scraper follows closely behind, cleaning up residual ballast and leveling the track bed. Together, they achieve integrated sleeper replacement, cleaning, and track leveling, significantly improving efficiency.

Why Choose Shandong Tiannuo?

Shandong Tiannuo Construction Machinery Co., Ltd., located in Jining, Shandong Province, boasts years of experience in railway equipment manufacturing. We not only provide high-quality ballast scrapers but also a complete set of railway maintenance attachments, including turnout tamping machines, sleeper clamps, and sleeper replacement clamps.

We understand that for railway construction companies, equipment stability translates directly to efficiency. Every product undergoes rigorous testing to ensure reliable operation even during peak maintenance periods.

Conclusion: With the continuous improvement of railway maintenance mechanization, traditional manual ballast cleaning methods are being replaced by efficient and safe mechanized operations. Tiannuo ballast scrapers, with their wide design, adjustable angle, and durability, are becoming the preferred choice for an increasing number of railway construction companies.

If you are concerned about the efficiency of ballast cleaning after sleeper replacement or would like to learn more about railway excavator attachments, please contact us!

Shandong Tiannuo Engineering Machinery Co., Ltd.

Website: www.stnd-machinery.com

Email: arm@stnd-machinery.com

Address: No. 369, Hard Innovation Industrial Park, Deyuan Road, Yanzhou District, Jining City, Shandong Province

Making railway maintenance simpler, Tiannuo is with you!
