How Does a Turnout Tamping Machine Address the Challenge of Ballast Compaction Following Sleeper Replacement?
Along the extensive front lines of railway maintenance and repair, every "sleeper replacement operation" is invariably followed by a critical procedural step: ballast compaction. If loose ballast is not promptly and densely packed back beneath the sleepers, the stability of the railway track becomes impossible to guarantee, and the safety of train operations is placed at risk.
Traditional operational methods often present a dilemma: one must either deploy massive tamping machines—valued in the tens of millions—which entail high costs and lack operational flexibility; or rely on manual labor using handheld tamping picks—a method characterized by high physical exertion, low construction efficiency, and an inability to ensure uniform compaction density.

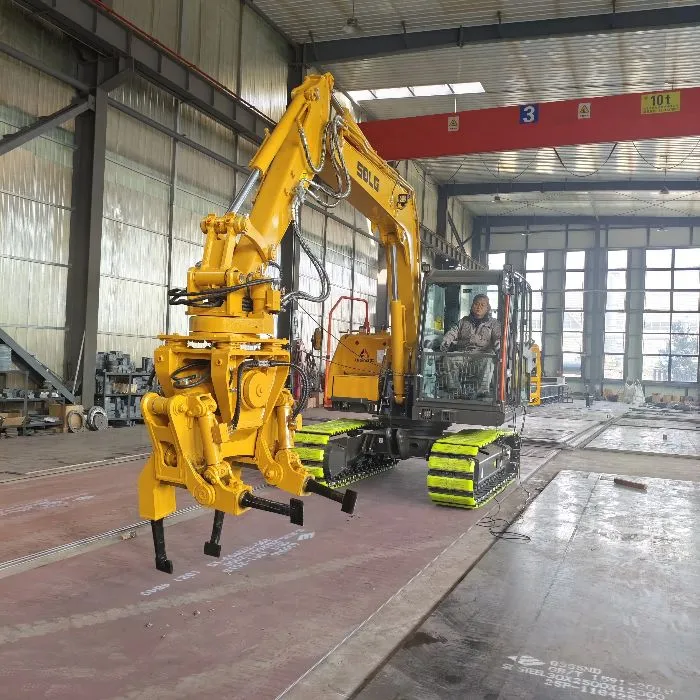

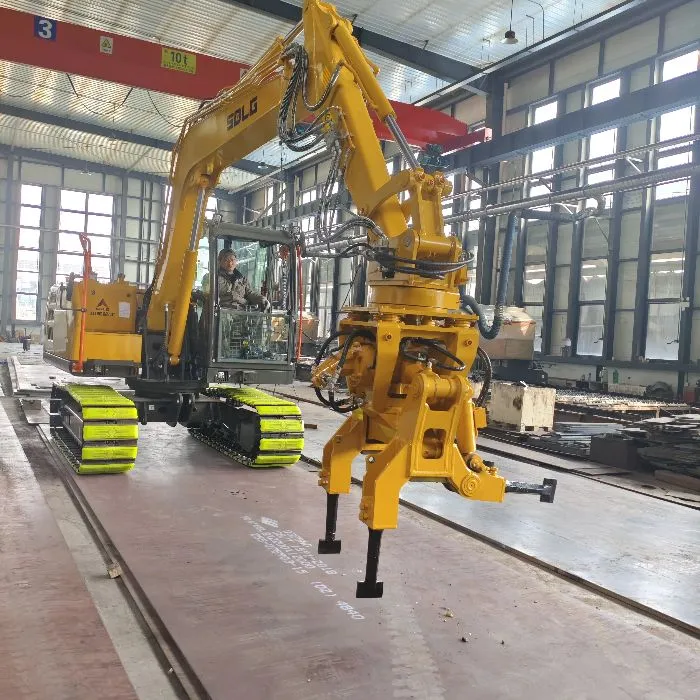

Today, a brand-new solution is quietly transforming this landscape: the excavator-mounted single-head turnout tamper. By effectively transforming an excavator into a "rail doctor," it enables a highly efficient "one-man, one-machine" operational model.
Why Choose an Excavator-Mounted Tamper Attachment?
**Ultimate Flexibility:** Unlike large tamping machines—which are restricted by transit logistics and operational space—this excavator attachment can easily access "tight corners" such as turnout zones and bridge/tunnel abutments to perform precise tamping operations.
**Significant Cost-Effectiveness:** It bridges the operational gap between heavy machinery and manual labor. The initial investment cost is far lower than that of a large tamping machine, yet it delivers an operational efficiency several times greater than that of manual labor.
**Powerful Functional Integration:** By leveraging the excavator's existing hydraulic system, this attachment not only generates powerful clamping forces and high vibration frequencies but also features capabilities such as 360-degree rotation, thereby achieving truly multi-dimensional, precision tamping.
**Tiannuo Single-Head Turnout Tamper: Beyond Compaction—It’s Precision**

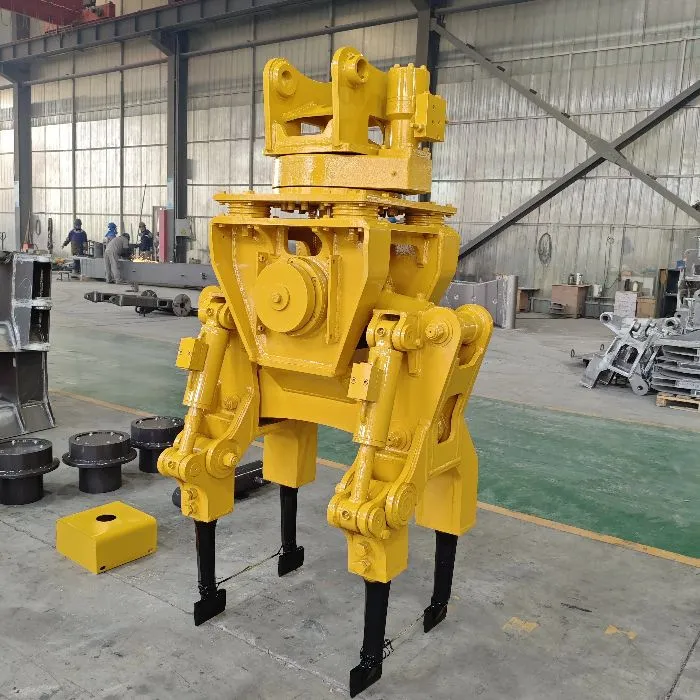

In response to the aforementioned market demands, Shandong Tiannuo Engineering Machinery Co., Ltd. has introduced the TNDCDGJ75 / TNDCDGJ150 series of single-head turnout tampers. With their exceptional performance specifications, these units have emerged as the "golden partner" for ballast compaction operations following sleeper replacement projects. **Key Performance Highlights**
According to the official specifications, we can observe the "hardcore" engineering features of these two devices (designed for host excavators ranging from 7–10 tons and 13–18 tons):
**Robust Hydraulic System:**
* The motor achieves a maximum rotational speed of up to 5,600 rpm, with displacements of 45.6 mL/r and 56 mL/r, respectively.
* A rated pressure reaching up to 400 bar ensures the delivery of consistent tamping force—even under harsh operating conditions—thereby guaranteeing that the ballast is effectively compacted deep beneath the sleepers.
**Deep Tamping Capability:**
* A maximum tamping depth of 400 mm ensures that the device not only compacts the surface ballast but also reaches the loose layers deep beneath the sleepers, thereby fundamentally eliminating the risk of track subsidence.
* With a clamping range of 375–625 mm, the device is perfectly adaptable to sleepers with varying spacing, as well as complex switch and turnout areas.
**Comprehensive, "Dead-Angle-Free" Operating Range:**
* **360° Rotation Angle:** This represents a significant advantage of excavator-mounted attachments compared to manual push-type machinery. Operators can precisely target every tamping point by simply adjusting the angle of the tamping head via hydraulic controls, without needing to reposition the excavator itself.
* **85° Leg-Lift Angle and 470 mm Leg-Lift Height:** These features endow the device with exceptional "obstacle-crossing" capabilities, allowing it to effortlessly clear rails and sleepers, and to maneuver with ease through complex switch and turnout zones.
**Application Scenarios and Practical Benefits**
For railway maintenance contractors, the adoption of such equipment signifies a significant upgrade in operational methodology:
**Rapid Line Restoration Post-Sleeper Replacement:** By working in tandem with excavators during sleeper replacement operations, this system enables a streamlined "replacement-and-tamping" workflow, thereby drastically reducing the required track possession time.
**Precision Maintenance in Turnout Zones:** Given the structural complexity of turnouts, the operation of large-scale tamping machines is often restricted. The single-head tamping unit—leveraging its flexible rotation and adjustable leg functions—offers a perfect solution to the persistent problem of inadequate ballast compaction in the inaccessible "dead zones" of turnouts.
**All-Weather, Multi-Condition Adaptability:** Whether operating in regions with extreme cold or in high-temperature environments, the robust hydraulic system ensures the equipment's stability and durability under any conditions.
**Conclusion**
Amidst the wave of "mechanization and digitalization" sweeping through modern railway maintenance, excavator attachments are carving out an increasingly pivotal role thanks to their unique advantages. Shandong Tiannuo’s TNDCDGJ series turnout tamping unit is more than just an attachment; it serves as a vital bridge connecting the host machine with the specific demands of railway maintenance, effectively transforming every excavator into a specialized railway maintenance expert.
If you are seeking a solution that not only reduces operational costs but also significantly enhances the quality of ballast compaction following sleeper replacement, we invite you to take a closer look at this product.
