Hydraulic Ballast Tamper

A Ballast Tamper is a hydraulic attachment or rail-road machine used to compact or “tamp” ballast beneath railroad sleepers (ties) to ensure proper track stability, alignment, and level. By vibrating and pressing ballast beneath the sleeper, it restores the geometry of the track and ensures safe, smooth rail operations. This machine is essential for both new track construction and routine maintenance.

Send Inquiry Download

Product Description

A ballast tamper is an essential piece of railway maintenance equipment designed to compact and stabilize the ballast beneath railway sleepers. By ensuring proper ballast consolidation, tampers enhance track stability, alignment, and longevity, contributing to safer and more efficient rail operations. Ideal for mainline tracks, metro systems, and industrial railways, our ballast tampers combine robust engineering with user-friendly operation to meet the demands of modern rail networks.

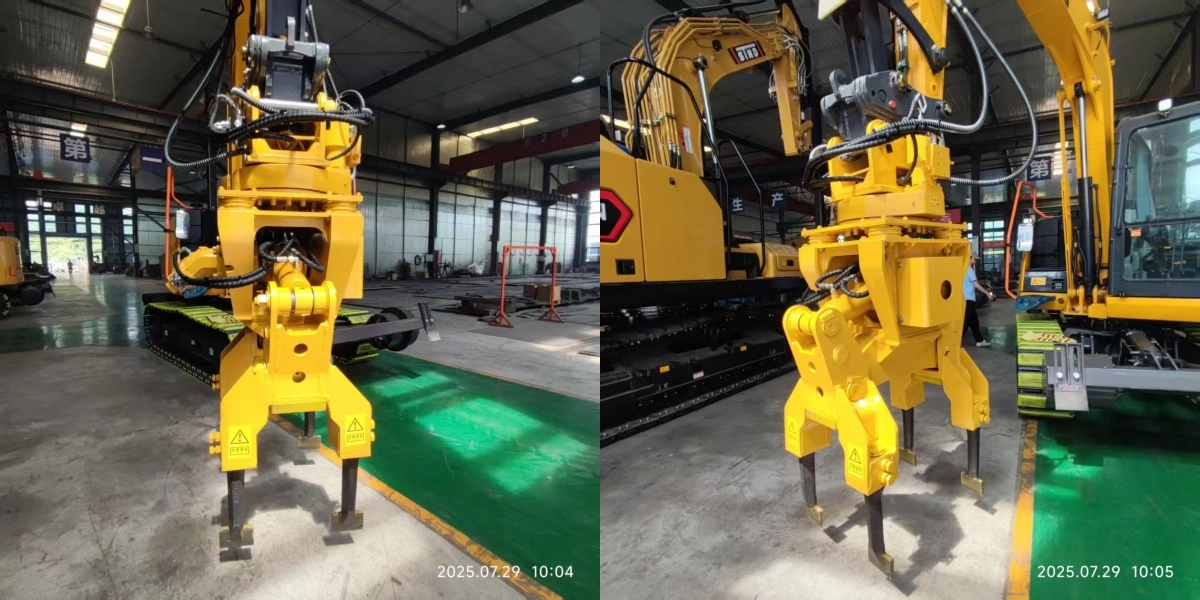

ballast tamper

Technical Specifications

Applicable tonnage(ton)	7-10	13-18
Applicable track gauge(mm)	1000/1435/1520	1000/1435/1520
Vibration frequency(hz)	30	40
Number of tamping head(unit)	4	4
Rotation Angle	360	360
Maximum tamping depth(mm)	400	400
Clamping range(mm)	380-625	380-625
Motor displacement(ml/r)	5600	500
Weight(kg)	900	1100
Size(mm)	85010201825	95011801850

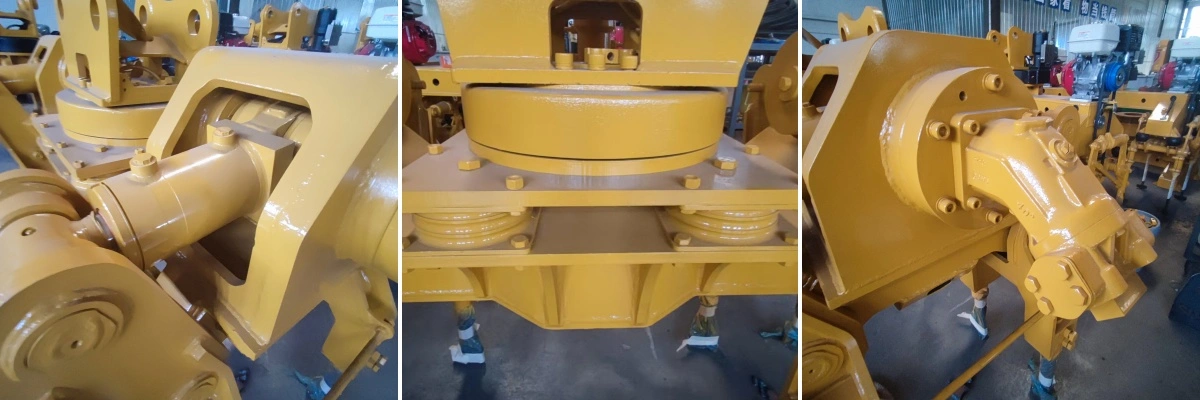

Key Features

High-Vibration Motor Unit：Provides efficient tamping frequency to compact ballast with less effort.

Rotation System (270° / 360°)：Enables the tamper to rotate or pivot to reach difficult angles without repositioning the excavator.

Robust, Replaceable Parts：Tines made of Q460 or wear-resistant steel, bolt-on replaceable tine pads, wear components easy to maintain.

Modular Mounting Options: ompatible with road-rail excavators, tilt-rotator systems, quick couplers.

product-1-1

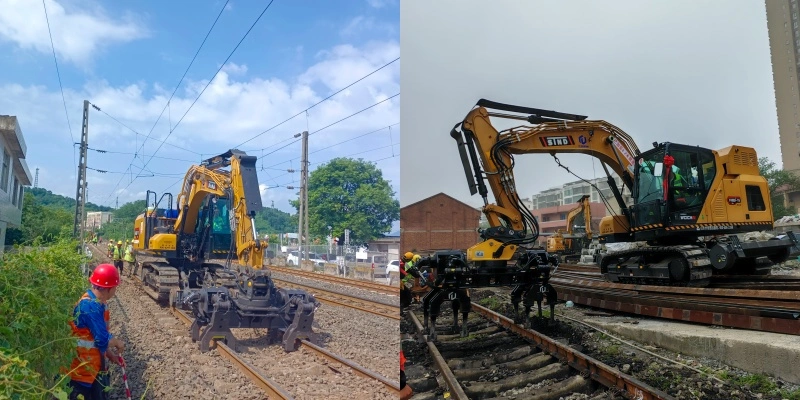

Applications

Mainline Track Maintenance: Regular upkeep of high-speed and freight rail corridors.

Transit Systems: Metro, light rail, and tramway track stabilization.

Construction Projects: Post-renewal tamping for new tracks or upgraded sections.

Mining and Industrial Rail: Heavy-duty applications in rugged environments.

product-1-1

FAQ

Q1: How often does the product need maintenance?
A1: Regular maintenance is recommended every 500 hours of operation, including checks on hydraulic systems, lubrication, and inspection of wear parts. Tiannuo provides comprehensive maintenance guides and support.

Q2: Can the product be customized?
A2: Yes, we offer customization to meet the specific requirements of your railway maintenance projects. Contact us to discuss your needs.

Q3: What is the delivery time for the product?
A3: Our standard delivery time is 6-8 weeks, depending on the level of customization required.
