Ballast Blaster Undercutter for Ballast Defect Type
When it comes to maintaining railway tracks, the ballast blaster undercutter stands out as a crucial piece of equipment. This powerful machine tackles various ballast defects, ensuring the longevity and safety of rail infrastructure. By addressing issues like compaction, contamination, and deformation, the blaster undercutter plays a vital role in preserving track stability and performance. Let's dive into the specifics of how this innovative technology combats different types of ballast defects, revolutionizing railway maintenance practices.
Ballast Compaction
Effects of Compaction on Track Stability
Ballast compaction is a silent menace that gradually compromises track stability. As trains repeatedly pass over the tracks, the ballast beneath experiences intense pressure, leading to densification. This process reduces the void spaces between ballast particles, diminishing their ability to drain water and distribute loads effectively. The result? A less resilient track structure that's more prone to settlement and geometry issues.
Compacted ballast can cause a domino effect of problems. It restricts proper drainage, leading to water accumulation within the track structure. This trapped moisture accelerates ballast degradation and can even compromise the subgrade. Moreover, the reduced elasticity of compacted ballast means less energy absorption from passing trains, potentially increasing wear on both rolling stock and track components.
Undercutting Solutions for Compacted Ballast

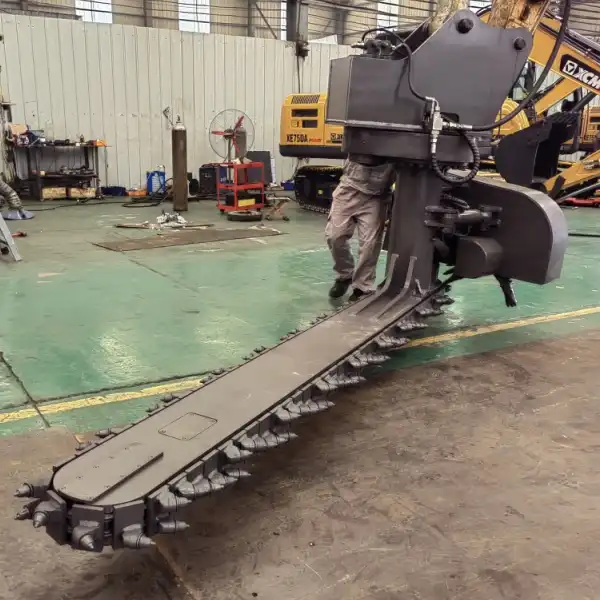

Enter the ballast blaster undercutter - a game-changer in addressing compaction issues. This specialized machine works by cutting beneath the track, loosening and removing the compacted ballast. The process involves a cutting chain or wheel that penetrates the ballast bed, breaking up the consolidated material.
Once loosened, the ballast is then conveyed to an onboard screening unit. Here, the material is sorted, with reusable ballast separated from fine particles and contaminants. Clean, screened ballast is then returned to the track bed, while waste material is removed. This process not only addresses compaction but also improves overall ballast quality.
Preventive Measures: Maintaining Optimal Ballast Density
While undercutting is an effective solution, prevention is always better than cure. Maintaining optimal ballast density requires a proactive approach. Regular track inspections using ground-penetrating radar can help identify areas of excessive compaction before they become problematic. Additionally, implementing a schedule of periodic tamping and regulating can help maintain proper ballast distribution and density.
Another preventive measure involves the use of geotextiles or geocomposites beneath the ballast layer. These materials can help distribute loads more evenly and prevent the upward migration of fine particles from the subgrade, which contributes to compaction. By combining these preventive strategies with timely undercutting when necessary, railway operators can significantly extend the life of their ballast and maintain optimal track performance.
Ballast Contamination
Identifying Sources of Ballast Contamination
Ballast contamination is a pervasive issue that can significantly impact track performance. Understanding its sources is crucial for effective management. One primary culprit is the natural breakdown of ballast stones due to the continuous stress of train traffic. This process creates fine particles that accumulate in the voids between larger stones, reducing drainage capacity.
External factors also play a role in contamination. Coal dust from freight trains, organic matter from surrounding vegetation, and soil intrusion from the subgrade can all contribute to the problem. In urban areas, litter and debris blown onto the tracks add to the contamination. Even atmospheric pollution can settle on the ballast over time, gradually degrading its quality.
Blasting Techniques for Contaminated Ballast Removal
The ballast blaster undercutter employs innovative techniques to tackle contaminated ballast. High-pressure air jets are often used to agitate and loosen the contaminated material. This blasting action helps separate fine particles from larger, reusable ballast stones. The loosened material is then excavated by the undercutter's chain or wheel mechanism.
Some advanced undercutters incorporate water spraying systems alongside air blasting. This combination creates a powerful cleaning action, washing away contaminants while minimizing dust generation. The wet cleaning process is particularly effective for removing stubborn pollutants that adhere to ballast surfaces.
Ballast Cleaning: Undercutters vs. Shoulder Cleaners
While both undercutters and shoulder cleaners aim to improve ballast quality, they serve different purposes. Undercutters, as the name suggests, work beneath the track, addressing contamination throughout the entire ballast bed. They're ideal for comprehensive renewal projects and severe contamination cases.
Shoulder cleaners, on the other hand, focus on the ballast at the sides of the track. They're less invasive and can be used more frequently as part of routine maintenance. While not as thorough as undercutters, shoulder cleaners play a crucial role in preventing contamination from spreading inwards from the track edges.
The choice between undercutters and shoulder cleaners often depends on the extent of contamination and the specific needs of the track section. In many cases, a combination of both techniques provides the most comprehensive approach to ballast cleaning and maintenance.
Ballast Deformation
Common Causes of Ballast Deformation in Railways
Ballast deformation is a significant challenge in railway maintenance, stemming from various factors. One primary cause is the dynamic loading from passing trains. The repeated stress cycles can lead to particle rearrangement and settlement, causing uneven track surfaces. This issue is particularly pronounced in areas with high traffic or heavy axle loads.
Environmental factors also contribute to deformation. Freeze-thaw cycles in colder regions can cause ballast heave, while excessive rainfall can lead to washouts or mud pumping from the subgrade. Additionally, inadequate drainage can result in water accumulation, softening the ballast and subgrade, which accelerates deformation under load.
Undercutting Strategies for Deformed Ballast Sections
Addressing deformed ballast sections requires a targeted approach. The ballast blaster undercutter is instrumental in this process. When tackling deformed areas, the undercutter's cutting depth is carefully adjusted to ensure all affected material is removed. This may involve going deeper than standard maintenance cuts to reach stable layers.
In severely deformed sections, the undercutting process might be coupled with subgrade remediation. This could involve installing geotextiles or geogrids to provide additional stability. The undercutter's ability to precisely control excavation depth makes it possible to implement these solutions without completely dismantling the track structure.
Innovative Ballast Blasting Technologies for Reshaping
Recent advancements in ballast blasting technology have introduced more efficient ways to reshape deformed sections. Some modern undercutters feature adjustable cutting profiles, allowing them to recreate the ideal ballast cross-section in a single pass. This capability significantly reduces the need for follow-up regulating work.
Another innovation is the integration of laser guidance systems. These allow for precise control of the undercutting depth and profile, ensuring consistent results even across varying degrees of deformation. Some systems can even adjust in real-time based on continuous measurements of the track geometry, optimizing the reshaping process as it progresses.
The ballast blaster undercutter proves to be an indispensable tool in combating various ballast defects. By effectively addressing compaction, contamination, and deformation, it plays a crucial role in maintaining safe and efficient railway operations. As technology continues to advance, we can expect even more innovative solutions to emerge, further enhancing the capabilities of these machines. For railway operators and maintenance teams, investing in quality undercutting equipment and implementing regular maintenance schedules will undoubtedly lead to improved track performance and longevity.
FAQ
①How often should ballast undercutting be performed?
The frequency of ballast undercutting depends on various factors such as traffic volume, axle loads, and environmental conditions. Generally, heavy-use tracks may require undercutting every 15-20 years, while less busy lines might extend to 30 years or more. Regular inspections and monitoring are crucial to determine the optimal timing.
②Can ballast undercutting be performed without removing the track?
Yes, modern ballast blaster undercutters are designed to work without removing the track. They can operate beneath the rails and sleepers, minimizing disruption to railway operations. However, in some severe cases or for complete track renewal, track removal might still be necessary.
③What percentage of ballast can typically be reused after undercutting?
On average, about 70-80% of the ballast can be cleaned and reused after undercutting. The exact percentage depends on the initial condition of the ballast and the efficiency of the cleaning process. Using high-quality ballast initially can increase the reusable percentage over time.
④How does ballast undercutting impact track settlement?
Ballast undercutting can significantly reduce track settlement by removing contaminated and compacted material, improving drainage, and restoring proper ballast gradation. However, there may be a brief period of increased settlement immediately after undercutting as the new or cleaned ballast settles into place.
⑤Are there environmental concerns with ballast undercutting?
While ballast undercutting itself is beneficial for track performance, it can raise environmental concerns. Dust generation during the process needs to be managed, especially in urban areas. Additionally, the disposal of contaminated ballast must be handled responsibly, often requiring special treatment or designated disposal sites to prevent environmental contamination.
China Ballast Blaster Undercutter For Sale
Tiannuo Machinery offers top-quality ballast blaster undercutters designed to meet the diverse needs of the railway industry. Our product lineup includes a range of railway maintenance equipment, from sleeper changing machines to tamping machines and slag cleaning machines. We also provide excavator modification equipment and specialized engineering arms to enhance your operational capabilities.

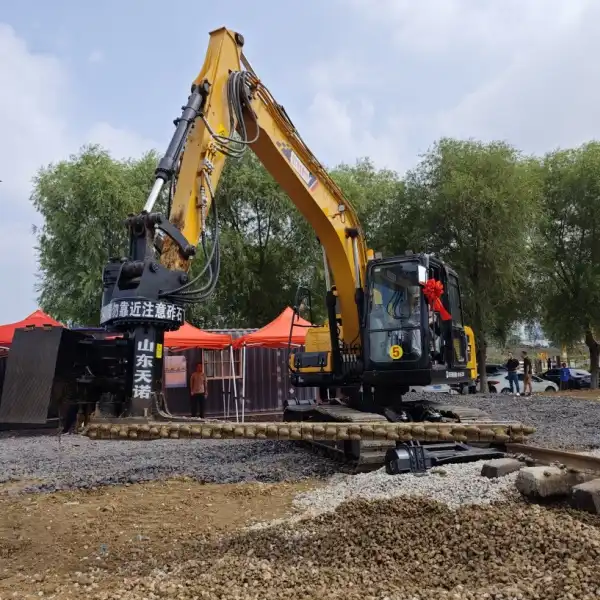

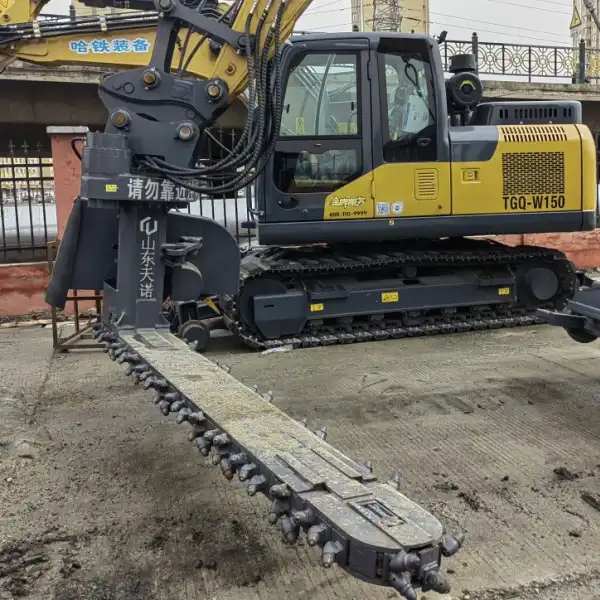

Our flagship model, the FR-160F-TN, is compatible with 135-185 excavators and boasts impressive specifications. With a cleaning length of ≥2800mm and a 360° rotation angle, it ensures thorough ballast maintenance. The slag removal depth of up to 200mm under the pillow makes it ideal for tackling severe contamination issues.
Measuring 4000*1100*1650mm (L*W*H), the FR-160F-TN is designed for efficiency and ease of transport. Whether you're dealing with ballast compaction, contamination, or deformation, our undercutter is up to the task. For more information or to discuss your specific needs, contact us at tn@stnd-machinery.com. Let Tiannuo Machinery be your partner in optimizing railway track maintenance and ensuring long-lasting, high-performance infrastructure.
References
- Mundrey, J.S. (2017). Railway Track Engineering (5th ed.). McGraw Hill Education.
- Federal Railroad Administration. (2021). Track Safety Standards Compliance Manual.
- International Union of Railways. (2020). Best Practices in Railway Track Maintenance.
- Proceedings of the Institution of Mechanical Engineers, Part F: Journal of Rail and Rapid Transit. (2019). Special Issue: Ballast Degradation and Maintenance, 233(3).
- Tiannuo Machinery. (2022). Railway Maintenance Equipment Catalog.
- American Railway Engineering and Maintenance-of-Way Association. (2021). Manual for Railway Engineering.
About Author: Arm
Arm is a leading expert in the field of specialized construction and railway maintenance equipment, working at Tiannuo Company.
