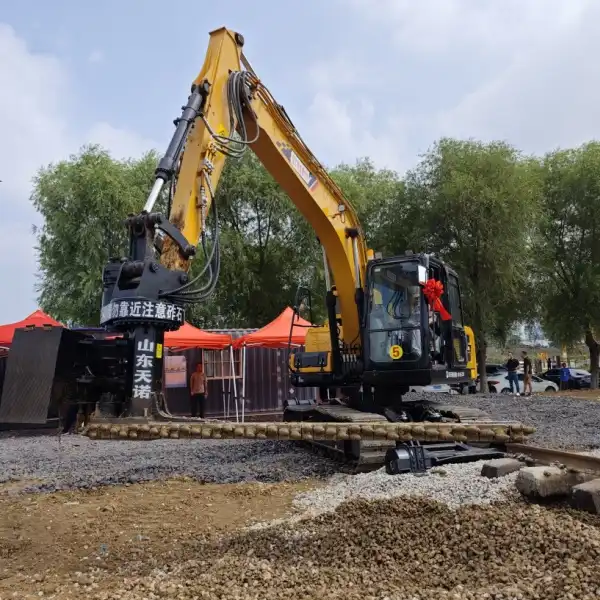

Ballast Blaster Undercutter Working Principle

The ballast blaster undercutter is a game-changing piece of machinery in railway maintenance, designed to efficiently clean and renew track ballast. This advanced equipment employs a sophisticated working principle that combines cutting-edge technology with precision engineering. By excavating, cleaning, and redistributing ballast material, the undercutter ensures optimal track stability and drainage, significantly extending the lifespan of railway infrastructure. Understanding the intricate workings of this powerhouse machine is crucial for railway professionals seeking to enhance their maintenance operations and improve overall track performance.

Positioning and Fixing

Precise Alignment with Track Geometry

The first step in the ballast blaster undercutter's operation is achieving precise alignment with the track geometry. This critical phase ensures that the machine's cutting components are perfectly positioned to engage with the ballast layer without damaging the rails or sleepers. Advanced laser guidance systems and GPS technology are often employed to guide the undercutter along the track, maintaining accuracy even in challenging terrain or curved sections.

Operators must carefully consider factors such as track curvature, cant, and gradient to achieve optimal positioning. The machine's computer systems continuously analyze real-time data, making micro-adjustments to maintain perfect alignment throughout the operation. This precision is vital not only for effective ballast removal but also for preserving the integrity of the track structure.

Secure Anchoring for Stable Operation

Once aligned, the ballast blaster undercutter must be securely anchored to ensure stable operation. This is typically achieved through a combination of hydraulic clamps and stabilizing legs that grip the rails and distribute the machine's weight evenly. The anchoring system must be robust enough to withstand the significant forces generated during the cutting and blasting processes while still allowing for smooth movement along the track.

Modern undercutters often feature adaptive anchoring systems that automatically adjust to variations in track conditions, ensuring consistent performance across different sections of the railway. This secure anchoring is crucial for maintaining the precision of the cutting depth and preventing any unwanted movement that could compromise the quality of the ballast cleaning process.

Adjustable Depth Control for Optimal Performance

The ability to adjust the cutting depth is a key feature of ballast blaster undercutters, allowing for customized operation based on the specific needs of each track section. Sophisticated depth control systems enable operators to set the exact level at which the cutting chains will engage with the ballast layer. This precision is essential for addressing varying degrees of ballast contamination and ensuring that the cleaning process reaches the required depth without disturbing the subgrade.

Advanced undercutters may incorporate dynamic depth adjustment capabilities, allowing for real-time changes in cutting depth based on sensors that detect changes in ballast conditions or subgrade characteristics. This adaptability ensures that the machine maintains optimal performance throughout the entire maintenance operation, maximizing efficiency and effectiveness.

Cutting and Crushing

High-Powered Cutting Chains for Efficient Excavation

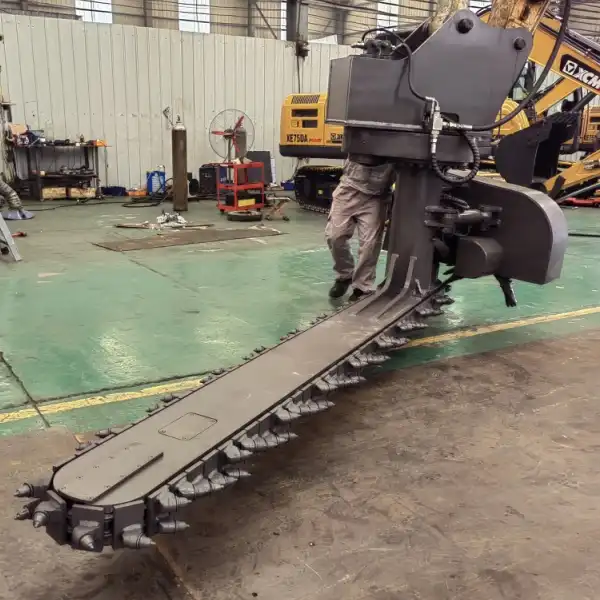

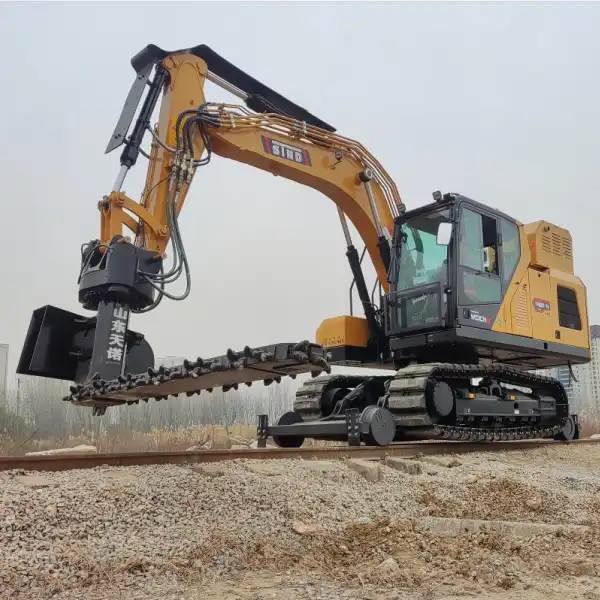

At the heart of the ballast blaster undercutter's operation are its high-powered cutting chains. These robust components are engineered to slice through compacted ballast with remarkable efficiency. The chains are typically constructed from high-strength, wear-resistant materials capable of withstanding the harsh conditions of railway ballast excavation.

The cutting chains are arranged in a specific pattern to maximize coverage and ensure thorough excavation of the ballast layer. As they rotate, they create a powerful scooping action that lifts the ballast material from beneath the track structure. The design of these chains is crucial, as they must be capable of handling various ballast materials, from standard crushed stone to more challenging mixed compositions.

Ballast Blasting: Breaking Down Compacted Material

Once excavated, the ballast material undergoes a blasting process to break down compacted particles and separate contaminants. This stage is critical for rejuvenating the ballast and improving its drainage properties. The blasting mechanism typically employs high-pressure air or water jets that forcefully agitate the excavated material.

This aggressive treatment serves multiple purposes: it breaks apart fouled ballast clusters, dislodges fine particles and organic matter, and helps to separate recyclable ballast from waste material. The intensity of the blasting process can often be adjusted to suit different ballast conditions, ensuring optimal cleaning results while minimizing unnecessary wear on reusable ballast stones.

Continuous Conveyor System for Material Removal

As the ballast is excavated and blasted, a sophisticated conveyor system comes into play. This continuous belt mechanism is responsible for efficiently moving the processed material through the various stages of the undercutter. The conveyor system must be designed to handle large volumes of ballast while resisting the abrasive nature of the stone particles.

The conveyor not only transports the material but also plays a role in the initial sorting process. As the ballast moves along the belts, gravity and the motion of the conveyor help to separate larger stones from finer particles. This preliminary sorting enhances the efficiency of subsequent cleaning stages and helps to streamline the overall ballast renewal process.

Impurity Separation and Cleaning

Vibrating Screens for Effective Particle Sorting

After the initial excavation and blasting, the ballast material passes through a series of vibrating screens. These screens are a crucial component in the impurity separation process, effectively sorting particles based on size. The vibrating action causes smaller particles to fall through while larger, reusable ballast stones are retained.

Multiple screen layers with varying mesh sizes ensure a thorough separation process. This stage is vital for removing fine contaminants such as sand, clay, and organic matter that can compromise the ballast's drainage capabilities. The efficiency of these vibrating screens directly impacts the quality of the cleaned ballast and, consequently, the longevity of the track structure.

Magnetic Separators: Removing Metal Contaminants

To further purify the ballast, ballast blaster undercutters incorporate powerful magnetic separators. These devices are designed to extract any metallic debris that may have accumulated in the ballast layer over time. Common metal contaminants include rail spikes, wire, and fragments from worn train components.

The magnetic separation process is typically integrated into the conveyor system, with strong magnets positioned above or around the belts to attract and remove ferrous materials. This step is crucial not only for improving ballast quality but also for preventing potential damage to other components of the undercutter during the cleaning process.

Water Spray System for Dust Suppression

Dust control is a significant consideration in ballast cleaning operations, both for environmental reasons and to maintain visibility during the process. Ballast blaster undercutters are equipped with sophisticated water spray systems that mist the excavated material as it moves through the machine.

These spray systems serve multiple purposes: they help to suppress dust, assist in the cleaning process by washing away fine particles, and contribute to cooling the machinery during operation. The water application is carefully controlled to avoid over-saturation of the ballast, which could lead to drainage issues once the material is returned to the track bed.

Ballast Layer Contouring

Precise Profiling with Adjustable Shoulder Ploughs

As the cleaned ballast is ready to be returned to the track bed, the ballast blaster undercutter employs adjustable shoulder ploughs to shape the ballast profile. These ploughs are crucial for creating the correct ballast shoulder geometry, which is essential for track stability and proper drainage.

The shoulder ploughs can be precisely adjusted to achieve the desired slope and width of the ballast shoulders. This customization allows for optimal ballast distribution based on specific track design requirements and local conditions. Proper shoulder profiling not only enhances track performance but also contributes to reduced maintenance needs over time.

Even Distribution Using Center Plough Technology

Complementing the shoulder ploughs, center plough technology ensures even distribution of ballast beneath and around the sleepers. This system is designed to fill voids and create a uniform ballast bed, which is crucial for maintaining proper track geometry and load distribution.

The center plough operates in coordination with the ballast return system, carefully metering the amount of cleaned material deposited back onto the track. Advanced sensors and control systems allow for real-time adjustments to the plough's position and ballast flow, ensuring consistent results even as track conditions vary along the maintenance route.

Final Sweeping for a Smooth Track Surface

The final stage in the ballast blaster undercutter's operation involves a sweeping mechanism that puts the finishing touches on the renewed track surface. This process ensures that excess ballast is evenly distributed and that the top of the sleepers is clear of debris.

The sweeping action not only improves the aesthetic appearance of the track but also plays a crucial role in preparing the surface for subsequent maintenance activities, such as tamping. By creating a smooth, well-regulated ballast profile, the undercutter sets the stage for optimal track performance and reduced wear on both rolling stock and infrastructure.

The ballast blaster undercutter represents a pinnacle of railway maintenance technology, embodying a sophisticated working principle that combines precision engineering with robust performance. From its meticulous positioning and cutting processes to the advanced cleaning and contouring capabilities, this machine plays a crucial role in extending track life and enhancing railway efficiency. As the industry continues to evolve, the importance of understanding and optimizing these maintenance processes cannot be overstated. Railway professionals who harness the full potential of ballast blaster undercutters are well-positioned to deliver superior track performance and contribute to the sustainable development of rail infrastructure worldwide.

FAQ

①How often should ballast cleaning be performed using an undercutter?

The frequency of ballast cleaning depends on various factors such as traffic volume, environmental conditions, and initial ballast quality. Typically, major ballast cleaning operations are performed every 15-20 years, but more frequent spot cleaning may be necessary in high-wear areas.

②What are the environmental benefits of using a ballast blaster undercutter?

Ballast blaster undercutters contribute to environmental sustainability by recycling a significant portion of the existing ballast, reducing the need for new material. They also minimize dust emissions through integrated suppression systems and can improve track drainage, reducing erosion and water pollution risks.

③How does ballast cleaning improve track safety?

Clean, well-maintained ballast enhances track stability, reduces the risk of track geometry defects, and improves drainage. These factors collectively contribute to a safer railway environment by minimizing the risk of derailments and track failures.

④Can ballast blaster undercutters work in tunnels or on bridges?

Many modern undercutters are designed to operate in confined spaces, including tunnels and on bridges. However, specific machine models may have limitations, and careful planning is required to ensure compatibility with structural clearances and load-bearing capacities.

⑤What advancements can we expect in ballast cleaning technology in the near future?

Future developments in ballast cleaning technology may include more advanced AI-driven operation, improved energy efficiency, enhanced material sorting capabilities, and integration with predictive maintenance systems to optimize cleaning schedules and techniques.
