Ballast Blaster Undercutter VS Ballast Cleaner
When it comes to maintaining railway tracks, two powerful machines stand out: the ballast blaster undercutter and the ballast cleaner. These giants of rail maintenance play crucial roles in ensuring smooth, safe, and efficient train operations. The ballast undercutter, a revolutionary piece of equipment, excels at removing contaminated ballast and restoring track geometry. On the other hand, the ballast cleaner focuses on cleaning and recycling existing ballast materials. Both machines have their strengths, but understanding their unique functions and applications is key to making the right choice for your railway maintenance needs.
Functions
Ballast Removal and Cleaning Efficiency

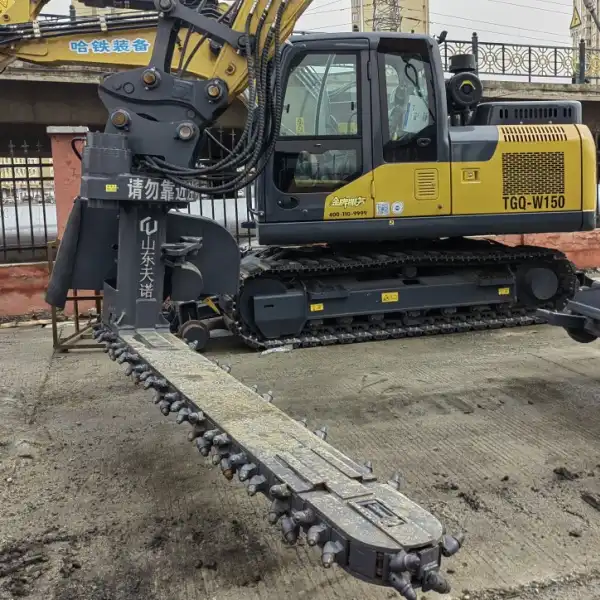

The ballast blaster undercutter and ballast cleaner approach their tasks differently, each with its own set of advantages. The ballast blaster undercutter uses a powerful cutting chain to remove contaminated ballast from beneath the track, effectively addressing issues deep within the track structure. This machine can excavate large volumes of ballast quickly, making it ideal for extensive track rehabilitation projects.
In contrast, the ballast cleaner focuses on cleaning existing ballast without completely removing it. It uses a series of vibrating screens and conveyor systems to separate dirt, debris, and fine particles from reusable ballast stones. This process is generally less disruptive to the track structure and can be more suitable for routine maintenance operations.
Track Geometry Restoration Capabilities
One of the standout features of the ballast blaster undercutter is its ability to significantly improve track geometry. By removing contaminated ballast and replacing it with clean material, this machine can correct issues such as track settling, misalignment, and poor drainage. The undercutter's precision allows for accurate adjustment of the track bed, ensuring optimal support for rails and ties.
While ballast cleaners don't offer the same level of track geometry restoration, they do contribute to maintaining proper track alignment by ensuring the ballast remains clean and well-draining. This helps prevent future settling and misalignment issues, extending the time between major track rehabilitation projects.
Ballast Recycling and Reuse Potential
Both machines offer ballast recycling capabilities, but their approaches differ. The ballast blaster undercutter typically removes a larger volume of material, which is then processed off-site. This allows for thorough cleaning and grading of the ballast, with the potential to reuse a significant portion of the material.
Ballast cleaners excel in on-site recycling. They can process and clean ballast as they move along the track, immediately returning cleaned stones to the track bed. This reduces the need for new ballast and minimizes waste, making it an environmentally friendly option for regular maintenance.
Suitable Scenarios
High-Traffic Railway Maintenance Operations
In high-traffic railway scenarios, time is of the essence. The ballast blaster undercutter shines in these situations due to its speed and efficiency in removing large volumes of contaminated ballast. It can quickly restore track geometry, allowing for minimal disruption to train schedules. This makes it an ideal choice for busy mainlines where extended track closures are not feasible.
Ballast cleaners, while slower in operation, offer the advantage of continuous processing. They can work steadily along a stretch of track, cleaning and recycling ballast without the need for frequent stops. This makes them suitable for maintenance windows on less time-critical sections of track or during planned closures.
Narrow Track Sections and Tight Curves
Railway maintenance in confined spaces presents unique challenges. Ballast cleaners often have an edge in narrow track sections and tight curves due to their more compact design. These machines can navigate restricted areas more easily, making them suitable for urban rail networks, tunnels, and bridges where space is at a premium.
While some modern ballast blaster undercutters are designed for improved maneuverability, they generally require more operational space. However, their ability to make significant improvements to track geometry can outweigh this limitation in areas where major rehabilitation is needed, even in challenging locations.
Severe Ballast Contamination and Drainage Issues
When faced with severe ballast contamination or persistent drainage problems, the ballast blaster undercutter is often the preferred choice. Its ability to remove deeply contaminated ballast and reshape the track bed allows for comprehensive solutions to long-standing issues. This is particularly valuable in areas prone to water accumulation or where fine sediments have thoroughly penetrated the ballast layer.
Ballast cleaners can address moderate contamination effectively but may struggle with severe cases. However, they play a crucial role in preventing the buildup of contaminants through regular maintenance, potentially reducing the frequency of major undercutting operations.
Ballast Elasticity Restoration
Improving Track Bed Load Distribution
The restoration of ballast elasticity is crucial for optimal track performance. Ballast blaster undercutters excel in this area by completely removing compromised ballast and replacing it with clean, properly graded material. This fresh ballast layer provides superior load distribution, absorbing and dissipating the forces generated by passing trains more effectively.
Ballast cleaners contribute to elasticity restoration by removing fine particles that can impede proper ballast function. While not as comprehensive as undercutting, regular cleaning helps maintain the ballast's ability to redistribute loads, extending the life of the track structure.
Enhancing Rail Stability and Ride Comfort
A well-maintained ballast layer is essential for rail stability and passenger comfort. The ballast blaster undercutter's ability to reshape the track bed and introduce fresh ballast significantly improves these aspects. The result is a smoother ride for passengers and reduced wear on rolling stock, leading to cost savings for railway operators.
Ballast cleaners play a supportive role in maintaining stability and comfort. By preventing the accumulation of fine particles, they help preserve the ballast's ability to hold the track in proper alignment, ensuring a consistent and comfortable journey for passengers.
Extending Track Lifespan and Reducing Maintenance Costs
Both machines contribute to extending track lifespan and reducing long-term maintenance costs, but in different ways. The ballast blaster undercutter provides a more comprehensive renewal of the track structure, potentially adding years to its service life. This can lead to significant cost savings by delaying the need for complete track replacement.
Ballast cleaners offer a more frequent, less invasive approach to maintenance. Regular cleaning prevents the buildup of contaminants that can lead to track degradation. By addressing issues before they become severe, ballast cleaners help reduce the frequency of major rehabilitation projects, spreading maintenance costs more evenly over time.
Choosing between a ballast blaster undercutter and a ballast cleaner depends on specific maintenance needs, track conditions, and operational constraints. While undercutters offer comprehensive track bed renewal and geometry correction, cleaners provide efficient, regular maintenance to prevent severe degradation. Both play vital roles in modern railway maintenance strategies. By understanding their strengths and applications, railway managers can make informed decisions to ensure safe, efficient, and cost-effective track maintenance programs.
FAQ
①How often should ballast maintenance be performed?
The frequency of ballast maintenance depends on factors such as traffic volume, environmental conditions, and track usage. Generally, high-traffic lines may require cleaning every 3-5 years, while undercutting might be needed every 15-20 years.
②Can ballast blaster undercutters and cleaners work together?
Yes, these machines can complement each other. Undercutters can be used for major rehabilitation, followed by regular maintenance with cleaners to prolong the benefits of the undercutting operation.
③What are the environmental considerations when choosing between undercutters and cleaners?
Ballast cleaners typically have a lower environmental impact due to their on-site recycling capabilities. However, undercutters can be more effective in removing contaminated materials that might pose environmental risks if left in place.
④How do these machines affect train schedules during maintenance?
Undercutters usually require longer track possession times but can complete extensive work quickly. Cleaners may operate with shorter interruptions but might need more frequent interventions.
⑤What advancements are being made in ballast maintenance technology?
Recent advancements include improved automation, better dust control systems, and enhanced sorting capabilities for recycled ballast. Some machines now incorporate real-time track geometry measurement for more precise maintenance.
China Ballast Blaster Undercutter For Sale

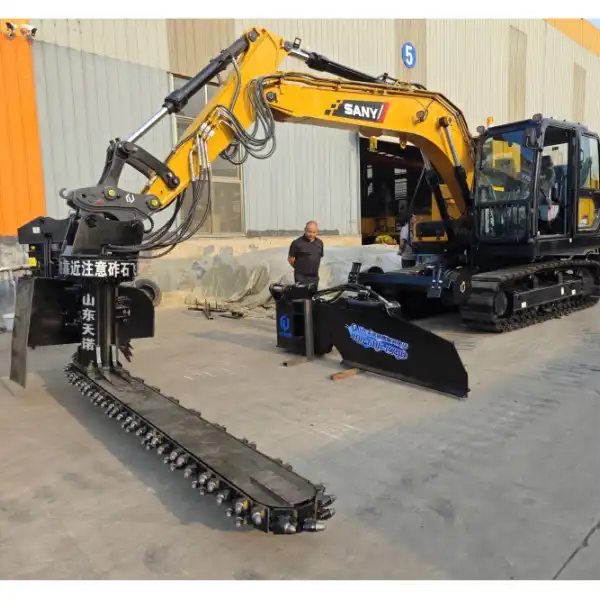

Tiannuo Machinery offers a range of high-quality ballast maintenance equipment, including the innovative ballast blaster undercutter. Our FR-160F-TN model is designed for optimal performance on 135-185 class excavators, providing a cleaning length of ≥2800mm and a slag removal depth of up to 200mm under the sleeper. With 360° rotation capability and compact dimensions of 4000*1100*1650mm (L*W*H), this machine offers versatility and efficiency for various railway maintenance scenarios. In addition to undercutters, we provide a comprehensive selection of railway maintenance equipment, excavator modifications, engineering arms, and accessories to meet diverse industry needs. For more information or to discuss your specific requirements, contact us at arm@stnd-machinery.com.
