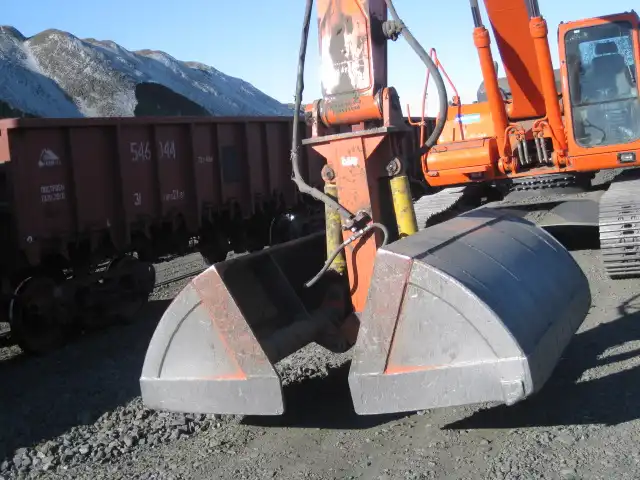

What is a Clamshell Bucket?
A clamshell bucket is a versatile excavation and material handling attachment widely used in construction, mining, and dredging operations. This specialized bucket features two hinged shells that open and close like a clamshell, allowing it to scoop, grab, and transport various materials efficiently. These buckets are designed to handle bulk materials such as sand, gravel, coal, and even underwater sediment, making them indispensable tools in many industrial sectors.
Definition and Basic Function of a Clamshell Bucket

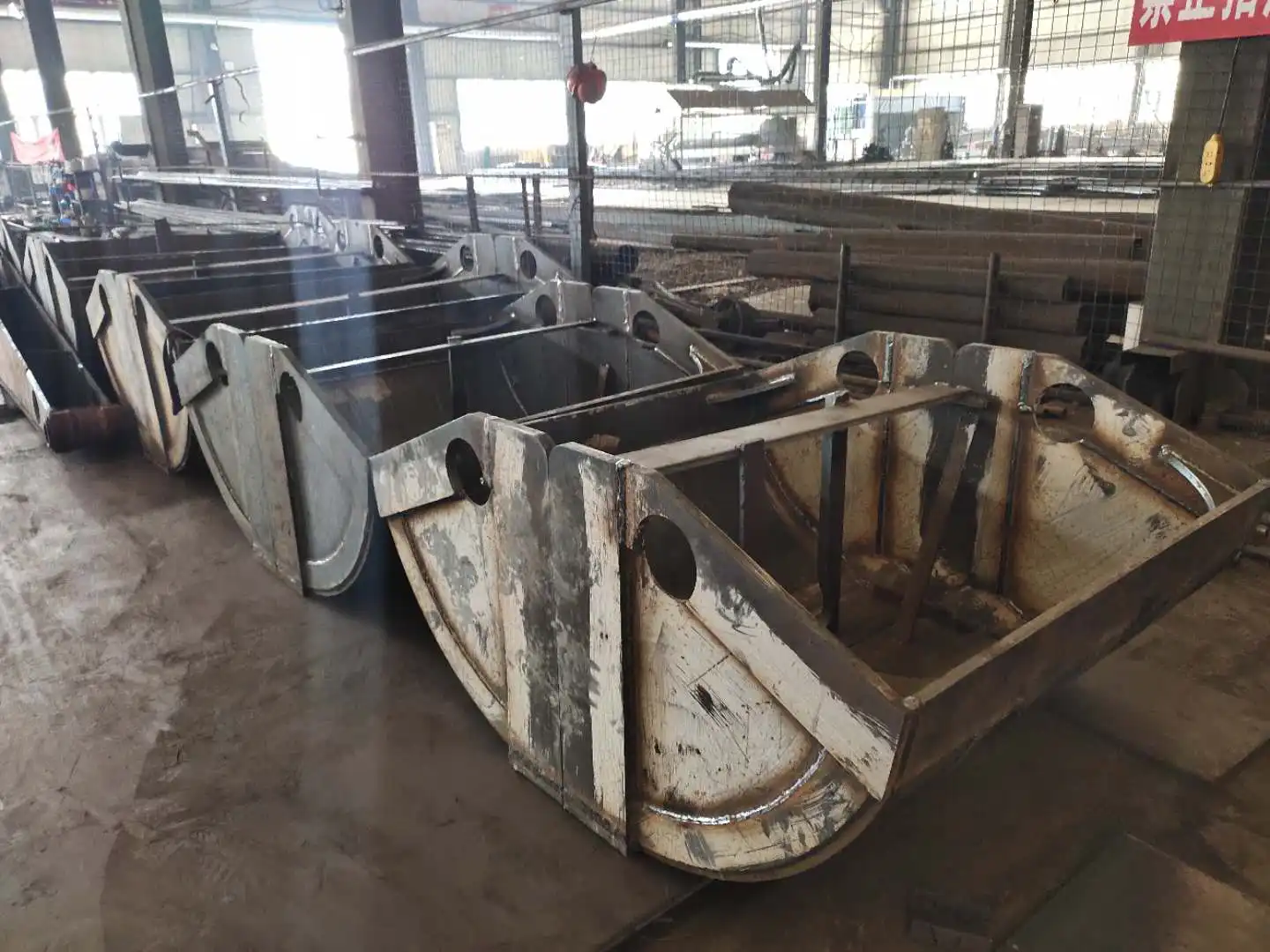

Anatomy of a Clamshell Bucket: Design and Components
The design of a clamshell bucket is both simple and ingenious. At its core, it consists of two symmetrical shells or jaws connected by a hinge mechanism. These shells are typically made from high-strength, wear-resistant steel to withstand the rigors of heavy-duty excavation and material handling. The bucket's interior may feature teeth or a smooth edge, depending on the intended application.
Key components include:
- Shells or jaws: The main scooping elements
- Hinge mechanism: Allows the shells to open and close
- Hydraulic cylinders: Power the opening and closing action
- Linkage system: Connects the hydraulic cylinders to the shells
- Mounting bracket: Attaches the bucket to the excavator or crane

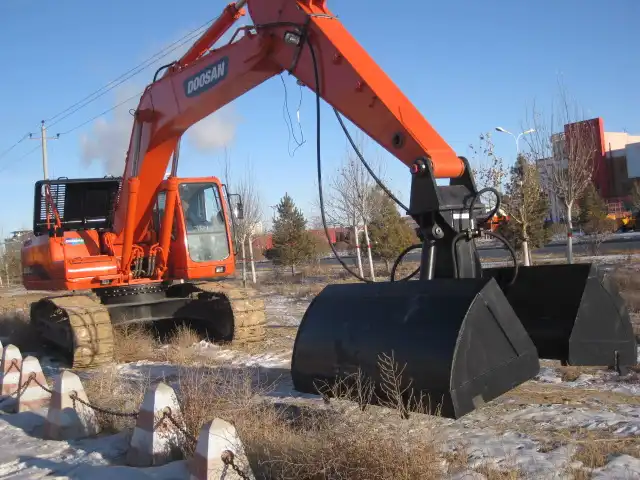

How Clamshell Buckets Operate: Opening and Closing Mechanism
The operation of a clamshell bucket relies on a straightforward yet effective mechanism. When the bucket is positioned over the material to be excavated, the operator activates the hydraulic system. This causes the hydraulic cylinders to extend, opening the shells. As the bucket is lowered into the material, the shells spread wide, ready to capture a large volume.
Once the desired depth is reached, the operator reverses the hydraulic flow, causing the cylinders to retract. This action pulls the shells together, effectively closing the bucket and trapping the material inside. The filled bucket can then be lifted and moved to the desired location for dumping.
Types of Clamshell Buckets: Hydraulic vs. Mechanical
Clamshell buckets come in two main types: hydraulic and mechanical. Each has its own set of advantages and is suited to different applications.
Hydraulic Clamshell Buckets: These modern buckets use hydraulic power to open and close the shells. They offer precise control, faster cycle times, and greater digging force. Hydraulic buckets are ideal for applications requiring frequent opening and closing, such as in bulk material handling or dredging operations.
Mechanical clamshell buckets: These traditional buckets rely on cables and pulleys for operation. While they may have slower cycle times compared to hydraulic models, mechanical buckets are often preferred for deep excavation work or when hydraulic power is not readily available. They're also typically more cost-effective and easier to maintain.
Key Applications in Construction and Material Handling
Excavation and Dredging: Clamshell Buckets in Action
Clamshell buckets excel in excavation and dredging tasks, particularly in challenging environments. In underwater operations, these buckets can efficiently remove sediment, clear waterways, and maintain harbors. Their ability to reach significant depths while maintaining precision makes them invaluable in projects where traditional excavators might struggle.
For land-based excavation, these buckets are often employed in deep foundation work, such as digging for bridge piers or basement construction. Their vertical digging capability allows them to create narrow, deep holes with minimal disturbance to surrounding soil structures.
Bulk Material Handling: From Aggregates to Waste Management
In the realm of bulk material handling, clamshell buckets demonstrate remarkable versatility. They're commonly used in ports and terminals for loading and unloading ships with materials like coal, grain, or ore. The bucket's design allows for efficient scooping and precise placement of materials, reducing spillage and improving overall operational efficiency.
In waste management facilities, these buckets play a crucial role in handling and sorting various types of waste. Their ability to grab and lift mixed materials makes them ideal for transferring waste from collection points to processing areas or loading it onto transport vehicles.
Specialized Uses: Marine Construction and Underground Projects
Clamshell buckets find unique applications in specialized construction projects. In marine construction, they're used for tasks such as placing riprap for erosion control or installing underwater foundations for offshore structures. The bucket's ability to operate effectively underwater makes it an essential tool in these challenging environments.
For underground projects like tunnel construction or mine development, compact buckets can be invaluable. They can be used to remove excavated material in confined spaces where larger equipment can't operate. This versatility extends to environmental remediation projects, where clamshell buckets can be used to remove contaminated soil or sediment with precision, minimizing the spread of pollutants.
Benefits and Limitations of Clamshell Buckets
Versatility and Efficiency: Why Choose Clamshell Buckets
Clamshell buckets offer numerous advantages that make them a popular choice across various industries. Their versatility is perhaps their most significant benefit. These buckets can handle a wide range of materials, from fine sand to large rocks, making them suitable for diverse projects. This adaptability reduces the need for multiple specialized attachments, potentially lowering equipment costs and simplifying operations.
Efficiency is another key advantage. Clamshell buckets can achieve high production rates, especially in bulk material handling scenarios. Their design allows for quick loading and unloading cycles, which can significantly boost productivity in applications like port operations or aggregate processing. Additionally, the precise control offered by hydraulic buckets enables operators to work with greater accuracy, reducing material spillage and improving safety.
Capacity and Load Considerations: Sizing Your Clamshell Bucket
Selecting the right size clamshell bucket is crucial for optimal performance. Bucket capacity is typically measured in cubic meters or cubic yards and can range from less than 1 m³ for small excavators to over 20 m³ for large cranes. The ideal size depends on several factors:
- Material density: Heavier materials may require smaller buckets to avoid overloading the machine.
- Lifting capacity: The bucket and its load must not exceed the safe working load of the crane or excavator.
- Digging depth: Deeper excavations may benefit from narrower, deeper buckets.
- Production requirements: Higher volume operations may need larger buckets to meet targets.
It's important to balance capacity with the machine's capabilities and the specific job requirements. Oversized buckets can lead to inefficiency and increased wear on equipment, while undersized ones may slow down operations.
Maintenance and Durability: Keeping Your Bucket in Top Shape
While clamshell buckets are built to withstand tough conditions, proper maintenance is essential for longevity and performance. Regular inspections should focus on:
- Wear points: Check for excessive wear on cutting edges and teeth.
- Hydraulic components: Inspect hoses, cylinders, and seals for leaks or damage.
- Hinge mechanism: Ensure proper lubrication and check for any signs of wear or looseness.
- Structural integrity: Look for cracks, dents, or deformations in the bucket body.
Timely repairs and replacements of worn parts can prevent more serious damage and extend the bucket's lifespan. For operations in particularly abrasive environments, consider buckets with additional wear protection or hardened steel components.
Clamshell buckets are versatile and efficient tools that have revolutionized material handling and excavation across various industries. From construction and mining to environmental remediation and port operations, these ingenious attachments offer unparalleled flexibility and precision. By understanding their design, applications, and maintenance requirements, operators and project managers can leverage clamshell buckets to enhance productivity, reduce costs, and tackle challenging excavation tasks with confidence. As technology advances, we can expect to see even more innovative applications for these indispensable tools in the future.
FAQ
1. How does a clamshell bucket differ from a standard excavator bucket?
A clamshell bucket has two hinged shells that open and close vertically, allowing it to scoop materials from above. Standard excavator buckets have a single scoop that digs horizontally. Clamshell-type buckets are better suited for deep excavations and precise material handling.
2. Can clamshell buckets be used for underwater excavation?
Yes, Excellent for underwater excavation and dredging. Their design allows them to operate effectively beneath the water surface, making them ideal for harbor maintenance, river cleanup, and other submerged material removal tasks.
3. What types of materials can be handled with a clamshell bucket?
Handle a wide variety of materials, including sand, gravel, coal, ore, grain, and various types of waste. The specific bucket design (e.g., toothed or smooth-edged) may be optimized for certain materials.
4. How do I choose the right size clamshell bucket for my project?
Selecting the right size depends on factors such as the material density, lifting capacity of your machine, required digging depth, and production targets. It's best to consult with a manufacturer or equipment specialist to determine the optimal size for your specific needs.
5. Are there any environmental benefits to using clamshell buckets?
Yes, clamshell buckets can offer environmental benefits. Their precise operation can minimize material spillage, reducing waste and potential contamination. In environmental remediation projects, they allow for careful removal of polluted sediments or soil with minimal disturbance to surrounding areas.
