Ballast Blaster Undercutter: The Ultimate Railway Maintenance Attachment for 15-20T Excavators
Introduction
Maintaining railway ballast is one of the most critical—and challenging—tasks in railroad infrastructure management. Fouled ballast leads to poor drainage, track instability, and increased risk of derailment. Traditionally, rail networks have relied on massive, dedicated on-track ballast cleaning machines. But these machines come with significant drawbacks: they require dedicated track time, long lead times for mobilization, and are sized for production runs, not spot maintenance-2.
Enter the FR160F-BZL Ballast Blaster Undercutter from Shandong Tiannuo Construction Machinery—a hydraulic excavator attachment that transforms a standard 15-20 ton excavator into a powerful, flexible, and highly efficient ballast cleaning machine.
Why Choose an Excavator-Mounted Undercutter?
The Problem with Traditional On-Track Machines
Full ballast cleaning machines have their place in long production runs, but they struggle with:
Spot maintenance – mud spots and localized fouling
Switches and crossings – complex geometry that large machines can't navigate
Congested networks – tight track windows and difficult access-2
Mobilization delays – significant lead time required to bring them onsite
The Attachment Solution
The FR160F-BZL changes the equation entirely. Instead of scheduling work around a dedicated machine, you use the hi-rail excavator or backhoe already on your crew-2. This means:
No additional machine costs – leverage your existing equipment fleet
Faster response time – address problem spots within the same track window
Lower capital investment – attachments cost a fraction of dedicated machines
Multi-functionality – same excavator can swap between different attachments
Key Features of the FR160F-BZL Ballast Blaster
1. True 360° Continuous Rotation
Unlike many undercutters that only offer 180° rotation, the FR160F-BZL features full 360° continuous rotation-1-7. This gives operators unprecedented flexibility:
Work from either side of the track without repositioning the excavator
Manage spoil piles more effectively
Navigate complex work zones with ease
As one industry expert notes, excavator-mounted undercutters with full rotation "greatly improve management of spoil piles, allowing operators flexibility and maximum cutting speed and performance"-7.
2. Side-Cutting Design with >100° Angle
The side-cutting mechanism is engineered to cut into the sleeper bottom from one side of the track, removing fouled ballast while leaving the track structure intact. With a cutting angle exceeding 100°, the FR160F-BZL adapts to different track bed configurations and working conditions-4.

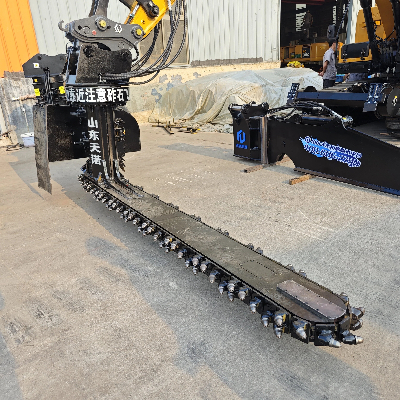

3. High-Efficiency Cutting Chain
The ballast blaster chain is bidirectional, allowing operators to cut in both directions without repositioning-2. This feature alone can double productivity compared to single-direction cutting systems.
Cutting rate expectation: Industry benchmarks for similar undercutter attachments range from 20 to 50 meters per hour, depending on model and track conditions-7. The FR160F-BZL is rated at >20 m/h, placing it solidly within this high-performance range.
4. Automatic Chain Tensioner
Proper chain tension is critical for both performance and longevity. The FR160F-BZL includes a patented automatic chain tensioning system that:
Provides shock-absorbing performance to reduce chain breaks
Increases chain life
Includes a tension gauge for visual monitoring-2
For larger excavator classes (14-25 tons), this feature is essential for maintaining productivity in harsh ballast conditions.
5. Replaceable Carbide Wear Plates
Ballast is abrasive. The FR160F-BZL is built to last with Q460/Q355 alloy steel construction and replaceable wear plates. Industry best practices show that bolt-on, indexable wear plates with full carbide protection provide:
Extended service life in harsh environments
Field-replaceable components without special tools
Two-sided protection for bidirectional cutting-1-7
6. Hydraulic Bar Tilt
The 30° gearbox tilt capability allows the operator to adjust the cutting angle on the fly. This is particularly valuable when working:
Around switches and crossings
On curved track sections
In bridge approaches and other restricted areas-1-6
7. Drive Motor Protection
The drive motor is protected by a full shroud that keeps debris out and prevents seal contamination. AR400 wear plates provide additional protection in the most vulnerable areas-2.
Technical Specifications Deep Dive
Hydraulic Requirements
| Parameter | Requirement |
|---|---|
| Hydraulic Flow | ≥150 L/min |
| Working Pressure | 28 MPa |
These specifications make the FR160F-BZL compatible with most 15-20 ton excavators from leading manufacturers including Caterpillar (313-320 series), Komatsu (PC130-160), and John Deere (160-190 series).
Cutting Dimensions
| Dimension | Value |
|---|---|
| Standard Bar Length | 2950 mm |
| Effective Cut Length | 2800 mm |
| Cutting Depth (under sleeper) | 200 mm |
The 2800 mm effective cutting length is designed to cover the full width of standard-gauge tracks (1435-1520 mm) plus adequate clearance on both sides-4.
Material Specifications
Bar material: Q460 alloy steel – high strength, good weldability
Chain and wear parts: Q355 alloy steel with carbide treatment
Compatible Machines
The FR160F-BZL is designed for excavators in the 15-20 ton weight class with minimum 130 kW (174 hp) engine power. Common compatible models include:
| Manufacturer | Compatible Models |
|---|---|
| Caterpillar | 313, 314, 315, 316, 318 |
| Komatsu | PC130, PC138, PC160 |
| John Deere | 160, 190 |
| Hitachi | ZX130, ZX160 |
| Volvo | EC140, EC160 |
| SANY | SY135, SY155, SY165 |
Note: For excavators outside this weight range, contact Tiannuo for custom configuration options.
Applications
Primary Application: Ballast Undercutting

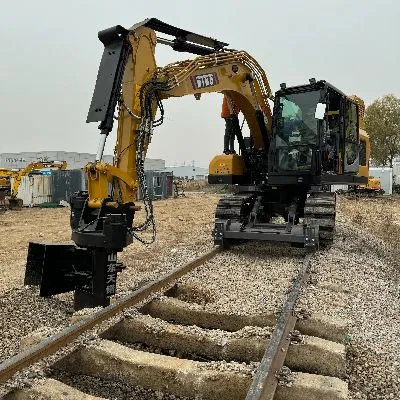

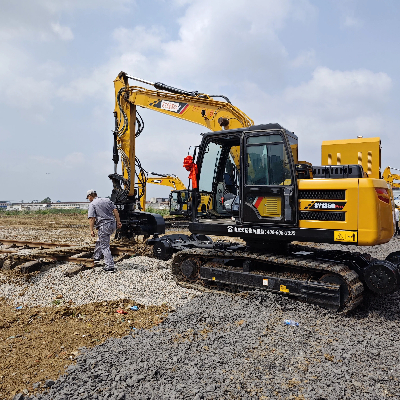

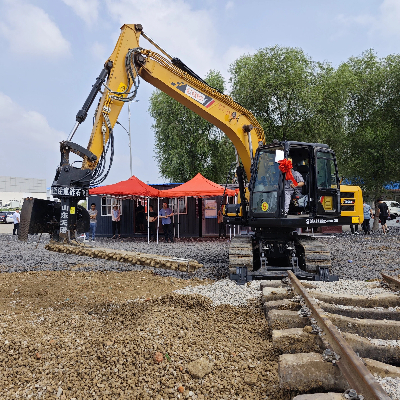

The FR160F-BZL removes fouled ballast rock and mud by cutting and pulling the material out from beneath the railway tracks-1. The removed ballast is automatically conveyed to the outside of the sleepers, leaving a clean working environment.
Secondary Applications
Mud spot removal – targeted cleaning without full track closure
Switch and crossing maintenance – navigates complex track geometry
Bridge approach cleaning – works in restricted spaces
Pre-tamping preparation – prepares the track bed for tamping operations
Turnout cleaning – handles areas where large cleaners cannot go
Comparison with Other Ballast Maintenance Methods
| Feature | FR160F-BZL | Dedicated On-Track Cleaner | Manual Labor |
|---|---|---|---|
| Capital cost | Low (attachment only) | Very high | Low |
| Mobilization time | Immediate (with excavator) | Days to weeks | Immediate |
| Spot maintenance ability | Excellent | Poor | Good |
| Productivity | >20 m/h | 50-100 m/h | <5 m/h |
| Switch/crossing access | Yes | Limited | Yes |
| Requires dedicated machine | No | Yes | No |
Rail networks increasingly prefer excavator-mounted undercutters for these reasons, especially "congested networks with severe time restraints"-2.
Safety Features
The FR160F-BZL is designed with operator and crew safety as a priority:
High-speed rotating mechanism warning labels – clear visual hazard identification
Debris containment – reliable safety protection against ballast splashing
Drive motor shrouding – reduces debris ejection risk-2
Maintenance and Serviceability
Easy Access Design
The FR160F-BZL features a removable top adapter that simplifies service access. When it's time for maintenance, technicians can quickly reach all critical components-2.
Wear Parts Replacement
Carbide teeth – field-replaceable, two-sided design for extended life
Wear plates – bolt-on design, no welding required
Chain tensioner – gauge provides visual confirmation of proper tension
Why Choose Shandong Tiannuo?
Shandong Tiannuo Construction Machinery Co., Ltd. (STND) is a specialized manufacturer of railway maintenance attachments and construction machinery. Located in Jining City, Shandong Province—China's engineering machinery manufacturing hub—Tiannuo combines:
Quality materials – Q460/Q355 alloy steel construction
Precision manufacturing – ISO-compliant production processes
Global export capability – serving customers worldwide
Customization options – configurations available for specific machine and track requirements
Contact Information
SHANDONG TIANNUO CONSTRUCTION MACHINERY CO., LTD.
Add: No.369, Hard Innovation Industrial Park, Deyuan Road, Yanzhou District, Jining City, Shandong Province, China
Website: www.stnd-machinery.com
Email: arm@stnd-machinery.com
Conclusion
The FR160F-BZL Ballast Blaster Undercutter represents a cost-effective, flexible alternative to dedicated on-track ballast cleaning machines. By transforming a standard 15-20 ton excavator into a high-performance ballast removal system, it enables rail maintenance crews to:
Respond faster to track problems
Reduce capital equipment costs
Work in confined spaces and complex track geometry
Maintain productivity within tight track windows
For rail networks, contractors, and maintenance-of-way crews looking to optimize their ballast cleaning operations, the FR160F-BZL delivers the performance, durability, and flexibility required for modern railway maintenance.
