What Are the Advantages of a Sleeper Clamp?

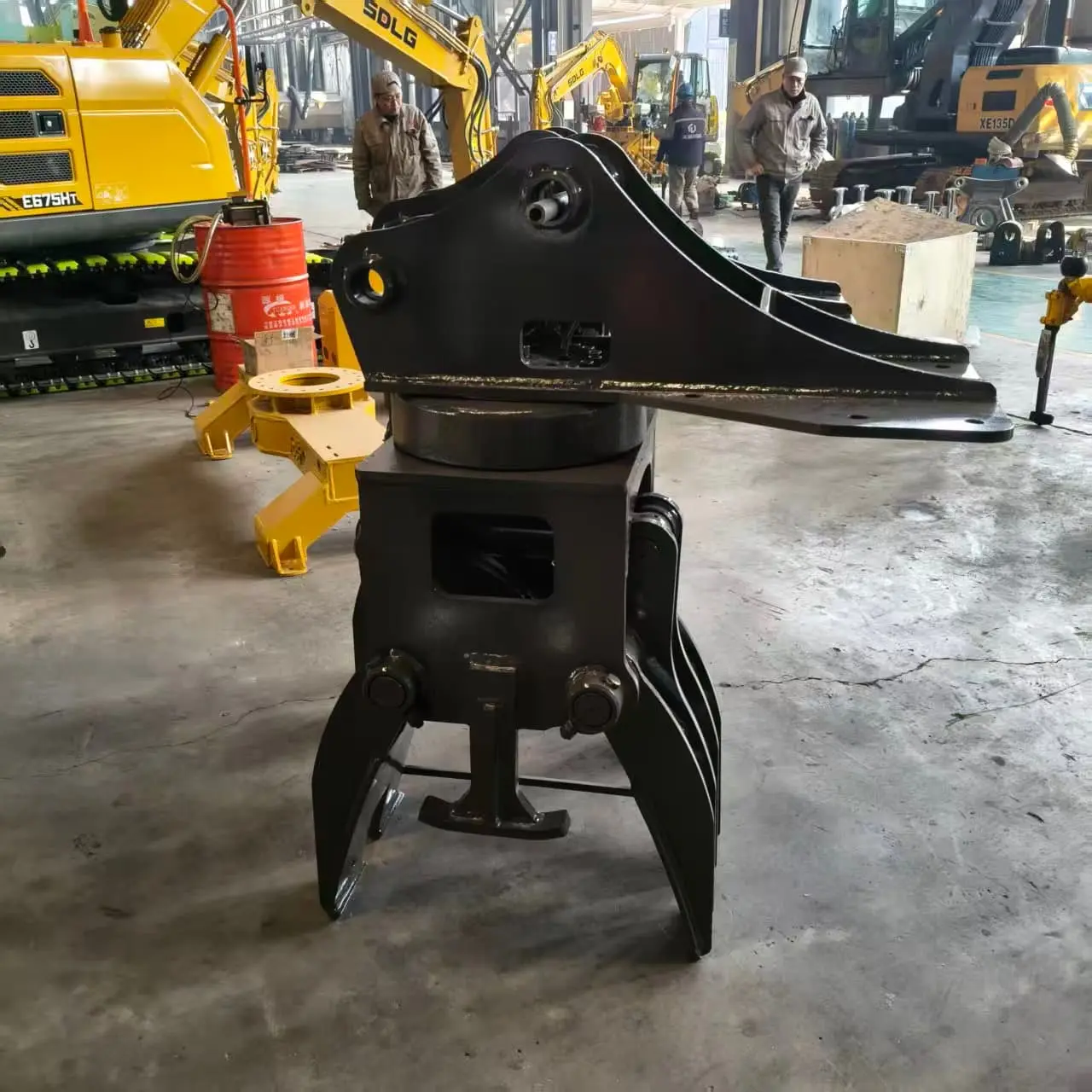

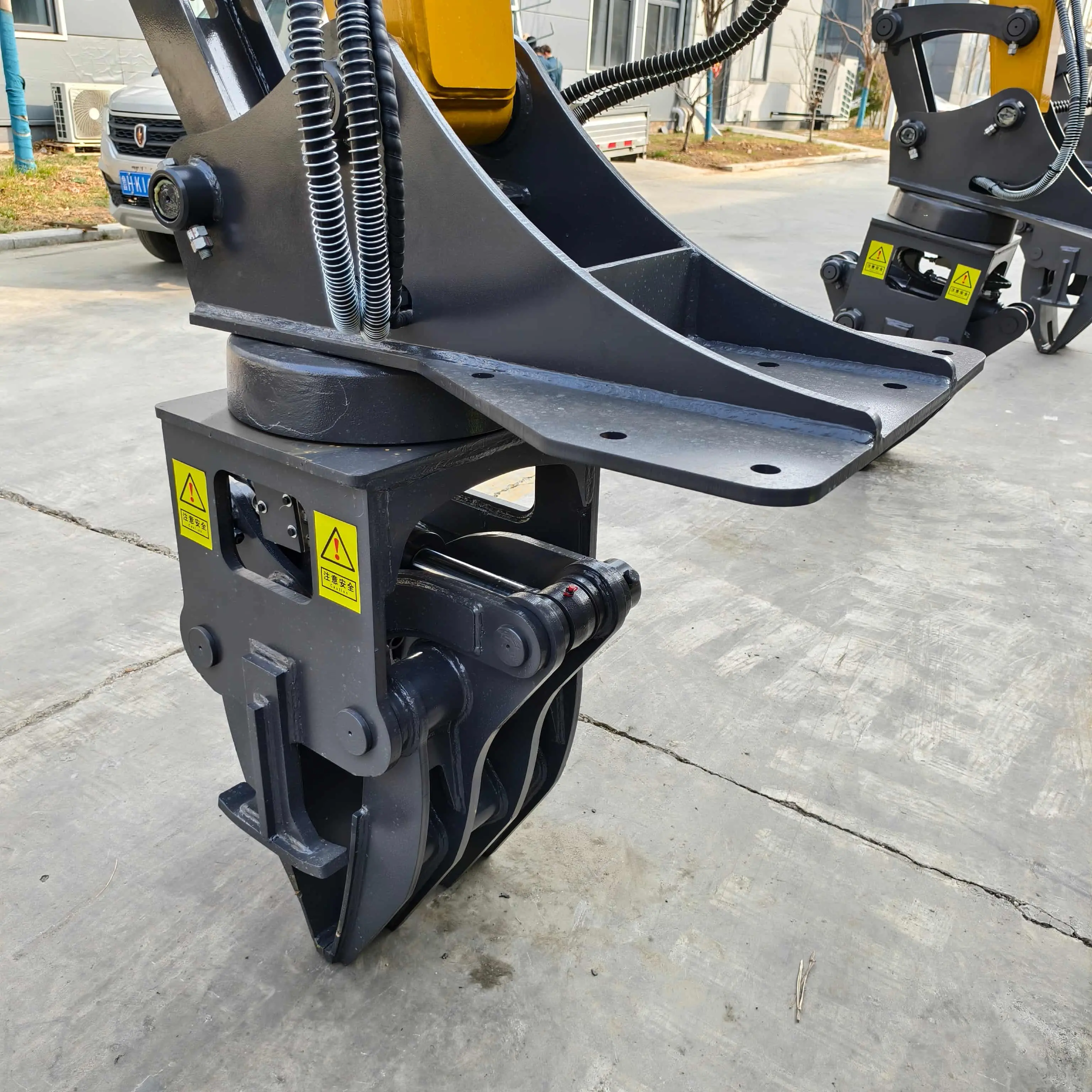

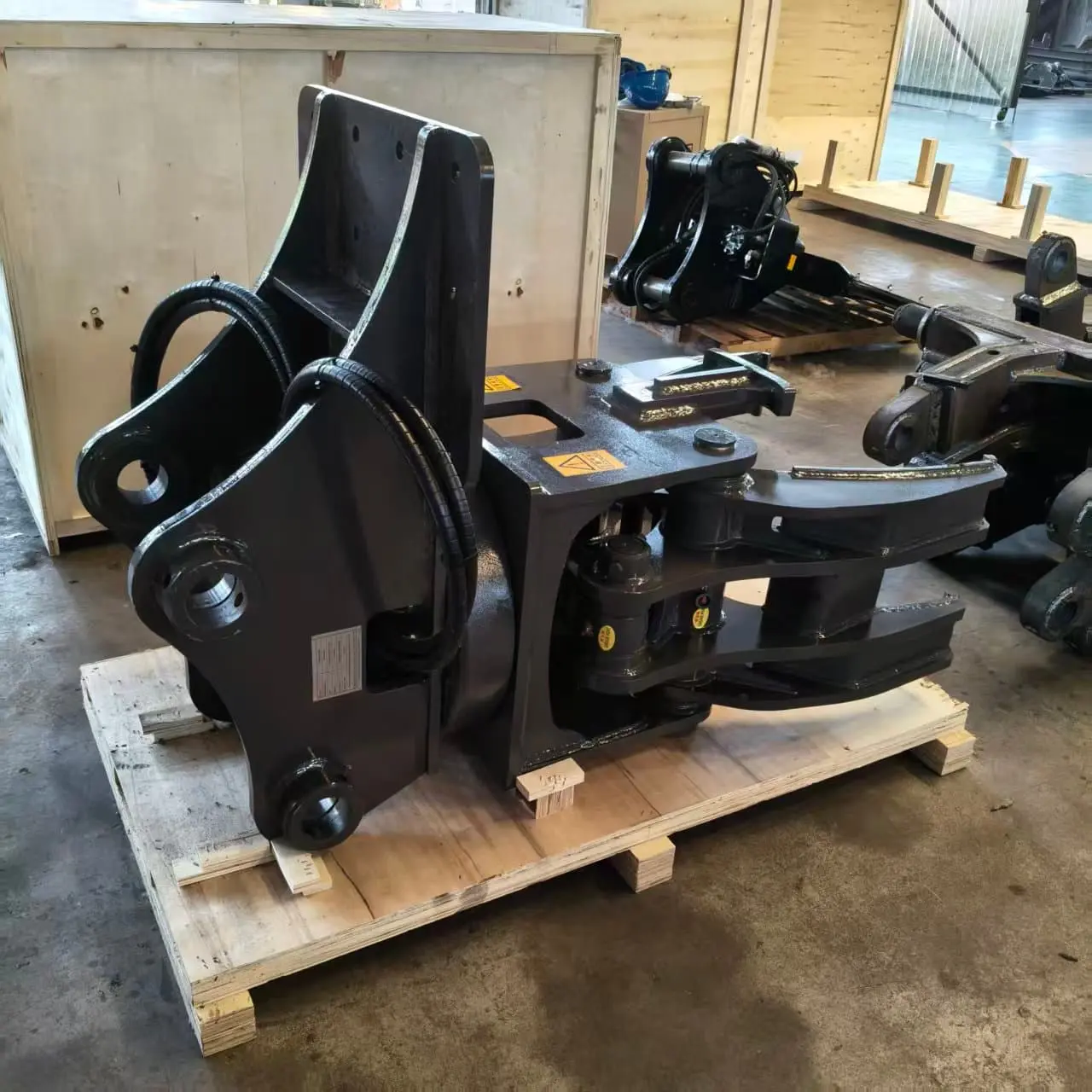

In railway maintenance engineering, sleeper replacement is a core process that ensures line safety. Traditional manual sleeper replacement is inefficient, labor-intensive, and constrained by limited track possession time, making it difficult to complete high-quality sleeper replacement within a short period. The Sleeper Clamp for excavators, launched by Shandong Tiannuo Machinery, is specially designed for railway sleeper replacement. With precise clamping, high efficiency, and full track gauge adaptability, it has become an indispensable tool for modern railway maintenance, providing reliable protection for line safety. The following are its core advantages.

1. Efficient Sleeper Replacement, Greatly Shortening Track Possession Construction Time

The core advantage of the Tiannuo Sleeper Clamp is its high-efficiency sleeper replacement capability. Both models support a replacement speed of 30-60 sleepers per hour, with efficiency more than 10 times that of manual work. Driven by the excavator's hydraulic system, the clamp jaws can quickly grab old sleepers, pull them out of the track bed, and accurately place new sleepers in position, realizing an integrated "grab-remove-install" operation process. No need for multiple equipment coordination, a single excavator can complete the entire sleeper replacement process.

Within the limited track possession time, the sleeper clamp can quickly complete sleeper replacement for hundreds of meters of lines, significantly shortening the construction cycle, reducing interference with train operations, and saving valuable operating time for railway maintenance, effectively alleviating the problem of tight track possession time.

2. Dual Model Matching, Covering Different Tonnage Excavators

Tiannuo Sleeper Clamp has launched two dedicated models for excavators of different tonnages to meet the operational needs of different working conditions:

· TNZMJ75: Suitable for 7-10 ton small excavators, weighing only 550kg, with a compact structure, ideal for branch lines, narrow sections, or small track possession operations, and can flexibly shuttle between tracks;

· TNZMJ150: Suitable for 13-15 ton medium excavators, weighing 1100kg, with stronger clamping force, suitable for high-intensity sleeper replacement operations on mainline railways and large track possession, capable of handling the grabbing and installation of heavy-duty sleepers.

Both models support 1000/1435/1520mm full track gauge adaptation, suitable for standard gauge, narrow gauge, and broad gauge lines, providing precise solutions for different railway maintenance scenarios.

3. Precise Clamping and Positioning, Ensuring Sleeper Installation Quality

The sleeper clamp is equipped with high-strength jaws and a precise hydraulic control system, which can flexibly adjust the clamping force to adapt to different specifications of sleepers. The jaw opening ranges are 650mm (TNZMJ75) and 630mm (TNZMJ150) respectively, which can firmly clamp the sleepers, avoiding slipping and shifting during grabbing, ensuring the sleepers are stable and controllable during removal and installation.

The equipment supports 360° rotation, allowing flexible adjustment of the working angle without frequent movement of the excavator, and can complete the precise alignment and installation of sleepers, ensuring the sleeper spacing and levelness meet line standards. It effectively avoids common problems such as sleeper offset and tilt in manual installation, improves line maintenance quality, and reduces the occurrence of later track diseases.

4. Durable Design, Adapting to Harsh Railway Conditions

Railway sleeper replacement operations are carried out in complex environments with hard ballast and high dust levels, and the equipment is subject to long-term clamping impact and wear. The Tiannuo Sleeper Clamp is made of high-strength alloy plate Q460+WH60C for the jaws and body, with key parts reinforced for excellent impact and wear resistance. It can withstand long-term sleeper grabbing operations without deformation or cracking. The jaws are made of wear-resistant alloy material with a replaceable design, allowing quick replacement after wear to extend the equipment's service life.

The hydraulic system adopts a sealed design to effectively prevent ballast dust and rainwater from entering the interior, protecting hydraulic components and reducing the failure rate. This ensures stable operation of the equipment in harsh outdoor environments, reducing downtime for repairs and guaranteeing the continuity of track possession operations.

5. Safe and Controllable Operation, Reducing Manual Work Risks

Traditional sleeper replacement requires workers to operate near the track, posing safety hazards such as collision with trains and injury from falling sleepers. The Tiannuo Sleeper Clamp is remotely controlled by the excavator operator from the cab, eliminating the need for personnel to approach the track operation area throughout the process, fundamentally avoiding safety risks.

At the same time, the equipment is equipped with an overload protection device, which automatically stops for protection when the load is too large to prevent equipment damage. The stable hydraulic drive system ensures no severe shaking during operation, further improving operation safety and complying with railway construction safety specifications.

6. Multi-Functional, Unlocking the All-Round Attributes of Excavators

The Sleeper Clamp can be quickly installed on the excavator via standard pin connection without complex modifications, and installation and disassembly can be completed in a few minutes. After the operation is completed, it can be easily replaced with other attachments such as ballast tampers, slope cleaners, or grabs, allowing one excavator to have multiple functions such as sleeper replacement, ballast compaction, and slope cleaning. This reduces equipment procurement costs and improves fleet utilization, especially suitable for railway maintenance units. There is no need to purchase additional special sleeper replacement equipment, and multi-process maintenance operations can be completed using existing excavators.

7. Significant Economy, Reducing Long-Term Operating Costs

From the perspective of the full life cycle, the Tiannuo Sleeper Clamp brings significant cost savings to users:

· Significant reduction in labor costs: One equipment + one operator can complete the sleeper replacement work that originally required multiple people to collaborate, reducing labor input;

· Shortened construction period, reducing operational interference: Efficient operations greatly shorten track possession construction time, reducing additional costs caused by train delays and detours;

· Low equipment maintenance costs: Wearable parts can be replaced quickly, the equipment failure rate is low, maintenance is convenient, reducing downtime and repair costs;

· Extended track life: Precisely installed sleepers improve line stability, reducing later track settlement, deformation, and other diseases, lowering the frequency and cost of long-term maintenance.

As emphasized on Tiannuo’s official knowledge platform (https://www.stnd-machinery.com/knowledge), high-quality attachments are long-term investments. Choosing the Tiannuo Sleeper Clamp means choosing efficient, safe, and cost-effective railway maintenance solutions, helping you easily complete various complex sleeper replacement tasks and win more project opportunities.
