Ballast Tamper Tamping Units

April 24, 2025

Ballast tamper tamping units represent the core functional components of any high-quality railway maintenance system. These specialized mechanisms are designed to pack ballast material beneath railway tracks with precision and consistency, ensuring proper track alignment and stability. The ballast tamper technology has evolved significantly in recent years, with modern units featuring hydraulic systems that deliver superior vibration control and tamping force. These components work by inserting tines into the ballast, applying controlled vibration and pressure to consolidate the stone aggregate around rail sleepers. This process is critical for maintaining track geometry, preventing premature wear, and ensuring safe railway operations across various environmental conditions. Quality tamping units from manufacturers like Tiannuo are engineered with durability in mind, constructed from high-grade materials capable of withstanding the rigorous demands of continuous railway maintenance while providing the precision required for modern high-speed rail networks.



Hydraulic Hammers

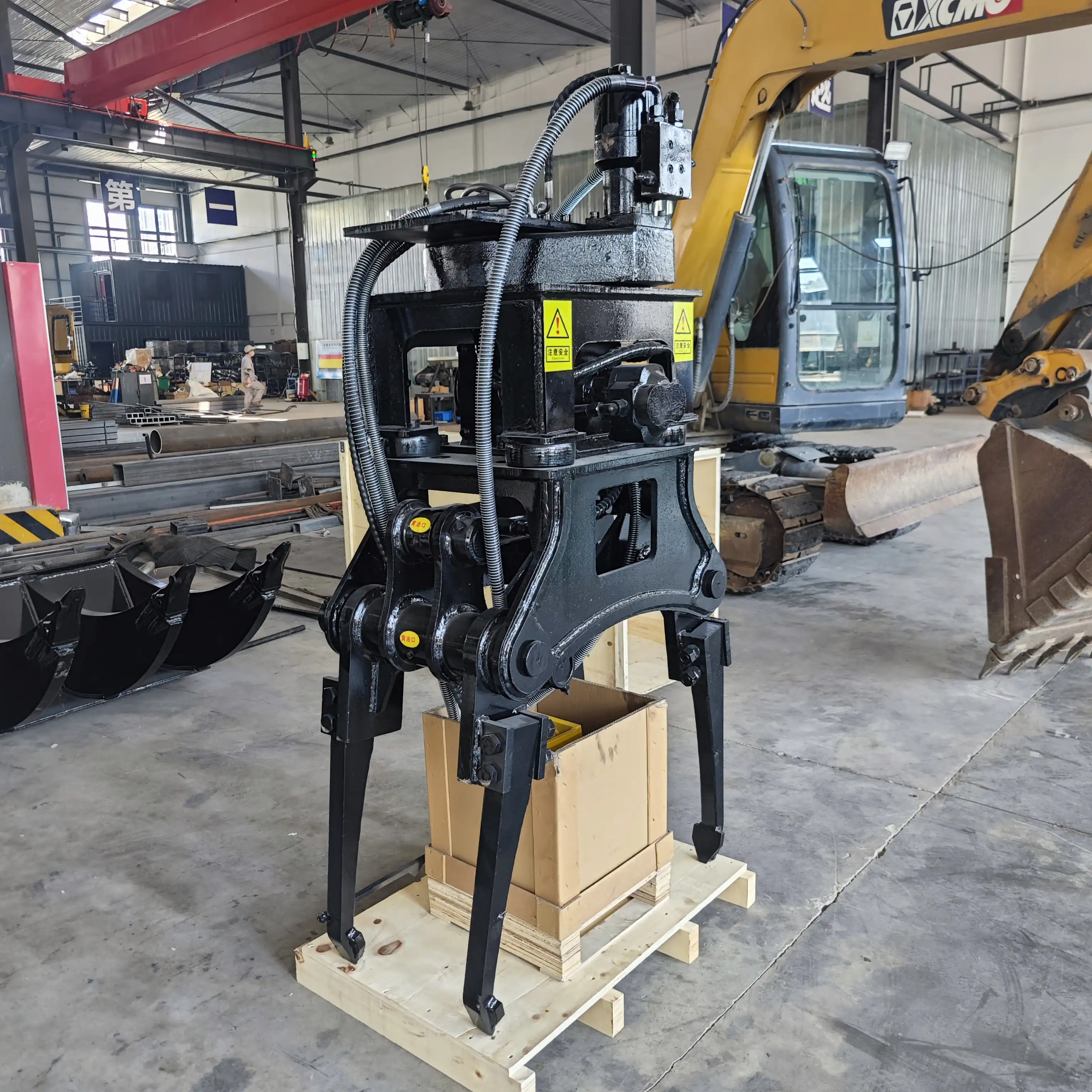

hydraulic tamping

Advanced Hydraulic Power Systems

The heart of an efficient ballast tamper lies in its hydraulic hammer system. These systems utilize pressurized hydraulic fluid to generate the powerful tamping force necessary for proper ballast consolidation. Modern hydraulic hammers operate at pressures ranging from 16-20 MPa, delivering consistent compaction force across various ballast conditions and track configurations.

The hydraulic systems in premium tamping units feature precision flow control valves that regulate the exact amount of force applied during operation. This precision is crucial when working with different ballast materials or when maintaining tracks with varying load requirements. Tiannuo's hydraulic ballast tamping machines are engineered with robust hydraulic circuits that minimize pressure fluctuations, ensuring consistent tamping quality throughout extended operation periods.

Vibration Technology Innovations

Advanced vibration technology represents a significant evolution in ballast tamper efficiency. High-frequency vibration systems enhance the consolidation process by allowing ballast particles to settle more effectively around sleepers. These systems typically operate in the 30-50 Hz range, optimizing the tamping process while minimizing track component stress.

The integration of controlled vibration parameters allows operators to adjust frequencies based on specific maintenance requirements. Lower frequencies may be utilized for initial tamping phases, while higher frequencies complete the consolidation process. This adaptive approach ensures optimal ballast density without over-compaction that could lead to ballast degradation or poor drainage characteristics.

Energy Efficiency Considerations

Modern hydraulic hammer designs prioritize energy efficiency without compromising performance. Advanced valve technology and precision-engineered hydraulic circuits minimize energy losses during operation, resulting in lower fuel consumption for the host excavator. This efficiency is particularly valuable during extensive maintenance operations where operational costs are a significant consideration.

Tiannuo's hydraulic systems incorporate recuperative technology that harnesses energy during the tamping cycle's retraction phase, redirecting it to support subsequent tamping actions. This energy-efficient design not only reduces operational costs but extends component life by minimizing heat generation and hydraulic stress during continuous operation.



Replaceable Tamping Tines

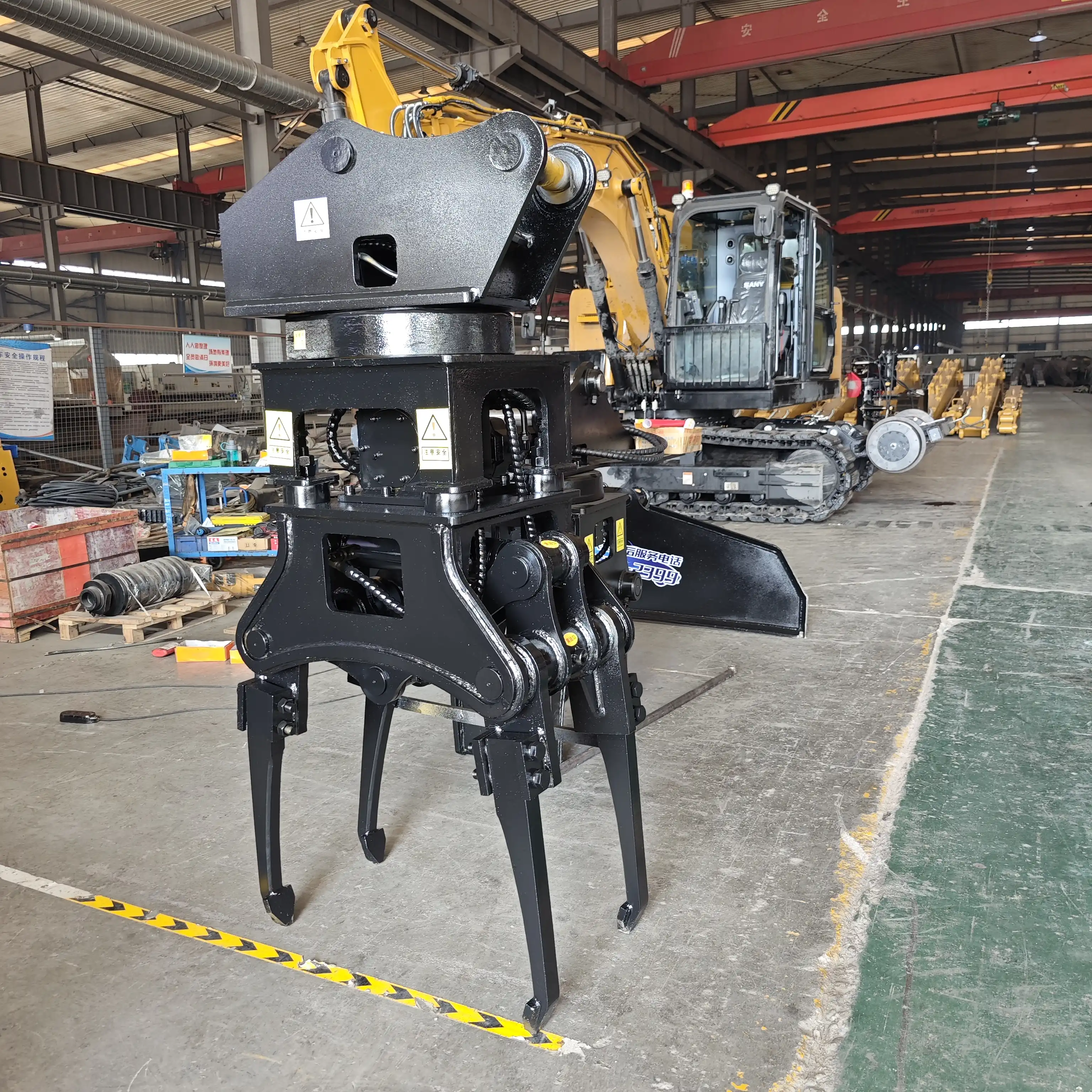

hydraulic ballast tamping machine

Material Composition and Durability

Tamping tines represent the direct contact points between the ballast tamper and track ballast, making their material composition critical to operational longevity. Premium tamping tines are manufactured using high-carbon alloy steels with precise heat-treatment processes that enhance wear resistance while maintaining appropriate flexibility to absorb operational stresses.

Modern tamping tines often incorporate tungsten carbide insertions at critical wear points, extending service intervals significantly compared to conventional steel designs. This hybrid material approach provides exceptional durability in abrasive conditions while maintaining the structural integrity necessary for effective tamping operations. Tiannuo's replaceable tamping tines utilize proprietary metallurgical formulations that deliver up to 40% longer service life compared to industry-standard options.

Quick-Change Designs

Operational efficiency in railway maintenance depends significantly on minimizing downtime during component replacement. Advanced tamping units feature quick-change tine designs that enable rapid field replacement without specialized tools or extensive disassembly. These systems typically utilize secure locking mechanisms that maintain precise tine positioning during operation while allowing straightforward removal when replacement becomes necessary.

The replaceable nature of modern tamping tines provides significant economic advantages, allowing maintenance teams to replace only worn components rather than entire tamping assemblies. This modular approach not only reduces ongoing maintenance costs but ensures the ballast tamper maintains optimal performance characteristics throughout its operational lifespan.

Geometry Optimization

Tamping tine geometry plays a crucial role in effective ballast consolidation. Contemporary designs feature carefully engineered profiles that facilitate ballast penetration while maximizing compaction effectiveness. Leading manufacturers conduct extensive field testing to optimize tine geometry for various ballast materials and operational conditions.

Progressive tamping tine designs incorporate specified entry angles that minimize initial penetration resistance, followed by optimized compaction surfaces that distribute tamping forces effectively throughout the ballast material. This sophisticated approach ensures uniform ballast density around sleepers, a critical factor in maintaining proper track geometry and preventing premature maintenance requirements.





Slewing Mechanisms 360-Degree Rotation

hydraulic ballast tamping machine

Precision Control Systems

Advanced ballast tamper units feature sophisticated slewing mechanisms that enable 360-degree rotation, providing exceptional operational flexibility during maintenance activities. These systems incorporate precision hydraulic motors coupled with robust bearing assemblies designed to maintain positioning accuracy under load. The integration of proportional control technology allows operators to achieve precise tamping unit placement with minimal effort.

Modern control systems utilize electro-hydraulic interfaces that provide responsive yet smooth rotational movement. This precision is particularly valuable when working in confined spaces or when performing maintenance on complex track configurations such as switches and crossings. Tiannuo's slewing mechanisms incorporate multi-stage deceleration technology that prevents positioning overshoot while maintaining operational efficiency.

Load-Bearing Capabilities

The structural integrity of slewing mechanisms represents a critical design consideration for effective tamping operations. Premium ballast tamper units feature reinforced rotational assemblies capable of supporting substantial loads while maintaining precise positioning throughout the maintenance cycle. These systems incorporate specialized bearing technologies designed to distribute operational stresses effectively.

High-quality slewing mechanisms utilize tapered roller bearing configurations that accommodate both radial and axial loads simultaneously. This design approach ensures stable operation even when tamping units are extended at maximum reach or when working on uneven terrain. The integrated load-sensing technology in advanced systems automatically adjusts hydraulic pressures to maintain optimal performance under varying load conditions.

Maintenance Accessibility

Operational reliability depends significantly on regular maintenance access to critical components. Well-designed slewing mechanisms incorporate strategic access points that facilitate routine inspection and service without extensive disassembly requirements. This thoughtful approach significantly reduces maintenance downtime while encouraging consistent preventative maintenance practices.

Tiannuo's ballast tamper rotating assemblies feature centralized lubrication systems that ensure critical bearing surfaces receive appropriate protection during operation. This systematic approach to component protection significantly extends service intervals while maintaining optimal performance characteristics. Accessible grease points and strategic inspection ports allow maintenance teams to quickly assess component condition without disrupting operational schedules.



FAQ

①How often should ballast tamper tamping units be serviced?

Regular maintenance is recommended after every 500 hours of operation. This should include hydraulic system inspections, lubrication of moving parts, and thorough examination of tamping tines for wear patterns. Preventative maintenance significantly extends operational life and ensures consistent performance.

②What track gauges can Tiannuo's ballast tampers accommodate?

Tiannuo's ballast tampers are designed to accommodate various track gauges with clamping ranges from 180-700 mm. The versatile design makes them suitable for standard and narrow-gauge applications across different railway systems worldwide.

③What is the typical compaction force delivered by a hydraulic ballast tamper?

Tiannuo's hydraulic ballast tampers typically deliver a compaction force of approximately 10 tons, operating at optimal working pressures of 18 MPa. This substantial force ensures proper ballast consolidation while maintaining track geometry.

④Can tamping units be installed on different excavator models?

Yes, Tiannuo's tamping units are designed for compatibility with excavators ranging from 7 to 50 tons. Custom mounting brackets and hydraulic integration kits are available to ensure proper installation across various excavator manufacturers and models.

⑤What advantages do high-vibration tamping units offer compared to conventional models?

High-vibration tamping units provide superior ballast consolidation by enabling more effective particle rearrangement during the tamping process. This results in more uniform ballast density, improved track stability, and extended maintenance intervals between tamping operations.



Contact Tiannuo

Ballast tamper tamping units represent critical components in modern railway maintenance operations, providing the precision and reliability necessary for maintaining safe and efficient track systems. The advancements in hydraulic technology, tamping tine materials, and rotational mechanisms have significantly enhanced operational capabilities while reducing maintenance requirements. These sophisticated components work in harmony to ensure precise ballast consolidation, a fundamental requirement for maintaining proper track geometry and preventing premature wear of railway components.

As railway infrastructure continues to expand globally, the demand for efficient and reliable maintenance equipment grows correspondingly. Tiannuo remains committed to advancing tamping technology through continuous research and development, ensuring our products meet the evolving needs of railway maintenance professionals worldwide. For more information about our high-vibration hydraulic ballast tamping machines or to discuss your specific railway maintenance equipment needs, please contact us at raymiao@stnd-machinery.com.
