What is the purpose of a ballast tamper?

April 24, 2025

A ballast tamper is a specialized piece of railway maintenance equipment designed to maintain and restore the geometry and stability of railway tracks, its primary purpose is to pack (or tamp) the track ballast under railway sleepers (ties), ensuring proper track alignment, level, and stability. This critical maintenance operation prevents track irregularities that could lead to derailments, excessive vibration, passenger discomfort, and premature wear of both track components and train wheels. By effectively compacting the ballast material, these machines help extend track life, improve ride quality, and maintain safe operating conditions for trains traveling at various speeds across the railway network.



Purpose

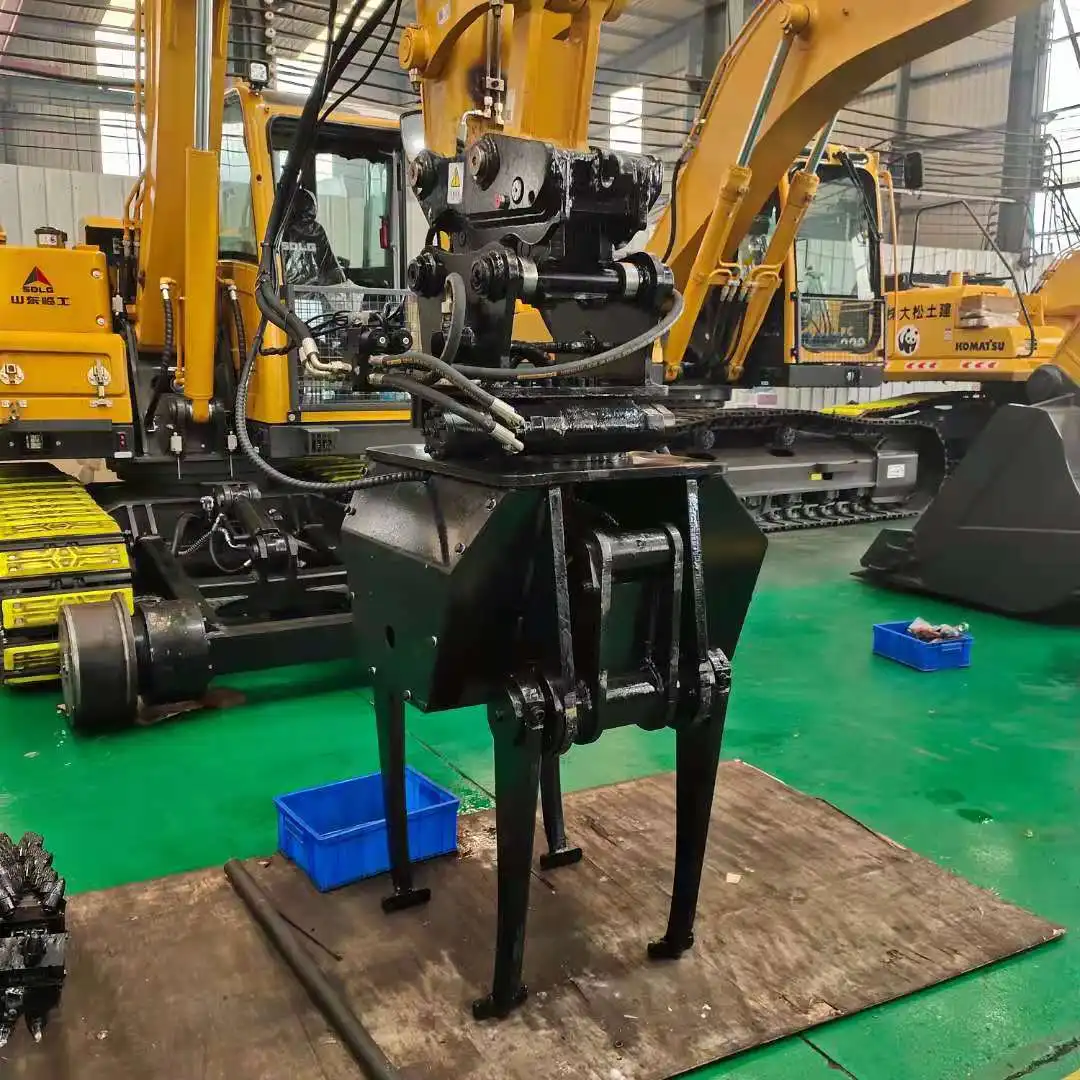

ballast tamping

Ensuring Track Geometry and Alignment

Railway tracks require precise geometry to ensure safe and efficient train operation. Over time, the weight and vibration of passing trains cause the ballast to settle unevenly, resulting in track irregularities. The ballast tamper addresses this issue by restoring proper track geometry through strategic compaction of the ballast material.

When tracks lose their correct alignment, several problems can occur. Trains may experience excessive rocking, passengers may feel discomfort, and in severe cases, derailments become a risk. By maintaining proper track alignment, tampers ensure that trains can operate at their designated speeds safely and efficiently.

Modern tamping machines, like Tiannuo's high-vibration hydraulic ballast tamper, are designed to detect track irregularities and make precise adjustments. This capability ensures that all sections of the track remain within acceptable tolerance levels, maintaining optimal track geometry throughout the railway network.

Providing Proper Track Support

The ballast layer serves as the foundation for the entire track structure, dispersing the tremendous loads generated by passing trains. When this support structure becomes compromised due to inadequate compaction, the track's load-bearing capacity diminishes significantly.

A ballast tamper ensures that the aggregate material is properly compacted beneath sleepers, providing consistent support throughout the track length. This even distribution of support prevents pressure points that could lead to accelerated wear of track components.

Additionally, proper tamping improves drainage around the track, which is vital for preventing water accumulation that can weaken the track bed and lead to frost heave in colder climates. By maintaining optimal ballast density, tampers help extend the service life of the entire track structure.

Preventing Track Deterioration

Regular track maintenance using tamping machines is significantly more cost-effective than allowing tracks to deteriorate to the point of requiring complete reconstruction. Preventative maintenance through regular tamping cycles helps railway operators avoid more expensive repairs down the line.

The vibration and compaction provided by equipment like Tiannuo's high-vibration hydraulic ballast tamper helps restore the ballast's load-bearing properties, preventing premature wear of sleepers, rails, and fastening systems. This proactive approach to maintenance translates to substantial cost savings over the lifetime of the track.



How does ballast tamper works?

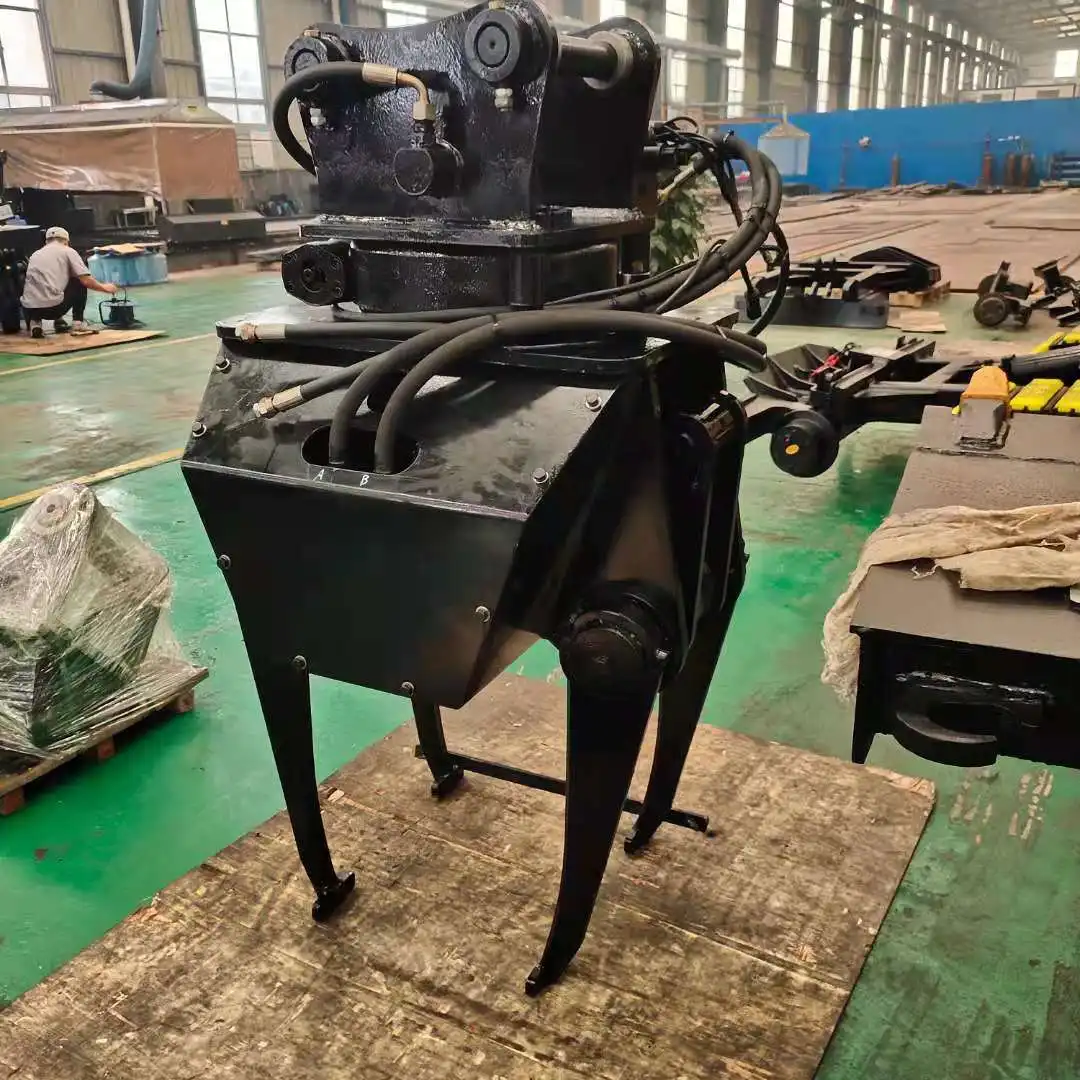

ballast tamping

Operational Mechanism

The operational mechanism of a ballast tamper is a sophisticated blend of mechanical engineering and precision control systems. Tiannuo's high-vibration hydraulic ballast tamper exemplifies this advanced technology with its robust design and efficient operation.

The process begins when the tamping tines (or claws) are positioned on either side of the sleeper. These tines are mounted on vibrating units that generate high-frequency vibrations. According to the specifications from Tiannuo, their machine features a clamping range of 180-700 mm, making it adaptable to various track configurations.

Once positioned, the tines penetrate the ballast layer, reaching the optimal depth beneath the sleeper. The high-vibration feature then activates, loosening the ballast particles and allowing them to be rearranged for optimal compaction. The machine applies a compaction force of up to 10 tons, as detailed in Tiannuo's specifications, ensuring thorough consolidation of the ballast material.

The vibration is a critical component of the tamping process, as it reduces the resistance between ballast particles, allowing them to settle into a denser, more stable configuration. This vibration-assisted compaction achieves a level of ballast consolidation that would be impossible through static pressure alone.

Control Systems and Automation

Modern ballast tampers like Tiannuo's model incorporate advanced control systems that enhance precision and efficiency. These systems monitor parameters such as tamping depth, compaction force, and vibration frequency, ensuring consistent results throughout the operation.

The automation capabilities of contemporary tamping machines have revolutionized track maintenance. Operators can program specific track parameters, and the machine will automatically adjust its tamping action to achieve the desired track geometry. This level of automation not only improves efficiency but also ensures consistent quality across extensive sections of track.

Tiannuo's machine operates at a working pressure of 18 MPa, providing the hydraulic power necessary for these precise operations. The combination of robust mechanical components and sophisticated control systems makes modern tampers capable of maintaining track to exacting standards, regardless of variations in ballast conditions or track configurations.

Adaptability to Different Track Configurations

Railway networks feature a variety of track configurations, requiring maintenance equipment to be adaptable to different scenarios. Tiannuo's products are designed with this versatility in mind, featuring four tamping arms that can be adjusted to accommodate different sleeper spacings and track gauges.

The machine's dimensions (1020 mm length, 1060 mm width, and 1750 mm height) make it compact enough to operate in constrained spaces while maintaining the power necessary for effective tamping. This adaptability allows railway maintenance teams to use a single machine across different sections of their network, improving operational efficiency and reducing equipment costs.

Additionally, Tiannuo offers customization options to meet specific requirements, ensuring that each ballast tamper is optimized for the particular conditions of the railway it will maintain. This tailored approach helps railway operators achieve the best possible results from their maintenance programs.



Benefits

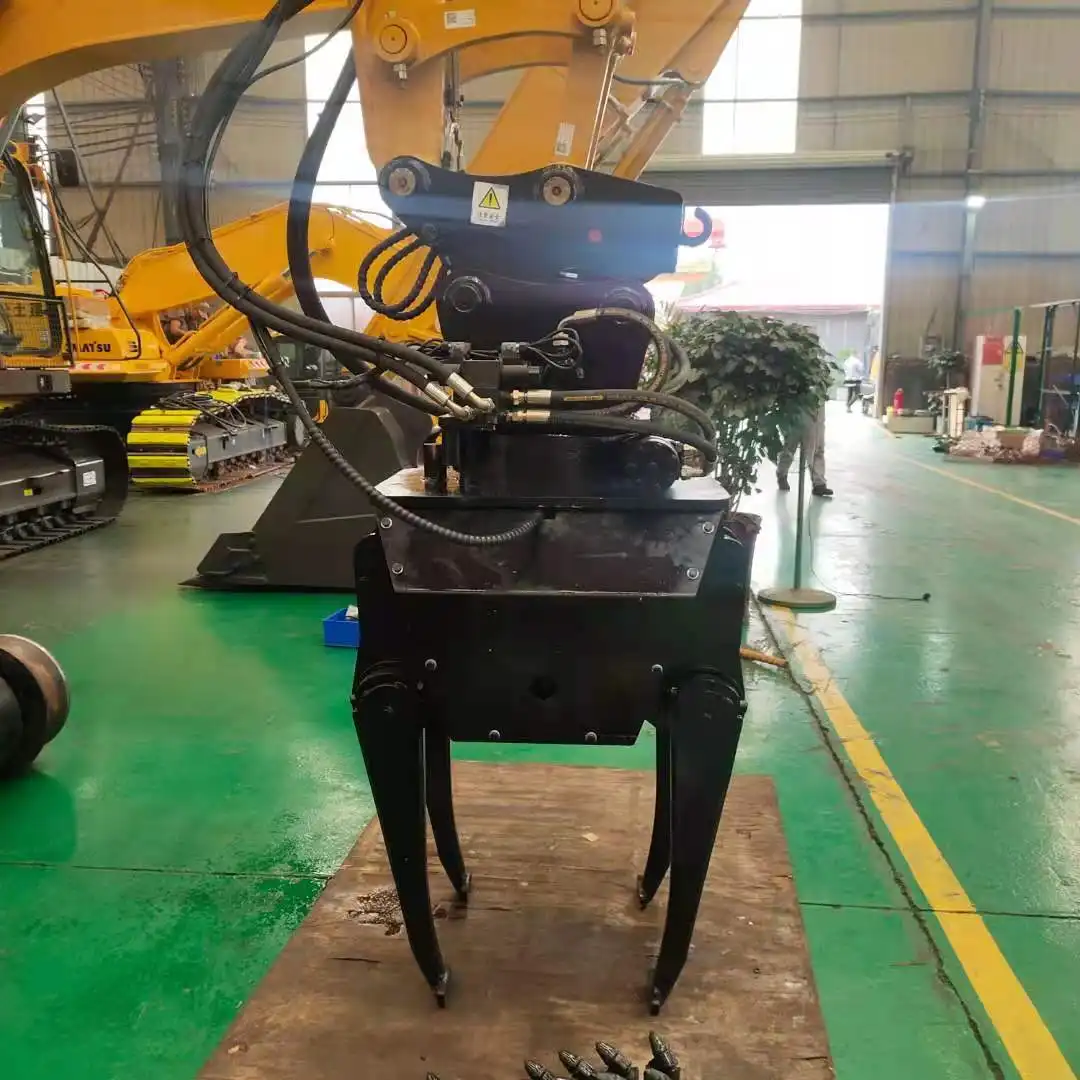

ballast tamping

Enhanced Track Safety and Stability

The primary benefit of using a ballast tamper is the significant improvement in track safety and stability. Through proper ballast compaction, these machines create a solid foundation that maintains track geometry even under the stress of heavy train traffic.

This enhanced stability directly translates to safer railway operations. Properly tamped tracks reduce the risk of derailments caused by track misalignment or settlement issues. For railway operators, safety is paramount, and regular maintenance with quality tamping equipment like Tiannuo's is essential for meeting safety standards.

The stability provided by thorough tamping also allows trains to operate at their designed speeds without restrictions that might otherwise be necessary on poorly maintained tracks. This operational efficiency is crucial for passenger comfort and freight delivery schedules, making ballast tampers indispensable for modern railway systems.

Increased Operational Efficiency

Regular track maintenance using ballast tampers leads to smoother track surfaces, which directly impacts train operations. When tracks are properly maintained, trains can maintain higher average speeds, reducing travel times and increasing line capacity.

The efficiency gains extend beyond just train operations. Tiannuo's high-vibration hydraulic ballast tamper is designed for rapid deployment and effective operation, minimizing the time tracks need to be taken out of service for maintenance. This reduction in maintenance downtime translates to more available track time for revenue-generating train movements.

Furthermore, well-maintained tracks reduce the dynamic forces acting on both the track structure and train components, leading to less wear and fewer failures. This reliability improvement reduces unplanned maintenance interventions, further enhancing operational efficiency across the railway network.



FAQ

①How often should ballast tamping be performed?

Ballast tamping frequency depends on several factors including traffic volume, train speeds, axle loads, and environmental conditions. Typically, high-traffic mainlines may require tamping every 1-3 years, while lower-traffic lines might need it every 3-5 years. Regular track inspections should determine the actual tamping schedule based on measured track geometry deterioration.

②Can ballast tamping be performed in all weather conditions?

While ballast tampers can technically operate in various weather conditions, extreme temperatures and precipitation can affect efficiency and results. Frozen ballast in winter can be difficult to tamp effectively, and extremely wet conditions may compromise the stability of the newly tamped ballast. Ideal tamping conditions involve dry or slightly moist ballast at moderate temperatures.

③What maintenance does a ballast tamper require?

According to Tiannuo's documentation, regular maintenance is recommended every 500 hours of operation. This includes checks on hydraulic systems, lubrication of moving parts, and inspection of wear components, particularly the tamping tines. Proper maintenance ensures optimal performance and extends the service life of the equipment.

④Can ballast tampers work on different types of track?

Yes, modern ballast tampers like Tiannuo's model are designed to work on various track configurations. The specifications indicate a clamping range of 180-700 mm, making it suitable for different track gauges. The machine can be adapted to work with different sleeper materials and spacing patterns, providing versatility across railway networks.

⑤How does tamping compare to other track maintenance methods?

Tamping is specifically focused on ballast compaction and track geometry correction. It complements other maintenance activities such as ballast cleaning, rail grinding, and fastening system maintenance. For comprehensive track maintenance, railways typically employ a combination of these methods based on specific track conditions and requirements.

Railway maintenance is a complex field requiring specialized equipment and expertise. Tiannuo Machinery has established itself as a trusted manufacturer of high-quality railway maintenance equipment, including its advanced high-vibration hydraulic ballast tamper. With over 10 years of experience in the industry, Tiannuo provides solutions that enhance track safety, improve operational efficiency, and generate significant cost savings for railway operators worldwide. For more information about their ballast tamper and other railway maintenance equipment, contact them at tn@stnd-machinery.com.

References

  1. Railway Track Maintenance: Principles and Practice, International Railway Journal, 2023.
  2. Modern Ballast Tamping Technology: Advancements and Applications, Railway Engineering Journal, 2022.
  3. Track Geometry Maintenance: Best Practices for Railway Infrastructure, Institute of Railway Technology, 2023.
  4. Ballast Consolidation Techniques: Comparative Analysis of Methods and Equipment, International Conference on Railway Engineering, 2022.
  5. Economic Impact of Preventative Track Maintenance: Case Studies from Global Railways, Journal of Railway Infrastructure Management, 2023.
