How Does an Excavator Rotate Part Work?
The excavator rotating part, also known as the slewing mechanism, enables the upper structure of an excavator (cab, boom, and bucket) to rotate 360 degrees relative to the undercarriage. This critical component relies on a combination of hydraulic power, precision bearings, and robust gearing to achieve smooth, controlled movement. At its core, the rotating part consists of a slewing ring (a large bearing with internal gears), a hydraulic motor, and a reduction gearbox. When hydraulic fluid flows into the motor, it drives the gearbox, which in turn engages the slewing ring's teeth, causing the entire upper assembly to rotate. This design allows operators to pivot the machine quickly, optimizing efficiency in tasks like digging, loading, and material handling.
But the magic of excavator rotation doesn't stop there. Modern attachments and specialized equipment take this functionality to new heights, particularly in industries like railway maintenance, logistics, and construction. Below, we explore three advanced excavator rotating parts, covering a high-vibration hydraulic ballast tamping machine, degree rotating hydraulic tilt ditching bucket, and excavator rotating scraper from Tiannuo Machinery, each engineered to tackle unique challenges with precision and power.
How Does A High-Vibration Hydraulic Ballast Tamping Machine Work?
The Engineering Behind Ballast Tamping Technology

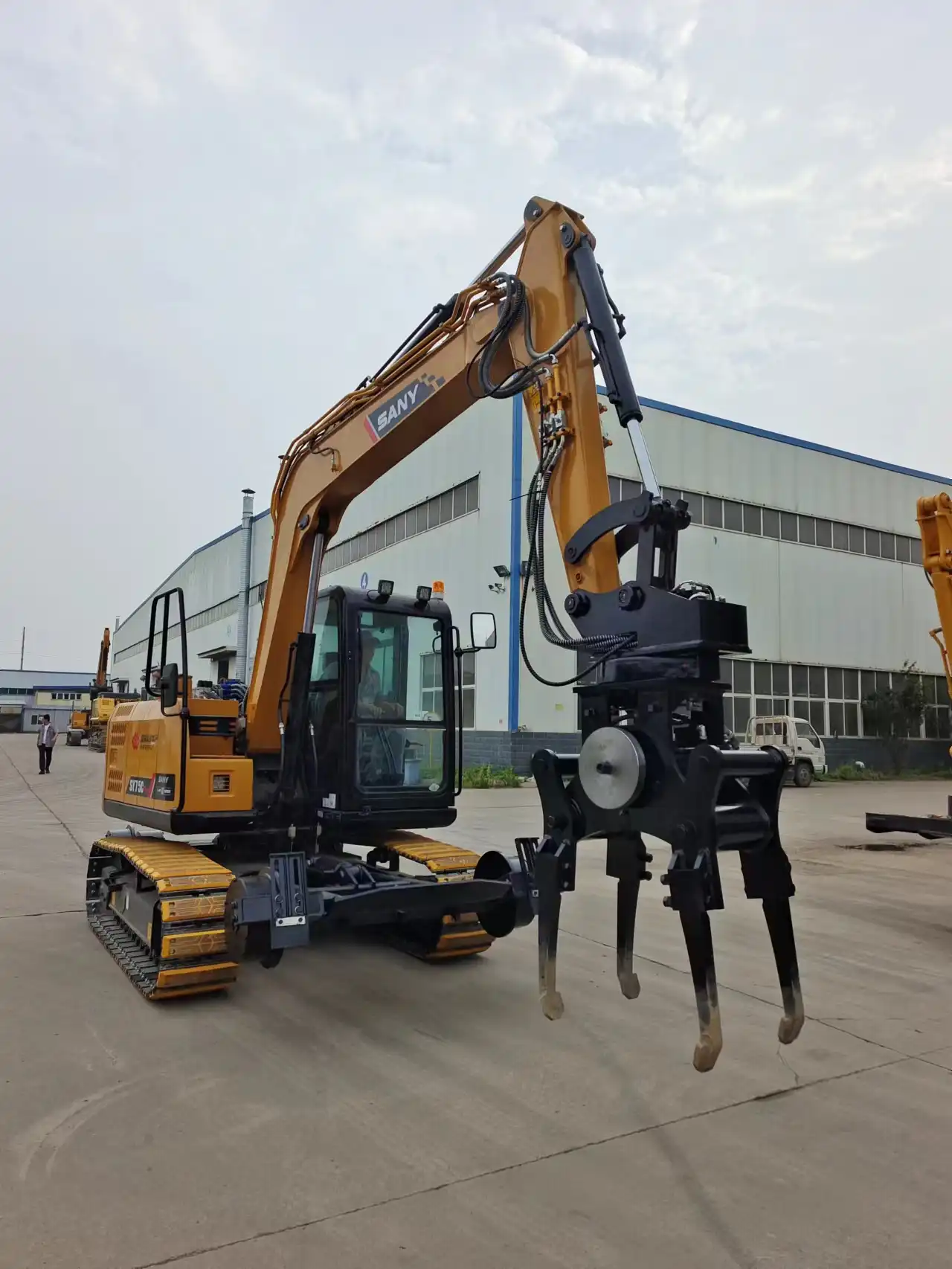

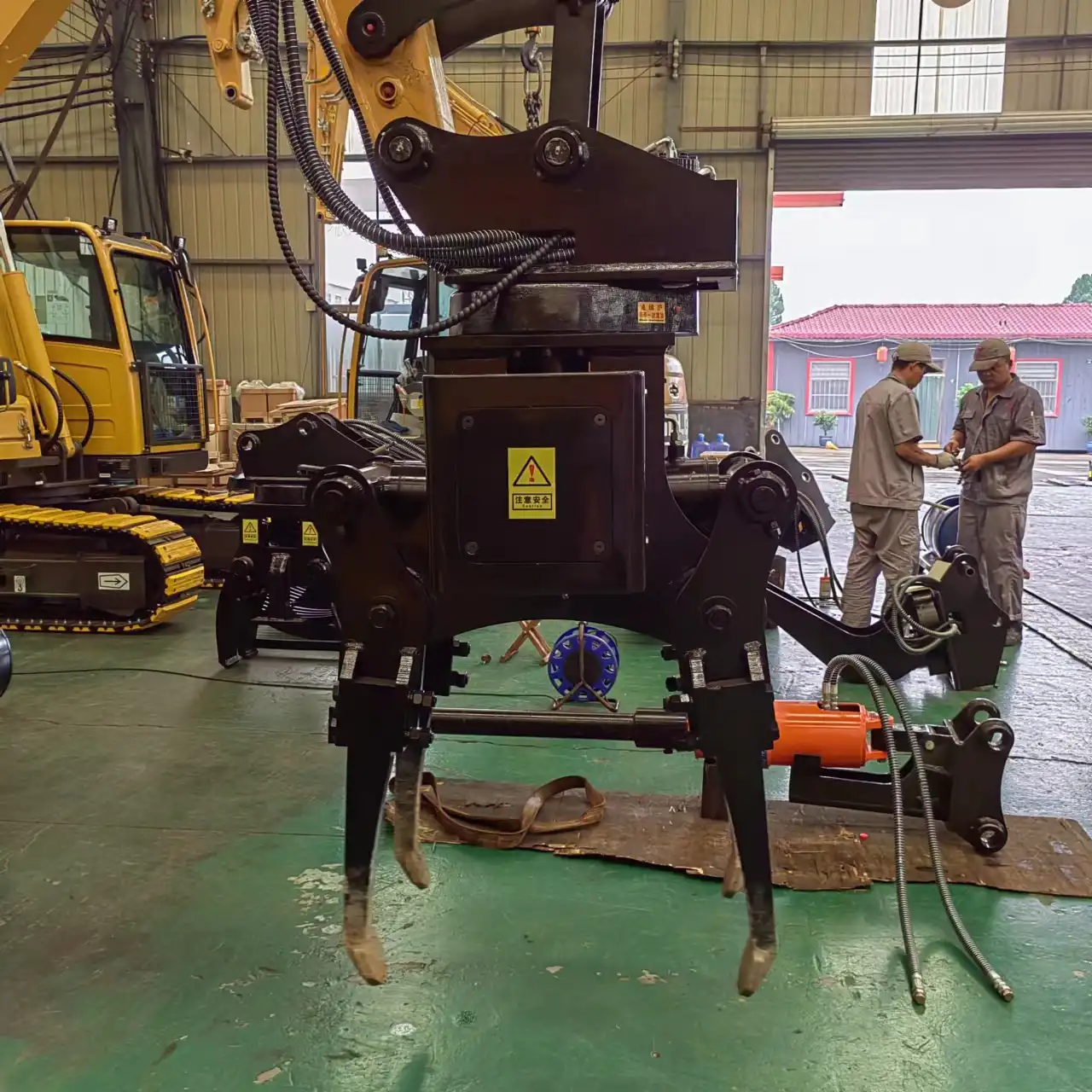

The high-vibration hydraulic ballast tamping machine represents specialized excavator rotating part technology designed specifically for railway maintenance. This attachment transforms standard excavators into precision railway maintenance equipment. At its core, the tamping machine utilizes a robust hydraulic system that powers both the vibration mechanism and the 360-degree rotation capability. The vibration component generates controlled oscillations through eccentric weights driven by dedicated hydraulic motors, creating the necessary force to consolidate ballast materials effectively.
The engineering innovation lies in how the system balances powerful vibration with precise control. The hydraulic circuit incorporates pressure-compensated flow control valves that maintain consistent performance regardless of load variations. This allows operators to achieve uniform ballast compaction across varying track conditions. The rotation mechanism employs a specialized slewing bearing with reinforced components designed to withstand the substantial lateral forces generated during tamping operations.
Operational Features of the TNQSJ150 Model
The TNQSJ150 model exemplifies advanced excavator rotating part integration in railway maintenance equipment. This model accommodates T6-15 and 7-15 excavators, featuring remarkable versatility with its 360-degree rotation capability and impressive cleaning length ranging from 600mm to 2500mm. The seamless rotation is achieved through a hydraulic slewing drive system incorporating a planetary gear reduction mechanism that delivers high torque while maintaining precise positioning control.
The operational sequence begins with the digging mechanism approaching the track from one side. Using the slewing mechanism, it employs a side-cutting technique to access the ballast beneath the sleepers. The rotation system allows operators to position the attachment at optimal angles for both ballast removal and discharge operations. The machine extracts dirty ballast up to 30cm deep from beneath the sleepers and transfers it to the trackside, automatically creating organized piles for efficient removal.
Maintenance and Performance Optimization
Maintaining peak performance of the hydraulic ballast tamping machine requires systematic attention to critical components, particularly those related to the excavator rotating part system. The rotation bearing requires regular lubrication with high-grade molybdenum disulfide grease to minimize friction and prevent premature wear. Technicians should inspect the slewing ring gear teeth for damage or excessive wear patterns that could indicate alignment issues.
The hydraulic system demands rigorous maintenance protocols, including regular fluid analysis to detect contamination or degradation. Filters require scheduled replacement to prevent system damage, while pressure settings need periodic verification to ensure optimal vibration performance without overloading structural components. The ballast removal chain, which relies on the rotation system for proper positioning, requires inspection for stretched links or worn picks, with replacement procedures made convenient through the 360-degree rotation capability. Implementing these maintenance practices extends equipment life and optimizes performance in demanding railway maintenance environments.
How Does A Degree Rotating Hydraulic Tilt Ditching Bucket Work?
Mechanical Design and Hydraulic Integration
The degree rotating hydraulic tilt ditching bucket represents sophisticated excavator rotating part technology engineered specifically for precision earthmoving and railway maintenance applications. The mechanical design incorporates a dual-axis rotation system, enabling both 360-degree horizontal rotation and 45-degree tilting capability. This remarkable flexibility derives from an innovative joint mechanism featuring hardened steel components capable of withstanding substantial torsional forces encountered during operation.
The hydraulic integration utilizes dedicated circuits for the rotation and tilt functions, with proportional control valves enabling precise movement modulation. Pressure compensated flow controls ensure consistent performance regardless of load variations, while counterbalance valves maintain position when hydraulic power is not actively applied. The rotator itself contains a specialized bearing assembly with tapered roller bearings arranged to handle both axial and radial loads simultaneously, allowing smooth operation even under eccentric loading conditions.
Applications in Railway Slag Backfilling
When applied to railway slag backfilling operations, the rotating tilt bucket demonstrates the exceptional versatility of modern excavator rotating part technology. The ability to rotate 360 degrees allows operators to approach the worksite from any position without repositioning the excavator base, dramatically improving efficiency in confined railway corridors. The 45-degree tilt capability enables precise material placement and contouring, essential for proper drainage and structural integrity of the railway bed.
During slag backfilling, operators utilize the rotation function to collect material from stockpiles regardless of their position relative to the track. The tilting function then allows precise distribution of material beneath and around tracks, creating proper gradient and compaction. The bucket design comes in two variations: a solid plane bottom for general material handling and a grid-type bottom that allows excess water drainage when handling saturated materials. This combination of rotation, tilt, and specialized design makes this attachment indispensable for railway maintenance crews focused on track stability and longevity.
Control Systems and Operator Interface
Advanced control systems elevate the functionality of rotating tilt buckets beyond basic excavator rotating part capabilities. Modern implementations feature electro-hydraulic proportional controls integrated with the excavator's existing joystick system, allowing intuitive operation. Some models incorporate position feedback sensors that enable automated movement to preset angles and positions, enhancing precision and reducing operator fatigue during repetitive tasks.
The operator interface may include in-cab displays showing real-time bucket orientation and tilt angle, crucial information when working on precise grade requirements or in limited visibility conditions. Programmable presets allow operators to store commonly used positions for quick recall, significantly increasing productivity. Safety features include pressure relief systems preventing overloads and cushioned end-stops reducing mechanical shock when reaching maximum rotation or tilt angles. These sophisticated control systems transform what would be complex coordinated movements into seamless, efficient operations, maximizing the potential of the rotating tilt bucket in demanding railway construction and maintenance environments.
How Does An Excavator Rotating Scraper Work?
Core Components and Mechanical Function
The excavator rotating scraper exemplifies advanced excavator rotating part technology adapted for specialized material handling. The core components include a reinforced metal plate (the scraper itself), a heavy-duty slewing bearing assembly, and a hydraulic rotation drive system. The scraper plate is typically constructed from abrasion-resistant steel with strategic reinforcement along high-stress areas, ensuring durability during constant contact with various materials. The rotation mechanism employs a sealed bearing assembly protected from contamination, critical for maintaining smooth operation in dusty environments like railway cargo handling.
The mechanical function relies on a precision-engineered gear system driven by dedicated hydraulic motors. This arrangement delivers substantial torque necessary for rotating under load while maintaining precise position control. The hydraulic system incorporates flow control and counterbalance valves that ensure consistent rotation speed regardless of external forces acting on the scraper. The connection to the excavator features a universal mounting system compatible with various quick-coupler designs, allowing rapid attachment changes without sacrificing structural integrity during demanding scraper operations.
Operational Advantages in Cargo Management
The rotating scraper transforms standard excavators into specialized cargo handling equipment, with the excavator rotating part providing unmatched versatility. When deployed for loading and unloading operations, operators can position the excavator alongside railcars or trucks while using the scraper's 360-degree rotation capability to access cargo from any angle. This eliminates the need for multiple machine positions, significantly reducing operation time and improving site logistics.
A primary operational advantage comes from the elevated operator position, approximately 4.5 meters above ground level, providing comprehensive visibility into cargo containers and railcars. This elevated vantage point, combined with the scraper's rotation capability, allows precise material manipulation that would be impossible with fixed attachments. The rotating scraper excels at leveling uneven loads, redistributing materials to prevent shifting during transport, and efficiently clearing residual materials during unloading. These capabilities substantially improve loading density, transport safety, and overall operational efficiency in logistics operations.
Industry Applications and Efficiency Improvements
Beyond its primary application in railway cargo handling, the excavator rotating scraper with its versatile excavator rotating part technology has found widespread adoption across multiple industries. In mining operations, these attachments efficiently clear conveyor systems and loading bays, reducing material buildup and minimizing downtime. Construction sites utilize rotating scrapers for precise material distribution, especially when working with specialized aggregates or when creating specific gradient profiles for drainage applications.
The efficiency improvements delivered by rotating scrapers translate directly to operational cost savings. Labor requirements decrease significantly, with single-operator setups replacing what previously required multiple workers and equipment pieces. Material handling cycle times can improve by 30-40% compared to conventional methods, particularly in confined spaces where machine repositioning is challenging. Maintenance requirements for rotating scrapers focus primarily on the hydraulic system and bearing assembly, with properly maintained units delivering reliable performance through thousands of operational hours. These efficiency gains have established rotating scrapers as essential equipment in modern logistics, construction, and materials handling operations.
FAQ
①What is the main function of an excavator rotating part?
The main function is to enable 360-degree rotation of the excavator's upper structure, allowing versatile operation without repositioning the entire machine.
②How often should rotating parts be maintained?
Regular maintenance is recommended every 250-500 operating hours, with more frequent servicing in harsh conditions.
③What causes premature wear in excavator rotating parts?
Inadequate lubrication, overloading, improper operation, and exposure to harsh elements are common causes of premature wear.
④Can rotating parts be retrofitted to older excavator models?
Yes, many specialized rotating attachments can be installed on older excavators with appropriate hydraulic systems and mounting interfaces.
⑤What safety considerations apply when operating rotating excavator attachments?
Operators must maintain awareness of the extended swing radius, ensure stable positioning, and verify that hydraulic systems are operating within specified parameters.
Contact Information
The excavator rotating part systems discussed in this article represent crucial technological advancements that have transformed how industries approach railway maintenance, construction, and logistics operations. From the specialized high-vibration ballast tamping machine with its precision track maintenance capabilities to the versatile rotating tilt bucket that excels in railway slag backfilling, these innovations dramatically improve operational efficiency. The excavator rotating scraper further demonstrates how rotation technology creates new possibilities for cargo handling and material management across multiple industries.
For instance, TianNuo's ballast tamping machine is designed for 70-50 excavators, it efficiently tampers ballast after renovations. With a tamping clamping range of 180-700 mm and options of four-claw and eight-claw types, it's suitable for various track gauges. Contact us at arm@stnd-machinery.com to learn more about advanced equipment from TianNuo.
