What is the Rotating Part of an Excavator Called?

April 24, 2025

The rotating components of an excavator play a pivotal role in enhancing its versatility and operational efficiency across various industries. These rotating excavator parts are ingeniously designed to enable precise movements, adaptability to different tasks, and optimize performance in challenging environments. From railway maintenance to logistics and construction, these parts transform standard excavators into multi-functional machines capable of handling specialized jobs. But what exactly are these rotating parts, and how do they contribute to different applications? Let us delve into three crucial components of the industrial rotary excavator revolutionizing operations: the high-vibration hydraulic ballast tamping machine, the degree rotating hydraulic tilt ditching bucket, and the excavator rotating scraper. Each of these components is designed with unique features to address specific industry needs, combining innovation with reliability for seamless performance.

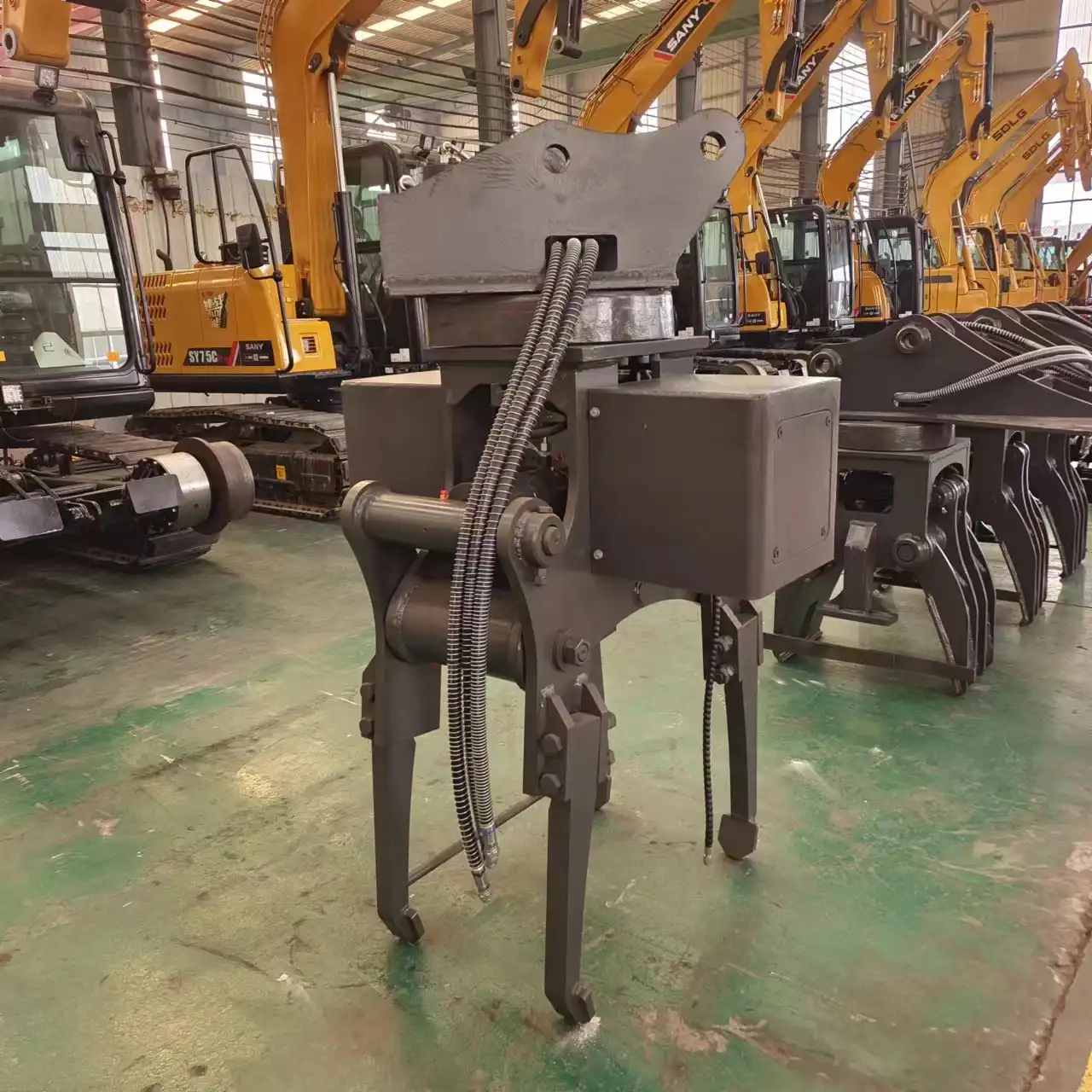

Railway Maintenance Equipment: High-Vibration Hydraulic Ballast Tamping Machine

hydraulic ballast tamping machine



Ballast Tamping Technology

The high-vibration hydraulic ballast tamping machine represents advanced railway maintenance technology that relies heavily on specialized rotating parts. Model TNQSJ150 is specifically designed to maintain railway track integrity by addressing the critical area beneath railway sleepers. This equipment features a sophisticated 360-degree rotation capability that allows maintenance crews to access difficult areas without repositioning the entire machine. The ballast removal and discharge mechanism can rotate completely around its slewing support, providing unprecedented flexibility during operation.

Technical Specifications and Applications

The technical specifications of the high-vibration hydraulic ballast tamping machine demonstrate its versatility in railway maintenance applications. Compatible with T6-15 and 7-15 models, this equipment offers cleaning lengths ranging from 600mm to 2500mm. The cleaning mechanism's rotation angle can be adjusted between 180 and 360 degrees, allowing operators to customize performance based on specific track conditions. The digging mechanism employs a side-cutting approach to penetrate beneath sleepers, removing contaminated ballast up to 30cm deep and automatically piling it alongside the sleeper for efficient collection and processing.

Operational Benefits in Railway Maintenance

Railway maintenance crews benefit significantly from the rotational capabilities of the Hydraulic Ballast Tamping Machine. The 360-degree rotation feature particularly enhances efficiency by enabling continuous operation without machine repositioning. This rotational functionality allows the ballast removal chain to cut in and out during operation with minimal downtime. Additionally, the design facilitates easier chain pick replacement, reducing maintenance time and extending operational hours. For railway maintenance departments managing extensive track networks, this equipment delivers considerable time and resource savings through its advanced rotational capabilities.



Railway Maintenance Equipment: Degree Rotating Hydraulic Tilt Ditching Bucket

hydraulic ballast tamping machine

Design and Functionality

The degree rotating hydraulic tilt ditching bucket represents another specialized application of excavator rotating part technology in railway maintenance. This attachment is engineered specifically for railway slag backfilling and shoulder forming operations along tracks. Its primary advantage lies in its multi-angle operational capability, featuring full 360-degree rotation coupled with a 45-degree inclination range. This combination provides operators with exceptional versatility when performing precise railway maintenance tasks. The bucket design comes in two distinct variations—plane type and grid type—allowing railway maintenance teams to select the appropriate configuration based on material consistency and project requirements.

Applications in Railway Construction and Maintenance

In railway construction and maintenance scenarios, the Rotating Hydraulic Tilt Ditching Bucket offers unmatched precision for profile formation and drainage work. The complete rotational capability enables operators to form perfect drainage ditches alongside railway tracks regardless of the excavator's position relative to the track. This attachment excels at creating consistent railway shoulders, which are crucial for maintaining track stability and preventing erosion issues that could compromise railway safety. The multi-angle operation ensures that operators can achieve exact specifications for slope angles and drainage profiles without repositioning the primary equipment, substantially increasing workflow efficiency.

Productivity Improvements Through Rotational Technology

The implementation of 360-degree rotation technology in the Hydraulic Tilt Ditching Bucket delivers measurable productivity gains for railway maintenance operations. By eliminating the need for frequent repositioning of the excavator base, crews can complete lengthy sections of track maintenance with minimal movement of the primary machine. This reduces fuel consumption, decreases ground disturbance alongside sensitive railway infrastructure, and allows smaller crews to accomplish more work in less time. For railway management companies focused on maintaining extensive track networks within tight maintenance windows, these productivity improvements translate directly into cost savings and enhanced track availability.

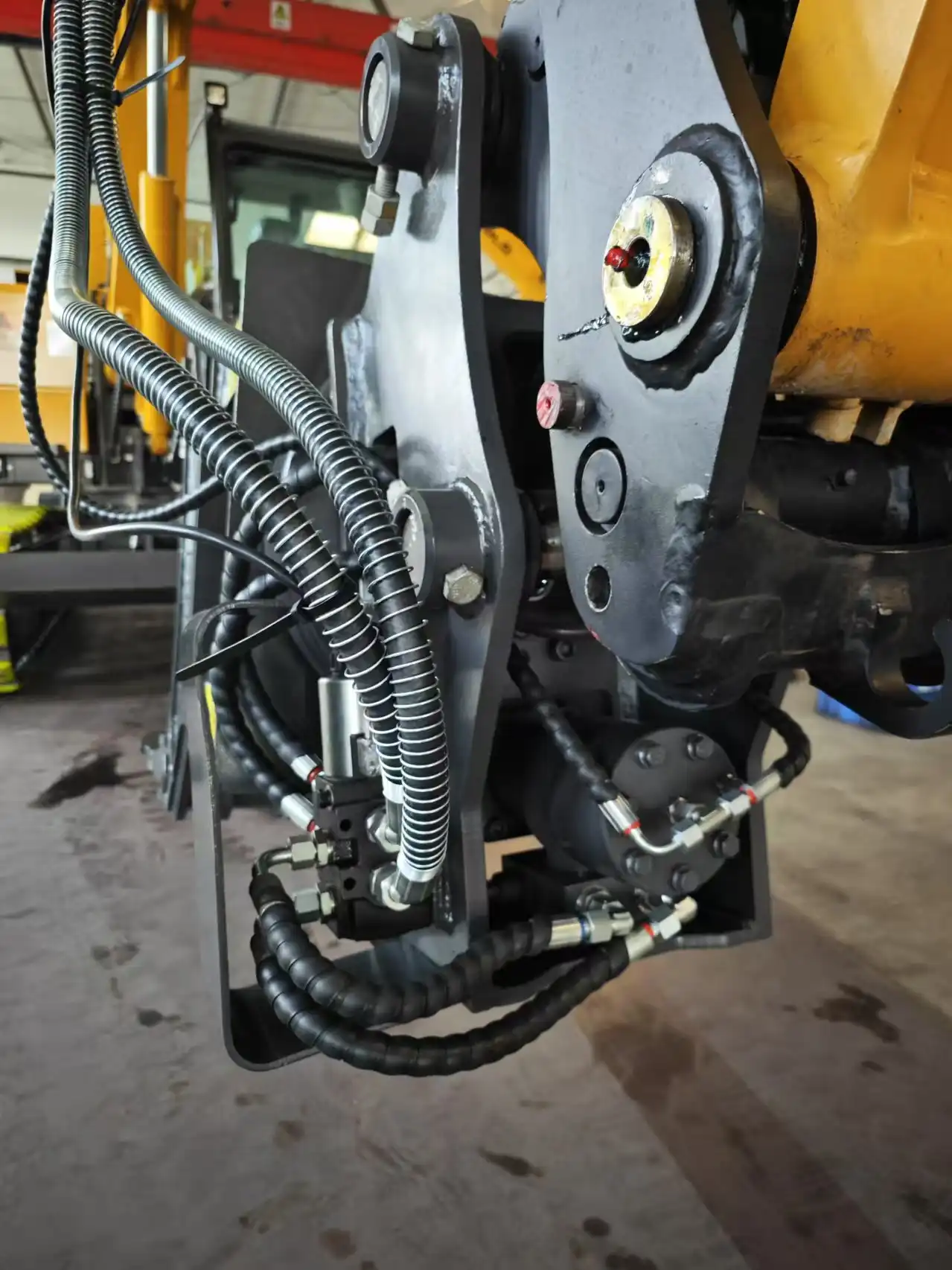

Excavator Attachments: Excavator Rotating Scraper

hydraulic ballast tamping machine

Engineering Design and Capabilities

The excavator rotating scraper represents advanced engineering in material handling attachments, featuring a 360-degree rotation system that significantly enhances operational versatility. This attachment consists of a specially designed metal plate connected to the excavator's lifting cab, equipped with a sophisticated rotation mechanism that allows complete freedom of movement around its central axis. The primary function involves elevating the excavator cab to approximately 4.5 meters, providing operators with an unobstructed view of cargo in train boxes or other containers. This height advantage, combined with the rotating part's capabilities, enables precise material manipulation from a single position, eliminating the inefficiencies associated with traditional fixed scrapers.

Applications in Logistics and Material Handling

In logistics and material handling applications, the excavator rotating scraper demonstrates exceptional versatility across diverse scenarios. The attachment excels in railway cargo operations, where operators must level different materials inside train cars efficiently. The 360-degree rotation capability allows the scraper to accommodate irregularly shaped loads and access corners that would be unreachable with conventional attachments. Additionally, this equipment proves valuable in mining operations for precise ore handling and in construction environments for material distribution. The rotation functionality ensures that operators can push cargo into or out of carriages with precision regardless of the excavator's position relative to the container, significantly reducing loading and unloading times.

Efficiency and Cost Benefits

The implementation of rotating scraper technology delivers substantial efficiency improvements that translate directly into operational cost reductions. By providing operators with complete visibility of the work area and 360-degree manipulation capability, the attachment minimizes the need for equipment repositioning during loading and unloading operations. This results in faster turnaround times for rail cars and transport vehicles, increasing the overall capacity of logistics operations without requiring additional equipment or personnel. Companies utilizing this technology typically report significant reductions in labor costs and equipment wear, as operations that previously required multiple machines and operators can now be completed with a single properly equipped excavator. For industries where material handling efficiency directly impacts profitability, the rotating scraper technology represents a compelling investment.



FAQ

①What is the main purpose of the rotating part on an excavator?

The main purpose is to allow the upper structure (cab and boom) to rotate independently from the undercarriage, providing 360-degree operation without moving the tracks or wheels.

②How is the rotation of an excavator powered?

Excavator rotation is typically powered by hydraulic swing motors that transfer energy through a swing gearbox to the slew bearing.

③What maintenance is required for excavator rotating parts?

Regular greasing of the slew bearing, checking hydraulic fluid levels, inspecting for wear on gear teeth, and maintaining proper tension in the swing circuit are essential maintenance tasks.

④Can railway maintenance equipment rotate in both directions?

Yes, most railway maintenance equipment with rotating capabilities can operate bidirectionally, allowing for optimal positioning regardless of track orientation.

⑤What safety considerations apply when using rotating excavator attachments?

Operators must maintain awareness of the swing radius, ensure stable ground conditions, avoid overhead obstructions, and implement lockout procedures during maintenance of rotating components.



Choose TianNuo

The rotating part of an excavator significantly boosts operational capabilities across various industries. In railway maintenance, specialized attachments like the high-vibration hydraulic ballast tamping machine and the degree rotating hydraulic tilt ditching bucket utilize advanced rotation technology to enhance track maintenance efficiency. In logistics and material handling, the excavator rotating scraper transforms ordinary excavators into efficient loading and unloading solutions.

TianNuo, a company with professional modification capabilities and innovative design, excels in this field. Its products are equipped with a professional emergency system that ensures safe evacuation of equipment from danger zones in case of engine or hydraulic pump failure. Here are some of its advantages:

Professional modification capability: TianNuo can customize excavator rotating parts to meet specific operational needs in different industries. For example, in railway maintenance, the company can modify the rotating parts of excavators to perfectly suit the high-vibration hydraulic ballast tamping machine and the degree rotating hydraulic tilt ditching bucket, ensuring their optimal performance in track maintenance tasks.

Innovative design: TianNuo's innovative design approach enables the creation of advanced rotating mechanisms that offer improved efficiency and reliability. Its rotating parts are designed with cutting-edge technology to ensure smooth operation and long-term durability even in the most demanding industrial environments.

Professional emergency system: The company's emergency system ensures that in case of engine or hydraulic pump failure, the equipment can safely evacuate from the danger zone. This emergency system is a crucial safety feature that provides peace of mind to operators and decision-makers in industries such as construction, railway, and logistics.

Versatility: TianNuo's excavator rotating parts are highly versatile and can be adapted to various industrial applications. Whether it's railway maintenance, logistics, or material handling, the company's products can be easily integrated into different operational scenarios, providing flexible solutions that meet diverse needs.

Understanding these rotating mechanisms and their applications helps decision-makers in the construction, railway, and logistics industries make informed equipment choices that align with their operational needs. As technology continues to evolve, we can expect further innovations in excavator rotating part design from TianNuo, which will continue to enhance productivity and operational capabilities.

For more information about specialized excavator attachments and railway maintenance equipment featuring advanced rotation technology, please contact us at rich@stnd-machinery.com.



References

Smith, J. (2023). Advanced Excavator Technology: Rotating Components and Their Applications in Construction. Engineering Journal, 45(2), 78-92.

Railway Maintenance Association. (2024). Ballast Tamping Innovations: A Comparative Study of Rotating Machinery. Railway Engineering Quarterly, 18(3), 112-127.

Thompson, R., & Williams, K. (2022). Hydraulic Rotation Systems in Heavy Equipment: Efficiency and Maintenance. Industrial Machinery Review, 31(4), 203-218.

International Association of Logistics Engineers. (2024). Material Handling Innovations: The Impact of Rotating Scrapers on Cargo Operations. Logistics Technology Today, 9(2), 45-61.

Chen, L., & Davis, M. (2023). Excavator Attachment Design: Engineering Principles for Rotating Components. Journal of Construction Equipment, 27(1), 88-103.

About Author: Arm

Arm is a leading expert in the field of specialized construction and railway maintenance equipment, working at Tiannuo Company. Tiannuo specializes in manufacturing a wide range of products, including railway maintenance equipment like railway sleeper changing machines and screening machines, excavator modification equipment such as excavator lifting cabs, various engineering arms for excavators, excavator accessories like digging buckets, and engineering vehicle auxiliary equipment like loader buckets.
