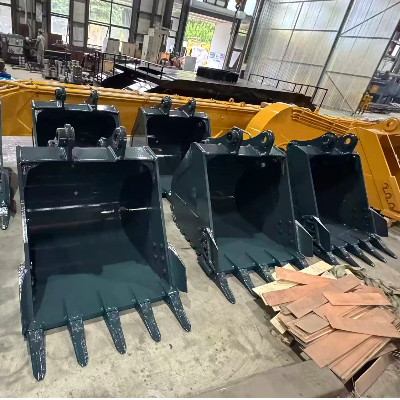

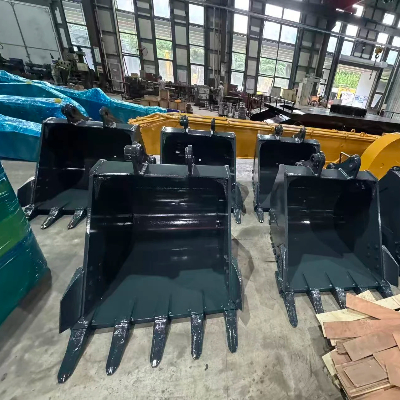

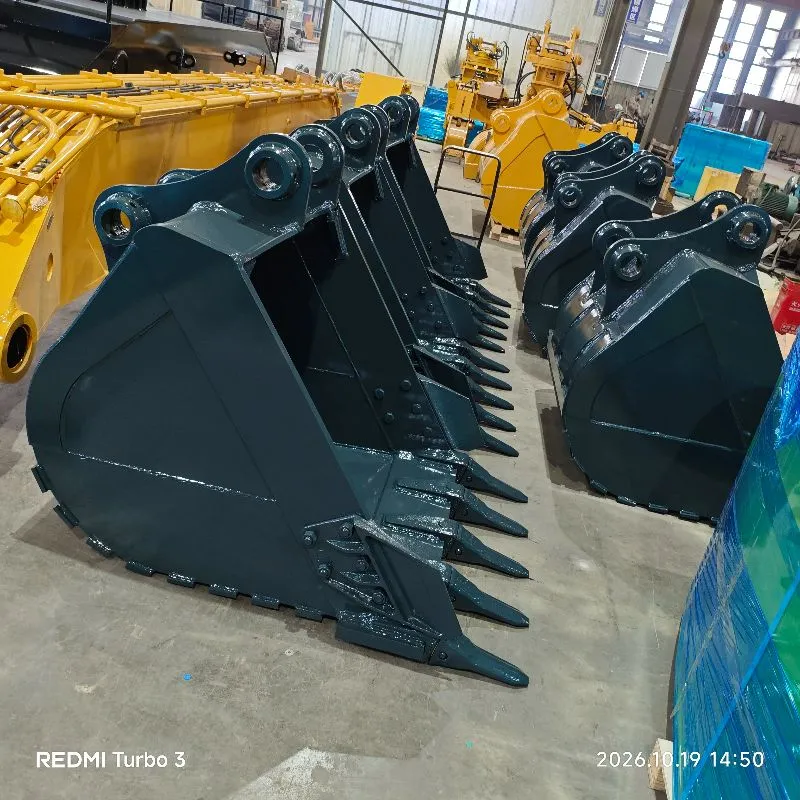

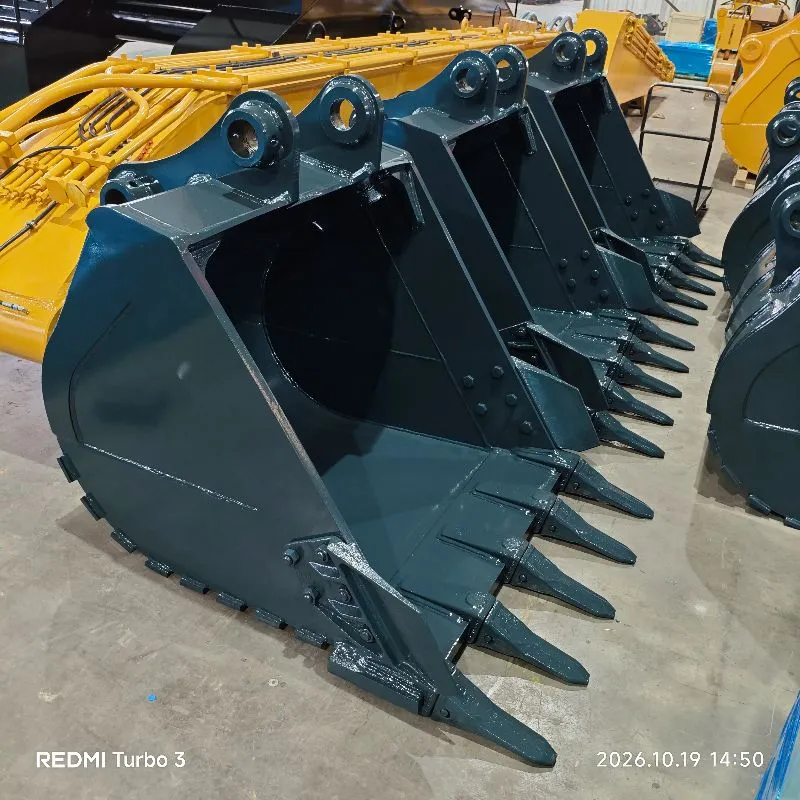

Custom Rock Bucket for Hyundai 210
When standard digging buckets meet rocky terrain, abrasive gravel, or blasted stone, wear and tear accelerate rapidly. For operators running machines like the Hyundai 210, the difference between a standard bucket and a purpose-built rock bucket often determines whether a project stays on schedule or grinds to a halt for repairs. At Shandong Tiannuo Construction Machinery, we recently delivered a custom rock bucket engineered specifically for a customer’s Hyundai 210 excavator, demonstrating how tailored attachment design can directly improve durability and productivity on demanding job sites.
What Makes a Rock Bucket Different from a Standard Bucket?
A rock bucket is not merely a heavier version of a digging bucket. It is a specialized attachment designed to withstand high-impact loads, continuous abrasion, and the aggressive cutting forces required to penetrate hard, compacted, and rocky ground. Unlike general-purpose buckets, rock buckets prioritize structural integrity and wear resistance over pure volume capacity.-14
For the Hyundai 210 application, our engineering team focused on several critical design factors. The Hyundai HX210 and R210 class machines typically operate with bucket capacities ranging from 0.60 to 1.40 cubic meters, depending on configuration. A custom rock bucket must be sized appropriately to maintain the machine’s hydraulic efficiency and stability while delivering the reinforced construction necessary for rocky excavation.-2
Key Design Features of Our Custom Rock Bucket
Wear-Resistant Steel Construction
The foundation of any reliable rock bucket is the material selection. Our custom rock buckets for Hyundai 210 and other models utilize high-strength, abrasion-resistant steel plates for the critical wear zones, including the bucket shell, side plates, and cutting edge. This approach mirrors industry best practices where reinforcing bands and wear plates are applied to areas subject to the heaviest friction and impact. By selecting the appropriate steel grade based on the customer’s specific ground conditions, we extend the operational life of the attachment and reduce unplanned downtime.-6
Reinforced Structure for High Breakout Forces
Rock excavation places immense stress on the bucket’s frame. Our design incorporates a reinforced box structure and strategic gusseting to prevent twisting or deformation under high breakout forces. The deep bucket profile is optimized to improve material retention while keeping the load close to the machine, which translates to stronger digging power and more efficient cycle times. For the Hyundai 210, we ensured the mounting dimensions, pin diameters, and center-to-center distances precisely matched the OEM specifications to guarantee a secure, wobble-free fit—a critical factor that affects both performance and wear rates.-9-14
Heavy-Duty Teeth and Cutting Edge
The business end of the rock bucket features a reinforced cutting edge and heavy-duty rock teeth designed for penetration and wear resistance. Unlike chisel teeth suited for soil or tiger teeth for compacted clay, rock teeth are engineered to handle iron ore, blasted rock, and other highly abrasive materials. We selected a tooth system that balances ease of replacement with maximum durability, allowing operators to maintain peak digging efficiency without frequent, costly interventions.-4
Why Customization Matters for Hyundai 210 and Beyond
While this particular rock bucket was built for a Hyundai 210, the principles of custom attachment design apply across the entire spectrum of excavator makes and models. No two job sites are identical, and a bucket optimized for one quarry may underperform in another. Factors such as material hardness, machine hydraulic flow, operating weight, and the operator’s digging technique all influence the ideal bucket specification.-14
At Tiannuo, we work directly with customers to gather these parameters and translate them into a bucket that fits both the machine and the application. Whether the requirement is for a 20-ton Hyundai, a 30-ton Caterpillar, or a 50-ton Komatsu, our production capabilities accommodate a wide range of sizes and configurations. The result is an attachment that not only fits perfectly but also delivers the wear life and productivity expected from a purpose-built tool.
Conclusion
A rock bucket is only as good as its fit and its construction. The custom unit delivered for the Hyundai 210 reflects Tiannuo’s commitment to matching robust materials with precise engineering. For contractors facing rocky ground, quarry work, or abrasive material handling, investing in a properly specified rock bucket is a direct investment in reduced maintenance costs and improved operational uptime.
Ready to discuss a custom rock bucket for your excavator? Contact our team with your machine model and job site conditions, and we will provide a tailored solution.
