Custom Truck Anti-Skid Track Sizes
When navigating challenging terrain in construction sites, mining operations, or muddy industrial environments, truck anti-skid track systems become essential safety equipment. These specialized traction devices are designed with precise measurements to ensure optimal performance across different vehicle types and operating conditions. Understanding the right size specifications can mean the difference between successful project completion and costly equipment downtime. The sizing of anti-skid tracks involves multiple factors, including tire dimensions, vehicle weight distribution, and environmental demands, making proper selection crucial for operations in railway construction, demolition work, and heavy logistics applications where reliable traction cannot be compromised.
Common Sizes
Standard truck anti-skid track configurations vary significantly based on tire specifications and intended applications. Most industrial-grade systems follow established sizing conventions that accommodate the majority of heavy-duty vehicles used in the construction and mining sectors.
Standard Pneumatic Tire Configurations

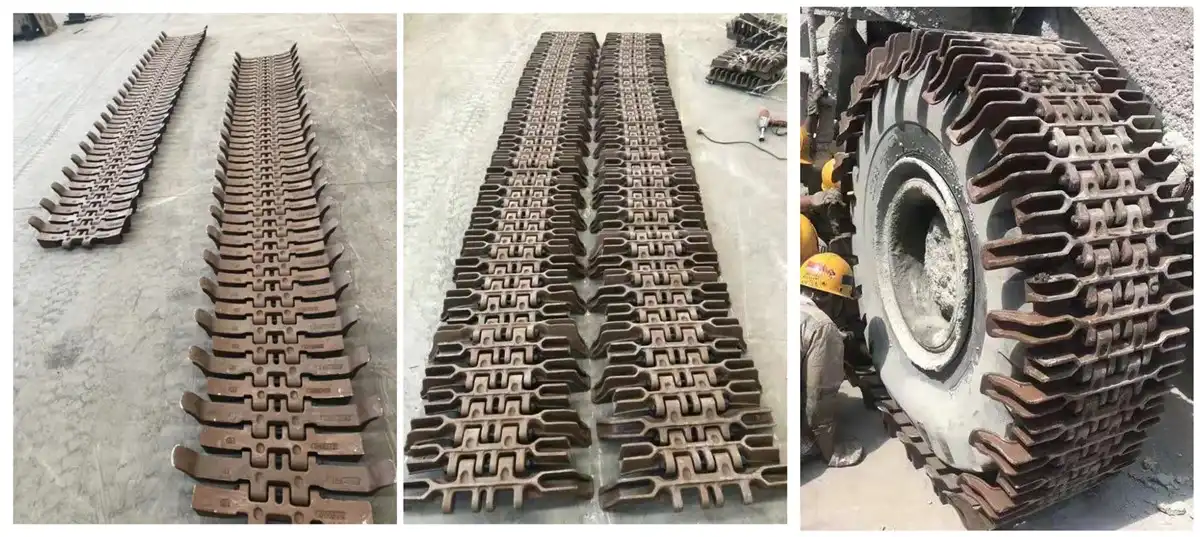

The most prevalent sizing standard centers around pneumatic tire applications, particularly the 1200/1300 model specifications that dominate dual-axle vehicle markets. This robust system requires 53 sections of track assembly per tire, featuring high-strength components that include a specialized baseboard and secure bolts. These configurations typically weigh approximately 750 kilograms per tire assembly, making them suitable for heavy-duty applications where substantial traction enhancement is required.

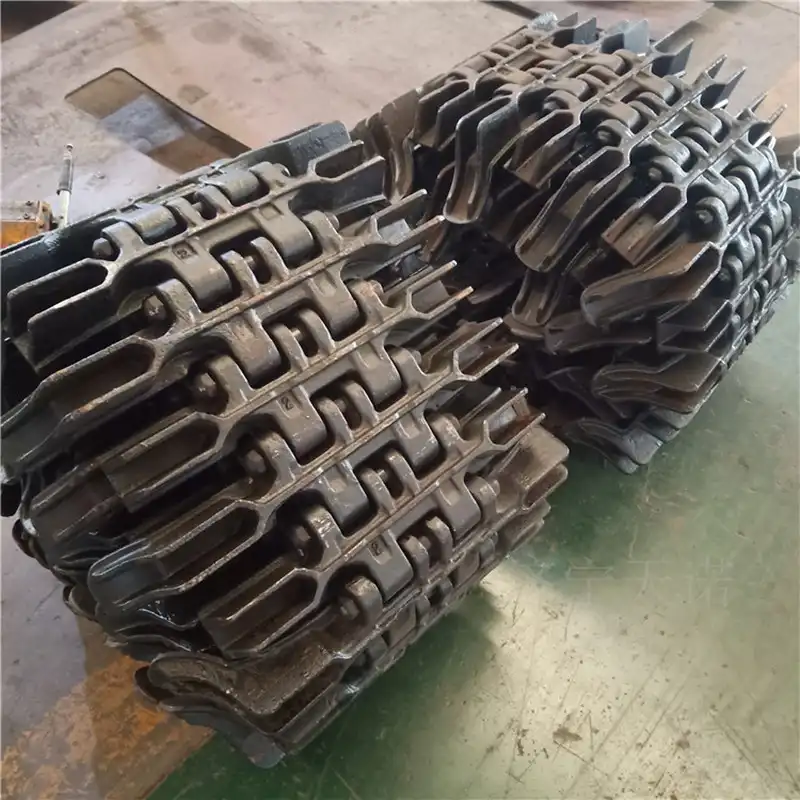

Professional-grade systems incorporate forged chain plates manufactured from premium materials, ensuring longevity under extreme operational stress. The baseboard construction utilizes 35CrMo steel, providing exceptional durability against impacts and wear encountered in demanding environments such as muddy construction sites or rocky terrain navigation.
Vehicle-Specific Sizing Standards
Different vehicle categories require distinct sizing approaches based on their operational characteristics and weight distributions. Dual-axle vehicles represent the most common application category, with track systems engineered to accommodate specific load-bearing requirements and axle configurations.
Mining equipment and heavy construction machinery often demand larger track assemblies with increased section counts to distribute weight effectively across soft or unstable surfaces. These applications typically require 60-80 sections per tire, compared to standard configurations, reflecting the increased size and weight of specialized industrial vehicles.
Industry-Standard Measurements
Track width measurements typically range from 450mm to 800mm, depending on tire diameter and intended application intensity. Length specifications vary from 2400mm for smaller commercial vehicles to over 4000mm for large mining trucks and specialized construction equipment.
The sectional design allows for precise circumference matching, ensuring proper fit regardless of tire manufacturer or specific model variations. This modularity proves particularly valuable for fleet operators managing diverse vehicle types across multiple project sites.
Size-Determination Principle
Proper sizing methodology involves a comprehensive analysis of multiple variables that affect track performance and vehicle safety. Understanding these principles enables informed decision-making for procurement teams responsible for equipment specification and fleet management.
Tire Measurement Protocols
Begin by accurately measuring your truck's tires. You'll need to know the tire diameter, width, and overall circumference. These measurements will help you select anti-skid tracks that fit snugly and securely around your tires. Precision in these initial measurements prevents costly sizing errors and ensures optimal performance characteristics.
Professional measurement protocols involve multiple checkpoints around the tire circumference to account for manufacturing tolerances and wear patterns. Experienced technicians recommend measuring at three distinct points and averaging the results for maximum accuracy in sizing calculations.
Load Distribution Analysis
Vehicle weight distribution patterns significantly influence truck anti-skid track sizing requirements, particularly for equipment carrying variable loads or operating with extended attachments. Excavators with extended arms, for instance, require different track specifications compared to standard configurations due to altered weight dynamics.
Ground pressure calculations become critical when determining appropriate track width and section density. Softer operating surfaces demand wider track configurations to minimize ground pressure, while rocky terrain applications may prioritize durability over ground pressure distribution.
Environmental Consideration Factors
Operating environment characteristics directly impact sizing decisions, with muddy conditions requiring different specifications compared to rocky or sandy terrain applications. Wet environments benefit from increased drainage channels and specific tread pattern configurations that enhance self-cleaning capabilities.
Temperature variations affect material properties and truck anti-skid track flexibility, necessitating size adjustments for extreme climate operations. Cold weather applications may require slightly looser fits to accommodate material contraction, while high-temperature environments demand tighter specifications to prevent excessive expansion-related loosening.
Adjustable Sizes
Modern truck anti-skid track systems incorporate adjustability features that accommodate varying operational requirements and tire wear patterns throughout their service life. These adaptable designs provide enhanced value through extended usability and reduced inventory requirements.
Modular Section Systems
Contemporary track designs utilize modular section assemblies that allow for precise circumference adjustment without requiring complete system replacement. Individual sections can be added or removed to accommodate tire wear or different vehicle applications within fleet operations.
This modularity proves particularly valuable for rental equipment operations where the same track systems must accommodate various vehicle models and tire sizes throughout their service life. Fleet managers appreciate the inventory reduction benefits and simplified maintenance protocols associated with adjustable configurations.
Tension Adjustment Mechanisms
Advanced systems incorporate tensioning mechanisms that maintain optimal truck anti-skid track-to-tire contact pressure throughout operational cycles. These mechanisms compensate for tire pressure variations, load changes, and normal wear patterns without requiring manual readjustment.
Automatic tensioning systems utilize spring-loaded assemblies or hydraulic mechanisms that continuously monitor and adjust track tension based on operational conditions. This technology ensures consistent performance while reducing maintenance requirements and extending component life.
Multi-Size Compatibility Features
Versatile track systems accommodate multiple tire sizes within specified ranges, eliminating the need for extensive inventory management. These systems typically span 2-3 adjacent tire size categories, providing flexibility for mixed fleet operations.
Adjustable mounting brackets and variable-length connecting chains enable single track systems to serve multiple vehicle applications, significantly reducing procurement costs and storage requirements for large operations managing diverse equipment fleets.
Cross-compatibility engineering allows truck anti-skid track systems to adapt between different manufacturer tire specifications, accommodating the varied equipment brands commonly found in construction and mining fleets. This universal approach reduces training requirements for maintenance personnel and simplifies installation procedures across different vehicle platforms.
Advanced compatibility features include interchangeable connection hardware that accommodates both metric and imperial sizing standards, ensuring seamless integration regardless of equipment origin or specification methodology. Fleet operators benefit from standardized maintenance protocols and reduced parts inventory complexity.
Installation and Maintenance Considerations
Proper installation techniques significantly impact track performance and longevity, making understanding of correct procedures essential for maximizing equipment investment returns. Professional installation protocols ensure optimal safety margins and operational efficiency.
Pre-Installation Assessment
Thorough tire condition evaluation precedes successful track installation, identifying wear patterns, damage, or irregularities that might compromise track performance. Experienced technicians examine tread depth, sidewall integrity, and valve stem positioning to ensure compatibility with track mounting hardware.
Vehicle alignment checks prevent premature track wear and ensure even load distribution across all mounting points. Misaligned axles or suspension components can create stress concentrations that lead to track failure or reduced service life, making pre-installation inspection protocols critical for long-term success.
Professional Installation Procedures
Certified installation technicians follow standardized procedures that ensure proper track positioning and secure mounting connections. These protocols include specific torque specifications for mounting hardware, ensuring adequate clamping force without over-stressing tire sidewalls or track components.
Quality installation requires specialized tools and equipment designed specifically for truck anti-skid track applications, including pneumatic torque wrenches and alignment fixtures that ensure precise positioning throughout the installation process.
Ongoing Maintenance Requirements
Regular inspection schedules identify potential issues before they result in equipment failure or safety hazards. Maintenance protocols include checking mounting bolt torque specifications, examining track sections for wear or damage, and verifying proper tension throughout operational cycles.
Preventive maintenance programs extend track service life while maintaining optimal performance characteristics. These programs typically include lubrication schedules for moving components, replacement intervals for wear-prone elements, and documentation systems that track usage patterns and performance metrics over time.
FAQ
①What tire sizes are compatible with standard anti-skid tracks?
Standard systems accommodate most pneumatic tires ranging from 1200mm to 1300mm diameter, with 53-section configurations providing optimal coverage for dual-axle vehicles.
②How do I determine the correct track size for my equipment?
Measure tire diameter, width, and circumference accurately, then consult manufacturer specifications matching your vehicle's load requirements and operating environment conditions.
③Can tracks be adjusted for different tire sizes?
Modern modular systems allow section addition or removal for size adjustment, while tensioning mechanisms accommodate minor variations in tire dimensions and wear patterns.
④What materials ensure optimal durability?
Premium systems utilize 35CrMo steel baseboards with forged chain plates, providing exceptional resistance to impact damage and wear in demanding operational environments.
⑤How much do complete track systems weigh?
Standard configurations weigh approximately 750 kilograms per tire, though weight varies based on section count, material specifications, and intended application requirements.
Selecting appropriate truck anti-skid track sizes requires careful consideration of vehicle specifications, operational environments, and performance requirements. The 1200/1300 pneumatic tire configurations with 53 sections per assembly represent industry-standard solutions for most dual-axle applications, while specialized requirements may demand custom sizing approaches. Understanding sizing principles and adjustability options enables informed procurement decisions that enhance operational safety and equipment performance across diverse applications in construction, mining, and logistics industries.
Professional sizing consultation ensures optimal track selection for specific operational requirements, maximizing safety and performance while minimizing long-term ownership costs. For detailed specifications and custom sizing solutions for your fleet requirements, contact technical specialists from TianNuo at rich@stnd-machinery.com.
