Excavator Rotating Scraper: 360° Grading Attachment for Any Slope

Grading a slope with a fixed bucket means the same tired routine: track forward, reposition, re-level, repeat. Every reposition burns fuel and leaves witness marks the crew has to dress out later. The Excavator Rotating Scraper ends that cycle — a full 360° hydraulic blade that follows the contour while the machine stays parked.

Why 360° Rotation Changes the Economics of Grading

Repositioning is the hidden cost of grading work. Each move consumes fuel, adds track wear, and interrupts the operator's rhythm on a finish pass. A rotating scraper attachment attacks the problem at its root:

• Continuous scraping: Rotate the blade to the working angle instead of tracking the machine — fewer moves, lower fuel burn per finished square metre.

• Confined-space access: Work embankments, trench sides and tight urban plots where a dozer or grader simply cannot fit.

• One attachment, many jobs: Levelling, slope dressing, backfill spreading and debris clearing without swapping tools.

Technical Specifications and Sizing Guide

These are series ranges, not one fixed unit — blade width is matched to your carrier. A wider blade is not automatically better: over-width on a light excavator starves the blade of down-force and leaves a wavy finish. Send us your machine tonnage, model and typical material, and we specify the blade width, weight class and hydraulic interface that actually match the work.

Built to Survive Abrasive Ground Conditions

The scraper body is fabricated from high-strength steel to absorb the shock loading that destroys lighter attachments when a blade catches buried rock. The hydraulic rotation runs at up to 30 MPa, giving smooth proportional control rather than the snatch-and-stop behaviour of underpowered units. Maintenance stays simple: inspect the cutting edge for wear, check hydraulic connections, and keep the rotation bearing greased on schedule.

Where the Rotating Scraper Earns Its Keep

Any job where the finished surface matters more than raw volume moved is where this attachment pays back fastest:

• Construction: Site levelling, foundation preparation and final grade dressing

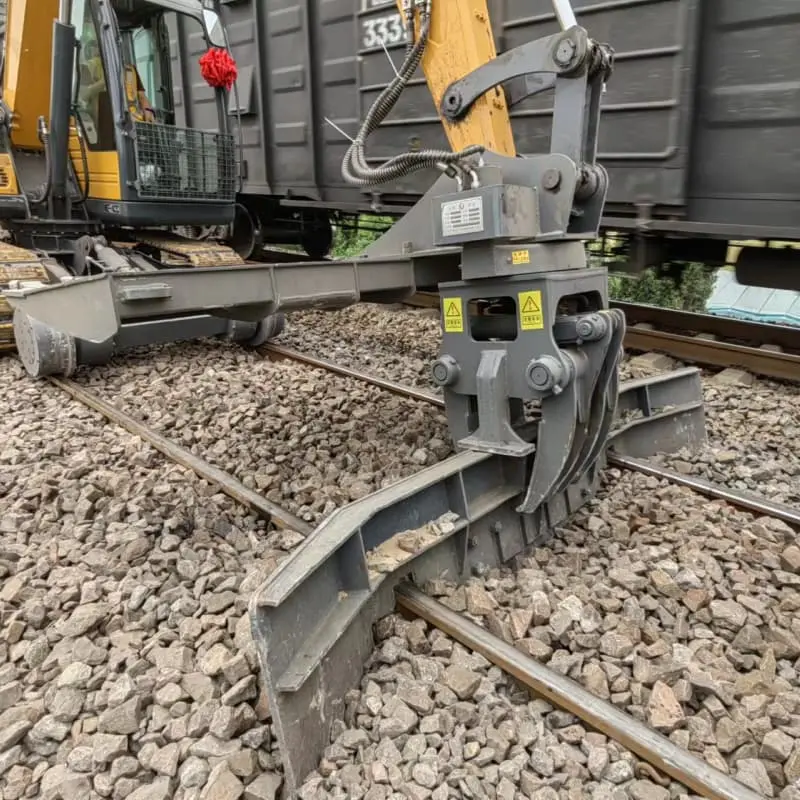

• Road & rail: Embankment shaping, shoulder trimming and drainage slope forming

• Mining & quarry: Bench cleaning and haul-road maintenance on rugged ground

• Demolition: Controlled debris scraping and site clearance after teardown

• Agriculture: Land reclamation, field levelling and irrigation channel shaping

Partner with a Reliable Manufacturer

The Excavator Rotating Scraper is now available for sale, covering 10–50 ton excavators with blade widths from 1200 to 2500 mm and full customization on blade width, cutting-edge material, mounting bracket and hydraulic interface. Every unit is backed by a manufacturer warranty, long-term spare-part supply and technical after-sales support. Please contact us for the latest catalog, quotation, installation drawing and on-site operation video. Shandong Tiannuo Construction Machinery Co., Ltd. is a 10+ year source factory located at No.369, Hard Innovation Industrial Park, Deyuan Road, Yanzhou District, Jining City, Shandong Province, specializing in excavator attachments, long reach booms and railway maintenance equipment. Visit www.stnd-machinery.com or contact us by email at arm@stnd-machinery.com for more information about the Excavator Rotating Scraper.
