How does a ballast plow differ from other railway maintenance equipment?

A ballast plow stands out from other railway maintenance equipment due to its specialized function in redistributing and shaping ballast along railroad tracks. Unlike tamping machines or ballast regulators, it excels at efficiently moving and leveling large volumes of ballast material. Its unique V-shaped design allows it to push excess ballast from the track center to the sides, creating a uniform profile that's crucial for track stability and drainage.

Purpose and Core Functionality

Specialized ballast redistribution for track stability

The primary purpose of a ballast plow is to ensure optimal track stability through precise ballast redistribution. Unlike general-purpose maintenance equipment, ballast plows are specifically designed to handle the critical task of shaping and moving ballast material. This specialized function is vital for maintaining the structural integrity of railway tracks, which directly impacts train safety and operational efficiency.

Ballast plows excel at creating a uniform ballast profile along the track. This even distribution of ballast is crucial for several reasons. First, it provides consistent support for the rails and ties, preventing uneven settling that can lead to track misalignment. Second, a well-distributed ballast bed enhances drainage, reducing the risk of water accumulation that can weaken the track structure over time.

Moreover, its ability to quickly move large volumes of ballast material sets it apart from other maintenance tools. This efficiency is particularly valuable during track rehabilitation projects or after major weather events that may have displaced ballast. By swiftly restoring the proper ballast profile, these plows play a key role in minimizing track downtime and ensuring rapid return to service.

Efficient cleaning of railway tracks and ballast

While not their primary function, ballast plows contribute significantly to track cleanliness. As they move along the rails, they help clear debris and foreign objects that may have accumulated on the track. This action complements dedicated cleaning equipment, enhancing overall track maintenance efficiency.

The plowing action also helps to loosen compacted ballast, which can improve drainage and extend the life of the ballast material. This loosening effect is particularly beneficial in areas prone to ballast fouling, where fine particles can clog the spaces between larger stones, reducing the ballast's effectiveness.

Complementing tampers and regulators in maintenance

Ballast plows work in harmony with other railway maintenance equipment, particularly tampers and regulators. While tampers focus on compacting ballast beneath the ties and regulators shape the ballast shoulder, plows excel at moving large quantities of ballast and creating an initial profile.

This complementary relationship allows for a more comprehensive and efficient track maintenance process. For instance, a ballast plow might be used to redistribute excess ballast after a major resurfacing operation, preparing the way for final shaping by a regulator. This synergy between different types of equipment ensures that each tool is used for its strengths, optimizing the overall maintenance workflow.

Working Mechanism

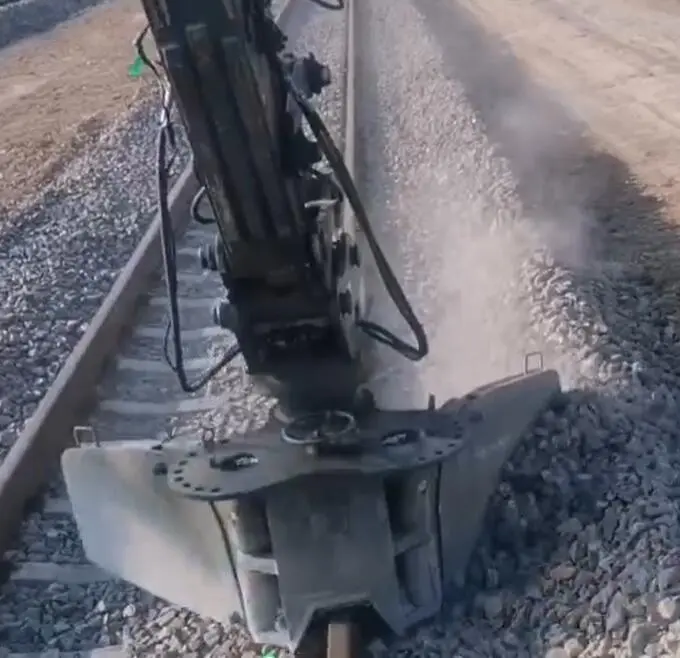

V-shaped design for optimal ballast movement

The hallmark feature of a ballast plow is its distinctive V-shaped design. This ingenious configuration is far from arbitrary; it's a carefully engineered solution that maximizes the plow's efficiency in moving and shaping ballast material. The V-shape acts like a funnel, guiding excess ballast from the center of the track towards the sides in a smooth, controlled manner.

As the plow moves along the track, the apex of the V leads the way, parting the ballast like a ship's bow cuts through water. This initial action helps to break up any compacted areas, loosening the ballast for easier redistribution. The angled sides of the V then guide the loosened material outward, preventing buildup in the center of the track while ensuring an even spread along the shoulders.

This design is particularly effective in handling large volumes of ballast quickly. Unlike other equipment that might need multiple passes to achieve the desired profile, a well-designed ballast plow can often accomplish its task in a single run. This efficiency translates directly into reduced maintenance time and lower operational costs for railway operators.

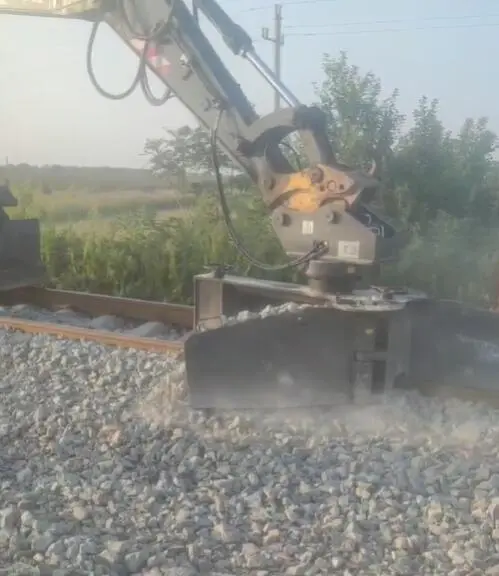

Integration with loaders for enhanced maneuverability

Many modern ballast plows are designed to integrate seamlessly with loaders or other heavy equipment. This integration greatly enhances the plow's maneuverability and versatility. By mounting the plow on a loader, operators gain the ability to quickly reposition the tool as needed, adapting to varying track conditions or maintenance requirements.

The loader's hydraulic systems provide precise control over the plow's position and angle. This level of control allows operators to fine-tune the plowing action based on the specific needs of each section of track. For instance, the plow can be easily adjusted to clear excess ballast from one side of the track or to redistribute material more heavily to a particular area that may require additional support.

Furthermore, this integration allows for rapid deployment and retraction of the plow. When not in use, the plow can be quickly lifted clear of the track, allowing the loader to move to the next work site without the need for time-consuming detachment and reattachment procedures.

Rail-wheel guidance system for precise operation

To ensure accurate and consistent performance, many ballast plows incorporate a rail-wheel guidance system. This system typically consists of flanged wheels that run directly on the rails, keeping the plow perfectly aligned with the track. This alignment is crucial for maintaining the correct ballast profile and preventing any unintended damage to track components.

The rail-wheel system also helps to distribute the weight of the plow evenly, reducing stress on both the equipment and the track. This is particularly important when working with heavier plows or in areas with softer ground conditions. By keeping the plow's weight on the rails, the system minimizes the risk of the equipment sinking or shifting, which could lead to uneven ballast distribution.

Additionally, this guidance system allows for smoother operation at higher speeds. Operators can move the plow along the track more quickly and confidently, knowing that it will maintain its proper position relative to the rails. This increased speed capability further enhances the efficiency of ballast maintenance operations.

Precision and Adjustability

Customizable edges for various ballast materials

One of the key features that sets ballast plows apart from other railway maintenance equipment is their ability to be customized for different types of ballast materials. Railway networks often use various grades and sizes of ballast depending on factors such as track usage, climate conditions, and local availability of materials. To accommodate this diversity, modern ballast plows are designed with interchangeable or adjustable edges.

These customizable edges allow maintenance crews to optimize the plow's performance for specific ballast types. For instance, a plow working with larger, coarser ballast might use edges with wider spacing or more robust construction to handle the increased size and weight of the stones. Conversely, when dealing with finer ballast materials, edges with closer tolerances can be employed to ensure precise shaping and prevent excessive loss of material during plowing operations.

The ability to switch out or adjust these edges also extends the versatility of the equipment. A single ballast plow can be quickly adapted to work effectively across different sections of a railway network, even if those sections use varying ballast specifications. This adaptability not only improves the efficiency of maintenance operations but also helps to reduce the overall equipment costs for railway operators.

Adaptability to different track widths and conditions

Railway networks often include tracks of varying widths, from narrow-gauge lines to standard gauge and even broad gauge in some regions. Ballast plows are designed with this variability in mind, offering adjustability to accommodate different track widths. This adaptability ensures that a single piece of equipment can be used across a wide range of track configurations, maximizing its utility and cost-effectiveness.

Beyond track width, ballast plows must also be able to handle various track conditions. These can include differences in ballast depth, the presence of switches or crossings, and variations in track curvature. Advanced ballast plows often feature hydraulic systems that allow operators to quickly adjust the plow's width, angle, and height to suit these changing conditions.

This adaptability extends to the plow's ability to work effectively in different weather conditions. Whether operating in dry, dusty environments or dealing with wet, heavy ballast after rainfall, a well-designed ballast plow can be adjusted to maintain optimal performance. Some models even include features like water sprayers to help control dust during dry conditions, further enhancing their versatility.

Fine-tuning capabilities for optimal ballast profiles

Creating the ideal ballast profile is a precise science that directly impacts track stability, drainage, and longevity. Ballast plows excel in this area thanks to their fine-tuning capabilities. Unlike more generalized maintenance equipment, these plows offer a high degree of control over the final shape and distribution of the ballast.

Operators can adjust the plow's angle, depth, and pressure to achieve specific profile requirements. This level of control allows for the creation of precise crowns in the center of the track for improved drainage, or the careful shaping of ballast shoulders to support the track structure. The ability to make these fine adjustments ensures that the ballast profile meets the exact specifications required for each section of track.

Moreover, many modern ballast plows incorporate advanced sensors and control systems that provide real-time feedback on the ballast profile being created. This technology allows operators to make immediate adjustments as needed, ensuring consistent results along the entire length of the track. Some systems even offer the ability to pre-program profile specifications, further enhancing precision and reducing the reliance on operator skill for achieving optimal results.

As railway technology continues to advance, ballast plows are likely to evolve further, incorporating more precision and automation to meet the growing demands of modern rail networks.

FAQ

1. How often should a ballast plow be used in railway maintenance?

The frequency use depends on various factors such as track usage, weather conditions, and the type of ballast material. Generally, high-traffic areas may require plowing every 6-12 months, while less frequented tracks might need attention every 1-2 years. Regular inspections help determine when plowing is necessary.

2. Can a ballast plow replace the need for other track maintenance equipment?

While highly effective, a ballast plow doesn't eliminate the need for other maintenance equipment. It works best in conjunction with tampers, regulators, and other specialized tools. Each piece of equipment serves a specific purpose in the overall track maintenance process.

3. Are ballast plows suitable for use on high-speed rail lines?

Yes, they can be used on high-speed rail lines. In fact, they play a crucial role in maintaining the precise ballast profiles required for high-speed operations. However, the equipment used on these lines often incorporates more advanced features to meet the stringent maintenance standards of high-speed rail.

4. How does a ballast plow contribute to railway safety?

Ballast plows enhance railway safety by ensuring proper track geometry and stability. By maintaining the correct ballast profile, they help prevent track misalignment, improve drainage, and reduce the risk of derailments. Regular use contributes to a smoother, safer ride for trains.

5. What advancements have been made in ballast plow technology in recent years?

Recent advancements include the integration of GPS and laser guidance systems for improved precision, the development of more durable and efficient plow designs, and the incorporation of real-time data collection and analysis capabilities. These innovations have significantly enhanced the efficiency and effectiveness of ballast plowing operations.

Ballast Plow Supplier

Tiannuo Machinery specializes in manufacturing high-quality railway maintenance equipment, designed for optimal track maintenance. Our range of products encompasses various railway maintenance solutions, from sleeper changing machines to tamping equipment and innovative ballast management tools. We also offer excavator modifications and accessories tailored for railway applications. Slide Tiannuo's ballast plow onto your 5–10 t mini-excavator, lock the 1,435 mm gauge, and watch the 8° blade shift 2,800 mm of ballast in a single pass.
Crafted from high-strength alloy plates, our product offers durability and longevity. For more information about our railway maintenance solutions or to discuss your specific needs, contact us at arm@stnd-machinery.com.
