How is a ballast plow used in track maintenance operations?
A ballast plow is an essential tool in track maintenance operations, designed to redistribute and shape ballast along railway tracks. This specialized equipment plays a crucial role in maintaining the stability, drainage, and overall integrity of railway infrastructure. It efficiently moves excess ballast from the center of the track to the shoulders, ensuring proper distribution and support for the rails and ties. By effectively managing ballast, these plows help prevent track settling, improve drainage, and extend the lifespan of railway systems, making them indispensable in modern track maintenance practices.
Step-by-Step Guide to Ballast Plowing Procedures
Preparing the Track for Ballast Plowing Operations
Before initiating ballast plowing, thorough preparation is essential. Start by conducting a comprehensive track inspection to identify areas requiring attention. This involves assessing ballast conditions, noting any irregularities in track geometry, and marking sections that need specific focus during plowing.
Next, clear the track of any debris or obstructions that might interfere with the plowing process. This step is crucial for ensuring smooth operation and preventing damage to the equipment. It's also important to coordinate with other maintenance teams to ensure the track is free from ongoing work that could conflict with plowing activities.
Adjust the ballast plow settings according to the specific requirements of the track section. This includes setting the correct blade height and angle to achieve the desired ballast profile. Remember, different track sections may require varying plow configurations based on factors such as curve radius, superelevation, and existing ballast conditions.

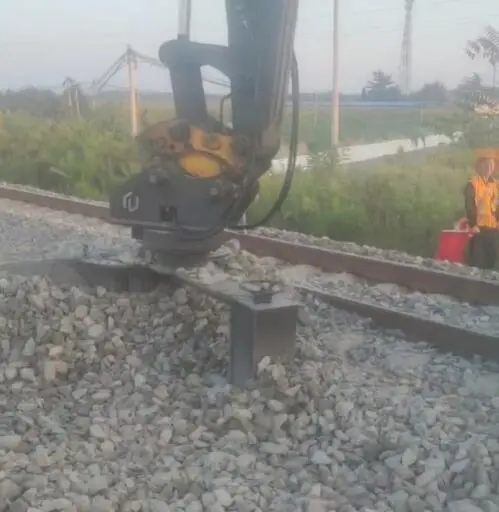

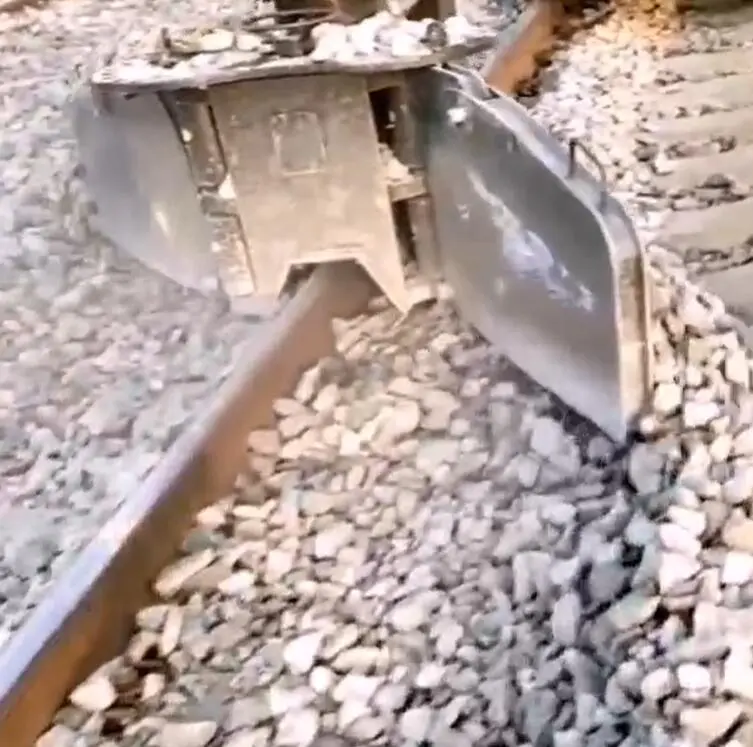

Operating the Ballast Plow: Techniques and Safety Measures
When operating the ballast plow, maintain a consistent speed to ensure uniform ballast distribution. The optimal speed typically ranges between 5 to 10 mph, depending on track conditions and equipment specifications. Pay close attention to the plow's performance, making real-time adjustments as needed to address varying ballast densities or track geometries.
Safety is paramount during plowing operations. Ensure all crew members are equipped with proper personal protective equipment (PPE) and are trained in safety protocols. Maintain clear communication channels between the plow operator and ground personnel to quickly address any issues that may arise during the operation.
Be mindful of potential obstacles such as switches, crossings, or bridge approaches. These areas may require special handling or manual intervention to prevent damage to track infrastructure. Always adhere to established safety guidelines and operational procedures to minimize risks and ensure efficient plowing.
Post-Plowing Inspection and Adjustments for Optimal Results
After completing the plowing operation, conduct a thorough post-plowing inspection. This involves walking the track to visually assess the ballast profile and distribution. Look for any areas where ballast may be inadequately spread or where additional attention might be needed.
Use track geometry measuring devices to verify that the plowing has achieved the desired cross-section and alignment. Make note of any sections that may require additional passes or manual adjustment. It's crucial to ensure that the ballast shoulder is properly formed and that there's adequate ballast in the crib areas between ties.
Based on the inspection results, perform any necessary adjustments. This might include spot tamping to address localized irregularities or manual redistribution of ballast in areas the plow couldn't effectively reach. The goal is to achieve a uniform ballast profile that supports track stability and proper drainage.
Integrating Plowing into Comprehensive Track Maintenance
Coordinating Ballast Plowing with Other Maintenance Activities
Effective track maintenance requires a holistic approach, with ballast plowing playing a pivotal role in the overall maintenance strategy. Coordinate plowing operations with other essential maintenance activities to maximize efficiency and minimize track downtime. For instance, schedule plowing in conjunction with tie replacement or rail grinding to address multiple aspects of track maintenance simultaneously.
Integrate ballast plowing into your predictive maintenance program. By analyzing track geometry data and historical maintenance records, you can proactively identify sections that require plowing before issues escalate. This proactive approach helps prevent track defects and reduces the need for emergency maintenance interventions.
Consider the seasonal timing of plowing operations. In regions with harsh winters, schedule major plowing activities during warmer months to ensure optimal working conditions and ballast malleability. However, be prepared to conduct emergency plowing as needed, especially after severe weather events that may disrupt ballast distribution.
Scheduling Plowing Operations for Minimal Disruption
To minimize disruption to rail traffic, carefully plan the timing of plowing operations. Utilize track possession windows during off-peak hours or scheduled maintenance blocks to perform plowing without impacting regular train schedules. This may involve night work or weekend operations, depending on your railway's traffic patterns.
Implement a phased approach for extensive plowing projects. Break down the work into manageable sections that can be completed within available time slots. This strategy allows for better resource allocation and enables you to address high-priority areas first while maintaining overall network functionality.
Leverage technology to optimize scheduling. Use digital planning tools and real-time tracking systems to coordinate plowing operations with train movements, ensuring efficient use of track access time while maintaining safety protocols.
Combining Plowing with Tamping and Alignment Procedures
For comprehensive track maintenance, combine ballast plowing with tamping and alignment procedures. This integrated approach ensures that the redistributed ballast is properly compacted and the track is brought to its optimal geometry. Start with plowing to redistribute ballast, followed by tamping to consolidate the ballast under the ties and finally, dynamic track stabilization to settle the newly tamped track.
When combining these procedures, pay special attention to the sequence of operations. Plowing should precede tamping to ensure that there's adequate ballast available for the tamping machine to work with. After tamping, a final light plowing pass can help achieve the finished ballast profile and clear any excess material from the rail seats.
Monitor the effectiveness of this combined approach through regular track geometry measurements. This data will help you refine your maintenance strategies over time, optimizing the frequency and intensity of plowing, tamping, and alignment operations based on observed track performance and degradation rates.
Best Practices for Maximizing Ballast Plow Efficiency
Selecting the Right Ballast Plow for Your Track Conditions
Choosing the appropriate ballast plow is crucial for achieving optimal results in your track maintenance operations. Consider factors such as track gauge, ballast type, and typical maintenance challenges when selecting a plow. For standard gauge tracks, a versatile plow with adjustable wings and blades offers the flexibility to handle various ballast conditions and track geometries.
In areas with heavy ballast fouling or compaction, opt for plows equipped with scarification teeth. These can break up compacted ballast, improving drainage and extending the intervals between full ballast cleaning operations. For high-speed rail lines, select plows designed to work at higher speeds without compromising precision, enabling more efficient maintenance within limited track possession windows.
Consider the power source and mobility of the plow. Self-propelled units offer greater flexibility and can be quickly deployed to different locations, while plows attached to larger maintenance vehicles may provide more power for challenging conditions. Evaluate your network's specific needs and maintenance strategies to determine the most suitable plow configuration.
Optimizing Plow Blade Angles for Effective Material Distribution
The angle and position of plow blades significantly impact ballast distribution effectiveness. Experiment with different blade angles to find the optimal configuration for your specific track and ballast conditions. Generally, a steeper angle is more effective for moving large volumes of ballast, while a shallower angle provides finer control and is suitable for finish grading.
Adjust blade height to ensure proper clearance above the ties while still effectively moving ballast. Too low, and you risk damaging ties or rail fasteners; too high, and the plow becomes ineffective. Many modern plows feature hydraulic adjustment systems, allowing operators to fine-tune blade position on the fly in response to changing track conditions.
For curved sections of track, consider using plows with independently adjustable wings. This feature allows you to compensate for the superelevation of the curve, ensuring even ballast distribution on both the high and low sides of the track. Proper wing adjustment is crucial for maintaining correct ballast shoulder profiles, which play a vital role in track stability and drainage.
Implementing Regular Maintenance to Extend Plow Lifespan
Establish a comprehensive maintenance schedule for your ballast plows to ensure their longevity and peak performance. Regular inspections should include checking for wear on blades and wings, examining hydraulic systems for leaks or damage, and assessing the structural integrity of the plow frame. Address any issues promptly to prevent minor problems from escalating into major repairs or equipment failures.
Pay special attention to the cutting edges of the plow blades. These components experience the most wear and may require frequent replacement or resurfacing. Consider using hardened steel or carbide-tipped blades for extended service life, particularly in abrasive ballast conditions. Rotate or flip reversible blades regularly to ensure even wear and maintain optimal plowing performance.
Lubricate all moving parts according to the manufacturer's recommendations. This includes pivot points, hydraulic cylinder connections, and any adjustable components. Proper lubrication reduces friction, prevents premature wear, and ensures smooth operation of the plow. Additionally, keep the plow clean, removing any accumulated ballast or debris after each use to prevent corrosion and maintain proper functionality.
Ballast plowing is a critical component of effective track maintenance, playing a vital role in ensuring the safety, efficiency, and longevity of railway infrastructure. By following best practices in plowing procedures, integrating plowing into comprehensive maintenance strategies, and optimizing equipment usage, railway operators can significantly enhance track performance and reduce long-term maintenance costs.
FAQ
①Q: How often should ballast plowing be performed on a typical railway track?
A: The frequency of ballast plowing depends on various factors such as track usage, weather conditions, and ballast quality. Generally, high-traffic mainlines may require plowing every 6-12 months, while less frequently used tracks might need plowing every 1-2 years. Regular track inspections help determine the optimal plowing schedule.
②Q: Can ballast plowing be done in all weather conditions?
A: While ballast plowing can be performed in most weather conditions, extreme temperatures or heavy precipitation can affect efficiency and results. Frozen ballast in winter may be more difficult to plow, and wet conditions can lead to ballast compaction. Ideal plowing conditions are typically during dry, moderate weather.
③Q: How does ballast plowing contribute to track drainage?
A: Ballast plowing helps maintain proper track drainage by redistributing ballast to create the correct profile and shoulder slope. This ensures that water can effectively flow away from the track structure, preventing water pooling and reducing the risk of track instability and premature degradation.
④Q: What are the signs that a track section needs ballast plowing?
A: Signs that indicate the need for ballast plowing include visible ballast deficiency in critical areas, poor track geometry, evidence of water retention, and excessive vegetation growth in the ballast. Regular track inspections and geometry measurements can help identify these issues early.
⑤Q: How does ballast plowing differ for high-speed rail lines compared to conventional tracks?
A: Ballast plowing for high-speed rail lines often requires more precise equipment capable of operating at higher speeds while maintaining accuracy. The tolerance for track geometry deviations is much lower in high-speed lines, necessitating more frequent and meticulous plowing operations to maintain the strict standards required for safe high-speed travel.
Ballast Plow Supplier
Tiannuo Machinery specializes in providing high-quality railway maintenance equipment, designed for optimal track maintenance. Our range of products includes not only ballast plows but also railway sleeper changing machines, tamping machines, and various excavator modifications tailored for railway applications. We understand the unique challenges faced by the railway construction, maintenance, and management sectors, and our equipment is engineered to meet the highest standards of performance and durability.

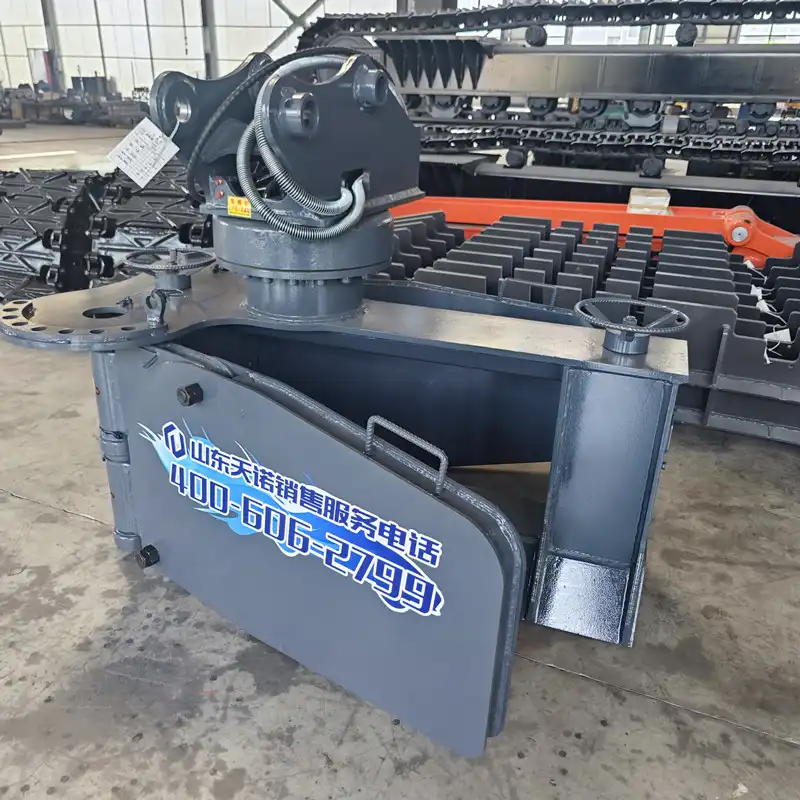

It can be used with machines weighing from 5 tons to 10 tons, with a track gauge of exactly 1435 mm. The width of 2800 mm and height of 460 mm, along with an inclination angle of 8°, make it a powerful tool for ballast cleaning. For more information on our railway maintenance solutions or to discuss your specific needs, please contact us at tn@stnd-machinery.com.
