How to choose excavator booms?
Choosing the right excavator boom is crucial for maximizing efficiency and productivity in various industries, including construction, mining, and demolition. The boom forms the heart of the machine's digging and lifting capabilities. To select the ideal boom for your project, consider factors such as the excavator's tonnage, boom type, and structural strength.
Match the Boom to Excavator Tonnage
Excavator Weight Classes And Boom Sizes
When selecting an excavator boom, it's essential to match it with the appropriate excavator weight class. Excavators typically range from mini excavators weighing less than 6 tons to heavy-duty machines exceeding 40 tons. Each weight class corresponds to specific boom sizes and capabilities.
Mini excavators (0-6 tons) usually feature compact booms designed for tight spaces and light-duty work. These booms are ideal for landscaping, small construction projects, and utility work. Their shorter length and reduced lifting capacity make them perfect for precision tasks in confined areas.
Medium-sized excavators (7-25 tons) offer a balance between maneuverability and power. Their booms are versatile, suitable for a wide range of applications from general construction to road work. These machines can handle larger excavator buckets and have increased reach and digging depth compared to their smaller counterparts.
Large excavators (26-40+ tons) boast robust booms capable of heavy-duty earthmoving, quarrying, and large-scale construction projects. These booms provide impressive reach and lifting capacities, making them suitable for demanding tasks in mining and heavy construction.
Calculate lifting capacity requirements for your project
Determining the necessary lifting capacity is crucial when choosing an excavator boom. Consider the heaviest loads you'll need to handle and factor in safety margins. Remember that lifting capacity decreases as the boom extends, so account for both weight and reach in your calculations.
For example, if you're working on a project that requires lifting concrete barriers weighing 5 tons at a 20-foot radius, you'll need an excavator with a boom rated for at least 6 tons at that distance to ensure safe operation. Always consult the manufacturer's load charts for accurate information on lifting capacities at various boom positions.
Consider boom reach and digging depth specifications
Boom reach and digging depth are critical factors that directly impact your excavator's performance. The reach determines how far the machine can extend its boom and still effectively operate, while digging depth dictates how deep you can excavate.
For projects requiring extensive trenching or foundation work, prioritize booms with greater digging depths. On the other hand, if you're working on projects that involve reaching over obstacles or loading trucks, focus on booms with longer horizontal reach capabilities.
It's important to note that increasing reach often comes at the expense of lifting capacity. Strike a balance between these factors based on your specific project requirements to ensure optimal performance and productivity.
Select the Right Boom Type
Compare standard, long reach, and telescopic boom options

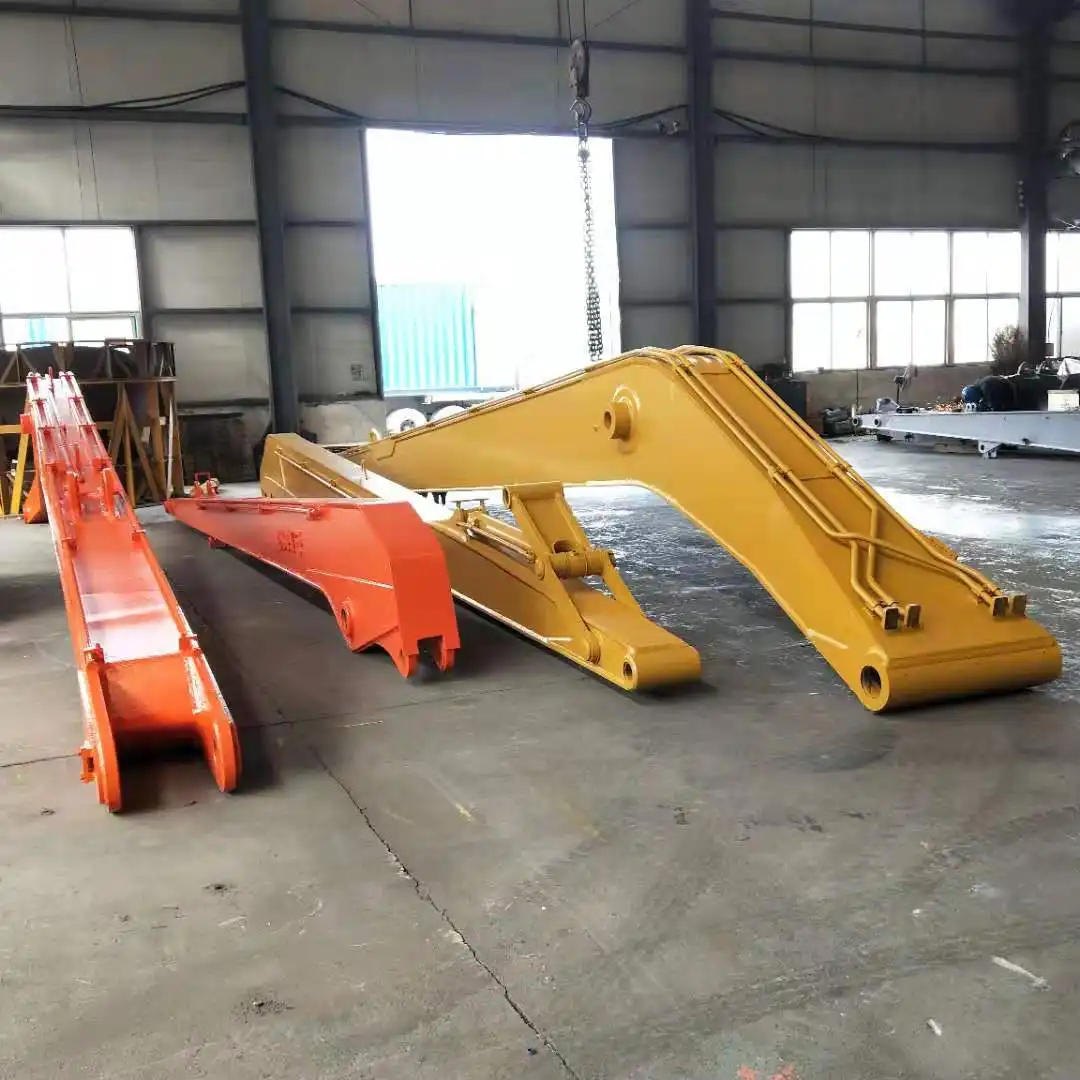

Excavator booms come in various configurations, each designed to excel in specific applications. Understanding the differences between standard, long reach, and telescopic booms will help you choose the most suitable option for your needs.

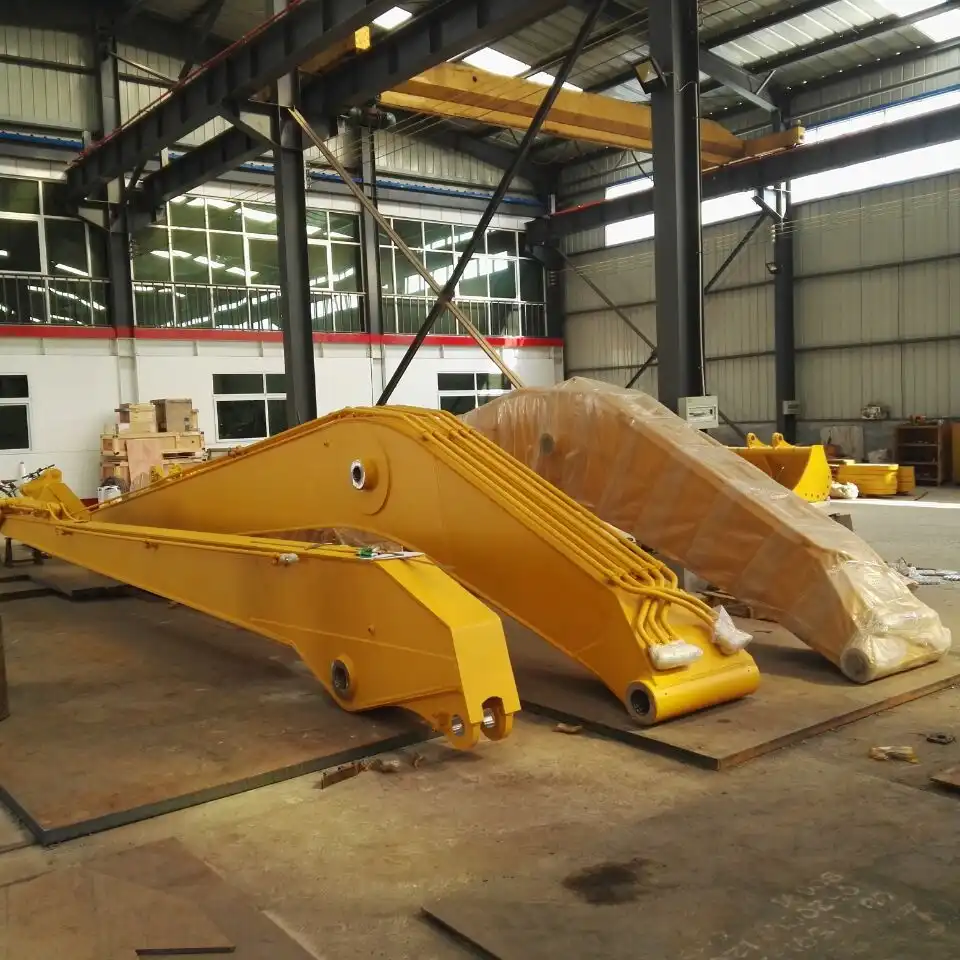

Standard booms are the most common and versatile. They offer a balanced combination of reach, digging depth, and lifting capacity. These booms are ideal for general construction work, utility installation, and landscaping projects. They provide good maneuverability and are compatible with a wide range of excavator buckets and attachments.

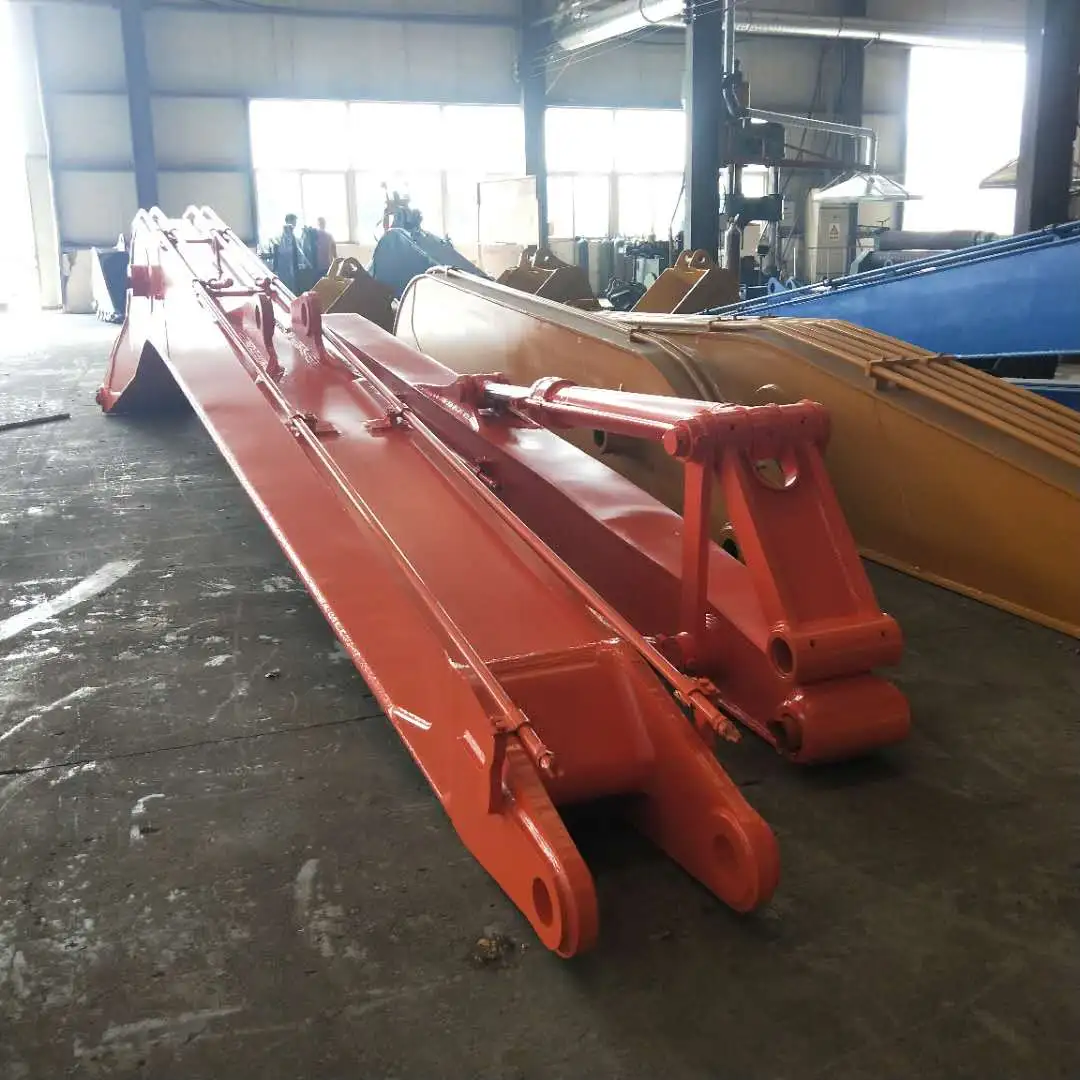

Long reach booms, as the name suggests, offer extended reach capabilities. They're particularly useful for applications that require working at a distance, such as river dredging, slope finishing, or demolition of tall structures. While they excel in reach, they typically have reduced lifting capacities compared to standard booms of the same class.
Telescopic booms feature extendable sections that allow for variable reach. This design offers unparalleled versatility, enabling operators to work in confined spaces and then extend the boom for increased reach when needed. Telescopic booms are excellent for urban construction sites, tunnel work, and projects with varying depth requirements.
Evaluate articulated vs. fixed boom configurations
The choice between articulated and fixed boom configurations depends on the nature of your work and the level of flexibility required. Each type has its advantages and limitations.
Articulated booms feature additional joints that allow for greater maneuverability and flexibility. They excel in tight spaces and complex digging scenarios, making them ideal for urban construction, landscaping, and utility work. The extra articulation points enable operators to reach around obstacles and work in unconventional positions.
Fixed booms, on the other hand, offer simplicity and robustness. They typically have higher lifting capacities and are better suited for heavy-duty applications like mining and large-scale earthmoving. Fixed booms are less complex, which can translate to lower maintenance requirements and increased durability in harsh working conditions.
Choose specialized booms for demolition or high-reach tasks
For specific applications like demolition or high-reach work, specialized boom configurations are available. These booms are engineered to meet the unique challenges of these tasks.
Demolition booms are reinforced to withstand the impact and stress associated with tearing down structures. They often feature additional protective elements to shield hydraulic components from falling debris. Some demolition booms are designed with multiple articulation points, allowing for precise positioning of attachments like hydraulic breakers or pulverizers.
High-reach booms are specifically designed for working at extreme heights, such as demolishing multi-story buildings or maintaining tall industrial structures. These booms can extend to impressive heights, sometimes exceeding 100 feet. They're equipped with specialized attachments and often feature counterweights to maintain stability during operation.
Check Structural Strength & Material
Assess boom construction materials and reinforcements
The structural integrity of an excavator boom is paramount to its performance and longevity. When evaluating boom options, pay close attention to the materials used in their construction and any reinforcements that enhance their durability.
High-strength steel is the primary material used in modern excavator booms. Look for booms constructed with low-alloy, high-tensile steel that offers an optimal balance of strength and weight. This type of steel provides excellent resistance to bending and twisting forces, crucial for maintaining precision during operation.
Reinforcements at key stress points are essential for prolonging the boom's lifespan. Check for additional plating or gussets at pivot points, cylinder mounts, and along the boom's length. These reinforcements distribute stress more evenly, reducing the risk of fatigue cracks and structural failures.
Some manufacturers incorporate advanced materials like composite fibers in certain boom components to reduce weight without compromising strength. While these innovations can offer benefits in terms of fuel efficiency and increased lifting capacity, ensure they meet industry standards for durability and safety.
Examine wear resistance and durability features
Excavator booms are subjected to intense wear and tear, especially in harsh working environments. Examining the wear resistance and durability features of a boom is crucial for ensuring long-term performance and minimizing downtime.
Look for booms with hardened wear plates at high-friction points, such as where the boom connects to the excavator body and at attachment connection points. These plates protect the underlying structure from abrasion and impact, extending the boom's service life.
High-quality paint and protective coatings are essential for shielding the boom from corrosion and environmental damage. Opt for booms with multi-layer coating systems that include primers, epoxy-based paints, and clear protective finishes. Some manufacturers offer specialized coatings for extreme environments, such as salt-resistant finishes for coastal applications.
Sealed bushings and grease-free joints can significantly reduce maintenance requirements and improve durability. These features prevent dirt and debris from entering critical components, reducing wear and extending service intervals.
Verify boom compatibility with various attachments
The versatility of an excavator often depends on its ability to accommodate various attachments. When choosing a boom, it's crucial to verify its compatibility with the range of tools you plan to use.
Check the boom's hydraulic system specifications to ensure it can provide adequate flow and pressure for your intended attachments. This is particularly important for high-demand tools like hydraulic breakers or rotary cutters, which may require dedicated hydraulic circuits.
Consider the boom's quick coupler compatibility. A versatile quick coupler system allows for rapid attachment changes, improving productivity and expanding the machine's capabilities. Ensure the boom can support the weight and operational forces of your heaviest attachments without compromising stability or performance.
Some booms feature integrated tool control systems that allow operators to pre-set hydraulic flow and pressure settings for different attachments. This feature can significantly enhance efficiency and prevent potential damage from incorrect hydraulic settings.
Selecting the right excavator boom is a critical decision that impacts your project's efficiency, safety, and success. By carefully considering factors such as excavator tonnage, boom type, and structural strength, you can ensure that your chosen boom aligns perfectly with your operational needs. Remember to factor in the specific requirements of your projects, including lifting capacities, reach, and compatibility with various attachments. With the right excavator boom, you'll be well-equipped to tackle a wide range of tasks across construction, mining, demolition, and other industries with confidence and precision.
FAQ
1. How does boom length affect excavator performance?
Longer booms increase reach and digging depth but may reduce lifting capacity and stability. Shorter booms offer greater lifting power and maneuverability in confined spaces.
2. Can I use a standard boom for demolition work?
While possible for light demolition, specialized demolition booms are recommended for heavy-duty work due to their reinforced construction and additional safety features.
3. How often should excavator booms be inspected?
Regular visual inspections should be performed daily, with more thorough examinations conducted weekly or monthly, depending on usage intensity. Annual professional inspections are also recommended.
4. Are there weight restrictions for attachments on different boom types?
Yes, each boom type and size has specific weight limits for attachments. Always consult the manufacturer's specifications to ensure safe operation and prevent overloading.
5. How do environmental factors influence boom selection?
Factors like temperature extremes, corrosive environments, or high-altitude operations can affect boom performance. Choose booms with appropriate materials and protective features for your specific working conditions.
