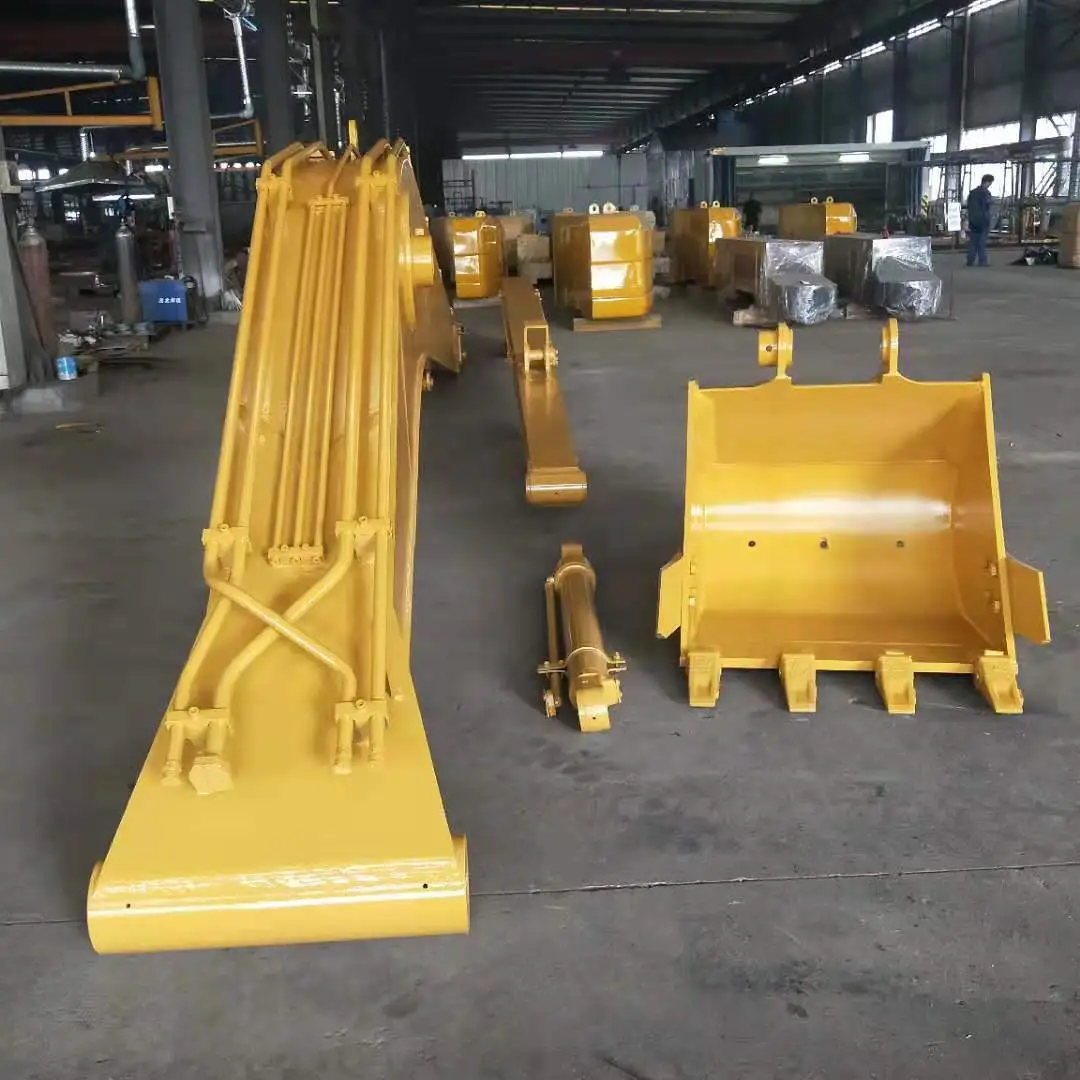

What is an excavator boom?

An excavator boom is a crucial component of excavating machinery, serving as the primary arm that extends from the main body of the excavator. This pivotal structure allows the machine to reach, dig, and lift materials efficiently across various construction and earthmoving projects. The boom connects to the excavator's body at one end and to the arm (or stick) at the other, forming part of the machine's kinematic chain that enables precise control and movement during operations.

Key components of excavator booms explained

Understanding the intricate parts that make up an excavator boom is essential for operators, maintenance personnel, and project managers alike. Let's dive into the core components and their functions, which contribute to the boom's overall performance and versatility.

Understanding the boom cylinder and its functions

The boom cylinder is a hydraulic component that powers the movement of the excavator boom. It's responsible for raising and lowering the boom, allowing the operator to control the height and reach of the excavator's arm. This powerful hydraulic mechanism operates under high pressure, enabling the boom to lift heavy loads and withstand the forces encountered during digging operations.

Key features of the boom cylinder include:

• Robust construction to handle extreme pressures
• Precision-engineered seals to prevent hydraulic fluid leaks
• Smooth operation for accurate control
• Durable materials to resist wear and tear in harsh environments

Proper maintenance of the boom cylinder is crucial for ensuring the longevity and efficiency of the excavator. Regular inspections, timely replacement of seals, and monitoring hydraulic fluid levels are essential practices for keeping this vital component in top condition.

Swing booms: Enhanced flexibility for mini excavators

Swing booms are a specialized type of excavator boom often found on mini excavators. These innovative designs allow the boom to pivot side to side, in addition to the standard up and down movement. This enhanced range of motion provides several advantages:

• Improved maneuverability in tight spaces
• Ability to work parallel to the tracks without repositioning the entire machine
• Enhanced precision for delicate tasks in confined areas
• Reduced need for frequent machine repositioning, saving time and fuel

For industries such as urban construction, utility work, and landscaping, swing booms offer a significant boost in productivity and versatility. They're particularly valuable when working in areas with limited access or when performing tasks that require reaching around obstacles.

Knuckle booms: Versatility in confined spaces

Knuckle booms, also known as articulated booms, feature an additional joint or "knuckle" in their design. This configuration allows for even greater flexibility and reach compared to standard or swing booms. The extra articulation point enables operators to:

• Navigate complex working environments with ease
• Reach over and around obstacles without repositioning the excavator
• Perform precise operations in tight or awkward spaces
• Increase the working range without compromising stability

Knuckle booms are particularly valuable in industries such as forestry, where they can maneuver through dense vegetation, or in demolition work, where they can access hard-to-reach areas of structures. Their versatility makes them a popular choice for projects that demand both power and precision in challenging environments.

Excavator Booms Improve Efficiency

The design and capabilities of excavator booms play a crucial role in enhancing overall project efficiency. From extending reach to incorporating multi-functional designs, modern boom technologies are revolutionizing the way construction and earthmoving tasks are approached. Let's explore how these advancements contribute to improved productivity and cost-effectiveness on job sites.

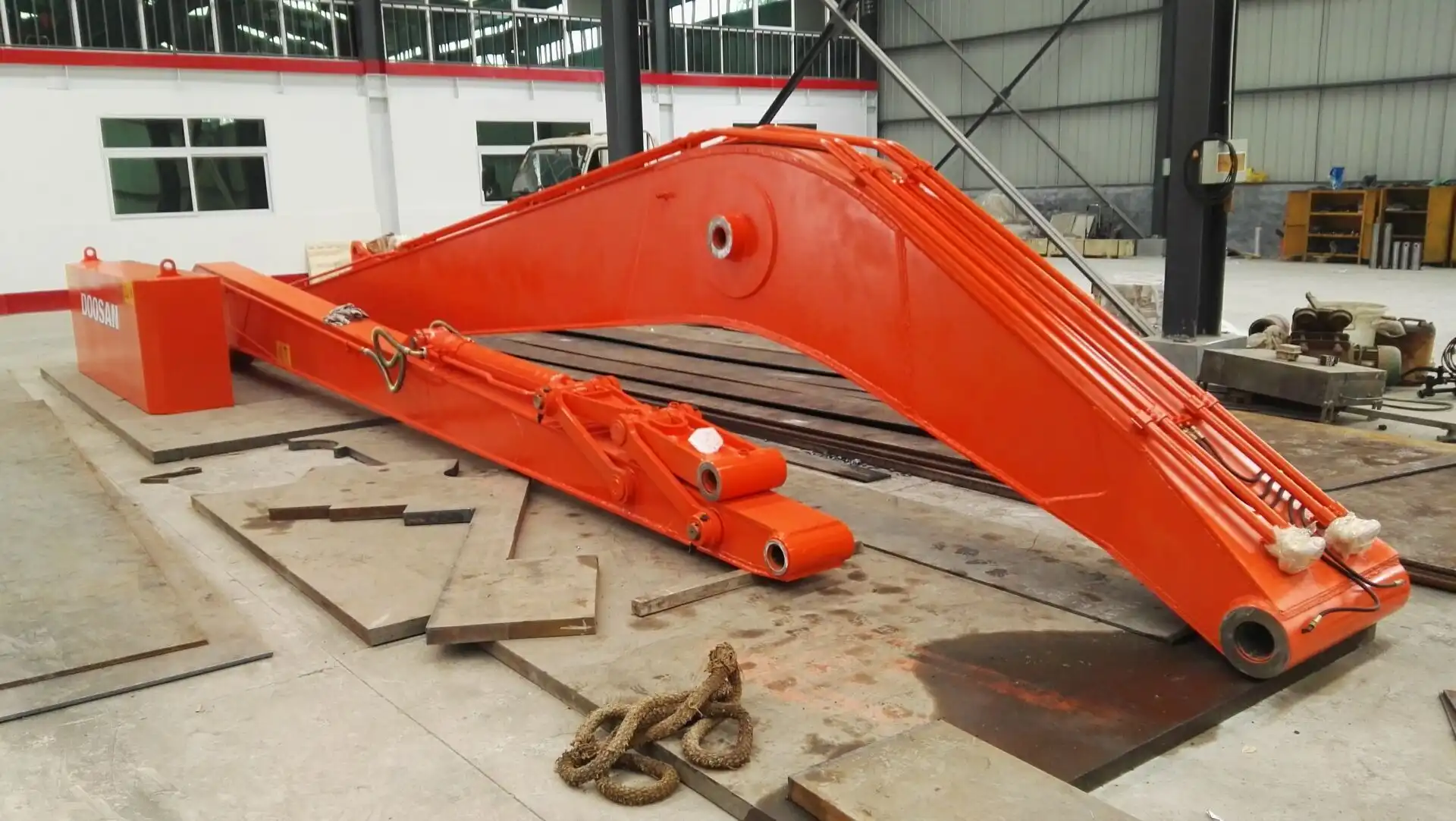

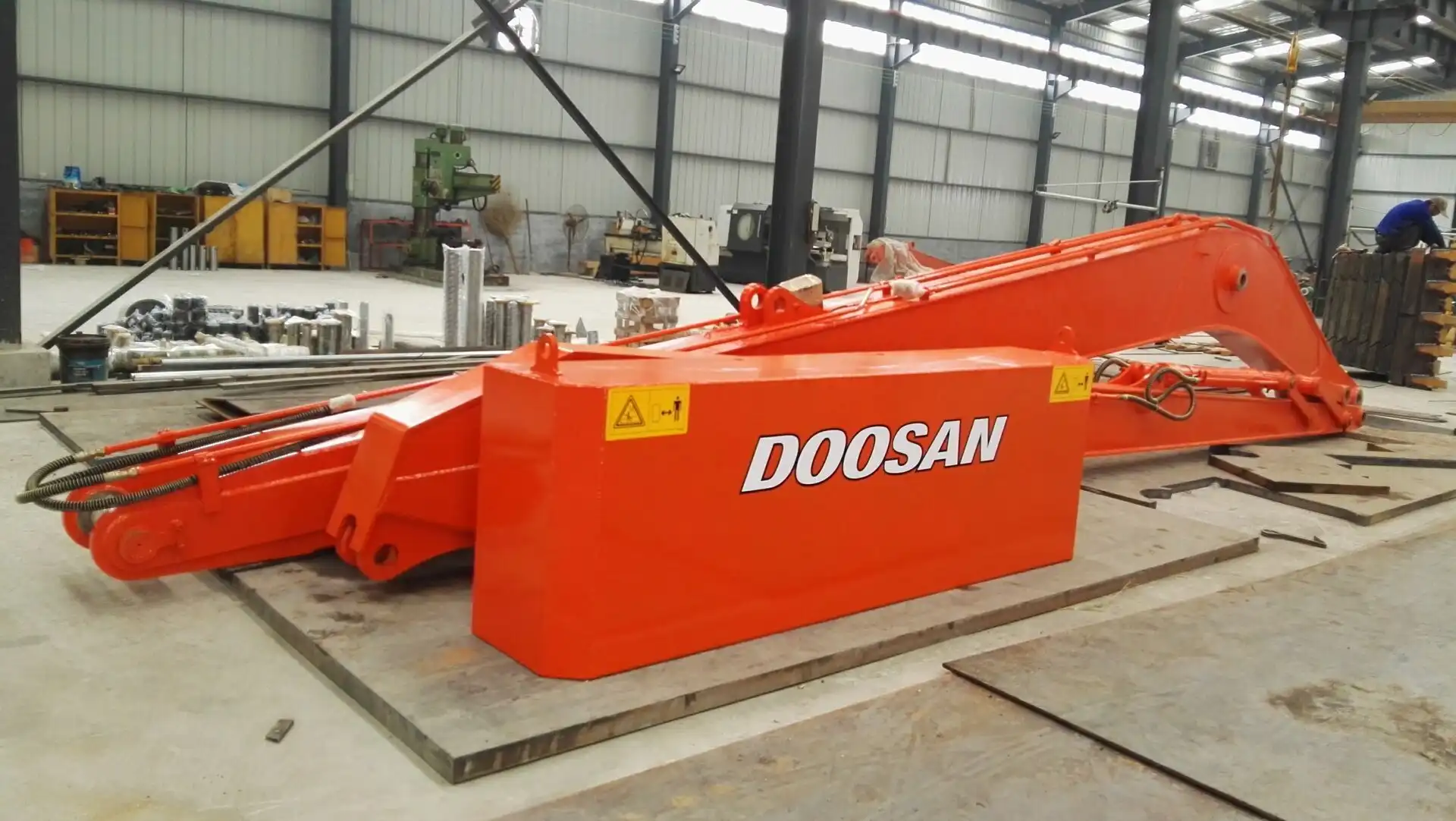

Maximizing reach and dig depth with long arm booms

Long arm booms are engineered to provide extended reach and increased dig depth, allowing excavators to access areas that would otherwise be out of range. This capability offers numerous benefits:

• Reduced need for machine repositioning, saving time and fuel
• Ability to work from a safe distance when dealing with unstable terrain
• Improved efficiency in deep excavation projects
• Enhanced versatility for a wide range of applications

By utilizing long arm booms, operators can complete tasks more quickly and with greater precision. This is particularly advantageous in projects such as trench digging, foundation work, and river dredging, where depth and reach are critical factors.

Boosting productivity with multi-function boom designs

Multi-function boom designs incorporate additional features and attachments that expand the capabilities of standard excavator booms. These innovations allow a single machine to perform a variety of tasks, reducing the need for multiple specialized pieces of equipment on-site. Some examples of multi-function boom capabilities include:

• Integrated tool carriers for quick attachment changes
• Hydraulic quick couplers for seamless switching between buckets, grapples, and other attachments
• Boom-mounted cameras for improved visibility and precision
• Integrated lifting points for safe and efficient material handling

By incorporating these features, multi-function booms enable operators to tackle diverse tasks without the need for extensive equipment changes or additional machines, leading to significant time and cost savings.

Reducing downtime: Proper boom maintenance tips

Regular maintenance is key to ensuring the longevity and optimal performance of excavator booms. Proper care not only prevents unexpected breakdowns but also contributes to overall efficiency by minimizing downtime. Here are some essential maintenance tips:

• Conduct daily visual inspections for signs of wear, damage, or leaks
• Regularly grease pivot points and joints to reduce friction and wear
• Monitor and maintain proper hydraulic fluid levels and pressure
• Check and tighten bolts and connections as part of routine maintenance
• Clean the boom regularly to prevent buildup of dirt and debris
• Address any issues promptly to prevent minor problems from escalating

By implementing a comprehensive maintenance program, equipment owners and operators can significantly extend the life of their excavator booms, reduce repair costs, and minimize unplanned downtime, ultimately leading to improved project efficiency and profitability.

Choosing the right boom for your project

Selecting the appropriate excavator boom for your specific project needs is crucial for maximizing efficiency and productivity. With a variety of boom types and configurations available, it's important to consider the unique requirements of your work environment and tasks. Let's explore the factors that should influence your decision-making process when choosing an excavator boom.

Mono booms vs. adjustable booms: Pros and cons

Mono booms and adjustable booms each have their own set of advantages and disadvantages, making them suitable for different types of projects:

Mono booms:

• Pros:
  • Simple, robust design
  • Lower maintenance requirements
  • Generally more cost-effective
  • Ideal for standard digging and loading tasks
• Cons:
  • Limited flexibility in terms of reach and working angles
  • May require more frequent machine repositioning

Adjustable booms:

• Pros:
  • Greater versatility in reach and working angles
  • Improved performance in confined spaces
  • Enhanced ability to work around obstacles
  • Reduced need for machine repositioning
• Cons:
  • More complex design with additional moving parts
  • Higher initial cost
  • May require more frequent maintenance

Consider the nature of your projects, working environments, and long-term goals when deciding between mono and adjustable booms.

Specialized booms for railway and forestry applications

Certain industries require excavator booms with specific features to meet unique challenges:

Railway applications:

• Hi-rail booms equipped to operate on both road and rail
• Specialized attachments for tasks like tie replacement and ballast regulation
• Booms designed to work within the limited clearance of railway environments
• Enhanced stability features for safe operation on tracks

Forestry applications:

• Long-reach booms for accessing trees at a distance
• Reinforced construction to withstand the rigors of forestry work
• Integrated protection systems to guard against falling debris
• Compatibility with specialized attachments like tree shears and grapples

These specialized booms are engineered to meet industry-specific requirements, ensuring optimal performance and safety in challenging environments.

Factors to consider when selecting excavator attachments

Choosing the right attachments for your excavator boom can significantly enhance its versatility and productivity. Consider these factors when selecting attachments:

• Project requirements: Match attachments to specific tasks (e.g., digging, demolition, material handling)
• Compatibility: Ensure attachments are compatible with your excavator's hydraulic system and quick coupler
• Worksite conditions: Select attachments suited to the terrain and material you'll be working with
• Frequency of use: Invest in high-quality attachments for frequently used tools
• Versatility: Consider multi-purpose attachments to reduce the need for frequent changes
• Weight and balance: Choose attachments that don't compromise the excavator's stability
• Maintenance requirements: Factor in the long-term care and upkeep of attachments

By carefully considering these factors, you can build a suite of attachments that maximize the capabilities of your excavator boom and improve overall project efficiency.

Excavator booms are integral to the performance and versatility of these powerful machines. From standard mono booms to specialized designs for railway and forestry work, the right boom can significantly enhance project efficiency and capabilities. By understanding the various components, maintenance needs, and selection factors, project managers and operators can make informed decisions to optimize their equipment for specific tasks. Remember, the key to maximizing the potential of your excavator boom lies in proper selection, regular maintenance, and appropriate use of attachments tailored to your unique project requirements.

FAQ

Q1: How often should I inspect my excavator boom for maintenance?

A1: Daily visual inspections are recommended, with more thorough checks performed weekly. Always follow the manufacturer's guidelines for maintenance schedules.

Q2: Can I use the same excavator boom for both light and heavy-duty tasks?

A2: While many excavator booms are versatile, it's best to match the boom type and attachments to the specific task requirements for optimal performance and safety.

Q3: What's the average lifespan of an excavator boom?

A3: With proper maintenance, an excavator boom can last 10-15 years or more. However, this can vary depending on usage intensity, working conditions, and maintenance practices.

Q4: Are there any safety considerations specific to operating excavator booms?

A4: Yes, operators should be aware of the boom's reach and swing radius, maintain proper load limits, and ensure stability when working on uneven terrain or near excavations.

Q5: How do I determine the right boom length for my projects?

A5: Consider factors such as required dig depth, reach, and typical working conditions. Consult with equipment specialists to match boom length to your specific project needs.
