How to operate a long reach excavator?

Operating a long reach excavator boom requires skill, precision, and a deep understanding of the machine's capabilities. These specialized excavators, equipped with extended booms, allow operators to reach areas that standard excavators can't access. Whether you're working on railway construction, demolition projects, or tackling challenging terrains in forestry or waste management, mastering the operation is crucial for efficiency and safety.

Controls

Master joystick controls for precise long reach operation

The heart of operating a long reach excavator lies in mastering the joystick controls. These controls are your direct connection to the machine, allowing you to manipulate the extended boom with precision. Unlike standard excavators, long reach models require a more delicate touch due to the increased leverage and weight distribution.

Start by familiarizing yourself with the joystick layout. Typically, the right joystick controls the boom and bucket, while the left joystick manages the stick and swing functions. Practice small, controlled movements to get a feel for the responsiveness of the machine. Remember, even slight adjustments can result in significant movement at the end of the long reach boom.

To achieve precise control, use your fingertips rather than your whole hand on the joysticks. This technique allows for finer adjustments and reduces the risk of overcompensation. As you gain confidence, gradually increase the speed and complexity of your movements, always maintaining a smooth and steady hand.

Adapt to increased sensitivity of extended boom movements

The extended boom of a long reach excavator amplifies every control input, making the machine more sensitive to operator commands. This increased sensitivity requires a period of adaptation and practice to master. Begin by performing simple tasks at a slower pace, focusing on smooth, controlled movements.

Pay close attention to how the machine responds to your inputs. You'll notice that small joystick movements translate to larger movements at the end of the boom. This sensitivity is particularly pronounced when working at maximum reach, where even minor adjustments can cause significant displacement of the bucket or attachment.

To compensate for this heightened sensitivity, develop a technique of "feathering" the controls. This involves making very slight, gradual adjustments to achieve precise positioning. With practice, you'll learn to anticipate the machine's response and make proactive adjustments, resulting in smoother and more efficient operation.

Utilize counterweight adjustments for optimal stability

Maintaining stability is crucial when operating a long reach excavator, especially when working at maximum extension. Many modern long reach excavators come equipped with adjustable counterweights to help balance the machine during various operations.

Learn how to properly adjust the counterweights based on your current task and the boom's position. When working at full extension, you may need to shift more weight to the rear of the machine to maintain stability. Conversely, when working closer to the excavator's base, reducing the counterweight can improve maneuverability.

Always consult your machine's operator manual for specific guidelines on counterweight adjustment. Remember that improper balance can lead to tipping hazards, so take the time to set up your machine correctly before beginning any operation.

Boom and Arm Operation

Avoid swinging loads to protect long reach boom integrity

One of the most critical aspects of operating a long reach excavator is understanding the importance of avoiding swinging loads. The extended boom structure is designed for reaching and lifting, but sudden lateral forces can stress the components and potentially lead to damage or failure.

When moving loads, always prioritize vertical and linear movements over swinging motions. If you need to reposition a load, it's safer to move the entire machine rather than swinging the boom with a suspended weight. This practice not only protects the integrity of the boom but also enhances overall stability and control.

In situations where some degree of swinging is unavoidable, execute the movement with extreme caution. Use slow, controlled motions and be prepared to stop immediately if you detect any unusual vibrations or resistance. Remember, the forces acting on the boom increase exponentially with distance, so even small loads can create significant stress when fully extended.

Maintain proper boom height when repositioning excavator

Proper boom positioning is crucial when moving the excavator, especially given the length of a long reach boom. Before repositioning, raise the boom to a safe height that clears any obstacles but doesn't compromise the machine's stability. This height will vary depending on the terrain and the specific model of excavator you're operating.

As a general rule, keep the boom at a moderate height and the bucket or attachment tucked in close to the machine. This configuration lowers the center of gravity and reduces the risk of tipping or collision with surrounding objects. Be particularly cautious when traversing uneven ground or slopes, as the extended boom can dramatically affect the machine's balance.

When moving over longer distances, consider partially retracting the boom to reduce stress on the hydraulic systems and improve fuel efficiency. Always scan your surroundings thoroughly before and during movement to ensure a clear path and avoid any potential hazards.

Use gradual movements to prevent boom oscillation

The extended length of a long reach excavator boom makes it susceptible to oscillation or "bouncing" if operated too aggressively. This oscillation can reduce precision, increase wear on components, and potentially create unsafe working conditions. To mitigate this issue, focus on making gradual, smooth movements with the controls.

Start each motion slowly and build up speed gradually. When stopping, ease off the controls rather than abruptly releasing them. This technique helps prevent the energy transfer that leads to oscillation. If you do experience boom bounce, resist the urge to overcorrect. Instead, allow the movement to settle naturally before making gentle adjustments.

Practice smooth transitions between different movements, such as lifting and swinging. By blending these actions together fluidly, you can maintain better control and reduce the likelihood of inducing unwanted oscillations in the boom structure.

Load Handling

Calculate load capacity adjustments for extended reach

Understanding and adhering to load capacity limits is crucial when operating a long reach excavator. The extended boom significantly affects the machine's lifting capabilities, with capacity decreasing as the reach increases. Before attempting any lift, consult your excavator's load chart to determine the safe working load for your specific boom configuration and reach distance.

Remember that load capacities are not linear; they can decrease rapidly as you extend the boom. Always factor in the weight of any attachments or buckets when calculating your total load. It's also important to consider the density of the material you're handling, as volume doesn't always directly correlate with weight.

For precise operations, use on-board load monitoring systems if available. These systems provide real-time feedback on the current load and the machine's stability, helping you avoid overloading situations. When in doubt, always err on the side of caution and choose a lower load or closer working radius.

Position loads close to machine for enhanced stability

While the long reach boom allows you to access distant areas, it's important to remember that working closer to the machine whenever possible enhances stability and efficiency. When lifting or moving loads, try to position them as close to the excavator's center of gravity as the task allows.

Start by bringing the load as close to the machine as possible before lifting. This reduces the moment arm and allows the excavator to handle heavier loads more safely. As you move the load, keep it close to the ground and the machine. This lower position helps maintain stability and gives you better control over the load's movement.

When depositing materials, avoid extending the boom to its maximum reach unless absolutely necessary. Instead, reposition the excavator to work within a more optimal range. This practice not only improves stability but also reduces wear on the boom and hydraulic systems, potentially extending the life of your equipment.

Implement proper lifting techniques for long reach tasks

Lifting with a long reach excavator requires specific techniques to ensure safety and efficiency. Always begin by assessing the lift: consider the weight, size, and shape of the load, as well as any potential obstacles in your working area. Plan your lift carefully, including the start and end points, and any necessary movement paths.

When initiating a lift, start with the boom close to the machine and gradually extend it as you raise the load. This technique helps maintain better control and reduces the risk of overloading the boom. Use smooth, steady movements to minimize swaying or sudden shifts in the load's position.

For precision placement of loads, utilize the combined movements of the boom, stick, and bucket. This coordinated approach allows for fine adjustments and can help you navigate tight spaces or avoid obstacles. Always maintain clear visibility of the load and surrounding area, using a spotter if necessary for blind spots.

Mastering the operation of a long reach excavator boom requires a combination of technical skill, situational awareness, and practical experience. By focusing on precise control, understanding the unique challenges of extended reach operations, and prioritizing safety and efficiency, operators can maximize the potential of these versatile machines. Remember, continuous learning and adherence to best practices are key to becoming a proficient long reach excavator operator. As you gain experience, you'll develop the confidence to tackle increasingly complex projects across various industries, from railway maintenance to environmental remediation.

FAQ

1. What safety precautions should I take when operating a long reach excavator?

Always conduct a thorough pre-operation inspection, wear appropriate PPE, maintain clear communication with ground personnel, and be aware of your surroundings, especially overhead obstacles and power lines. Never exceed the machine's load capacity and always follow manufacturer guidelines.

2. How does weather affect long reach excavator operations?

Wind can significantly impact the stability of extended booms. In high winds, reduce working radius and load capacity. Rain or snow can make surfaces slippery, affecting machine stability and requiring extra caution during operation.

3. What maintenance is crucial for long reach excavator booms?

Regular inspections of hydraulic systems, boom pins and bushings, and structural integrity are essential. Keep an eye on wear patterns, lubricate moving parts as recommended, and address any unusual noises or vibrations immediately.

4. Can I use standard excavator attachments on a long reach boom?

While some attachments may be compatible, it's crucial to use only attachments specifically designed or approved for long reach operations. These attachments are typically lighter to account for the reduced lifting capacity at extended reaches.

5. How do I improve fuel efficiency when operating a long reach excavator?

Optimize your working radius to reduce unnecessary extension, use the correct engine speed for the task, avoid idling for long periods, and ensure regular maintenance to keep the machine running efficiently. Planning your work to minimize repositioning can also significantly reduce fuel consumption.

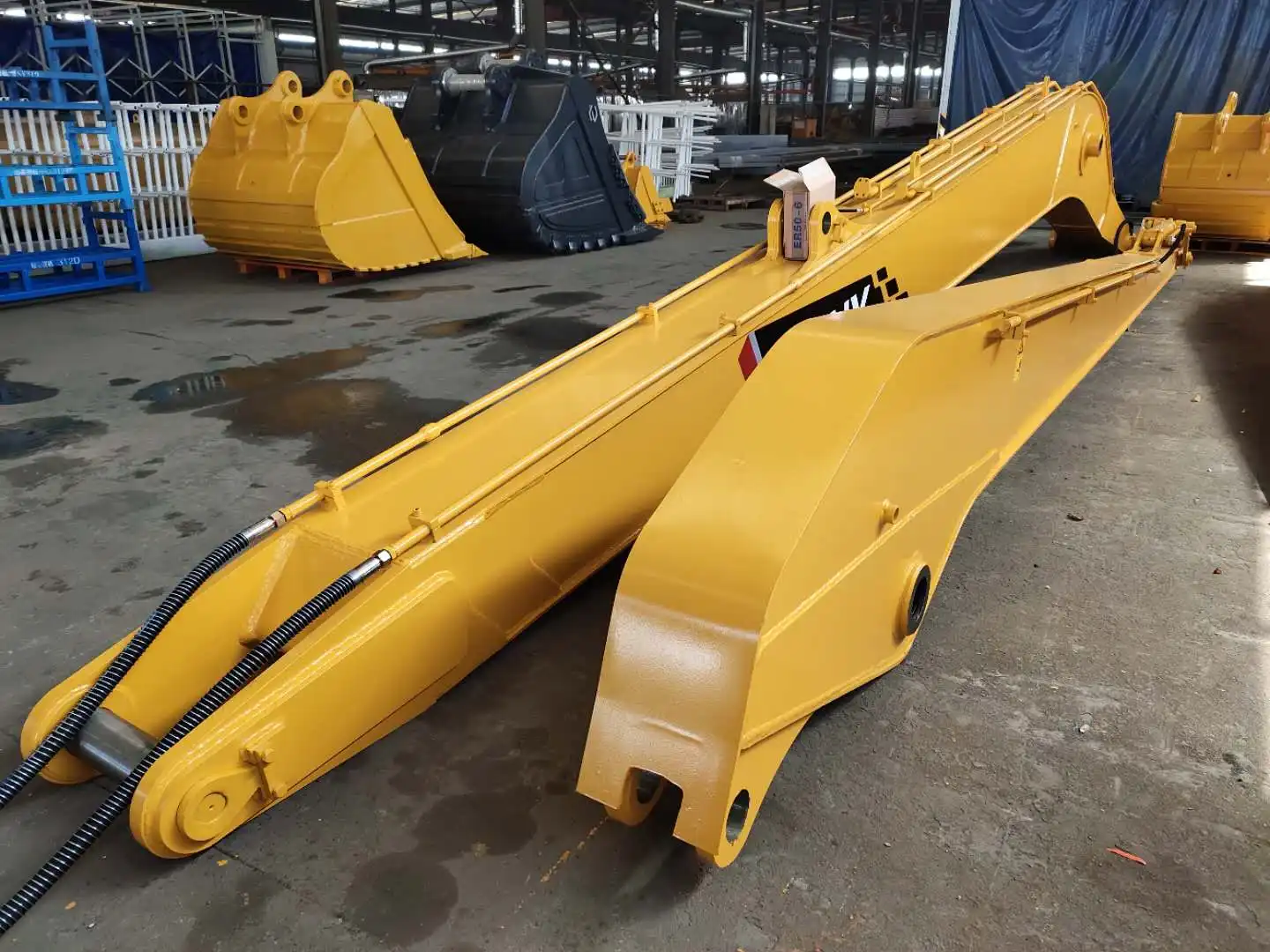

Excavators Long Reach Boom For Sale

Tiannuo Machinery offers a comprehensive range of long reach excavator booms designed to meet the diverse needs of the construction, mining, and demolition industries. Our product line includes extended arms, three-section arms, and specialized attachments suitable for various applications. Whether you need equipment for railway maintenance, slope stabilization, or underwater excavation, we have solutions tailored to your specific requirements. Our long reach booms are engineered for durability, precision, and enhanced productivity, with options for customization to suit your project needs. For more information on our Tiannuo-18m model, featuring a bucket capacity of 0.6-1.0m³ and a reach of up to 18 meters, or to discuss customization options for length, capacity, and fittings, contact us at arm@stnd-machinery.com.
