How to use a long reach excavator?
Mastering the use of a long reach excavator boom requires skill, precision, and a deep understanding of the machine's capabilities. These specialized excavators, equipped with extended arms, allow operators to access hard-to-reach areas and perform tasks at greater distances.
Position Machine
Assess ground conditions for long reach excavator stability
Before operating a long reach excavator, it's essential to carefully evaluate the ground conditions. The extended boom significantly alters the machine's center of gravity, making stability a top priority. Start by inspecting the work area for any soft spots, hidden obstacles, or uneven terrain that could compromise the excavator's balance.
Look for solid, level ground that can support the excavator's weight, especially when fully extended. If working near water or on marshy terrain, use stabilizer mats or timber mats to distribute the machine's weight more evenly. Remember, the long reach excavator's stability directly impacts its performance and safety.
Calculate space requirements for safe long arm operation
Long reach excavators need considerably more space to operate than standard models. Before positioning your machine, calculate the full extension of the boom and factor in the excavator's swing radius. Ensure there's ample clearance for the boom to move freely without risking contact with nearby structures, power lines, or other equipment.
Consider creating a designated work zone around the excavator, marking it clearly to prevent other workers or vehicles from entering the area during operation. This extra precaution helps maintain a safe working environment and reduces the risk of accidents.
Adjust outriggers to maximize machine balance and reach
Proper use of outriggers is crucial when operating a long reach excavator. These stabilizing legs help distribute the machine's weight and counterbalance the extended boom. Begin by fully extending the outriggers on firm, level ground. Use outrigger pads to increase the surface area and prevent the legs from sinking into softer terrain.
Adjust the outriggers to ensure the excavator is perfectly level. Many modern long-reach excavators come equipped with electronic level indicators, making this process more precise. Remember, even a slight tilt can significantly impact the machine's stability and reach, potentially leading to dangerous situations.
Operate Long Arm Smoothly And With Precision
Master joystick controls for precise long reach movements
Operating a long reach excavator requires a high level of skill and finesse. The extended boom amplifies even the slightest movement, making precise control crucial. Familiarize yourself with the joystick controls and practice smooth, deliberate movements. Start with slow, controlled motions to get a feel for how the extended arm responds to your input.
Many operators find it helpful to adjust the control sensitivity settings to their preference. This can help achieve more precise movements, especially when working at maximum reach. Remember, the goal is to maintain smooth, fluid motions throughout the operation to minimize stress on the equipment and ensure accurate work.
Use gradual acceleration to maintain smooth arm operation
When operating a long reach excavator, sudden movements can cause instability and reduce efficiency. Always use gradual acceleration when extending or retracting the boom, swinging the arm, or operating the bucket. This smooth operation not only improves the quality of work but also reduces wear and tear on the machine's components.
Practice feathering the controls to achieve precise, controlled movements. This technique involves making small, incremental adjustments to the joysticks rather than applying full pressure. Gradual acceleration is particularly important when working with delicate materials or in confined spaces where precision is paramount.
Implement boom and stick coordination for optimal reach
Achieving maximum efficiency with a long reach excavator requires mastering the coordination between the boom and stick. The boom, which is the main arm of the excavator, and the stick, which is the secondary arm, must work in harmony to maintain balance and reach. Practice combining boom and stick movements to create smooth, arcing motions that maximize your working range.
When extending the arm, raise the boom slightly as you extend the stick to maintain a consistent working height. Conversely, when retracting, lower the boom gradually as you bring the stick in. This coordinated movement helps maintain the excavator's stability and allows for more precise control over the bucket's position.
Manufacturer's Specified Limits
Understand load capacity charts for long reach excavators
Every long reach excavator comes with specific load capacity charts provided by the manufacturer. These charts are crucial for safe operation and must be thoroughly understood before attempting any lifting or digging tasks. The charts typically show the maximum load capacity at different boom angles and extensions.
Remember that the load capacity decreases as the arm extends further from the machine. Always consult the chart before attempting to lift or move heavy materials. Exceeding the specified limits can lead to tipping, structural damage, or catastrophic failure of the equipment.
Monitor hydraulic pressure to prevent arm overloading
Most modern long reach excavators are equipped with hydraulic pressure sensors that help prevent overloading. Pay close attention to these indicators during operation. If you notice the hydraulic pressure approaching its maximum limit, it's a clear sign that you're nearing the machine's capacity.
Regularly check the hydraulic system for leaks or signs of wear, as these issues can affect the arm's lifting capacity and overall performance. Proper maintenance of the hydraulic system is essential for ensuring the long-term reliability and safety of your long-reach excavator.
Implement safety protocols for heavy lifting operations
When using a long reach excavator for heavy lifting tasks, additional safety measures are necessary. Always use appropriate rigging equipment, such as certified slings and shackles, to secure loads. Ensure that all lifting attachments are properly rated for the weight being lifted and are in good condition.
Before any lift, conduct a thorough assessment of the load, considering its weight distribution and potential shifting during movement. Use tag lines when necessary to control the load's positioning, and never allow workers to stand under or near suspended loads. Implement a clear communication system with ground crew members to coordinate movements and ensure everyone's safety during lifting operations.
Mastering the use of a long reach excavator is essential for maximizing efficiency and safety in various industries, from railway maintenance to environmental remediation. By following proper positioning techniques, operating the arm with precision, and adhering to load capacity limits, operators can significantly enhance their productivity and project outcomes.
FAQ
1. What is the maximum reach of a typical long reach excavator?
The maximum reach of a long-reach excavator can vary significantly depending on the model and manufacturer. Generally, long reach can extend from 40 to 100 feet (12 to 30 meters) or more. Always consult the specific machine's specifications for accurate reach information.
2. How does weather affect long reach excavator operations?
Weather conditions can significantly impact long-reach excavator operations. High winds can affect stability and precision, especially at maximum reach. Rain or snow can make surfaces slippery, reducing traction. It's crucial to assess weather conditions before and during operation, adjusting work plans as necessary to ensure safety.
3. Can long reach excavators be used for underwater excavation?
Yes, many long-reach excavators can be adapted for underwater excavation. However, this requires specialized equipment and training. The excavator must be properly sealed and equipped with appropriate hydraulics and controls designed for submerged operation. Always consult with the manufacturer and follow proper procedures for underwater work.
4. How often should a long reach excavator undergo maintenance?
Regular maintenance is crucial for long reach excavators. Daily visual inspections should be conducted before operation. More comprehensive maintenance, including hydraulic system checks, should be performed according to the manufacturer's recommendations, typically every 250-500 operating hours. Annual or bi-annual professional inspections are also advisable to ensure optimal performance and safety.
5. What special training is required to operate a long reach excavator?
Operating a long reach excavator requires specialized training beyond standard excavator operation. Operators should receive specific instruction on long reach techniques, stability management, and safety protocols unique to extended boom operation. Many countries and regions require certification or licensing for long-reach excavator operators. Always check local regulations and ensure operators are properly trained and certified.
Where to Buy Long Reach Excavator Booms?

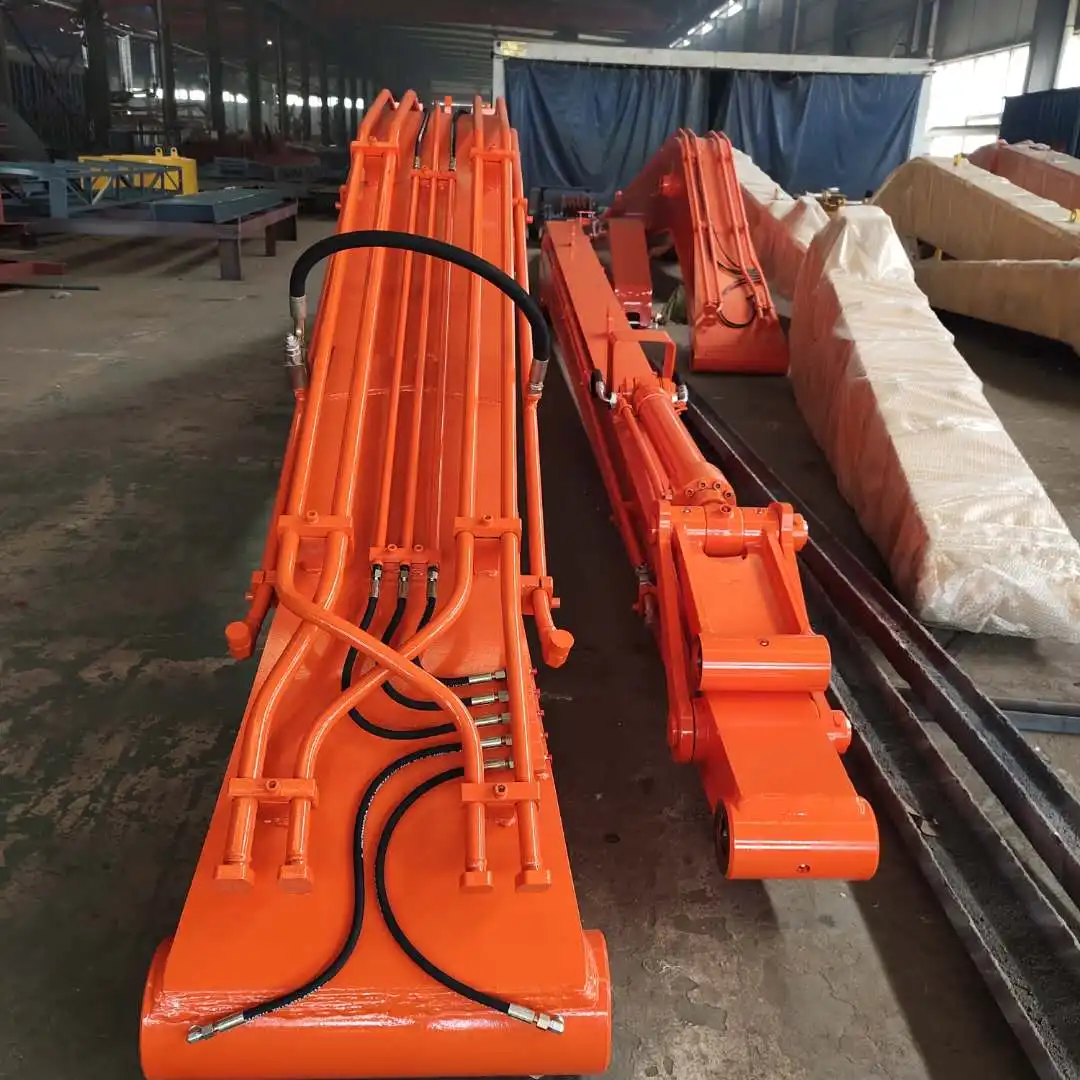

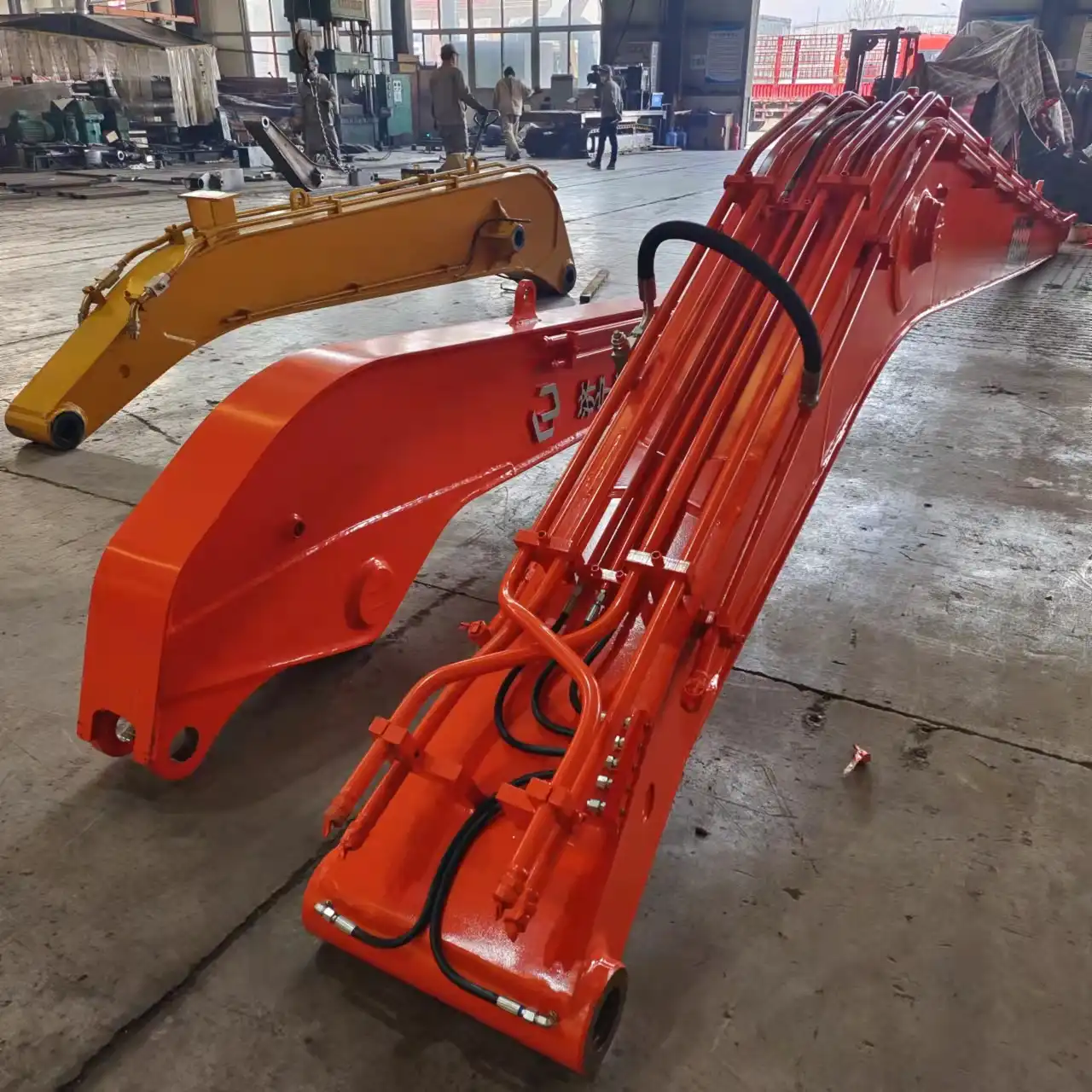

Tiannuo Machinery's long reach excavator booms are designed with precision and built to withstand demanding work environments. We understand the unique challenges faced by different industries and offer tailored solutions to meet specific requirements. Whether you need a boom for precise underwater excavation, slope stabilization, or demolition in hard-to-reach areas, our team can provide the right equipment for your project.
Our commitment to quality extends beyond the product itself. We offer comprehensive after-sales support, ensuring that your excavator boom performs optimally throughout its lifecycle. For those interested in our Tiannuo-18m model, which boasts a bucket capacity of 0.6-1.0m³ and is constructed from high-grade Q355/Q460 materials, we invite you to reach out for more information. To discuss your specific needs or to request a quote, please contact us at rich@stnd-machinery.com. Let Tiannuo Machinery be your partner in elevating your excavation capabilities to new heights.
