Material and structural standards for ballast car frames

Railroad ballast cars play a crucial role in track maintenance and construction. These specialized vehicles distribute ballast along railway tracks, ensuring proper support and drainage. The frames of these cars must meet rigorous material and structural standards to withstand heavy loads and harsh operating conditions. This article delves into the cutting-edge materials, testing procedures, and regulatory requirements that ensure the safety and efficiency of modern ballast car frames.

Steel Alloys that Enhance Durability and Reduce Weight

The evolution of steel alloys has revolutionized the construction of railroad ballast car frames. These advancements have led to frames that are not only stronger but also lighter, improving overall efficiency and reducing maintenance costs. Let's explore the three main types of alloys used in modern ballast car construction.

High-strength Low-alloy Steel for Railroad Ballast Cars

High-strength low-alloy (HSLA) steel has become the go-to material for many ballast car manufacturers. This innovative alloy offers superior strength-to-weight ratios compared to traditional carbon steel. HSLA steel contains small amounts of alloying elements like copper, nickel, and chromium, which enhance its mechanical properties without significantly increasing cost.

The use of HSLA steel in ballast car frames allows for thinner frame members without compromising structural integrity. This reduction in weight translates to increased payload capacity, enabling railroads to transport more ballast per trip. Additionally, the higher strength of HSLA steel improves resistance to fatigue and impact, extending the service life of ballast cars.

Corrosion-resistant Alloys for Extended Frame Lifespan

Corrosion is a persistent enemy of steel structures, particularly in the harsh environments encountered by railroad equipment. To combat this issue, manufacturers are incorporating corrosion-resistant alloys into ballast car frame designs. Stainless steel grades, such as 304 and 316, offer excellent resistance to rust and corrosion, even in coastal or industrial areas where exposure to salt and chemicals is common.

While stainless steel can be more expensive than traditional carbon steel, its long-term benefits often outweigh the initial cost. Ballast cars built with corrosion-resistant frames require less maintenance and have longer operational lifespans, reducing the total cost of ownership for railway operators.

Lightweight Aluminum Alloys in Modern Ballast Car Design

In recent years, aluminum alloys have gained traction in the rail industry as a lightweight alternative to steel. Although not as strong as high-strength steel, aluminum offers significant weight savings without compromising safety when properly engineered. Aluminum alloys such as 6061-T6 and 7075-T6 are commonly used in aerospace applications and are now finding their way into railroad equipment design.

The reduced weight of aluminum ballast car frames allows for increased payload capacity, potentially reducing the number of trips required for ballast distribution. This efficiency gain can lead to substantial fuel savings and reduced wear on tracks. However, the use of aluminum in ballast car frames requires careful consideration of factors such as fatigue resistance and joining methods to ensure long-term reliability.

As we transition from materials to testing procedures, it's important to note that regardless of the alloy chosen, rigorous stress testing is essential to ensure the integrity and safety of ballast car frames.

Stress-testing Procedures for Frame Integrity Assurance

The reliability of railroad ballast car frames is paramount to the safety and efficiency of railway operations. To ensure these critical components can withstand the rigors of daily use, manufacturers employ a variety of sophisticated stress-testing procedures. These methods not only validate the structural integrity of the frames but also help in optimizing designs for better performance and longevity.

Non-destructive Testing Methods for Ballast Car Frames

Non-destructive testing (NDT) techniques are invaluable in assessing the condition of ballast car frames without causing damage. Ultrasonic testing is widely used to detect internal flaws or discontinuities in welds and metal components. This method uses high-frequency sound waves to penetrate the material, revealing hidden defects that could compromise the frame's strength.

Another popular NDT method is magnetic particle inspection, which is particularly effective for detecting surface and near-surface cracks in ferromagnetic materials. This technique involves magnetizing the frame and applying fine magnetic particles, which cluster around any defects, making them visible under ultraviolet light.

Radiographic testing, using X-rays or gamma rays, provides a comprehensive view of the frame's internal structure, allowing inspectors to identify issues such as porosity in welds or material thickness variations. These NDT methods ensure that ballast car frames meet stringent quality standards before entering service.

Finite Element Analysis in Railroad Equipment Design

Finite Element Analysis (FEA) has revolutionized the design process for railroad equipment, including ballast car frames. This computational method divides complex structures into smaller, more manageable elements, allowing engineers to simulate various load conditions and predict how the frame will respond.

Using FEA, designers can identify stress concentrations and potential weak points in the frame structure. This information is crucial for optimizing the design, potentially reducing material use while maintaining or improving strength. FEA also helps in predicting fatigue life, allowing manufacturers to estimate the long-term performance of ballast car frames under cyclic loading conditions.

The ability to perform virtual stress tests through FEA significantly reduces the need for physical prototypes, accelerating the development process and reducing costs. It also allows for rapid iteration of designs, leading to more efficient and durable ballast car frames.

Dynamic Load Simulation for Ballast Car Frame Testing

While static load testing provides valuable information, ballast cars experience dynamic loads during operation. Dynamic load simulation replicates these real-world conditions, subjecting the frame to varying forces that mimic the stresses of loading, unloading, and travel over uneven tracks.

Shake table tests are often employed to simulate the vibrations and shocks experienced by ballast car frames. These tests can reveal potential resonance issues or weaknesses that may not be apparent under static conditions. Additionally, full-scale track tests, where instrumented ballast cars are run on actual railway lines, provide the most accurate data on frame performance under real operating conditions.

Computer-aided engineering tools also play a role in dynamic load simulation. Multi-body dynamics software can model the entire ballast car system, including the suspension, wheels, and frame, to predict how different components interact under various track conditions and speeds.

As we move from testing procedures to regulatory compliance, it's clear that these rigorous stress-testing methods are essential in ensuring that ballast car frames meet the stringent safety standards required by international regulations.

Regulatory Compliance: Meeting International Safety Standards

The global nature of the railway industry necessitates adherence to a complex web of international safety standards. Manufacturers of railroad ballast cars must navigate these regulations to ensure their products are compliant and can be used across different regions. Let's explore the key regulatory frameworks that govern the construction and certification of ballast car frames.

FRA Guidelines for Ballast Car Frame Construction

In the United States, the Federal Railroad Administration (FRA) sets the standards for railroad safety, including specifications for freight car construction. The Code of Federal Regulations (CFR) Title 49, Part 215, outlines the requirements for freight car safety standards, which apply to ballast cars as well.

These guidelines cover various aspects of car frame design, including structural strength, weld quality, and attachment points for critical components. The FRA also mandates regular inspections and maintenance procedures to ensure ongoing compliance and safety. Manufacturers must demonstrate that their ballast car frames meet or exceed these standards through rigorous testing and documentation.

Additionally, the FRA works closely with industry organizations like the Association of American Railroads (AAR) to develop and update standards. The AAR's Manual of Standards and Recommended Practices provides detailed specifications for freight car construction, including ballast cars, which are often incorporated into FRA requirements.

EN Standards for Railway Vehicle Structural Requirements

In Europe, the European Committee for Standardization (CEN) has developed a series of standards known as the EN standards, which govern various aspects of railway operations and equipment. EN 12663 is particularly relevant to ballast car frame construction, as it specifies the structural requirements for railway vehicle bodies.

This standard defines different categories of railway vehicles and outlines the static and fatigue load cases that must be considered in their design. For ballast cars, which fall under the freight wagon category, EN 12663 provides specific criteria for structural strength, including resistance to longitudinal compressive forces and vertical loading.

Compliance with EN standards is crucial for manufacturers looking to sell their ballast cars in the European market. These standards ensure interoperability across different European rail networks and maintain a high level of safety across the continent.

ISO Certifications for Railroad Equipment Manufacturers

While not specific to ballast car frames, ISO certifications play a vital role in ensuring the quality and safety of railroad equipment manufacturing processes. ISO 9001, the international standard for quality management systems, is widely adopted by manufacturers in the rail industry.

Achieving ISO 9001 certification demonstrates that a company has implemented robust quality control procedures throughout its manufacturing process. For ballast car frame production, this certification provides assurance that consistent quality standards are maintained, from material selection to final assembly.

Moreover, ISO 3834 specifies quality requirements for fusion welding of metallic materials, which is particularly relevant to ballast car frame construction. This standard ensures that welding processes meet the highest quality standards, crucial for maintaining the structural integrity of the frames.

Some manufacturers also pursue ISO/TS 22163 certification, which is specific to the rail industry and builds upon the ISO 9001 framework. This certification addresses the unique quality and safety requirements of the railway sector, providing an additional layer of assurance for customers and regulators alike.

The material and structural standards for ballast car frames are crucial elements in ensuring the safety, efficiency, and longevity of railway operations. From the selection of advanced steel alloys and lightweight materials to rigorous stress-testing procedures and compliance with international regulations, every aspect of ballast car frame design and construction is meticulously engineered. As railway technology continues to evolve, these standards will undoubtedly adapt, driving further innovations in materials science and testing methodologies. For railway operators and maintenance professionals, staying informed about these advancements is key to making sound decisions in equipment procurement and maintenance strategies.

FAQ

Q1: What is the primary function of a railroad ballast car?

A: Railroad ballast cars are specialized vehicles designed to transport and distribute ballast along railway tracks. Ballast is the crushed stone or gravel that supports the track structure, provides drainage, and helps distribute the load of trains evenly.

Q2: How does the choice of material for ballast car frames affect their performance?

A: The material choice significantly impacts the durability, weight, and load capacity of ballast car frames. High-strength alloys can reduce weight while maintaining strength, allowing for increased payload capacity. Corrosion-resistant materials extend the frame's lifespan, reducing maintenance costs over time.

Q3: Why is stress testing important for ballast car frames?

A: Stress testing ensures that ballast car frames can withstand the rigorous conditions of railway operations. It helps identify potential weak points, validates the structural integrity, and ensures compliance with safety standards. Proper testing can prevent failures in service, enhancing overall safety and reliability.

Q4: How often should ballast car frames be inspected?

A: The frequency of inspections depends on regulatory requirements and the car's usage. Generally, visual inspections are conducted regularly, often before each use. More comprehensive inspections, including non-destructive testing, are typically performed annually or as specified by the manufacturer and regulatory bodies.

Q5: Can older ballast cars be upgraded to meet current standards?

A: In many cases, older ballast cars can be retrofitted or refurbished to meet current standards. This process may involve strengthening key structural components, updating safety features, or even replacing the entire frame if necessary. However, the feasibility and cost-effectiveness of upgrades should be evaluated on a case-by-case basis.

Railroad Ballast Car Supplier

Tiannuo Machinery specializes in manufacturing high-quality railway maintenance equipment. Our product range encompasses various railway maintenance tools such as sleeper changing machines, screening equipment, and tamping machines. We also offer excavator modifications, including lifting and tilting cabs, as well as specialized engineering arms for diverse applications. Our excavator accessories, like high-frequency screening buckets and rotating scrapers, are engineered for optimal performance in ballast management and track maintenance.

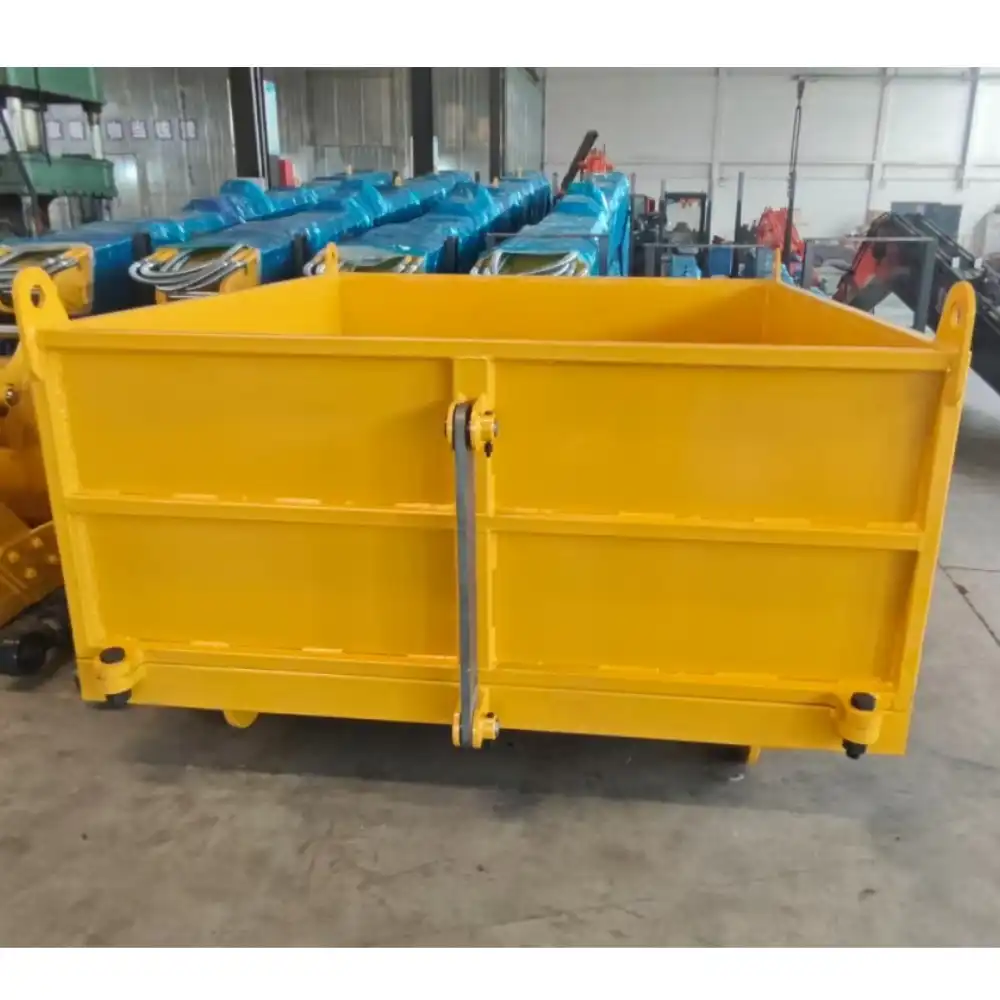

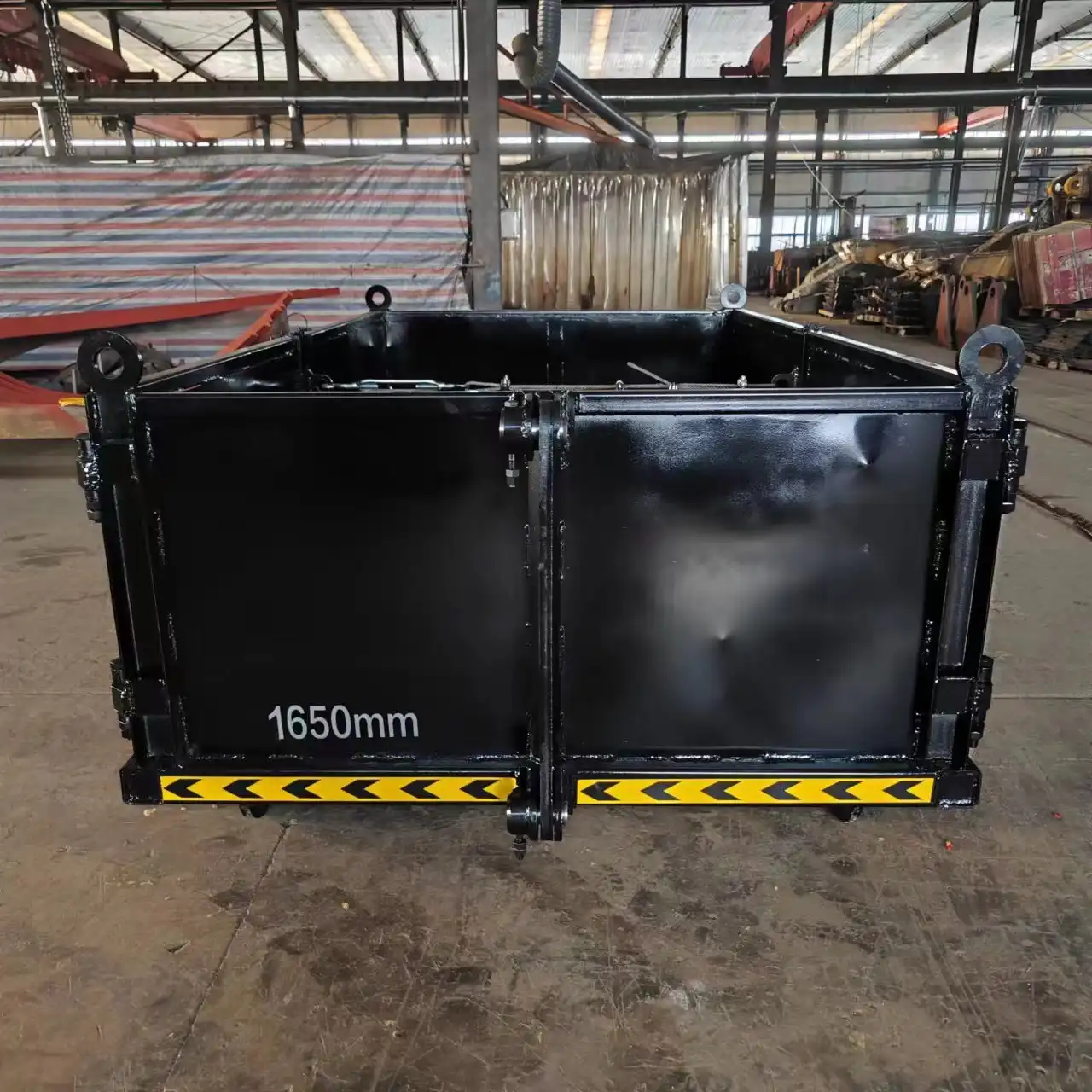

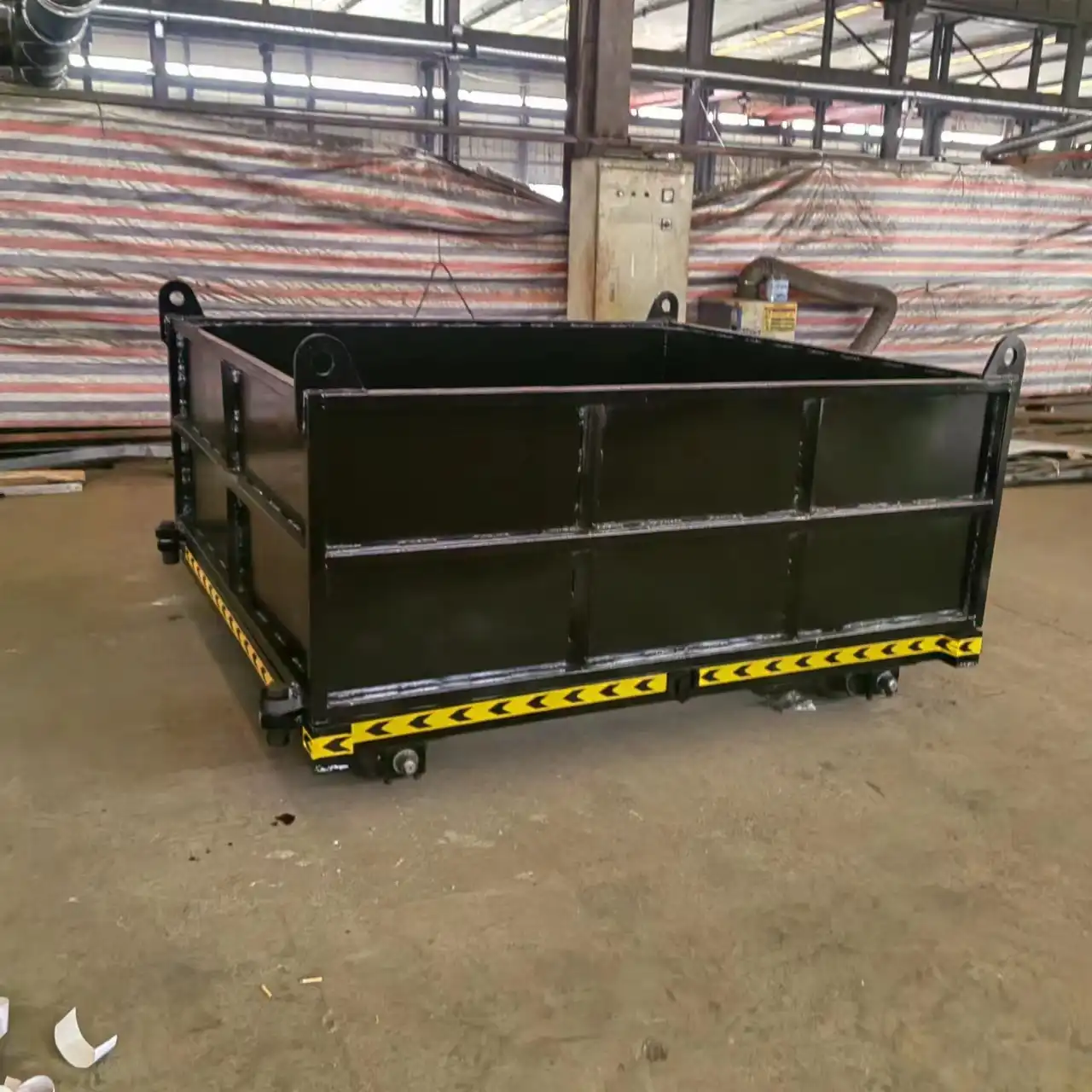

Tianuo's railroad ballast car features a 5.5m³ bucket, stretching 3300mm wide, 1500mm high, and 1850mm deep. Made from high-strength steel, it's as strong as it is smart, with a leakage method that dispenses ballast on both sides and at the bottom. For more information about our railway maintenance solutions, contact us at raymiao@stnd-machinery.com.
