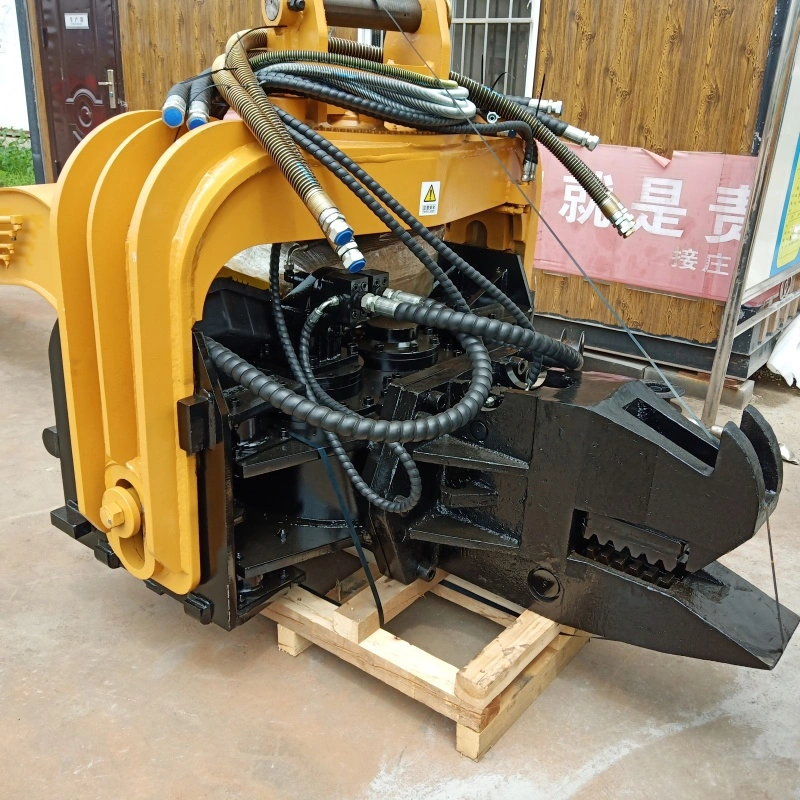

Need To Speed Up Your Piling Project? Try Our Excavator Pile Driving Boom With Vibro Hammer

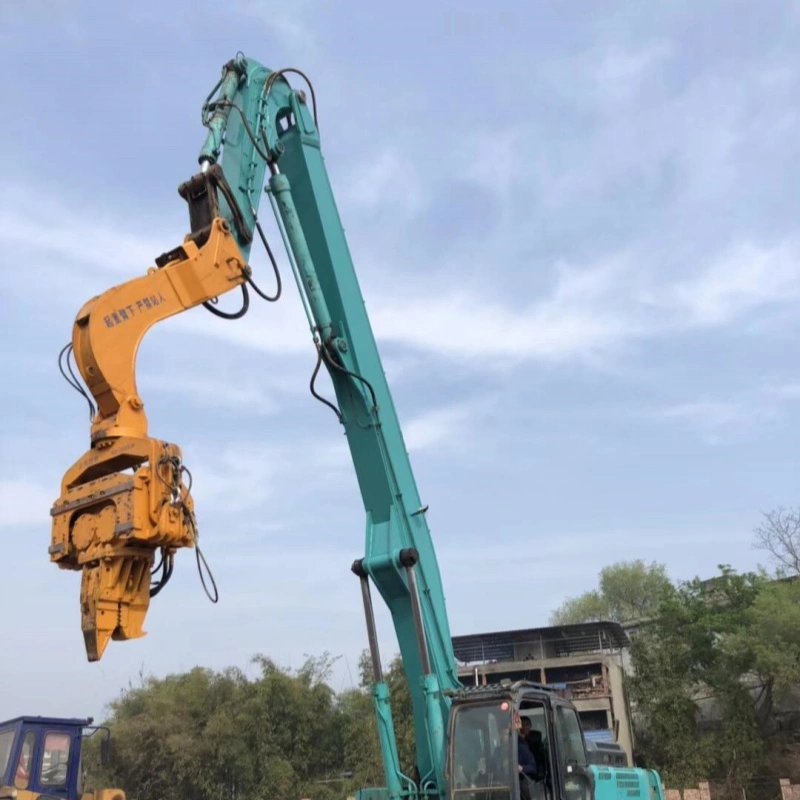

Excavator Piling Boom: Custom-Built Deep Foundation Solution
Renting a dedicated piling rig for a foundation package is expensive, and mobilising one onto a tight urban site is often impossible. The Excavator Piling Boom offers a different route: convert the excavator already standing on your site into a piling platform, with a boom engineered around your machine, your pile length and your ground conditions.
Why Convert an Excavator Instead of Renting a Rig
For contractors whose piling work is periodic rather than continuous, a dedicated rig sits idle between packages while still absorbing capital and yard space. A piling boom attachment changes that equation:
• Use the carrier you own: No second machine to buy, transport, insure or store between projects.
• Reversible conversion: Pin off the piling boom and the excavator returns to digging, lifting or grading.
• Site-friendly footprint: An excavator reaches restricted urban plots and access roads that a full piling rig cannot.
Engineered to Order — There Is No Catalogue Number
We publish no fixed length or weight table for this product, and that is deliberate. Boom geometry has to be derived from your carrier's operating weight and stability envelope — a generic boom fitted to the wrong machine is a safety liability, not a bargain. Our engineers calculate reach, section and reinforcement per order. Here is what we need to quote accurately:
What We Need From You | Why It Matters |
Excavator brand & model | Determines pin, bracket and hydraulic match |
Machine operating weight | Sets the boom's structural and stability limit |
Target pile length | Defines required boom reach and geometry |
Pile type & driving method | Selects the correct end attachment configuration |
Ground conditions | Influences reinforcement and wear allowances |
Site access constraints | Shapes transport sectioning and pin-on design |
Construction Standards and Safety Design
Every boom is fabricated from high-strength steel and built for the cyclic loading that piling work imposes — conditions that fatigue under-specified structures long before they visibly fail. Integrated safety provisions include overload protection and stability-enhancing geometry, because a boom working at full reach with a pile hanging is no place for guesswork. Pin-on mounting keeps installation straightforward and minimises machine downtime during changeover.

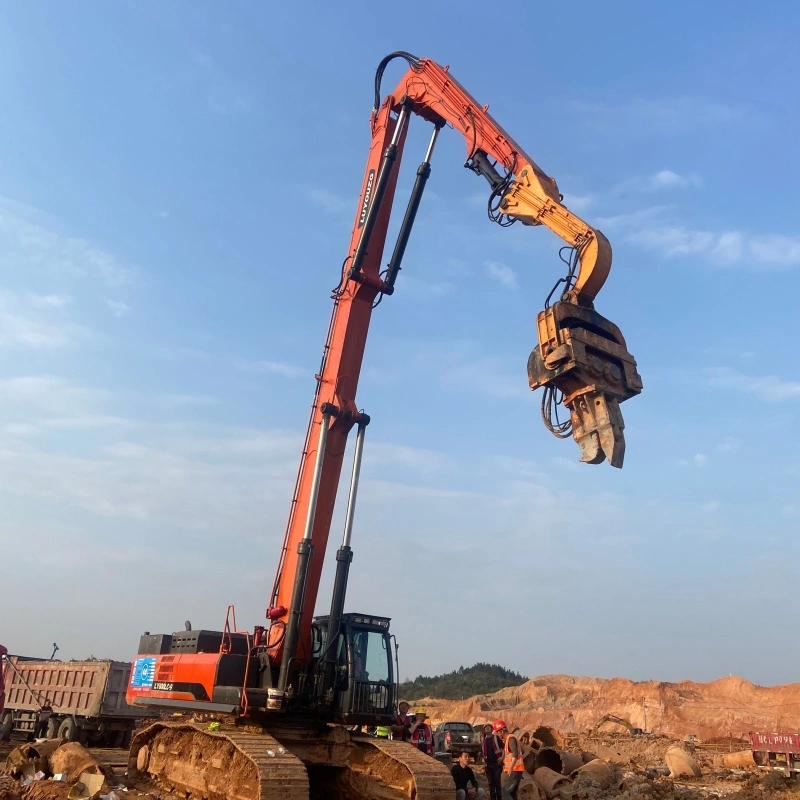

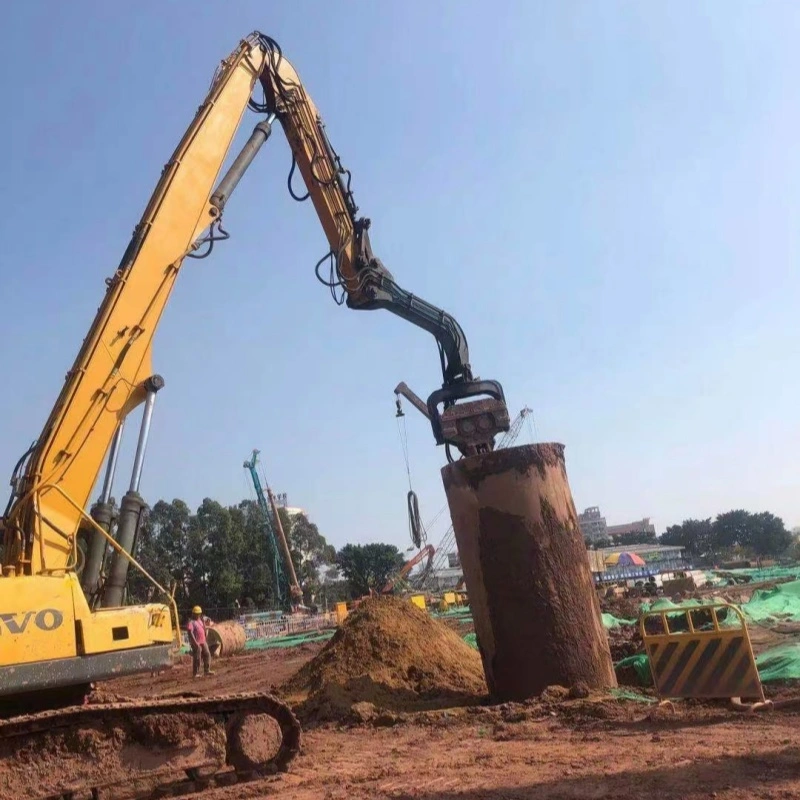

Projects Where Piling Booms Prove Their Worth
Any project requiring piles driven with controlled precision rather than sheer rig tonnage is a strong fit:
• Bridge construction: Abutment and pier foundation piling
• High-rise buildings: Deep foundation work on constrained city plots
• Infrastructure works: Retaining walls, noise barriers and utility supports

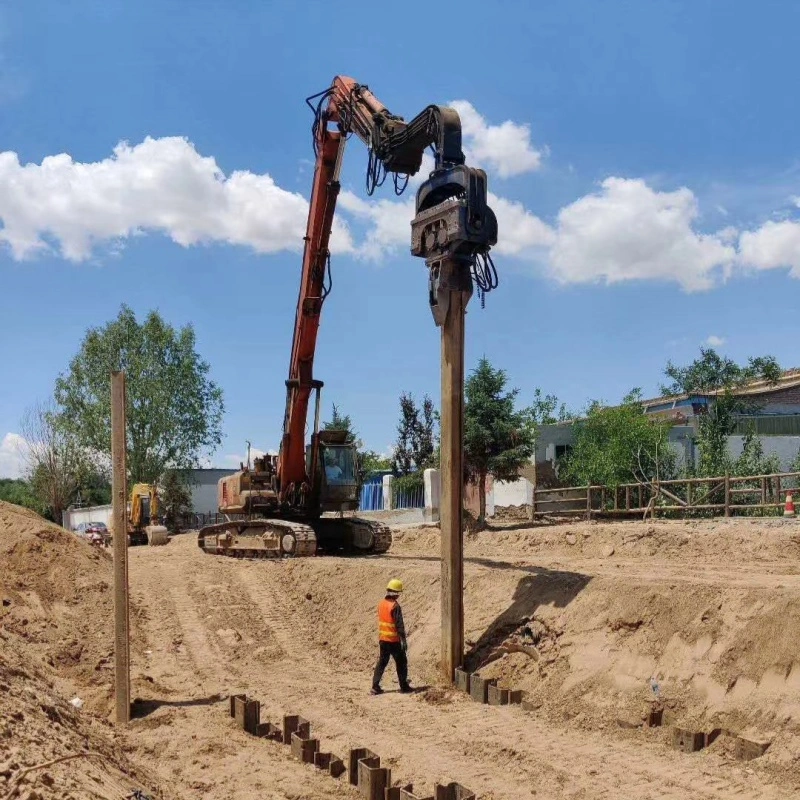

• Marine & riverbank: Sheet pile installation for revetment and bank protection
• Industrial projects: Plant, silo and heavy equipment foundation piling
Partner with a Reliable Manufacturer
The Excavator Piling Boom is now available for sale, custom-engineered to your excavator brand and model with full customization on boom length, load capacity, end attachment configuration and mounting interface. Compatible with all major excavator brands, every unit carries a 2-year warranty against manufacturing defects, with a detailed maintenance guide and long-term technical support included. Standard lead time is 4–6 weeks depending on customization level. Please contact us for the latest catalog, quotation and installation drawing. Shandong Tiannuo Construction Machinery Co., Ltd. is a 10+ year source factory located at No.369, Hard Innovation Industrial Park, Deyuan Road, Yanzhou District, Jining City, Shandong Province, specializing in excavator modification, long reach booms and railway maintenance equipment. Visit www.stnd-machinery.com or contact us by email at arm@stnd-machinery.com for more information about the Excavator Piling Boom.
