TZ130 Excavator Lifting Cab Retrofit

TZ130 Excavator Lifting Cab Conversion – Transform Your 13-Ton Excavator into a Professional Material Handler

For port loading, scrap steel handling, and railway compartment screeding, operator visibility is often the key factor limiting productivity and safety. The TZ130 excavator, with an operating weight of 14 tons, rated power of 96kW, and maximum digging radius of 8283mm, is a reliable 13-ton class general-purpose excavator. However, in confined environments such as scrap yards or railway carriages, the fixed cab's limited visibility often becomes a performance bottleneck.

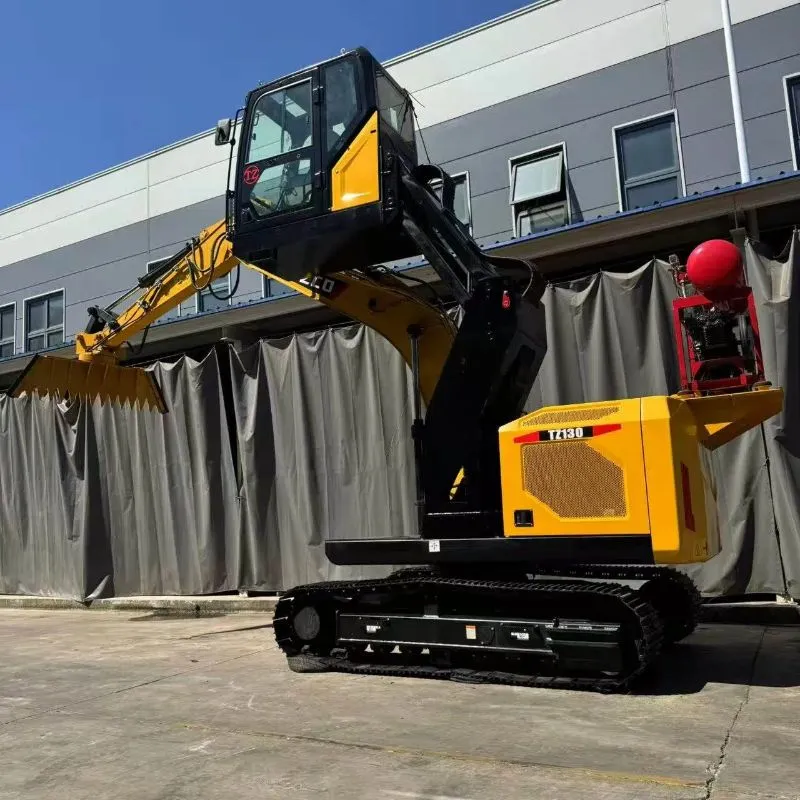

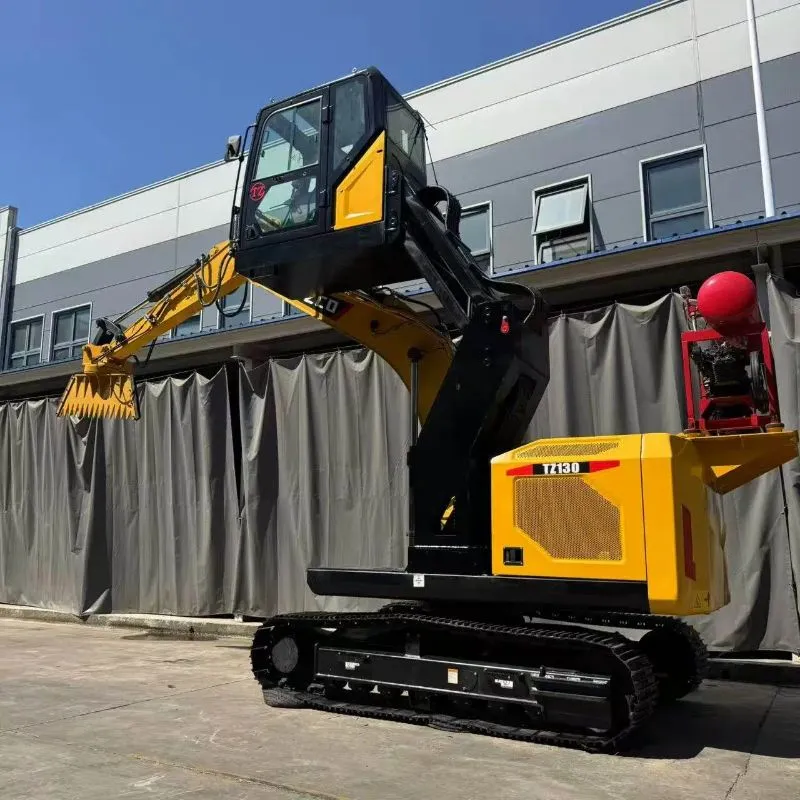

Shandong Tiannuo Construction Machinery offers a customized lifting cab retrofit solution for the TZ130, raising the cab floor to a maximum height of 2500mm and providing the operator with a line of sight up to 3800mm. This fundamentally eliminates blind spots and transforms a standard excavator into a professional material handling machine.

TZ130 Lifting Cab – Key Technical Specifications

Designed specifically for the TZ130 chassis and hydraulic system, our lifting cab retrofit delivers the following performance parameters:

The lifting cab features a dual-cylinder drive structure, which provides superior lifting stability and anti-tilt performance compared to single-cylinder solutions. The lifting bracket is welded and then precision-bored as a complete assembly to ensure consistent hole alignment and accurate vision positioning. Each cylinder is equipped with a holding valve (check valve) that enables stop-and-hold-at-any-height functionality without pressure loss – even during extended high-position operations, the cab remains securely in place.

Multi-Scene Applications – Scrap Loading, Rail Screeding & Port Handling

With the lifting cab installed, the TZ130 can be deployed across a wide range of high-visibility applications:

Scrap Steel Loading – Scrap yards feature uneven material piles that often block the operator's view, reducing loading efficiency. The lifting cab elevates the operator's eye level to 3.8 meters, providing a clear view of the grapple arm's position relative to the scrap pile. This enables precise, efficient loading with significantly improved cycle times.

Railway Compartment Screeding – Railway carriages typically stand over 3 meters high, making it difficult for standard excavators to monitor material distribution inside. The lifting cab gives the operator full visibility across the entire carriage, allowing precise control over loading and leveling to prevent overfilling or uneven distribution.

Port & Wharf Handling – Port environments involve tall cargo stacks and complex work zones. The lifting cab provides a commanding bird's-eye view, eliminating blind spots and enhancing overall job site safety.

Three-Layer Safety System – Reliable Protection for High-Position Operations

High-position cab operations demand the highest safety standards. Our lifting cab retrofit incorporates a three-layer safety protection system:

Layer 1: Hydraulic Check Valve Protection – Each lifting cylinder is equipped with an integrated check valve (holding valve). In the event of hydraulic pressure loss, the valve automatically locks the cylinder, preventing sudden cab descent.

Layer 2: Dual Emergency Descent System – Independent emergency descent controls are provided both inside the cab and outside the machine. Even if the engine stalls or the hydraulic system fails, the operator or a ground crew member can safely lower the cab.

Layer 3: High-Strength Structural Design – The lifting mechanism is fabricated from high-strength alloy steel (WH60A + Q355C). The welded bracket undergoes post-weld precision boring to relieve internal stress, ensuring long-term structural fatigue life and operational stability.

Why Choose Tiannuo for Your Lifting Cab Retrofit

Compared to other lifting cab solutions on the market, our approach delivers several distinct advantages:

Precision Fitment – Designed specifically for the TZ130's undercarriage structure and hydraulic system parameters, requiring minimal modifications to the host machine and reducing overall conversion costs.

Proven Standardization – Our lifting cabs are produced in batches with validated manufacturing processes, ensuring consistent quality and reliable lead times.

Complete Machine Export Capability – As a specialized construction machinery modification company, we hold full qualifications for complete machine retrofitting and export, offering overseas clients a turnkey solution from design and manufacturing to logistics.

Flexible Customization – Lifting height can be adjusted to meet specific site requirements, accommodating a variety of operational scenarios.

For more details on our lifting cab retrofit solutions or to request a customized quote, please visit our Knowledge Center or contact our technical team directly.
