Rail Track Trolley: Efficient Sleeper Transport for Railway Maintenance
In railway track overhaul and routine maintenance, transporting sleepers is one of the most labor-intensive tasks. Traditional manual handling is not only inefficient but also carries high safety risks. The Rail Track Trolley is a track-running transport device designed to work with excavators, helping railway construction teams worldwide achieve safer and more efficient sleeper transfer operations.
What Is a Rail Track Trolley?
A Rail Track Trolley is a transport device specifically used for handling and transferring railway sleepers on tracks. It is compact and flexible, powered by an excavator for traction, and travels along the rails while carrying sleepers. The dimensions can be customized to match the railway gauge requirements of the customer's local area, adapting to railway standards in different countries and regions.
In railway maintenance operations, the Rail Track Trolley is typically used in conjunction with an excavator: the excavator handles the grabbing and placing of sleepers, while the trolley handles the transport and transfer tasks. Together, they form an efficient mechanized workflow.
How Does the Rail Track Trolley Work with an Excavator?

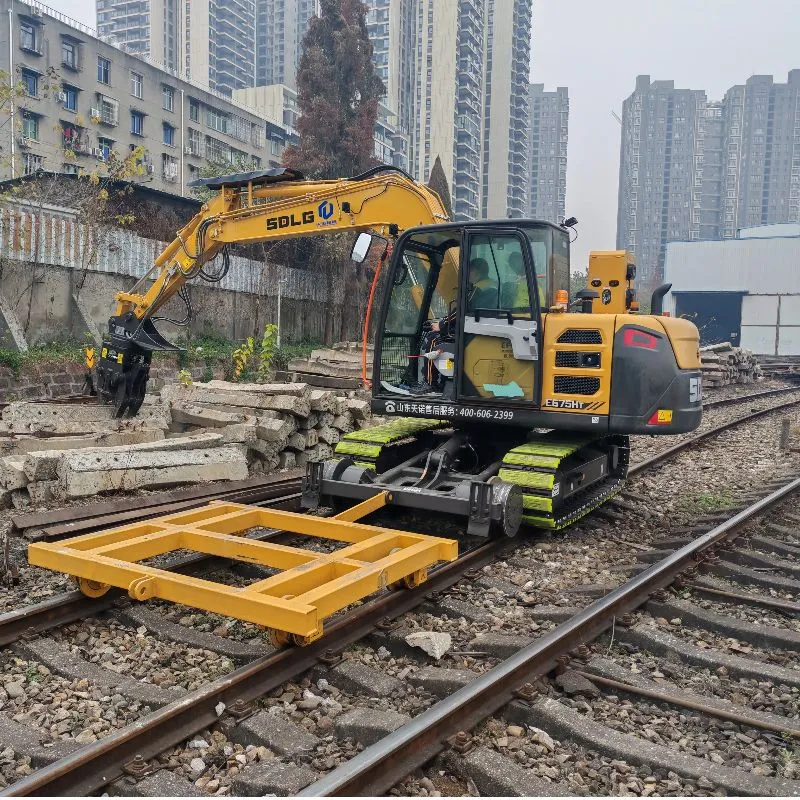

The power source of the Rail Track Trolley comes from the excavator. During operation, the trolley is placed or connected on the track, and the excavator pulls the trolley along the rails via a connection device. When the excavator grabs a sleeper, it places it directly onto the trolley's carrying frame, and the trolley transports the sleeper to the designated location for subsequent laying or recovery.
The core advantage of this collaboration model is shared power — there is no need to equip the trolley with an independent power system, reducing equipment costs and maintenance complexity. Excavators are usually already available at railway maintenance sites, and the Rail Track Trolley serves as an auxiliary transport device that significantly extends the excavator's operational range.
Key Specifications and Technical Parameters
Item | Unit | Parameter |
Specification | mm | 1700×2000 |
Loading weight | ton | <30 |
Numbers of wheel | pcs | 4 |
Diameter of wheel | mm | 190×275 |
Frame material | - | Q355 |
Weight | kg | 450 |
Packing size | mm | 2000×1960×330 |

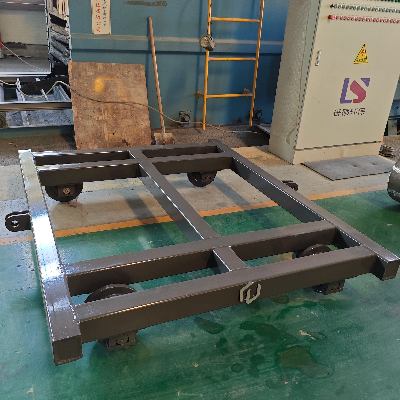

The frame is made of Q355 low-alloy high-strength structural steel, offering excellent load-bearing capacity and deformation resistance for the complex conditions of railway maintenance sites. The wheels are made of 40Cr alloy steel, providing outstanding wear resistance and impact resistance to ensure stable operation on tracks over long periods.
Customized Gauge Adaptability
Railway gauges vary across countries and regions. The standard gauge is 1435 mm, but multiple other gauge standards exist worldwide. The Rail Track Trolley can be custom-produced according to the customer's actual local gauge requirements, ensuring a perfect match with local railway lines. This feature enables the trolley to be applied to railway networks around the world, providing customers with a truly adapted transport solution.
Why Choose the Rail Track Trolley?
Mechanized replacement for manual labor, improving operational safety. Sleepers are heavy and require long-distance handling. Manual transport is not only inefficient but also prone to causing personal injury. Used with an excavator, the Rail Track Trolley frees operators from heavy physical labor and significantly reduces safety risks.
Compact and flexible, adapting to various working environments. The equipment has a compact structure and can move flexibly in narrow railway working spaces, meeting sleeper transfer needs in restricted areas such as tunnels, bridges, and platforms.
High cost-effectiveness and easy maintenance. Powered by the excavator, no additional power system is required. The equipment has a simple structure and low maintenance cost, offering outstanding long-term economic efficiency.
Application Scenarios
The Rail Track Trolley is widely used in the following railway maintenance scenarios:
Railway track overhaul: Transfer operations during old sleeper recovery and new sleeper laying
Routine track maintenance: Short-distance handling during sleeper replacement and adjustment
Railway construction: Sleeper transport during the laying stage of new railway lines
Emergency repair: Rapid arrival at the site to complete urgent sleeper replacement tasks with an excavator
About Us
Shandong Tiannuo Construction Machinery Co., Ltd. specializes in the research, development, and manufacturing of railway maintenance equipment and excavator attachments. We provide Rail Track Trolleys, sleeper replacement machines, road-rail dual-purpose equipment, and other railway engineering products, supporting customization of specifications and dimensions according to customer needs.
