Reinforced Excavator Rock Bucket for Quarry & Abrasive Ground Digging
Rocky soil, quarry material and demolition debris place far more impact and abrasion on a bucket than ordinary earthwork. A standard digging bucket may wear quickly when the cutting edge, side plates and bottom structure repeatedly contact hard stone. A purpose-built Excavator Rock Bucket provides the reinforced structure and wear protection required for demanding digging, loading and material-handling work.
As a source manufacturer of excavator attachments, STND Machinery supplies factory-built rock buckets with configurable capacity, width, mounting interface, teeth and protection for different excavators and operating conditions.
What Is an Excavator Rock Bucket?

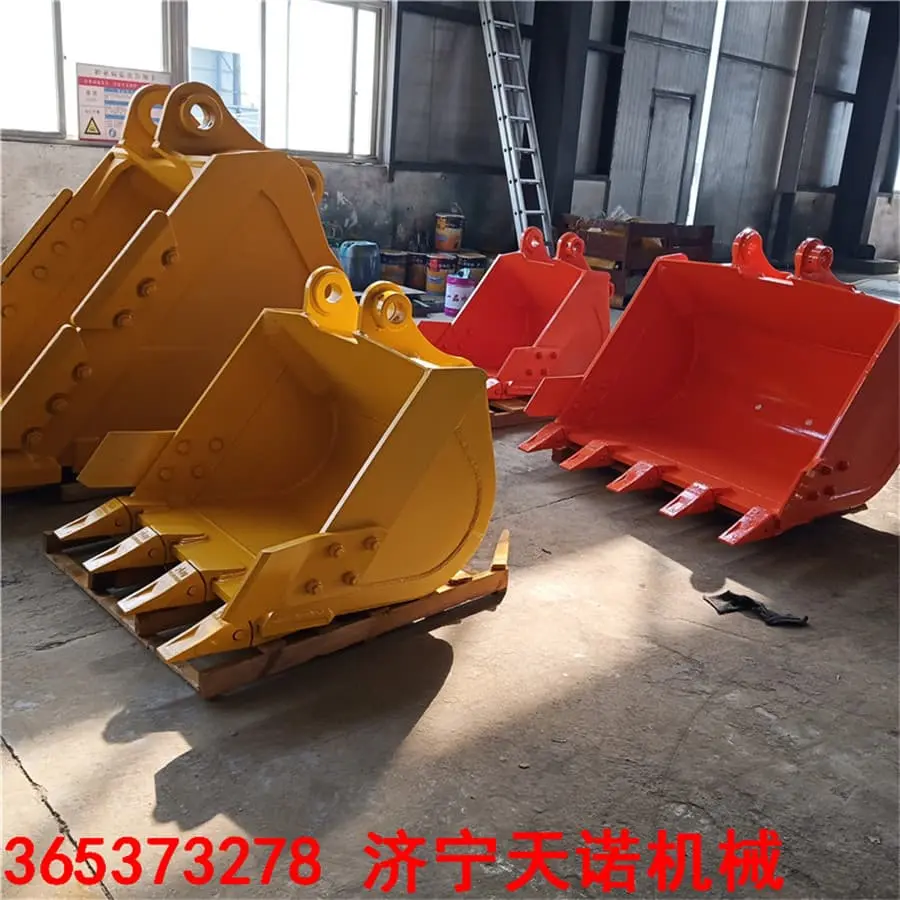

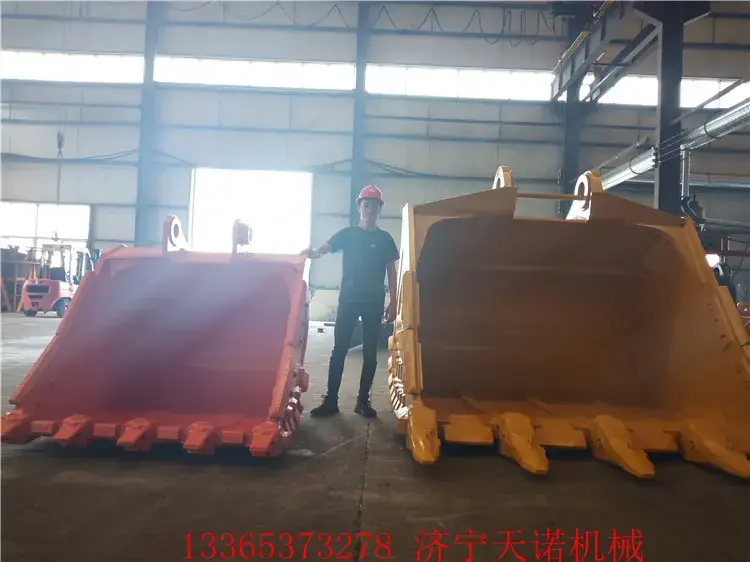

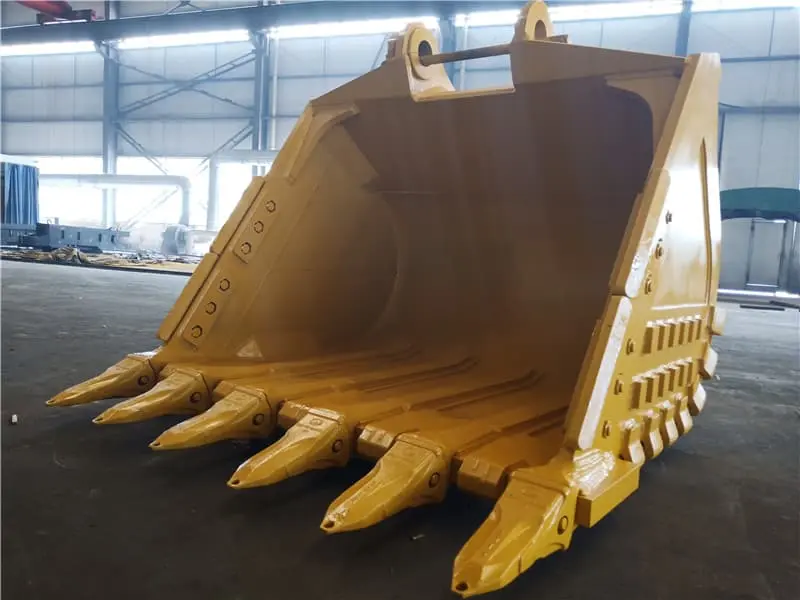

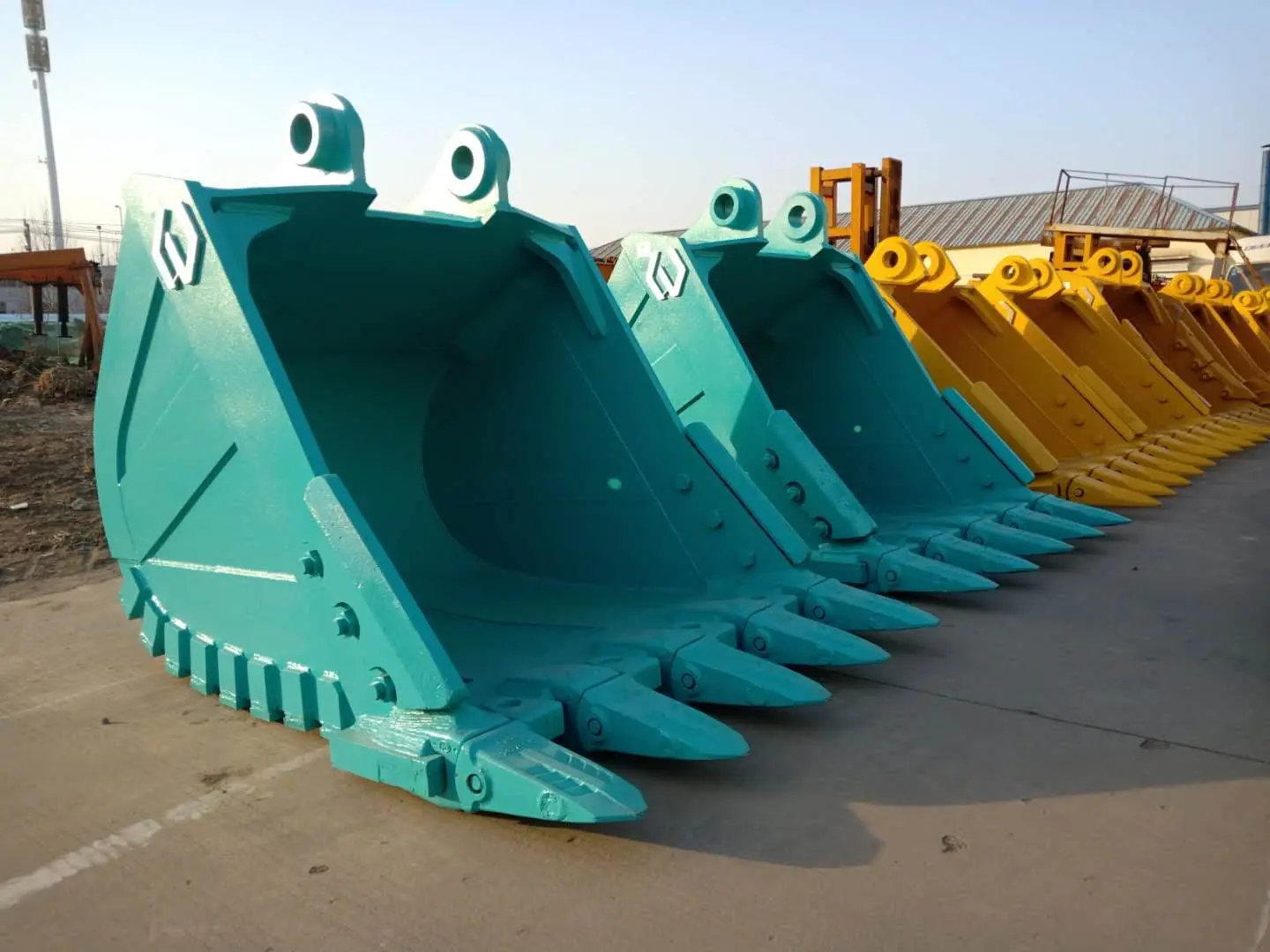

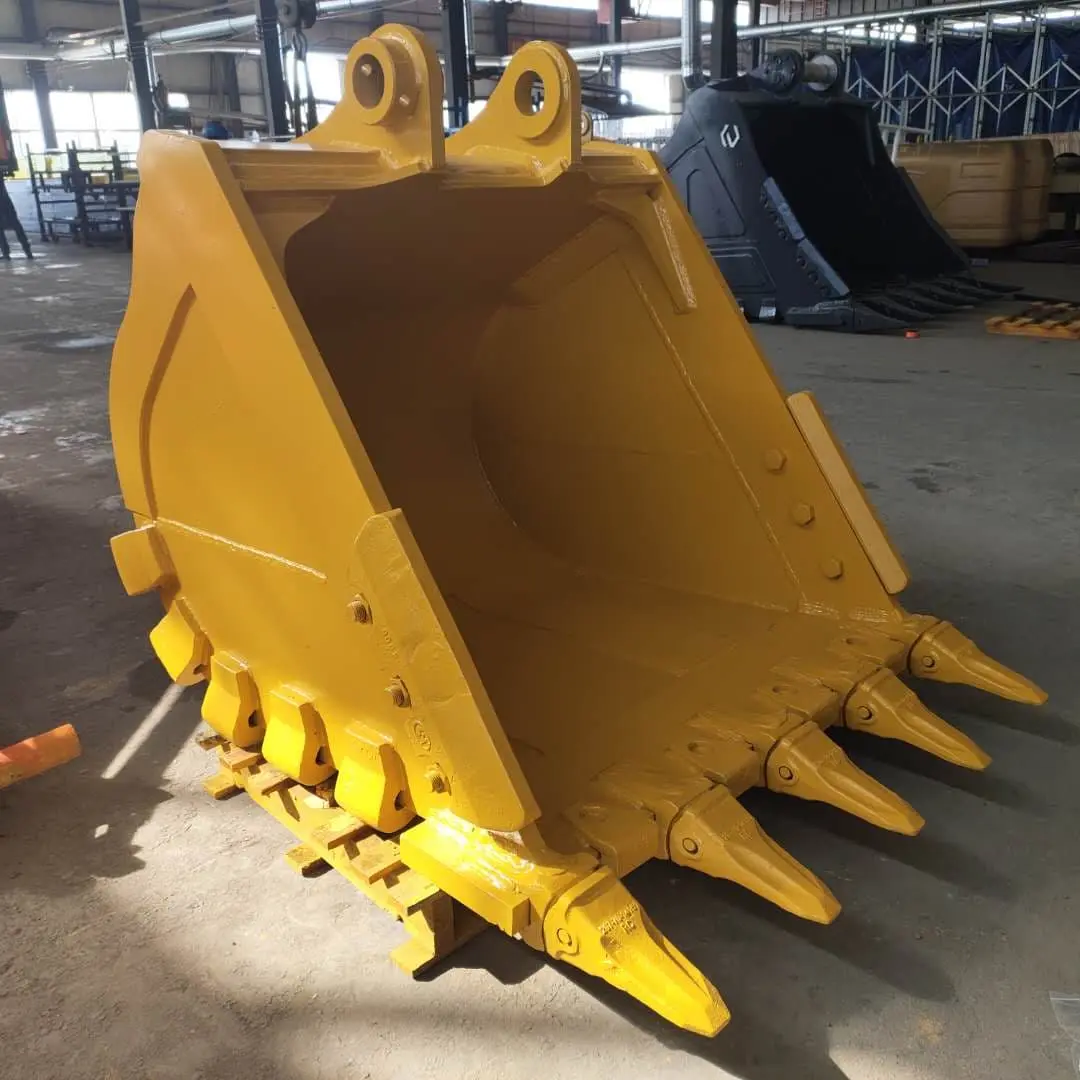

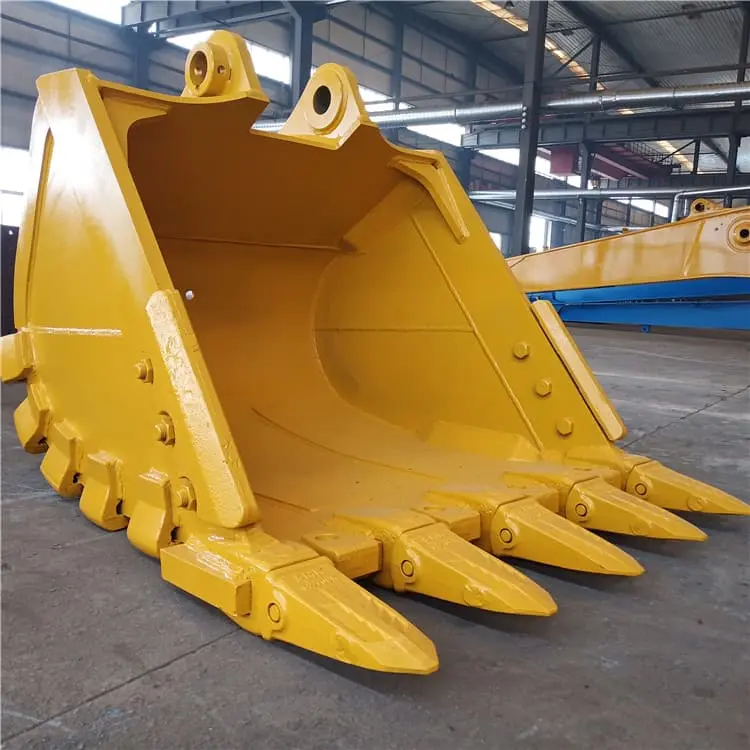

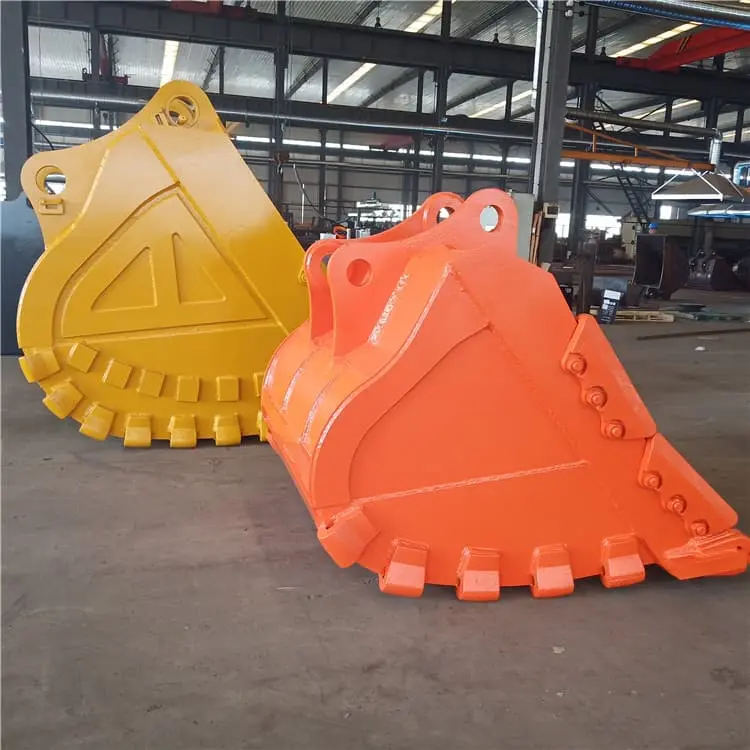

An Excavator Rock Bucket is a heavy-duty front attachment designed for rocky and abrasive environments. Its structure includes the tooth adapter plate, bottom plate, reinforced bottom layers, side plates, back plate, mounting ears, pins, teeth, wear plates and corner protection. Compared with a standard bucket, the working and wear zones are reinforced to handle harder material and repeated impact.
Key Advantages of STND Excavator Rock Buckets
STND rock buckets focus on the four factors that matter most in severe excavation: wear life, structural strength, carrier matching and maintenance practicality.
1. High-Strength Wear-Resistant Steel
High-strength wear-resistant steel is used for demanding contact areas. Reinforced edges, wear plates and structural protection help the bucket resist abrasion when digging and loading rock, gravel and mixed demolition material.
2. Reinforced Structure for Heavy-Duty Work
The bottom, side walls, tooth plate and other high-load zones are strengthened to distribute working forces more effectively. This reduces unnecessary deformation risk and supports stable performance under repeated impact.
3. Wide Capacity and Mounting Options
Published capacities range from 0.2 to 5.0 m³, with widths from 600 to 2200 mm and weights from 150 to 2500 kg. Pin-on and quick-coupler configurations allow the bucket to be matched to different excavator models and attachment systems.
4. Custom Teeth, Cutting Edges and Protection
Bucket size, shape, materials, reinforced teeth, cutting edges and wear protection can be configured around the carrier and material. This avoids using one bucket design for every rock density, fragment size and loading cycle.
Published Excavator Rock Bucket Specifications
Feature | Published Details |
Material | High-strength wear-resistant steel |
Capacity | 0.2–5.0 m³ |
Weight | 150–2500 kg |
Width | 600–2200 mm |
Mounting | Pin-on or quick coupler |
Protection | Reinforced edges and wear plates |
Customization | Size, shape, materials, teeth and cutting edges |
The published figures describe a product range rather than one fixed bucket. Final capacity, width, weight, teeth, plate thickness and mounting dimensions must be confirmed against the excavator and jobsite.
Main Applications of Excavator Rock Buckets
The reinforced bucket structure is suited to work where ordinary soil buckets face rapid wear or impact:
Quarrying and mining: Dig and load broken rock, gravel and other abrasive material.
Construction: Handle rocky soil during foundation excavation, trenching and site preparation.
Demolition: Load concrete fragments, masonry and mixed hard debris after breaking.
Roadwork: Excavate compacted road base and move aggregate during construction or renovation.
Land reclamation: Remove stones and mixed hard material from difficult ground.
Tips for Choosing a Qualified Excavator Rock Bucket
First, confirm the excavator model, operating weight and mounting dimensions. Second, describe the material—rock type, density, fragment size and whether the bucket will dig, pry or mainly load loose material. Third, select capacity and width according to carrier stability and cycle requirements rather than choosing the largest bucket. Finally, confirm the tooth system, cutting edge, side protection, bottom wear plates and coupler type.
Photos or video of the material help the technical team distinguish between a reinforced digging bucket and a true rock-duty configuration. STND can provide one-to-one matching suggestions from your machine data and working conditions.
Why Choose STND Machinery’s Excavator Attachments?
Shandong Tiannuo Construction Machinery Co., Ltd. was founded in 2014 and specializes in excavator attachments, custom engineering arms, excavator modifications and railway maintenance equipment. Its core technical team has more than ten years of retrofitting experience.
Each Excavator Rock Bucket is produced through material selection, cutting, welding, reinforcement and inspection. Buyers can review the verified Tiannuo company profile and one-to-one customization process for more information about manufacturing and technical support.
The Excavator Rock Bucket is now available for sale, with customization based on excavator model, material type, required capacity, bucket width, mounting interface and wear-protection requirements. Please contact us for the latest catalog, quotation, matching proposal and product video. Shandong Tiannuo Construction Machinery Co., Ltd. is located at No.369, Hard Innovation Industrial Park, Deyuan Road, Yanzhou District, Jining City, Shandong Province. Visit www.stnd-machinery.com or contact us by email at arm@stnd-machinery.com for more information about the Excavator Rock Bucket.
