Rotating Tilt Bucket for Railway Ballast: Why 40 Degrees of Tilt Beats a Bigger Bucket

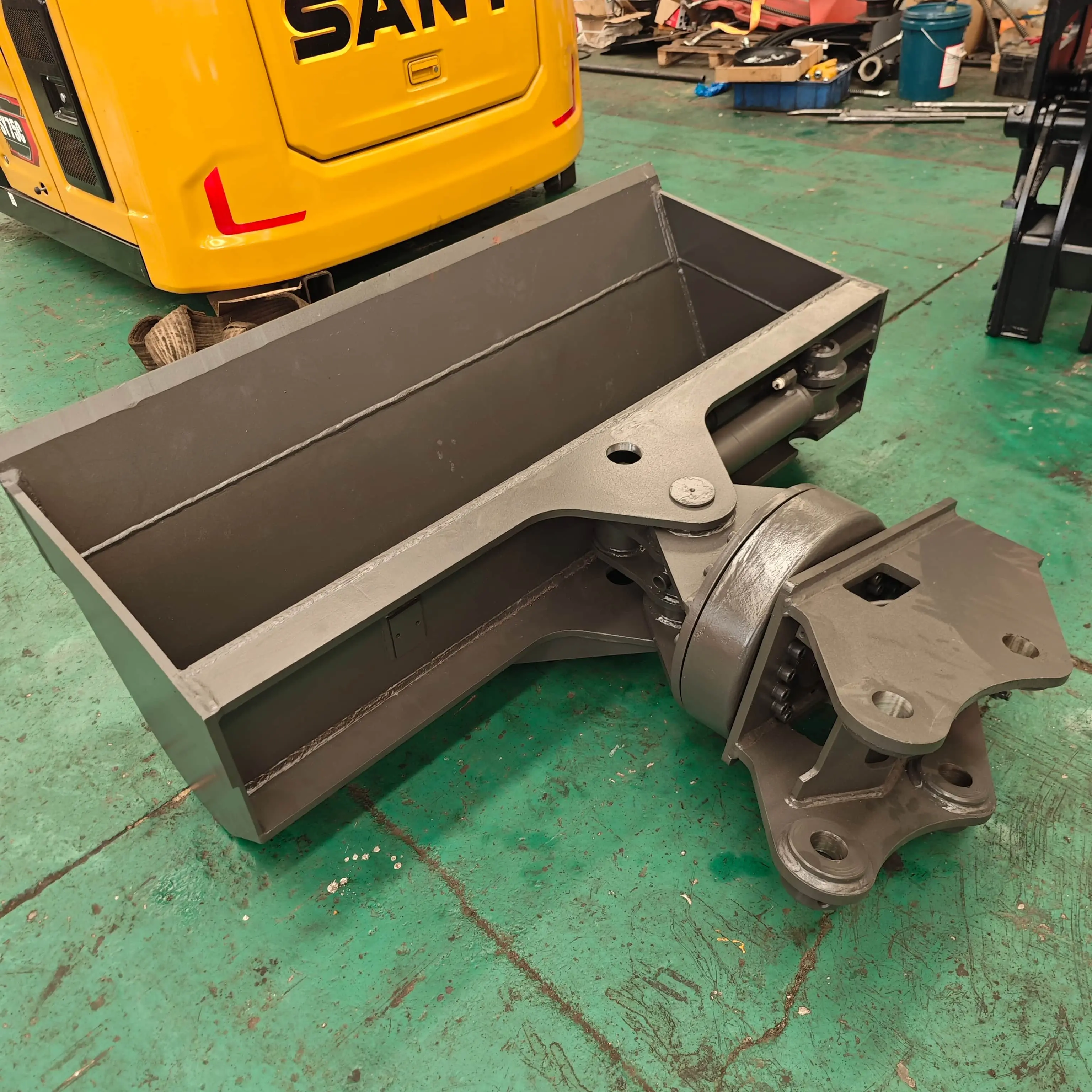

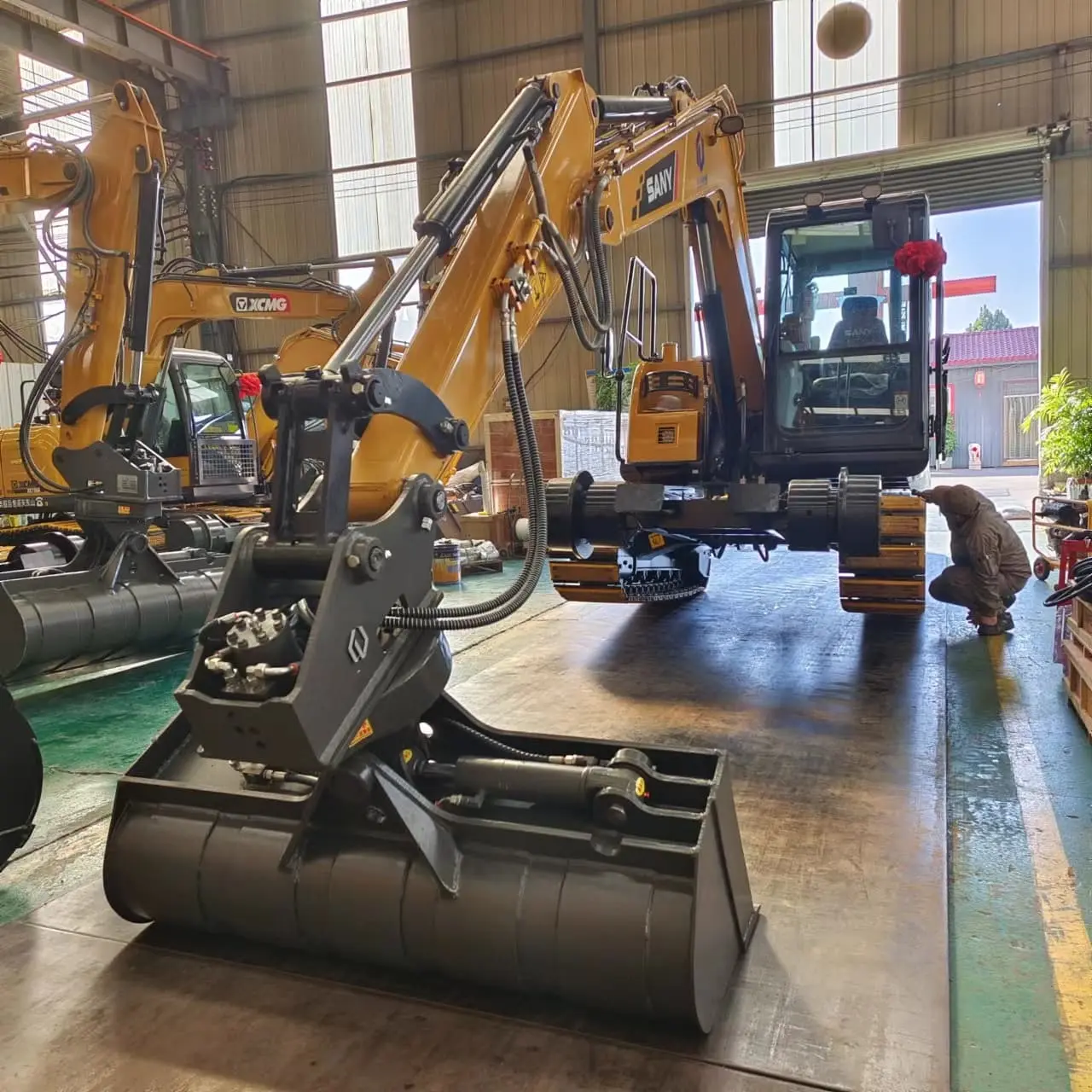

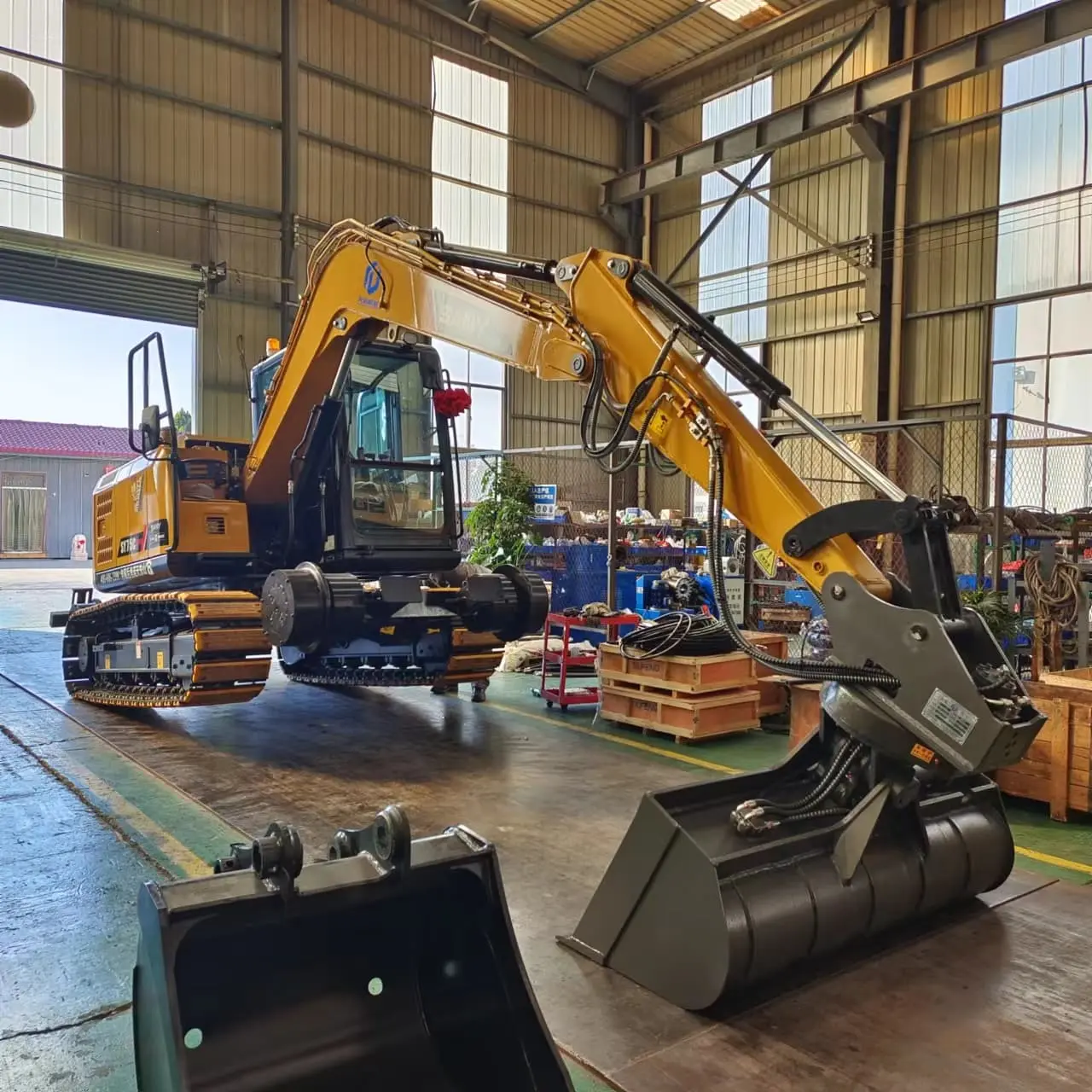

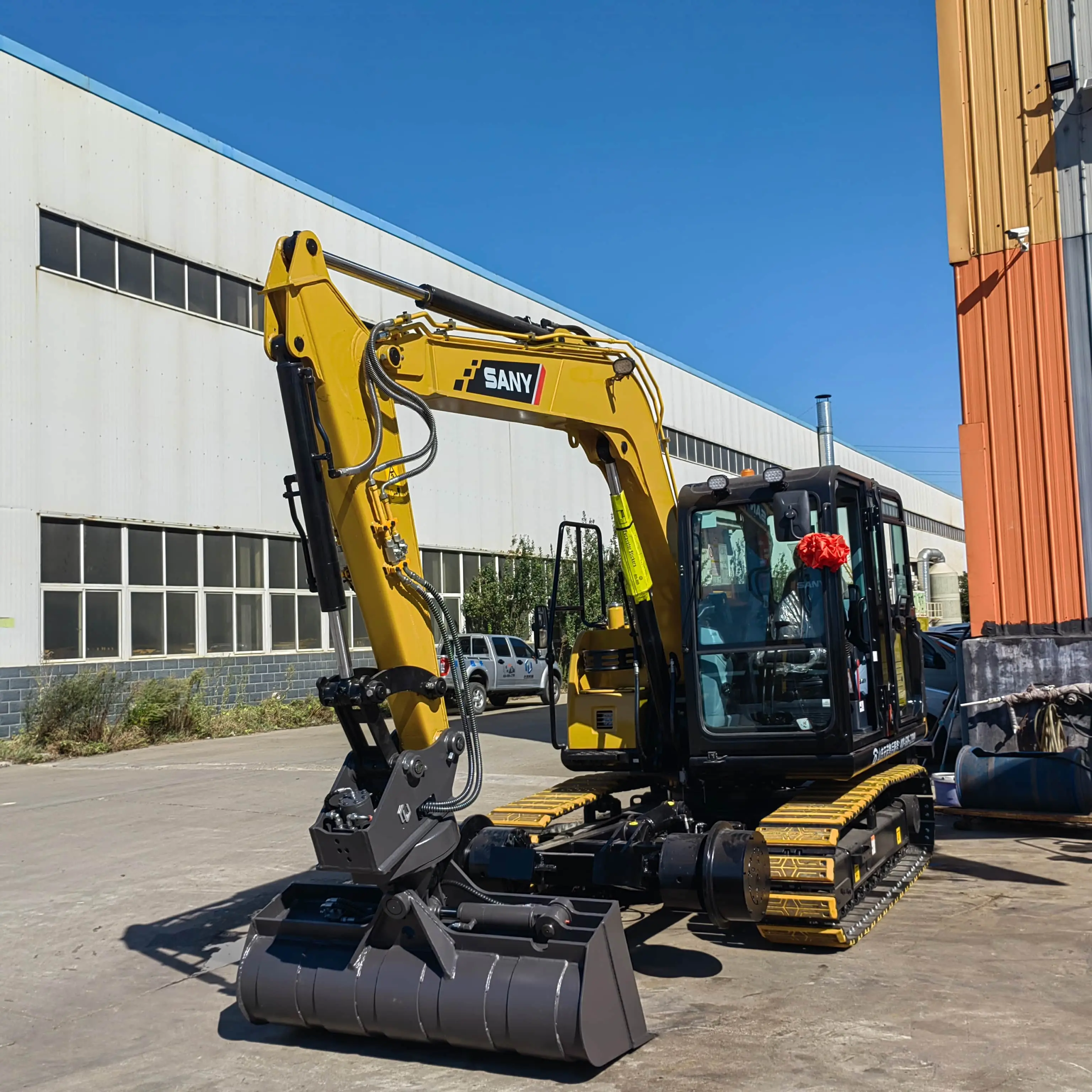

Ballast shoulder forming is a shaping job, not a digging job. A conventional bucket can only present its cutting edge at whatever angle the boom, stick and machine position allow, so the operator ends up repositioning the excavator to chase a slope the machine cannot reach. The TNXZQXD rotating tilt bucket removes that constraint: 360 degrees of rotation plus 40 degrees of tilt let the bucket meet the ballast shoulder at the correct angle while the excavator stays exactly where it is. On a track possession, that is the whole argument.

Rotation and Tilt Do Two Different Jobs

These two functions are frequently quoted together and rarely explained apart. They solve separate problems, and a bucket needs both to be useful in track work.

360 degree rotation - positions the bucket anywhere around its own axis without swinging the machine. On a rail formation where the excavator sits on the track and cannot simply drive to a better spot, this converts an impossible reach into a routine one.

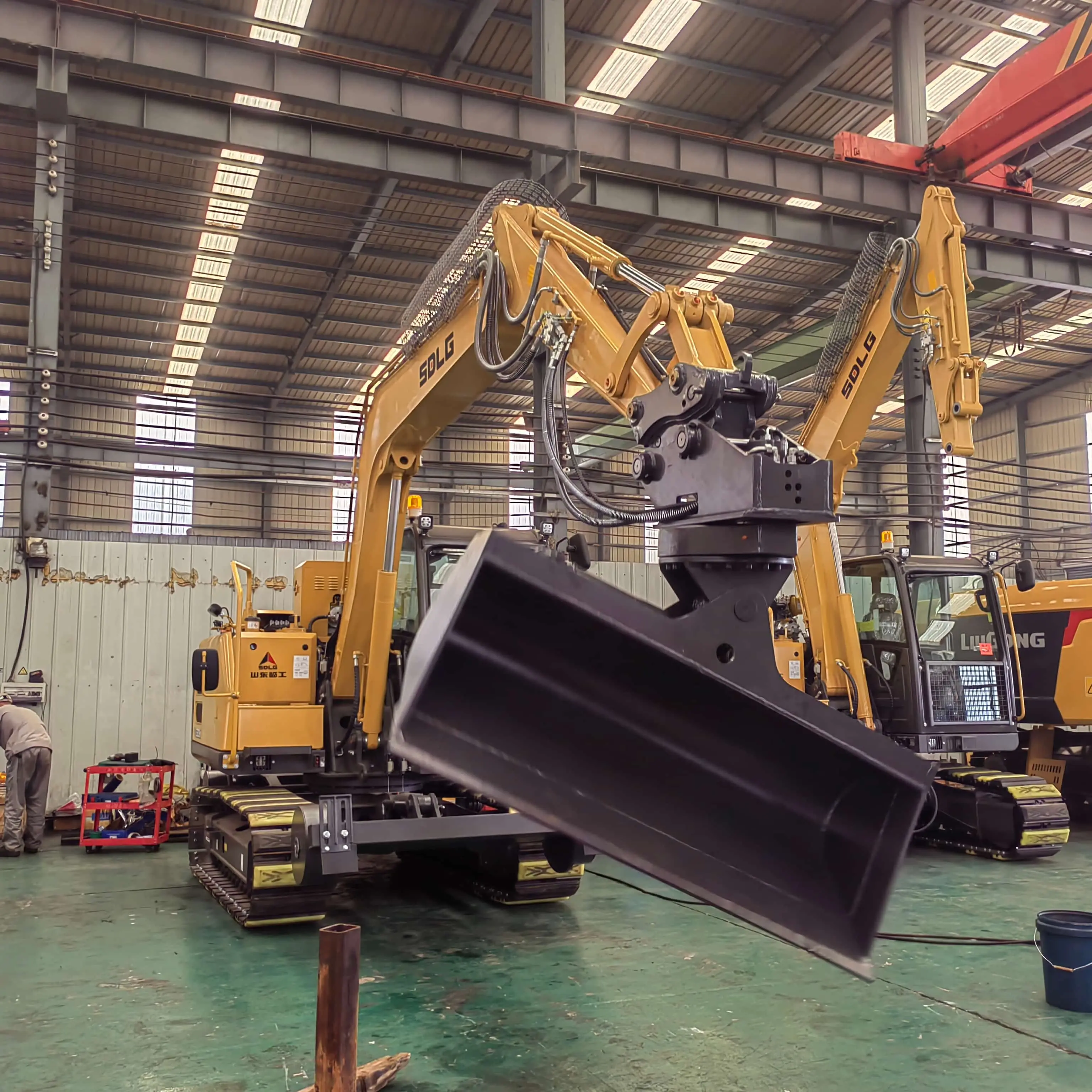

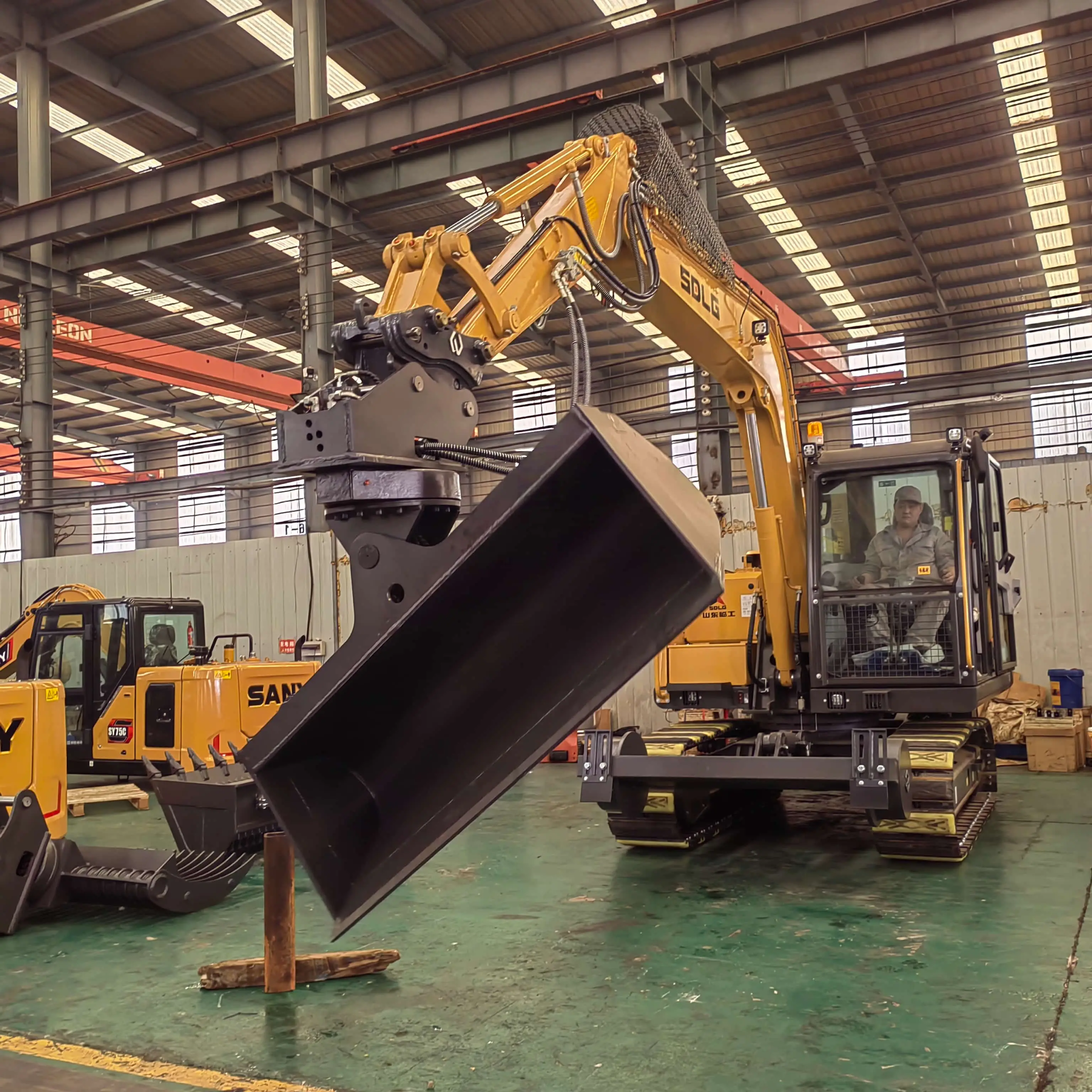

45 degree tilt - matches the cutting edge to the slope of the ballast shoulder. This is the function that actually forms the profile. Rotation gets the bucket there; tilt is what shapes the material once it arrives.

The practical result is single-pass shoulder forming. Instead of roughing the slope, repositioning, correcting and finishing by hand, the operator holds one angle and works along the formation. Fewer machine movements inside a possession is the most direct productivity gain available on track maintenance work.

Flat Bottom or Grid Bottom: Choose by Task, Not by Preference

The bucket body is available in two configurations, and this choice matters more than bucket size for railway applications.

Flat bottom - retains all material. Use it for ballast backfilling, moving and placing aggregate, and forming the shoulder profile where the objective is to deliver and shape a full volume of material.

Grid bottom - separates as it works. Fines, soil and fouled material fall through the grid while clean ballast is retained. Use it where the job is to recover and reuse serviceable ballast rather than simply relocate everything on site.

The commercial point is straightforward: a grid bottom turns spoil into reusable material. On projects where clean ballast has to be imported, separating on the spot instead of hauling everything away and buying replacement aggregate changes the cost structure of the work.

TNXZQXD Rotating Tilt Bucket: Technical Specification

Bucket body available in flat or grid configuration on both models. Multi-gauge capability covering 1000 mm, 1435 mm and 1520 mm is standard.

Check the Hydraulic Circuit Before the Bucket Size

Both models require 40 L/min at 12 MPa to drive the rotation and tilt functions. This is a modest, easily met requirement for a 7-15 ton excavator, but it must come from an auxiliary circuit that is actually available and correctly configured. The most common cause of disappointing performance with rotating attachments is not the attachment - it is a host machine supplying the wrong flow.

Send us your excavator model and auxiliary circuit parameters at enquiry stage. We confirm the match before manufacture, and we build the mounting bracket and pin arrangement to your machine rather than shipping a generic interface.

Where It Is Used

Ballast shoulder forming - the primary application. Tilt holds the slope angle, rotation keeps the machine stationary, and the 1500-1600 mm working width covers the shoulder in a controlled pass.

Ballast backfilling and redistribution - moving and placing aggregate along the formation without repositioning between placements.

Ballast recovery with the grid body - screening fouled material in place, retaining reusable ballast and reducing both disposal volume and replacement purchase.

Multi-gauge network operation - the same attachment works across 1000 mm, 1435 mm and 1520 mm gauge lines, which matters for contractors and maintenance fleets operating on more than one network standard.

Confined and restricted access work - tunnels, cuttings, bridge approaches and urban corridors where swinging the machine to change working angle is not an option.

Frequently Asked Questions

Which model suits my excavator?

TNXZQXD75 is built for 7-10 ton machines and TNXZQXD150 for 13-15 ton machines. Beyond tonnage, confirm your auxiliary hydraulic circuit can deliver 40 L/min at 12 MPa.

What is the difference between the flat and grid bucket body?

The flat body retains all material and is used for backfilling and shoulder forming. The grid body allows fines and fouled material to fall through while retaining clean ballast, making it the choice for ballast recovery and reuse.

Does it work on non-standard track gauges?

Yes. Both models cover 1000 mm, 1435 mm and 1520 mm gauge as standard.

How much tilt and rotation does it actually provide?

360 degrees of continuous rotation and 40 degrees of tilt, both hydraulically controlled from the operator cab.

Can the bucket and bracket be customised?

Yes. As a source factory we manufacture the mounting bracket, pin arrangement and bucket configuration to your specific machine and working conditions.

Request a Matched Configuration

Send us your excavator model, auxiliary hydraulic flow and pressure, track gauge and the work you need to perform - shoulder forming, backfilling or ballast recovery. We will confirm the model, recommend flat or grid body, supply a bracket drawing and quote including packing dimensions.
