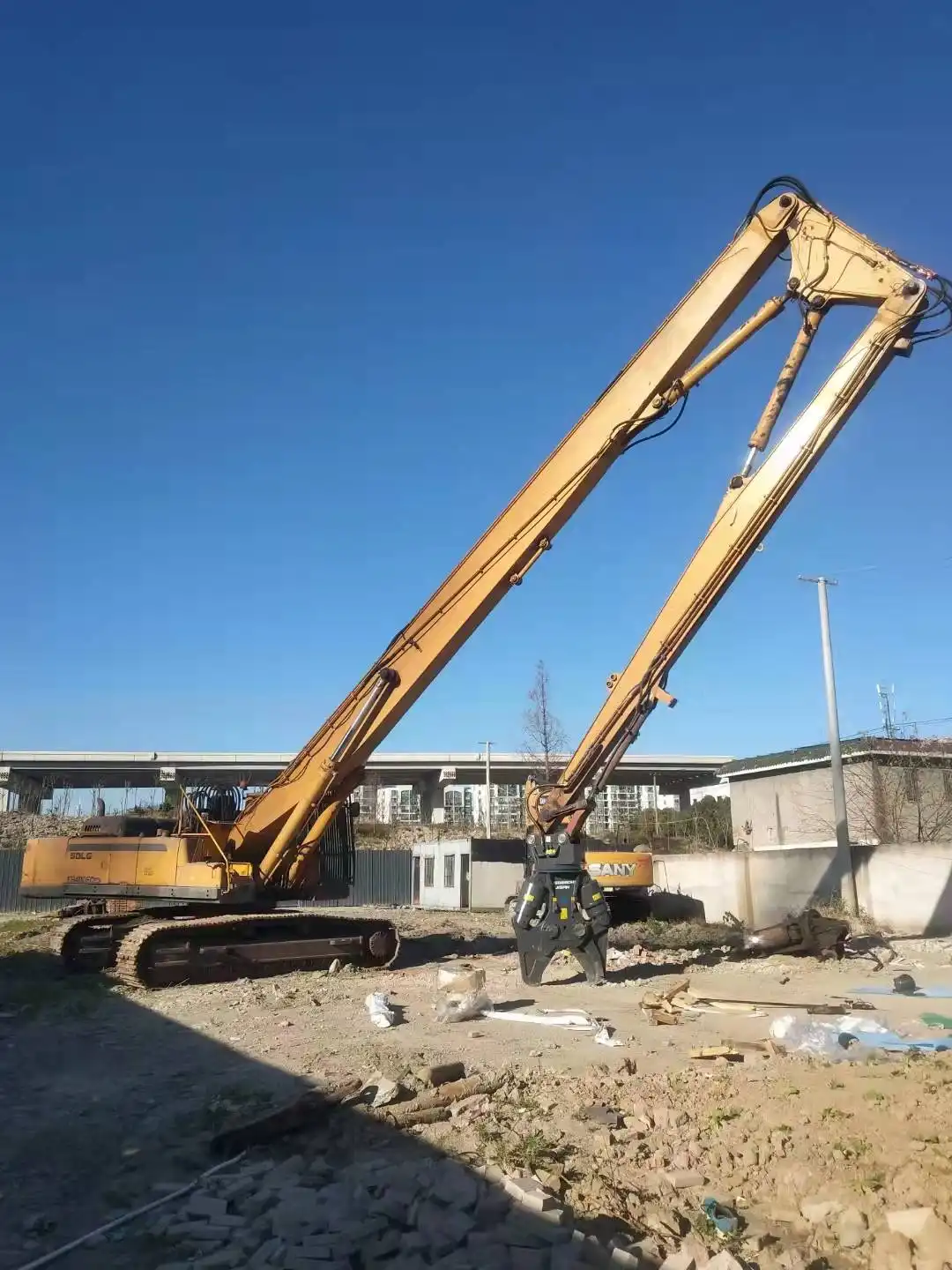

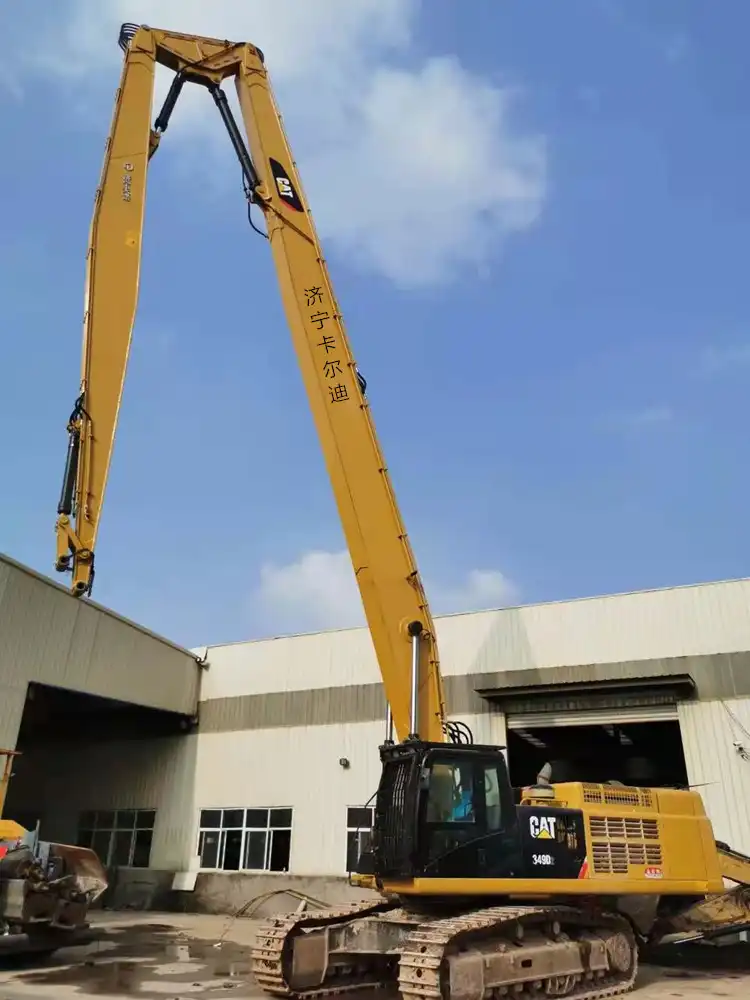

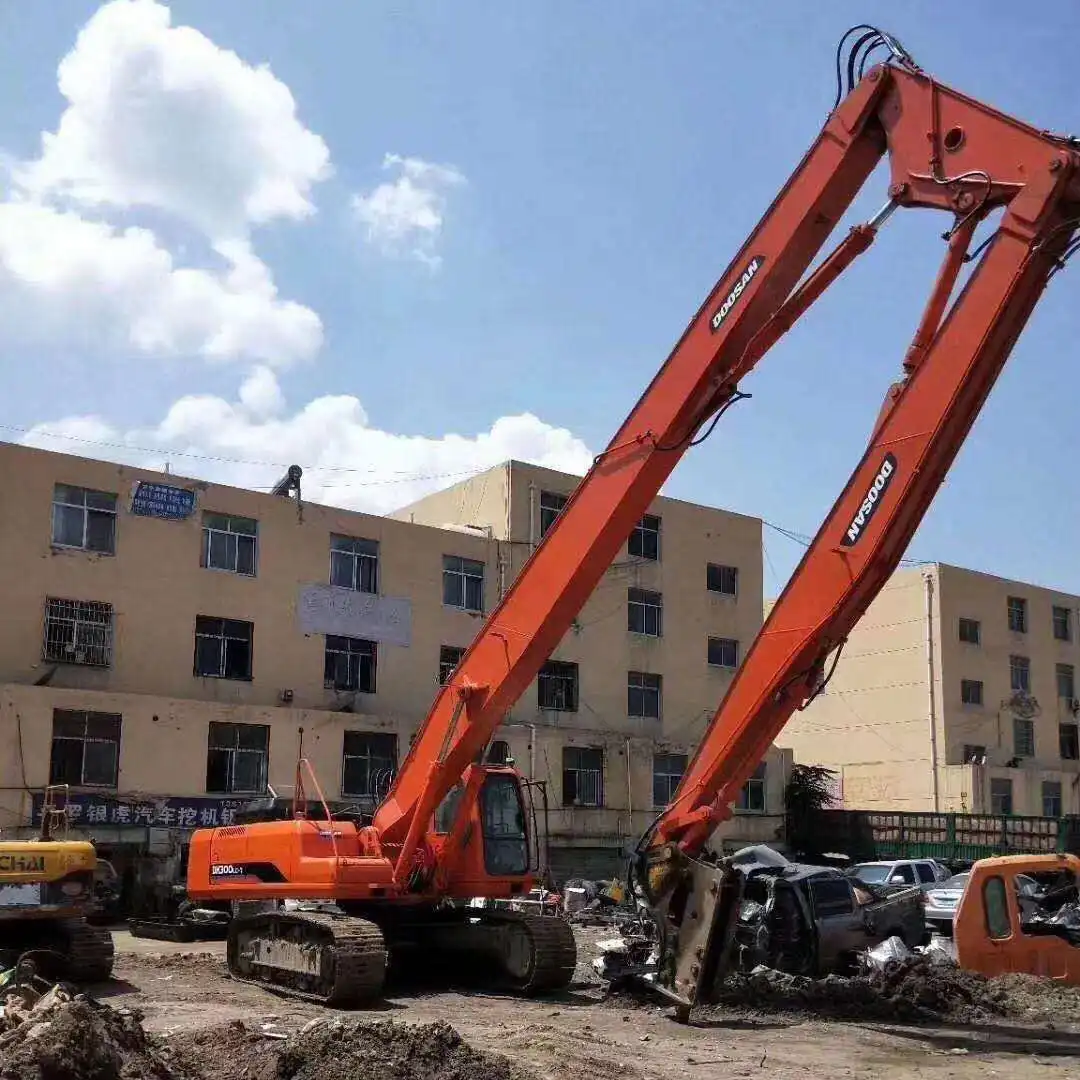

Structure of the three-section demolition booms
The excavator three section demolition boom is a game-changer in the world of demolition. This innovative design revolutionizes the way we approach complex demolition projects, offering unparalleled flexibility and precision. By breaking down the traditional single-piece boom into three distinct sections, operators gain enhanced control and reach, allowing them to tackle even the most challenging demolition tasks with ease.
Lower Boom
Enhanced stability for demolition operations
The lower boom forms the foundation of the three-section demolition boom system. It's engineered to provide exceptional stability during intense demolition operations. This robust component is crafted from high-strength steel, capable of withstanding extreme forces and vibrations commonly encountered in demolition work. The lower boom's design incorporates a wide base and reinforced pivot points, effectively distributing the weight and stress across the entire excavator chassis.
This enhanced stability is crucial when working on tall structures or in situations where precision is paramount. Operators can confidently position the excavator and extend the boom to its full reach without worrying about tipping or instability. The lower boom's sturdy construction also contributes to reduced wear and tear on the excavator's undercarriage, potentially extending the machine's lifespan and reducing maintenance costs.
Hydraulic cylinder integration for precise control
Integrated within the lower boom are powerful hydraulic cylinders that enable precise control over the boom's movements. These cylinders are strategically placed to maximize leverage and minimize stress on the boom structure. The hydraulic system is designed with advanced flow control valves, allowing for smooth and responsive operation even under heavy loads.
This level of control is essential in demolition work, where accuracy can mean the difference between a successful operation and potential hazards. Operators can make minute adjustments to the boom's position, ensuring that demolition attachments are always perfectly aligned with the target area. The precise control also allows for gentle handling of materials when necessary, such as during selective demolition or material recovery operations.
TianNuo's innovative design for optimal performance
TianNuo's engineering team has invested considerable research and development into optimizing the lower boom's design. By utilizing computer-aided design and finite element analysis, they've created a structure that balances strength, weight, and flexibility. The result is a lower boom that offers superior performance without unnecessary bulk.
One of TianNuo's key innovations is the use of high-performance alloys in critical stress points. These materials offer exceptional strength-to-weight ratios, allowing for a lighter overall boom structure without compromising on durability. The lighter weight translates to improved fuel efficiency and reduced ground pressure, making the excavator more versatile across various job sites.
Additionally, TianNuo has incorporated smart sensor technology into the lower boom. These sensors continuously monitor stress levels and provide real-time feedback to the operator, ensuring that the equipment is always used within safe operating parameters. This proactive approach to equipment health not only enhances safety but also helps prevent unexpected downtime due to overloading or structural fatigue.
Middle Arm
Extending reach in confined demolition spaces
The middle arm of the three-section demolition boom is where the magic of extended reach truly comes into play. This crucial component is designed to bridge the gap between the lower boom and the upper arm, providing operators with unprecedented access to hard-to-reach areas. The middle arm's extendable nature allows demolition teams to work efficiently in confined spaces, such as inside buildings or in tight urban environments.
TianNuo's engineers have optimized the middle arm's geometry to maximize reach while maintaining stability. The arm features a telescopic design, allowing it to extend and retract smoothly. This functionality is particularly valuable when working on multi-story buildings, where different levels require varying boom lengths. The ability to adjust the arm's length on the fly significantly reduces setup time and increases overall productivity on the job site.
Versatile movement for efficient debris handling
The middle arm is equipped with multiple pivot points and hydraulic cylinders, enabling a wide range of motions. This versatility is crucial for efficient debris handling during demolition operations. Operators can easily maneuver the arm to sort, stack, or load debris without repositioning the entire excavator. The precise control over the middle arm's movements allows for selective demolition, where specific parts of a structure need to be removed while leaving others intact.
TianNuo has incorporated advanced hydraulic technology into the middle arm, ensuring smooth and responsive operation even under varying load conditions. The hydraulic system features proportional controls, allowing operators to fine-tune the arm's speed and power output. This level of control is essential when working with different types of materials or in situations where gentle handling is required to minimize dust and noise pollution.
Reinforced construction for heavy-duty applications
Given the intense forces and stresses involved in demolition work, the middle arm is built to withstand extreme conditions. TianNuo uses high-strength, wear-resistant steel in the arm's construction, ensuring durability and longevity. The arm's joints and pivot points are reinforced with hardened bushings and precision-machined pins, minimizing play and reducing wear over time.
To further enhance the middle arm's durability, TianNuo has implemented a unique protective shrouding system. This system shields critical components, such as hydraulic lines and electrical wiring, from falling debris and other potential hazards on the demolition site. The shrouding is designed to be easily removable for maintenance, ensuring that routine servicing can be carried out quickly and efficiently.
Upper (Or Front) Arm
Precision attachment mounting for demolition tools
The upper arm, also known as the front arm, is the business end of the three-section demolition boom. It's here that various demolition attachments are mounted, making it a critical component for the overall effectiveness of the excavator. TianNuo has designed the upper arm with a focus on versatility and quick-change capabilities, allowing operators to switch between different demolition tools rapidly.
At the end of the upper arm, you'll find a robust quick-coupler system. This ingenious mechanism allows for the rapid exchange of attachments without the need for the operator to leave the cab. Whether it's a hydraulic breaker for concrete demolition, shears for metal cutting, or a grapple for debris handling, the quick-coupler ensures that the right tool is always at hand. This flexibility significantly reduces downtime and increases the excavator's overall productivity on complex demolition projects.
Advanced hydraulic system for smooth operation
The upper arm houses an advanced hydraulic system that powers the attached demolition tools. TianNuo's engineers have implemented a state-of-the-art hydraulic circuit that delivers optimal flow and pressure to each attachment. This system includes pressure-compensated valves and load-sensing technology, ensuring that each tool receives the exact amount of power it needs for efficient operation.
To enhance control and precision, the upper arm's hydraulic system features proportional joystick controls. This allows operators to modulate the speed and force of the attached tools with incredible accuracy. Whether it's delicately removing a section of a building or powering through thick concrete, the operator has full control at their fingertips. The smooth operation not only improves work quality but also reduces operator fatigue during long shifts.
Maximizing demolition efficiency with TianNuo technology
TianNuo has incorporated several cutting-edge technologies into the upper arm to maximize demolition efficiency. One notable feature is the integrated tool recognition system. This smart technology automatically detects the type of attachment connected to the arm and adjusts the hydraulic settings accordingly. This not only optimizes performance but also prevents potential damage from incorrect settings.
Another innovation is the arm's built-in vibration damping system. Demolition work often involves high-impact tools that can generate significant vibrations. TianNuo's damping technology reduces these vibrations, protecting both the machine and the operator from excessive stress. This results in improved comfort, reduced wear on components, and extended equipment life.
The upper arm also features TianNuo's proprietary energy recovery system. During downward movements of the arm, this system captures and stores energy that would otherwise be wasted. This recovered energy is then used to assist in subsequent lifting operations, improving fuel efficiency and reducing the excavator's overall carbon footprint.
The structure of the three-section demolition boom represents a significant advancement in excavator technology. From the stable lower boom to the versatile middle arm and the precision-engineered upper arm, each component plays a crucial role in enhancing demolition efficiency and safety. TianNuo's innovative designs and cutting-edge technologies have set a new standard in the industry, offering operators unprecedented control, reach, and versatility. As demolition projects become increasingly complex, the three-section boom stands ready to meet these challenges head-on, providing a powerful and adaptable solution for modern demolition needs.
FAQ
1. What are the main advantages of using a three-section demolition boom?
Three-section demolition booms offer increased reach, improved maneuverability in confined spaces, and greater versatility in demolition operations. They allow operators to work at various heights and angles without repositioning the excavator, leading to improved efficiency and safety on the job site.
2. How does the three-section boom improve safety in demolition projects?
The extended reach of the three-section boom allows operators to maintain a safe distance from falling debris. Additionally, the precise control offered by the hydraulic systems enables more controlled demolition, reducing the risk of unintended structural collapse. The boom's stability also contributes to safer operation, especially when working at height.
3. Can the three-section demolition boom be used for tasks other than demolition?
Yes, the versatility of the three-section boom makes it suitable for various tasks beyond demolition. It can be used for material handling, sorting debris, and even some construction activities when equipped with the appropriate attachments. This multi-functionality makes it a valuable asset for diverse project requirements.
4. What types of attachments can be used with TianNuo's three-section demolition boom?
TianNuo's three-section demolition boom is compatible with a wide range of attachments, including hydraulic breakers, shears, grapples, crushers, and pulverizers. The quick-coupler system allows for easy switching between these attachments, enhancing the excavator's versatility on the job site.
5. How does TianNuo ensure the durability and longevity of their three-section demolition booms?
TianNuo employs high-strength, wear-resistant materials in the construction of its booms. They also use advanced engineering techniques, such as finite element analysis, to optimize the design for durability. Regular maintenance schedules and easy-access service points are incorporated to ensure long-term reliability and performance.
Excavator Three Section Demolition Boom Manufacturer
TianNuo Machinery stands at the forefront of excavator innovation, specializing in high-performance demolition equipment. Our expertise extends beyond three-section demolition booms to encompass a wide range of construction and demolition solutions. We offer railway maintenance equipment, including sleeper changing machines and ballast screening buckets, as well as excavator modification equipment such as lifting and tilting cabs. Our engineering arms cater to various applications, from extended and pile driving arms to specialized tunnel arms. We also produce a diverse array of excavator accessories and engineering vehicle auxiliary equipment to meet all your project needs. With over a decade of industry experience and a global market presence, TianNuo delivers certified quality and customized engineering solutions. Experience faster demolition, reduced downtime, and long service life with our cost-effective products. For tailored solutions that match your specific excavator model and demolition project requirements, contact us at boom@stnd-machinery.com.
