What does an arm cylinder do in an excavator?
An excavator arm cylinder plays a crucial role in the operation of this powerful construction machine. It's the hydraulic muscle that controls the movement of the excavator's arm, also known as the stick. This vital component allows operators to extend and retract the arm with precision, enabling tasks like digging, lifting, and material handling. The arm cylinder works in harmony with other hydraulic cylinders to give excavators their impressive range of motion and strength, making them indispensable tools in construction, mining, and earthmoving projects.
Hydraulic Power: The Heart of Excavator Arm Movement
Hydraulic cylinders in excavator arms
Hydraulic cylinders are the powerhouses behind an excavator's arm movement. These robust components consist of a cylinder barrel, piston, and rod. When hydraulic fluid is pumped into the cylinder, it creates pressure that moves the piston, which in turn extends or retracts the rod. This simple yet effective mechanism allows for powerful and controlled movements of the excavator's arm.
In the case of arm cylinders, they're typically double-acting, meaning hydraulic pressure can be applied to both sides of the piston. This design enables smooth extension and retraction of the arm, giving operators fine control over their movements. The size and capacity of arm cylinders vary depending on the excavator's size and intended use, with larger machines requiring more substantial cylinders to handle heavier loads.
How arm cylinders generate force for excavator operations
Excavator arm cylinders generate impressive force through the principles of hydraulics. As pressurized fluid enters the cylinder, it exerts force on the piston's surface area. This force is then transferred to the rod, which is connected to the excavator's arm. The amount of force produced depends on the cylinder's bore size and the hydraulic system's pressure.
For example, a typical medium-sized excavator might have an arm cylinder with a bore diameter of 5 inches and operate at a pressure of 4,000 psi. Using the formula Force = Pressure x Area, we can calculate that this cylinder could theoretically generate over 78,000 pounds of force! This immense power allows excavators to lift heavy loads and break through tough soil or rock with ease.
The role of pressure and flow in arm cylinder function
Pressure and flow are the two key factors that determine an arm cylinder's performance. Pressure, measured in pounds per square inch (psi), dictates the amount of force the cylinder can produce. Higher pressure results in greater force output, allowing the excavator to handle heavier loads or break through tougher materials.
Flow, measured in gallons per minute (GPM), determines the speed at which the cylinder can extend or retract. A higher flow rate means faster arm movements, which can increase productivity in certain applications. However, it's crucial to balance pressure and flow to achieve optimal performance without overworking the hydraulic system or compromising control.
Excavator operators can often adjust these parameters to suit different tasks. For instance, they might increase pressure for heavy lifting or tough digging, while prioritizing flow for tasks that require quicker, lighter movements. This flexibility makes excavators versatile machines capable of handling a wide range of construction and earthmoving challenges.
Precision Control: Arm Cylinder's Role in Digging Operations
Arm cylinder's impact on excavator reach and digging depth
The excavator arm cylinder significantly influences an excavator's reach and digging depth. By extending the arm, operators can increase the machine's reach, allowing it to access areas that would otherwise be out of range. This extended reach is particularly useful in scenarios where the excavator needs to work from a distance, such as digging trenches across obstacles or reaching over barriers.
Conversely, retracting the excavator arm brings the bucket closer to the machine, which can increase digging force and stability when working in confined spaces. The arm cylinder's ability to adjust the arm's position also affects the excavator's digging depth. By manipulating the arm angle in conjunction with the boom, operators can achieve impressive digging depths, making excavators ideal for tasks like foundation work or deep trenching.
Coordinating arm and boom cylinders for efficient digging
Efficient digging requires seamless coordination between the excavator arm and boom cylinders. The boom cylinder controls the up and down movement of the entire arm assembly, while the arm cylinder manages the stick's extension and retraction. Skilled operators use these cylinders in tandem to create smooth, arcing movements that facilitate effective digging and material handling.
For example, when digging a trench, an operator might start by lowering the boom and extending the arm to position the bucket. Then, as they retract the arm to scoop material, they simultaneously raise the boom to maintain the bucket's angle and prevent spillage. This coordinated movement, often called "curling" the bucket, is a fundamental technique in excavator operation that relies heavily on precise control of the arm cylinder.
Fine-tuning excavator arm movements with cylinder control
The ability to fine-tune arm movements through precise cylinder control is what sets skilled excavator operators apart. Modern excavators often feature advanced hydraulic systems that allow for incremental adjustments in cylinder extension and retraction. This precision is crucial for tasks that require delicate handling or exact positioning.
For instance, when working around underground utilities, operators must exercise extreme caution to avoid damaging pipes or cables. By making minute adjustments to the arm cylinder, they can carefully remove soil without risking contact with sensitive infrastructure. Similarly, in finishing work, such as grading or sloping, precise arm control allows operators to achieve the desired contours with minimal need for manual touch-ups.
Maintenance Tips: Ensuring Optimal Arm Cylinder Performance
Regular inspection and lubrication of excavator arm cylinders
Maintaining excavator arm cylinders is crucial for ensuring the longevity and performance of an excavator. Regular inspections should be conducted to check for any signs of wear, damage, or leaks. Key areas to examine include the cylinder rod for scratches or dents, seals for deterioration, and mounting points for any looseness or excessive play.
Proper lubrication is essential for smooth cylinder operation and preventing premature wear. Grease fittings on the cylinder pins should be lubricated according to the manufacturer's recommendations, typically daily or every 10 hours of operation. It's important to use the correct type of grease, as specified in the excavator's manual, to ensure compatibility with the seals and optimal performance in various operating conditions.
Troubleshooting common arm cylinder issues in excavators
Even with regular maintenance, excavator arm cylinders can sometimes develop issues. One common problem is hydraulic fluid leaks, which can be caused by worn seals, damaged rods, or loose fittings. If you notice oil around the cylinder or a decrease in performance, it's crucial to address the leak promptly to prevent further damage and maintain efficiency.
Another issue operators might encounter is erratic or slow cylinder movement. This could be due to air in the hydraulic system, low fluid levels, or a malfunctioning valve. Bleeding the system, checking fluid levels, and inspecting valves can often resolve these problems. If the cylinder fails to hold a load or drifts when it should remain stationary, this could indicate internal leakage past the piston seals, which may require cylinder rebuilding or replacement.
FAQ
1. How often should excavator arm cylinders be replaced?
The lifespan of excavator arm cylinders varies depending on usage and maintenance. With proper care, they can last several thousand hours of operation. Regular inspections and maintenance can help identify when replacement is necessary, typically when seals fail or significant wear is evident.
2. Can arm cylinders be repaired instead of replaced?
Yes, in many cases, arm cylinders can be repaired or rebuilt. This often involves replacing seals, honing the cylinder barrel, or replacing the piston rod. Rebuilding can be a cost-effective alternative to full replacement, especially for larger or specialized cylinders.
3. What causes arm cylinders to leak?
Common causes of leaks include worn or damaged seals, scratched or pitted cylinder rods, and loose fittings. Environmental factors like extreme temperatures or contamination can also contribute to seal failure and subsequent leaks.
4. How does the size of an arm cylinder affect excavator performance?
Larger arm cylinders generally provide more force but may operate more slowly. The size is chosen based on the excavator's intended use, balancing power, speed, and overall machine design to optimize performance for specific applications.
5. Are there different types of arm cylinders for various excavator models?
Yes, arm cylinders vary in size, stroke length, and pressure ratings to suit different excavator models and applications. Some may have special features like cushioning or position sensing for enhanced control and performance in specific tasks.

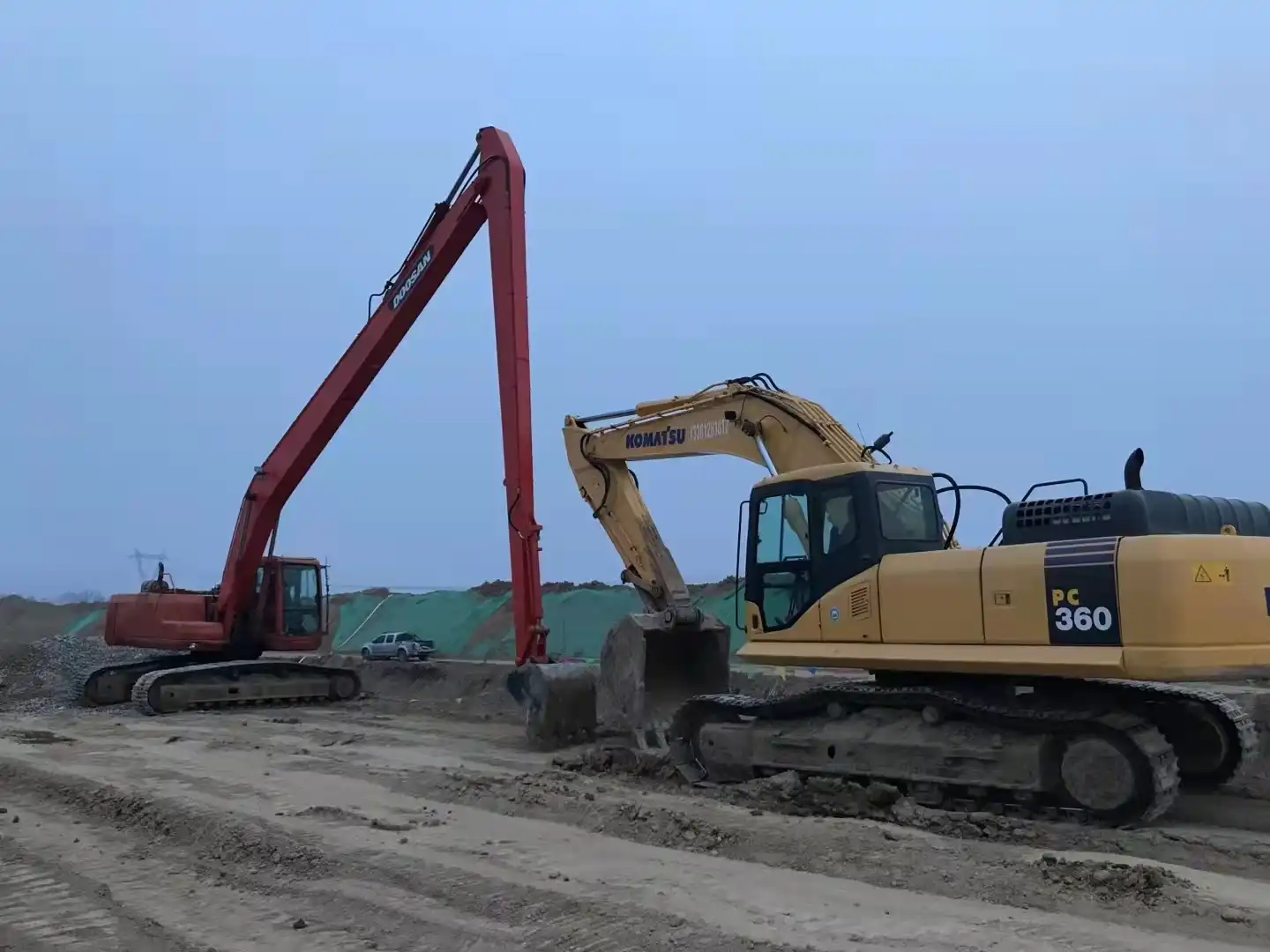

China Excavator Arm Manufacturers

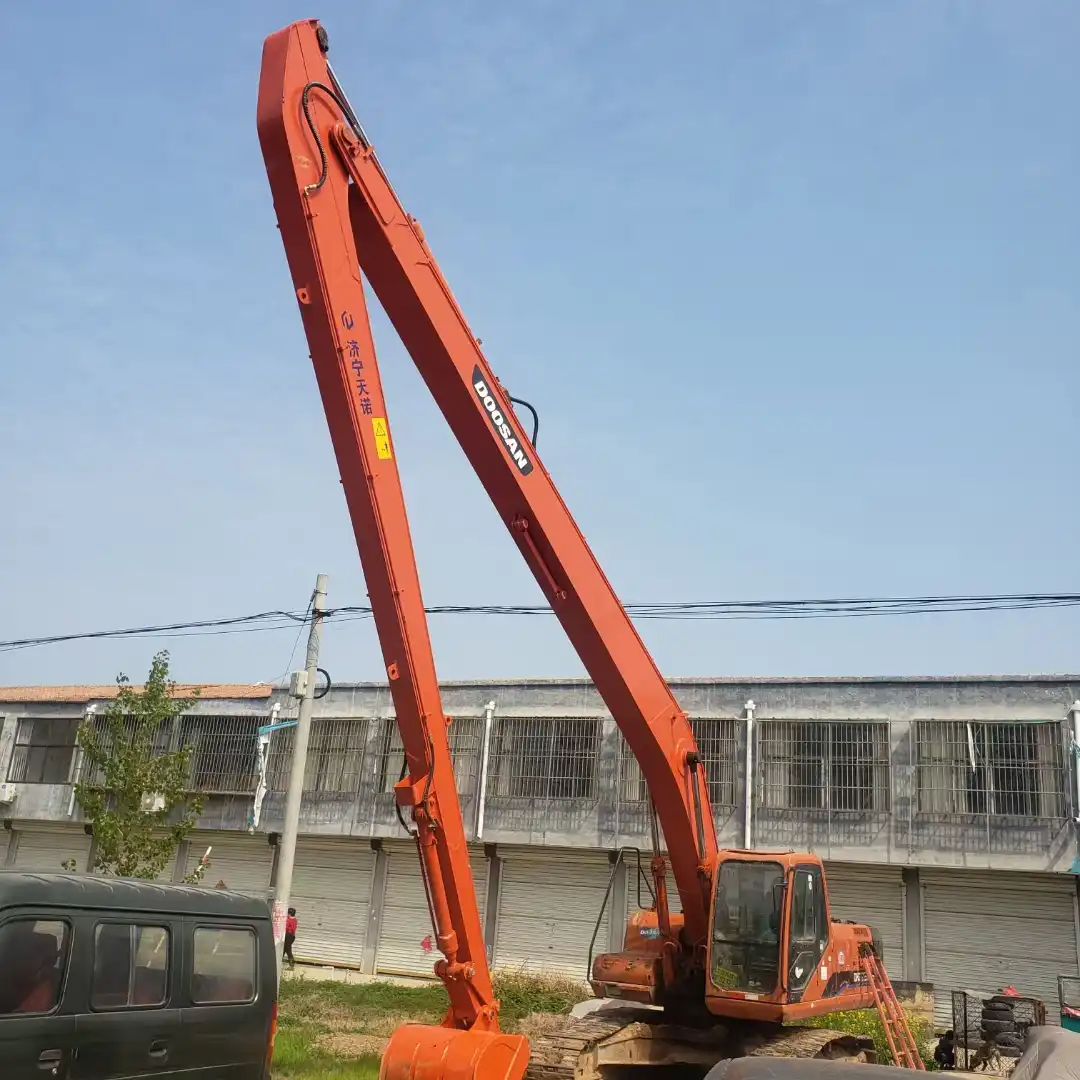

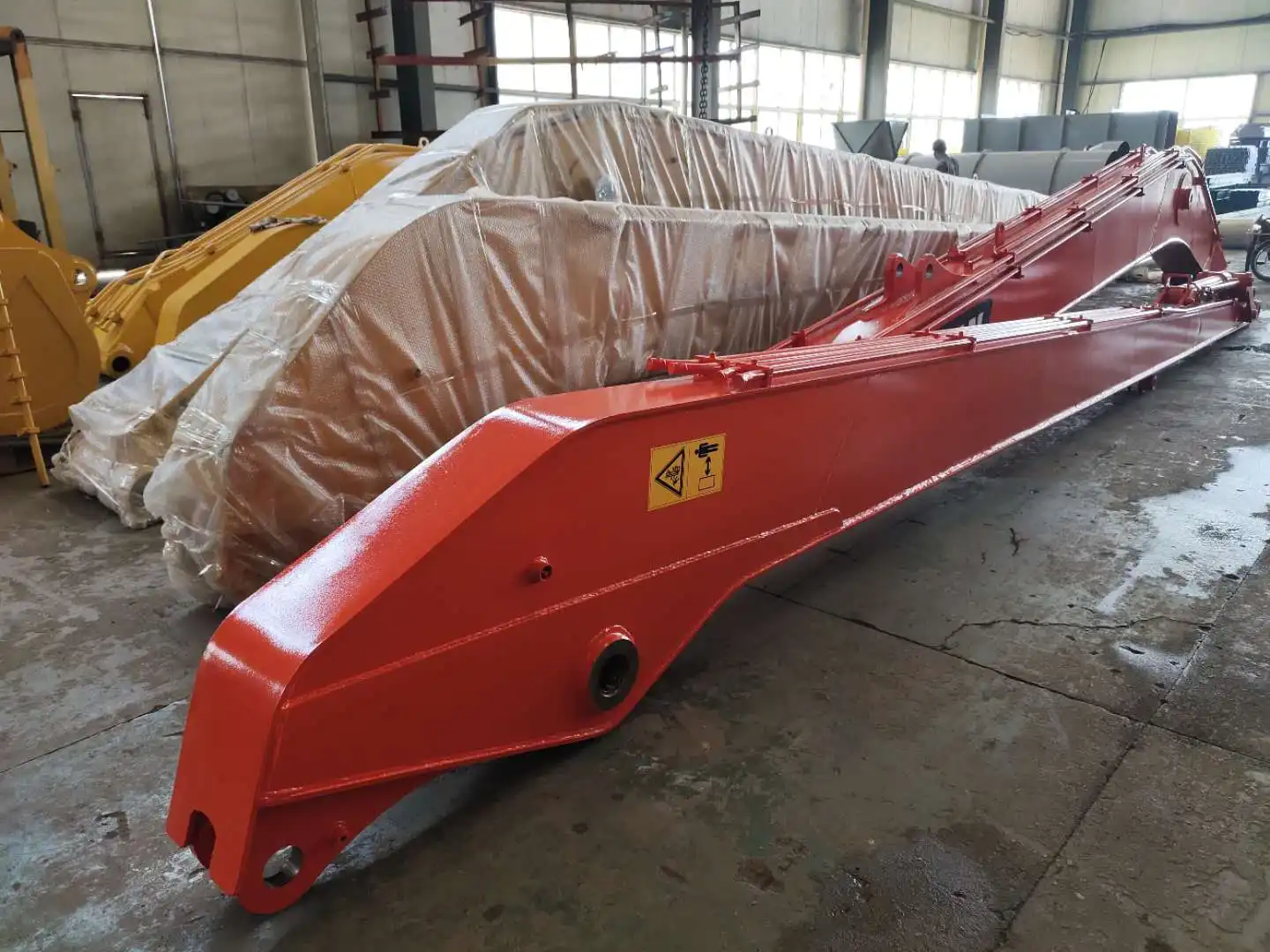

TianNuo Machinery stands out as a leading excavator arm manufacturer in China. Specializing in customized arms for excavator, we offer competitive pricing without compromising on quality. Our product range includes long reach excavator booms, unloading arms for steel grabbing machines, excavator tunnel arms, and rock arms. We also provide standard size excavator booms and arms to meet diverse needs in the construction and mining industries. For those seeking reliable arms or related equipment like railway maintenance machinery or excavator accessories, contact us at rich@stnd-machinery.com. Our expertise in engineering arms ensures you'll find the right solution for your project requirements.
