What Are the Advantages of a Double Hydraulic Ballast Tamper?

In railway maintenance engineering, the compaction of ballast after sleeper replacement is a core process that ensures track stability and train operation safety. Traditional single-head tampers are inefficient and have limited coverage, making it difficult to complete high-quality ballast bed compaction within tight track possession windows. The Double Hydraulic Ballast Tamper launched by Shandong Tiannuo Machinery is specially designed for ballast compaction after railway sleeper replacement. With its 8-tamping-head synchronous operation, high-frequency vibration, and full track gauge adaptability, it has become an efficient tool for mainline railway maintenance, providing reliable protection for track safety. The following are its core advantages.

1. Dual-head synchronous operation, doubled efficiency, adaptable to large-tonnage excavators

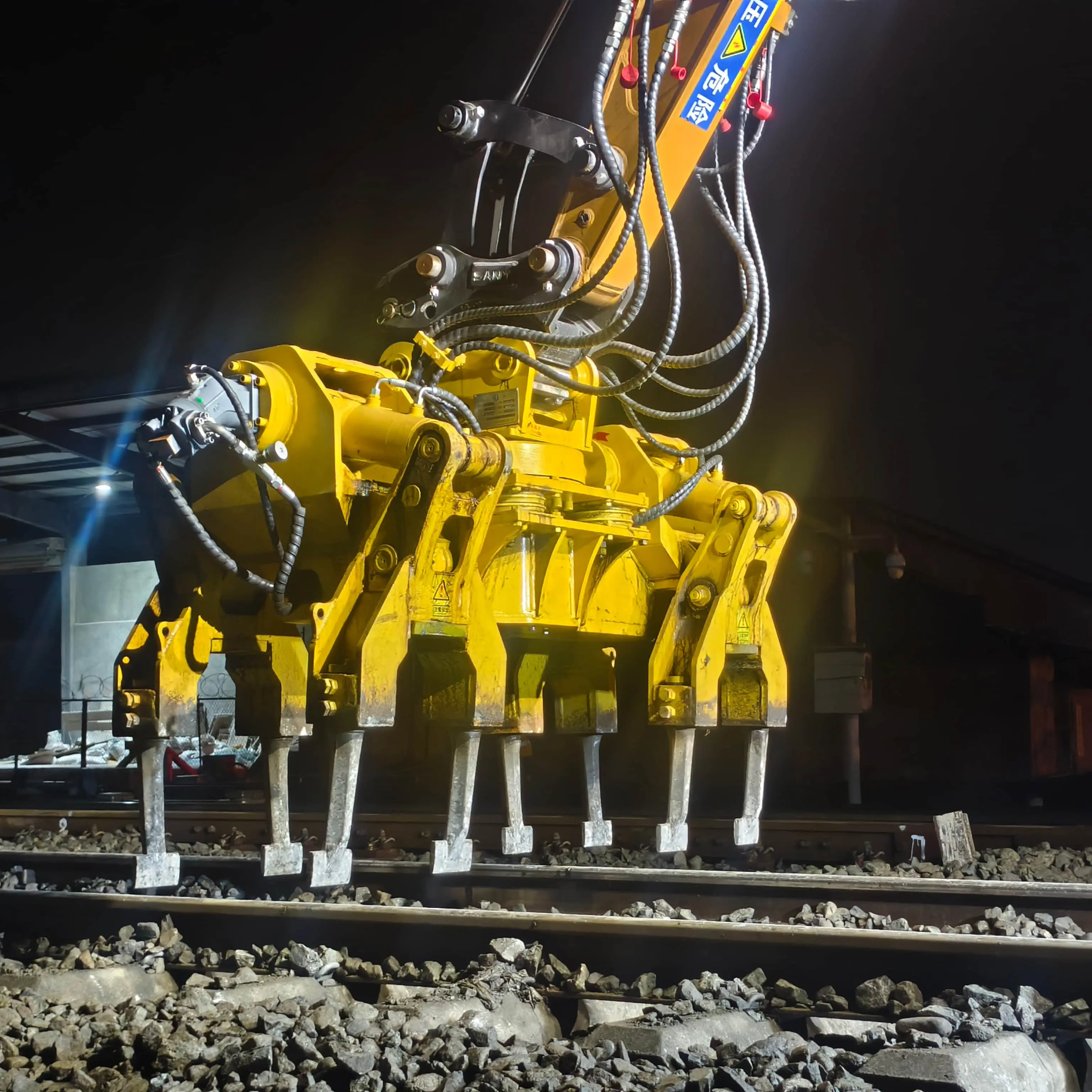

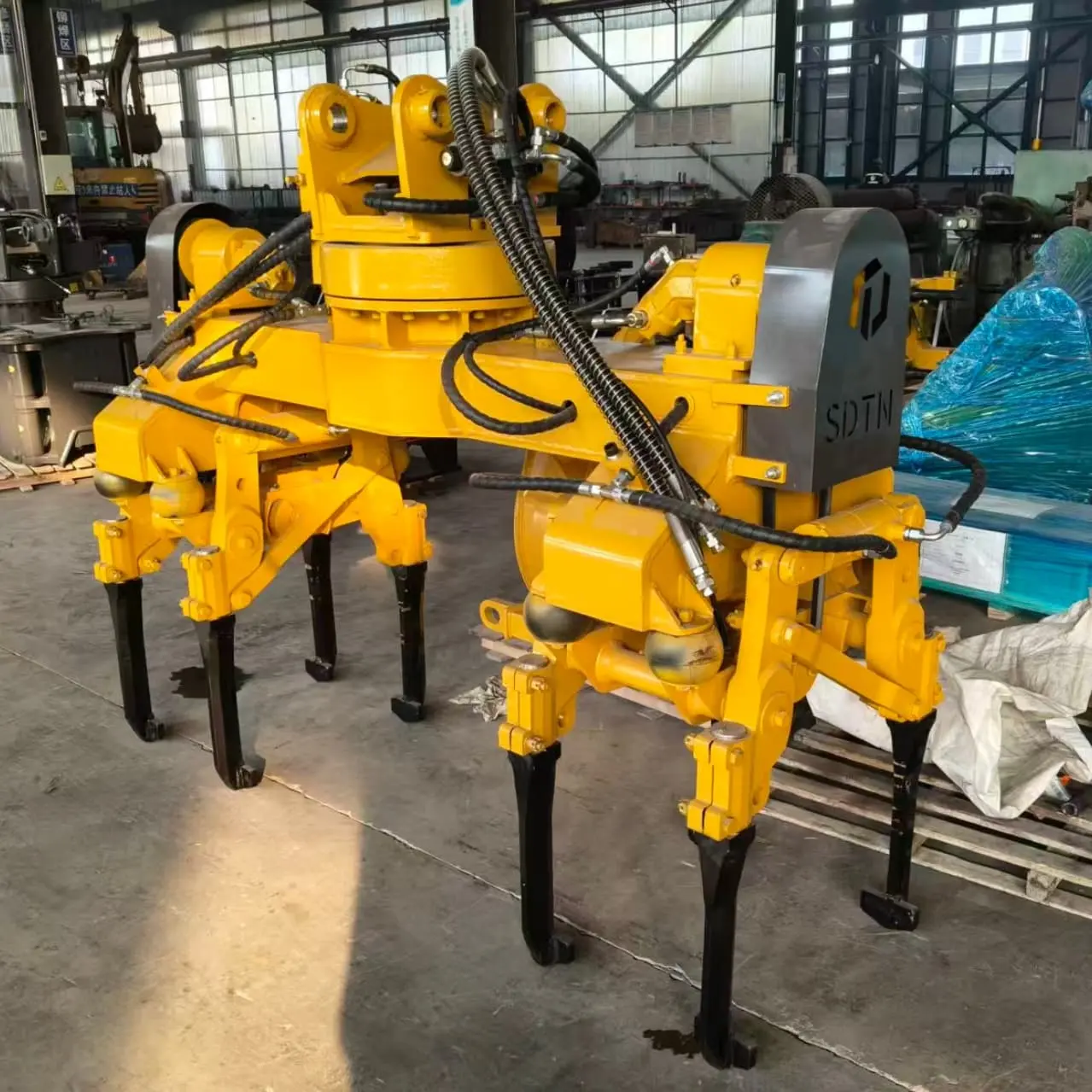

Tiannuo double ballast tamper adopts a dual-group tamping mechanism design, equipped with 8 tamping heads working simultaneously. Compared with traditional 4-head single tampers, it can complete ballast compaction for two sleepers at once, directly doubling operational efficiency. In the high-frequency vibration design, the TNYDGJ75 model has a vibration frequency as high as 63.5Hz, while the TNST series models operate at 40Hz. High-frequency vibration can quickly penetrate the ballast layer, eliminate voids in the track bed, and achieve uniform and dense compaction.

The product matrix fully covers excavators of different tonnages:

TNYDGJ75: Suitable for 60-90 ton large railway excavators, weighing 880kg, with a compact structure, ideal for high-intensity maintenance on heavy-haul mainline railways;

TNSTDGJ150 / TNSTDCGJ150: Suitable for 12-18 ton medium railway excavators, weighing 1850kg, with strong power. Among them, the TNSTDCGJ150 supports 50° outrigger tilting angle adjustment, enabling flexible operation in complex sections such as curves and turnouts.

Both models support 360° rotation, allowing flexible adjustment of the working angle without frequent movement of the excavator, greatly reducing equipment transfer time. Within the limited track possession time, more sleepers can be compacted, shortening the construction cycle and reducing interference with train operations.

2. Full track gauge adaptation, multi-scenario coverage, precise operation in complex sections

Tiannuo double ballast tamper supports two mainstream track gauges: 1435mm standard gauge and 1520mm broad gauge, suitable for most mainline railway lines, whether conventional railways or heavy-haul freight lines. The clamping range covers 320-625mm, adapting to different specifications of sleepers, ensuring the tamping heads are accurately aligned with the ballast on both sides of the sleepers for dead-angle-free compaction.

Among them, the TNSTDCGJ150 model is additionally equipped with 50° outrigger tilting angle adjustment function, which can adjust the working posture according to different gradients of curved tracks and turnout areas, fitting the slope angle of the ballast bed. It ensures uniform ballast compaction even in complex sections, avoiding partial or missed tamping, effectively solving the problem of operation blind spots in curves and turnouts with traditional equipment, and improving the overall maintenance quality of the line.

3. High-frequency and efficient compaction, high ballast bed density, ensuring long-term track stability

High-frequency vibration technology is the core advantage of the double ballast tamper. The equipment drives the tamping heads to vibrate at high frequency through the hydraulic system, combined with a maximum tamping depth of 400mm, which can penetrate deep into the bottom of the ballast layer, achieving all-round compaction from the surface to the deep layer. This greatly improves the density of the track bed, reduces the risk of later track settlement and deformation, and ensures smooth train operation.

Compared with manual tamping or single-head tampers, the dual-head synchronous operation achieves uniform and dense ballast compaction, avoiding track irregularities caused by uneven compaction, reducing the occurrence of line diseases, and lowering the frequency of later maintenance. In mainline railway maintenance with limited track possession time, efficient compaction operations can quickly complete track bed repairs, providing a guarantee for the safe resumption of train operations.

4. Durable design, adapting to harsh railway conditions, long service life

Railway maintenance operations are carried out in complex environments, with the equipment subjected to long-term high-frequency vibration, ballast impact, and dust erosion. Tiannuo double ballast tamper is made of high-strength wear-resistant steel for the body and tamping heads, with key components reinforced for excellent impact and fatigue resistance. It can withstand long-term high-frequency vibration without deformation or cracking.

The tamping heads are made of wear-resistant alloy material with a replaceable design, allowing quick replacement after wear without replacing the entire equipment, reducing later maintenance costs. The hydraulic system adopts a sealed design to effectively prevent ballast dust and rainwater from entering the interior, protecting hydraulic components and reducing the failure rate. This ensures stable operation of the equipment in harsh outdoor environments, reducing downtime for repairs and guaranteeing the continuity of track possession operations.

5. Precise control, safe and controllable, reducing operational risks

The equipment is equipped with a precise hydraulic control system, which can flexibly adjust the vibration frequency, clamping force, and working depth to ensure the ballast compaction depth meets the standard. The 360° rotation and angle adjustment functions allow the equipment to complete all-round compaction of the ballast on both sides and front and rear of the sleepers without frequent movement of the excavator. The operation accuracy far exceeds manual work, effectively avoiding track diseases caused by uneven compaction.

At the same time, the equipment is remotely controlled by the excavator operator in the cab, eliminating the need for personnel to approach the operation area throughout the process, fundamentally avoiding safety hazards such as injury from flying ballast or equipment misoperation. It is equipped with an overload protection device, which automatically stops for protection when the load is too large to prevent equipment damage, further improving operation safety and complying with railway construction safety specifications.

6. Multi-functional, unlocking the all-round attributes of excavators, reducing operating costs

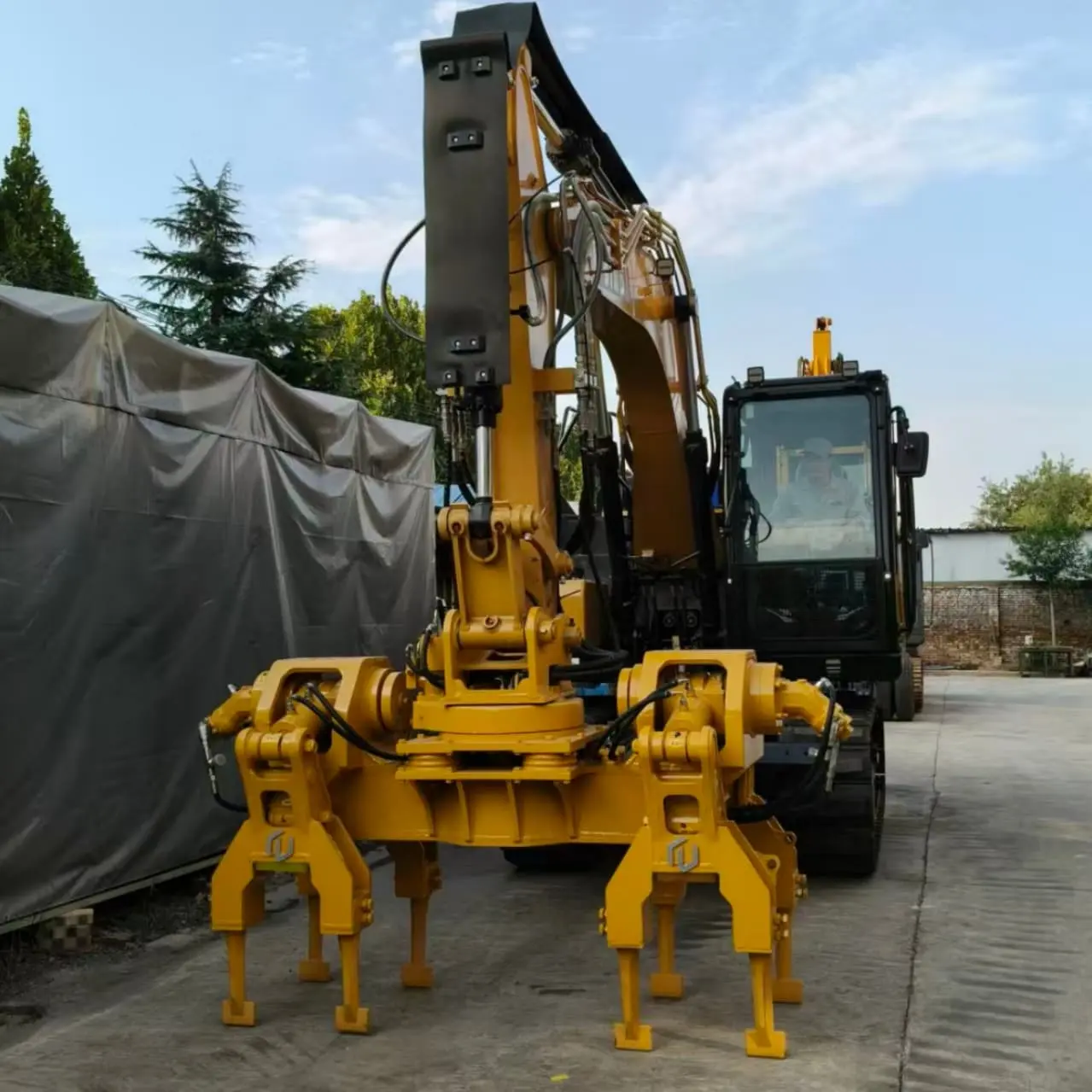

The double ballast tamper can be quickly installed on the excavator via standard pin connection without complex modification, and installation and disassembly can be completed in a few minutes. After the operation is completed, it can be easily replaced with other attachments such as slope cleaners, hydraulic breakers, or grabs, allowing one excavator to have multiple functions such as tamping, cleaning, crushing, and loading/unloading. This reduces equipment procurement costs and improves fleet utilization.

It is especially suitable for railway maintenance units, which do not need to purchase additional special tamping equipment, and can complete ballast compaction operations using existing excavators, greatly reducing equipment investment costs. At the same time, efficient operations reduce labor input: one equipment + one operator can complete the tamping work that originally required multiple people to collaborate, reducing labor costs and improving overall operational efficiency.

As emphasized on Tiannuo’s official knowledge platform (https://www.stnd-machinery.com/knowledge), high-quality attachments are long-term investments. Choosing Tiannuo double hydraulic ballast tamper means choosing efficient, safe, and cost-effective railway maintenance solutions, helping you easily complete various complex compaction tasks and win more project opportunities.
