What is the definition of a ballast car?
A railroad ballast car represents one of the most essential pieces of specialized rolling stock in the railway industry. These purpose-built freight cars are specifically engineered to transport and distribute ballast materials such as crushed stone, gravel, and aggregate that form the foundation beneath railway tracks. The definition encompasses both the physical characteristics and functional capabilities that make these cars indispensable for railway construction and maintenance operations. Unlike standard freight cars designed for general cargo, ballast cars feature unique bottom-dump or side-dump mechanisms that allow precise placement of materials along track beds. Their robust construction enables them to withstand the demanding conditions of railway work sites while maintaining the structural integrity necessary for safe operation. Understanding what constitutes a ballast car involves recognizing their role as mobile material handlers that bridge the gap between quarries or supply depots and active construction zones, making them vital components in maintaining the extensive railway networks that support modern transportation infrastructure.
Specialized Railroad Freight Car Designed To Transport And Distribute Ballast
The fundamental purpose of a railroad ballast car extends far beyond simple material transportation. These specialized vehicles serve as mobile distribution platforms that enable precise placement of track ballast across extensive railway networks. Railway maintenance crews rely on these cars to deliver the exact quantities of crushed stone or gravel needed to maintain proper track geometry and drainage characteristics. The operational efficiency of ballast cars directly impacts the timeline and cost-effectiveness of railway construction projects, making them critical assets for contractors and railway operators alike.
Modern ballast distribution operations require equipment capable of handling varying terrain conditions and track configurations. These cars must navigate both mainline railways and temporary construction tracks while maintaining their load-carrying capacity and distribution accuracy. The specialized nature of their design allows operators to control material flow rates and placement patterns according to specific project requirements, whether supporting new track installation or conducting routine maintenance activities.
Material Types and Load Characteristics
Railway ballast materials encompass a range of aggregate types, each selected for specific engineering properties that contribute to track stability and longevity. Crushed granite, limestone, and trap rock represent the most common ballast materials transported by these specialized cars. The particle size distribution typically ranges from 25mm to 63mm, ensuring optimal drainage characteristics while providing adequate load-bearing capacity for heavy freight and passenger trains.
Load characteristics play a crucial role in ballast car design specifications. Standard cars accommodate between 70 to 100 cubic meters of material, with payload capacities reaching 70 to 80 metric tons depending on the specific aggregate density. The weight distribution must remain balanced to prevent derailment risks while maintaining adequate traction for the locomotive consist. Advanced loading systems ensure uniform material distribution within the car body, preventing load shifting during transit that could compromise operational safety.
Distinguishing Features from Standard Freight Cars
Several key design elements differentiate ballast cars from conventional freight rolling stock. The most notable distinction lies in their bottom-opening discharge systems, which replace traditional side doors or end gates found on standard cars. These discharge mechanisms incorporate hydraulically operated gates or pneumatically controlled chutes that enable precise material placement without requiring manual intervention from ground crews.
Structural reinforcements represent another critical distinguishing feature. Ballast cars incorporate heavier-duty underframes and reinforced side panels to withstand the abrasive nature of aggregate materials and the dynamic loading forces encountered during discharge operations. The car bodies feature sloped internal surfaces that facilitate complete material evacuation and prevent bridging or hang-ups that could compromise unloading efficiency. Additionally, specialized couplers and brake systems accommodate the unique operational requirements of ballast service, including frequent starts, stops, and slow-speed maneuvering in construction zones.
Structure
The structural foundation of every railroad ballast car begins with a robust underframe assembly designed to withstand exceptional loading stresses and operational demands. High-strength steel construction forms the backbone of these vehicles, utilizing advanced metallurgy that provides superior resistance to fatigue and impact damage. The center sill, side sills, and cross bearers work together to create a rigid platform capable of supporting concentrated loads while maintaining structural integrity during dynamic unloading operations.
Truck assemblies and suspension systems receive special attention in ballast car design. Heavy-duty journal bearings accommodate the increased axle loads associated with dense aggregate materials, while specialized spring packages provide enhanced ride quality and load distribution. The wheelsets incorporate hardened steel wheels designed to resist wear from frequent stops and starts typical of construction service. Advanced braking systems feature increased thermal capacity to handle the demanding duty cycles encountered in railway work zones.
Car Body Design and Material Specifications
The railroad ballast car's body represents the most distinctive structural element of railway ballast equipment. Welded steel construction utilizes high-tensile plates ranging from 6mm to 12mm in thickness, depending on the specific application requirements. The hopper-style configuration features sloped internal surfaces that promote complete material discharge while minimizing residual buildup that could affect subsequent loads.
Internal reinforcement strategies address the abrasive nature of ballast materials through the strategic placement of wear plates and impact-resistant linings. Stiffening ribs and structural bulkheads prevent shell deformation under load while maintaining the precise geometry necessary for effective discharge operations. The upper chord and compression members provide additional structural support during loading operations when material impact forces reach their peak values. Corrosion protection systems incorporate both primer and finish coatings specifically formulated for the harsh environmental conditions encountered in railway service.
Discharge System Integration
The integration of discharge mechanisms represents a critical structural consideration that influences the entire car design. Bottom-dump configurations require careful attention to gate mounting systems and actuator placement to ensure reliable operation under varying load conditions. Structural openings in the car floor must maintain adequate strength while providing unobstructed material flow paths.
Hydraulic and pneumatic system components receive protective housing to prevent damage from flying debris and environmental exposure. Piping runs and electrical conduits follow protected pathways that minimize maintenance requirements while ensuring system reliability. The discharge control systems incorporate redundant safety features that prevent accidental operation and ensure positive gate closure during transit operations. Structural mounting points for auxiliary equipment such as spreading plows and distribution chutes provide flexibility for specialized applications while maintaining the basic car integrity.
Unloading Design
The bottom-dump configuration represents the most prevalent unloading design for modern railroad ballast car applications. These systems utilize gravity-assisted discharge through multiple gate assemblies positioned along the car floor. Hydraulic cylinders provide the actuating force necessary to open and close the gates against the pressure of the loaded material. The gate design incorporates tapered sealing surfaces that ensure positive closure while minimizing leakage during transit operations.
Operational control systems allow precise regulation of material flow rates through variable gate opening positions. Operators can adjust discharge patterns to accommodate different spreading requirements, from narrow centerline placement to full-width distribution across the track structure. Electronic control systems provide remote operation capability, enabling single-person control of multiple car consists during large-scale ballasting operations. Safety interlocks prevent gate operation when the car is in motion, ensuring operational safety while maintaining productivity standards.
Side-Dump and Combination Systems
Alternative unloading configurations include side-dump mechanisms that provide enhanced placement accuracy for specialized applications. These systems utilize pivoting door assemblies or sliding panel configurations that direct material flow to specific areas adjacent to the track structure. Side-dump designs prove particularly effective for shoulder ballasting operations and situations requiring precise material placement without disturbing existing track geometry.
Combination systems incorporate both bottom and side discharge capabilities within a single car design. This versatility enables operators to select the most appropriate unloading method based on specific site conditions and project requirements. Advanced combination systems feature independent control of each discharge mode, allowing simultaneous or sequential operation depending on the application demands. The structural complexity of combination systems requires careful engineering to maintain car weight limits while providing reliable operation across the full range of discharge options.
Material Flow Control and Distribution
Precise material flow control represents a critical aspect of effective ballast car operation. Variable aperture gates enable operators to adjust discharge rates according to train speed and desired ballast thickness. Flow control systems incorporate feedback mechanisms that maintain consistent material placement despite variations in car loading or track conditions. Advanced systems utilize GPS positioning and automated controls to achieve precise material distribution according to predetermined engineering specifications.
Distribution patterns depend on gate configuration and auxiliary equipment integration. Spreading plows and deflector plates modify material flow patterns to achieve uniform distribution across the track structure. Adjustable chutes provide directional control for specialized applications such as switch point ballasting or platform edge work. The integration of material flow sensors enables real-time monitoring of discharge rates and remaining car capacity, supporting efficient fleet management and project scheduling. Quality control systems ensure consistent ballast gradation and placement density through automated monitoring and adjustment capabilities.
FAQ
①What materials can railroad ballast cars transport?
Railroad ballast cars primarily transport crushed stone, gravel, granite, limestone, and trap rock with particle sizes typically ranging from 25mm to 63mm. These materials provide optimal drainage and load-bearing characteristics for railway track foundations.
②How much ballast can a single car carry?
Standard ballast cars accommodate 70 to 100 cubic meters of material with payload capacities reaching 70 to 80 metric tons, depending on the specific aggregate density and car design specifications.
③What safety features do ballast cars include?
Modern ballast cars incorporate safety interlocks that prevent gate operation during train movement, redundant closure systems, and enhanced braking capacity designed for construction service duty cycles.
④How do operators control material discharge?
Operators use hydraulic or pneumatic control systems to regulate gate opening positions, enabling precise material flow rates and distribution patterns according to specific project requirements.

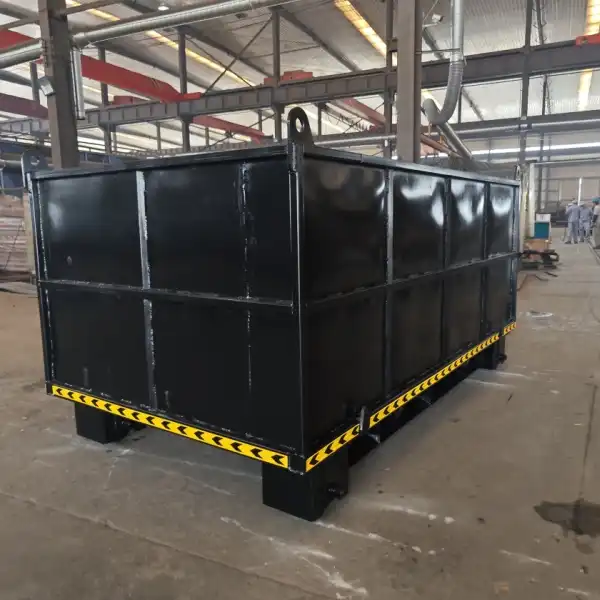

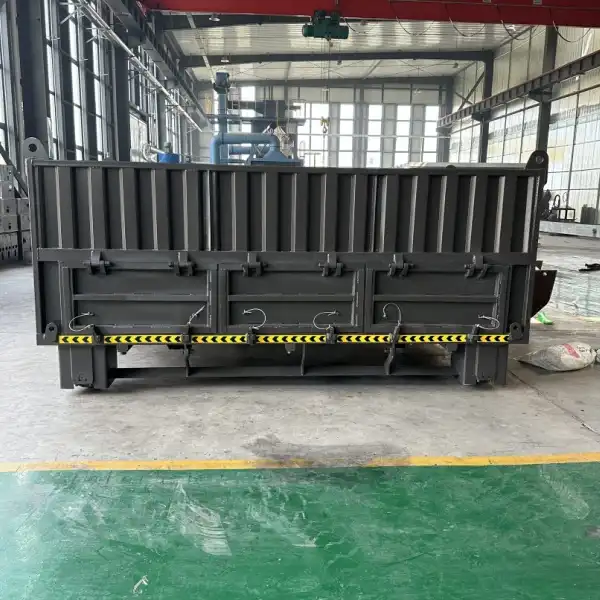

Tiannuo's ballast cars for sale exemplify these qualities. With a bucket capacity of 5.5m³, they offer substantial loading capabilities. Their dimensions of 3300mm in width, 1500mm in height, and 1850mm in depth provide a well-proportioned design that balances size and functionality. Constructed from high-strength steel, these ballast cars ensure durability and reliability. Their leakage method allows for the efficient discharge of ballast on both sides and at the bottom, enhancing operational flexibility and effectiveness.
To explore how Tiannuo's high-quality ballast car solutions can benefit your railway operations, contact our technical specialists at rich@stnd-machinery.com.
References
- American Railway Engineering and Maintenance-of-Way Association. "Manual for Railway Engineering Chapter 1: Roadway and Ballast." 2019 Edition.
- International Union of Railways. "Best Practice Guide for Optimum Track Geometry Durability." UIC Publication 719R, 2008.
- Transportation Research Board. "Track Structure Design, Construction, and Maintenance." National Academies Press, 2017.
- Federal Railroad Administration. "Track Safety Standards: Final Rule on Track Structure." Department of Transportation, 2016.
- Railway Technical Society. "Advanced Materials and Methods in Railway Track Construction." Journal of Railway Engineering, Volume 45, 2020.
