What does a railroad undercutter do?

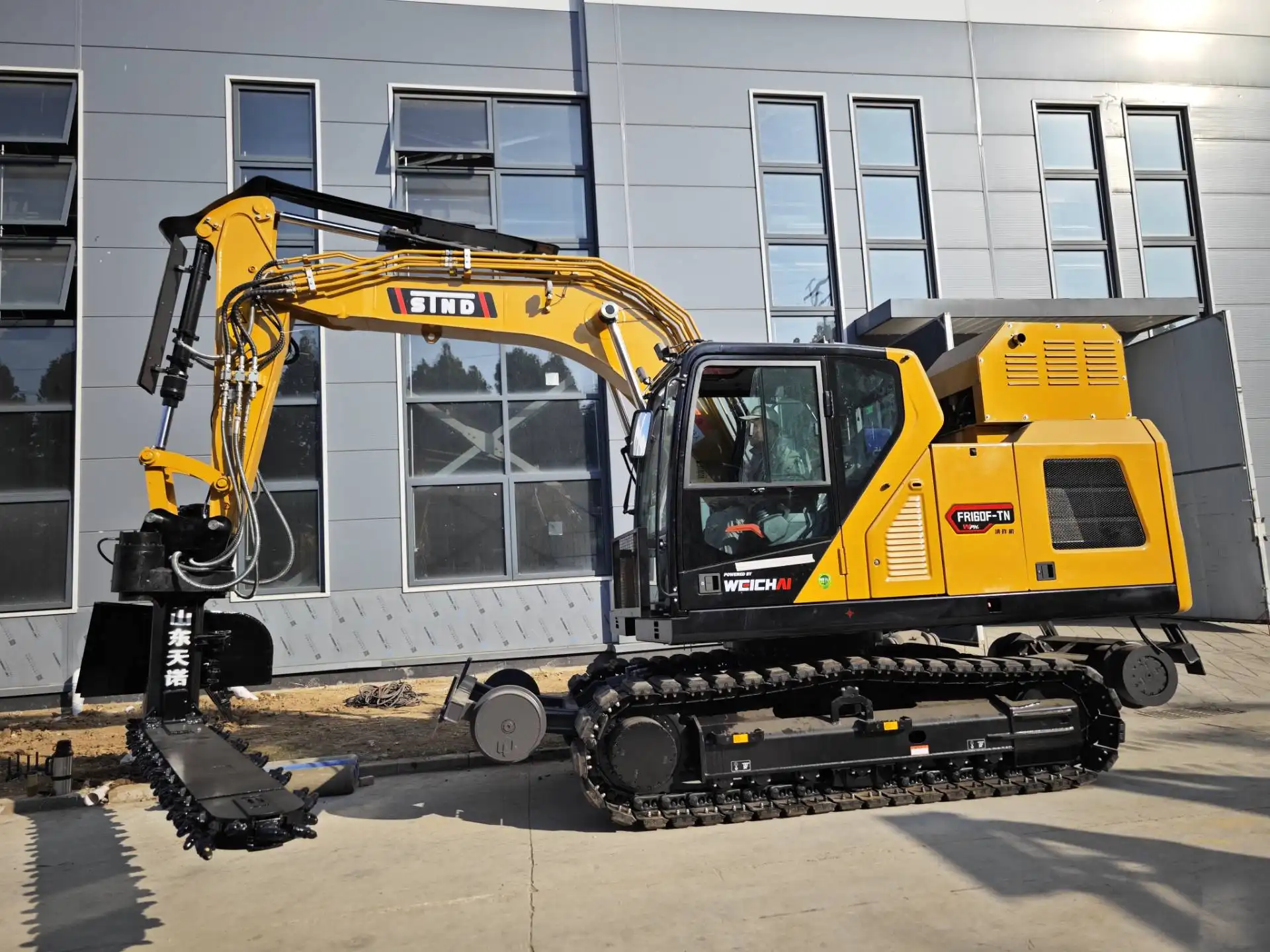

A railroad undercutter serves as a specialized maintenance machine designed to excavate and clean the ballast beneath railway tracks without disrupting the rail line itself. The rail-road ballast undercutter excavator performs the critical task of removing contaminated or compacted crushed stone from under sleepers, helping maintain track stability and proper drainage. Railway operators worldwide rely on these machines to extend track life, improve safety conditions, and reduce maintenance costs through targeted ballast cleaning rather than complete replacement.
Unlike traditional maintenance methods that require extensive track dismantling, modern undercutters work by sliding beneath the sleepers and using hydraulically powered cutting mechanisms to loosen fouled ballast. The excavated material gets transported away from the track area, allowing for either cleaning and reuse or replacement with fresh ballast. This process proves essential for maintaining the structural integrity of railway systems, as contaminated ballast loses its load-bearing capacity and drainage properties over time, potentially leading to track settlement and safety hazards.
Core Function: Ballast Maintenance
Understanding Ballast Deterioration
Railway ballast consists of carefully graded crushed stone that provides the foundation for track stability. Over years of operation, this ballast becomes contaminated with fine particles from wheel and rail wear, vegetation growth, and environmental debris. The contamination fills the voids between stones, reducing drainage capacity and compromising the ballast's ability to distribute loads effectively across the track structure.
Heavy train traffic gradually compacts the ballast, creating a phenomenon known as "ballast fouling." This fouling reduces the stone bed's elasticity and drainage properties, leading to water accumulation during rainfall. Standing water accelerates track deterioration, causes frost damage in cold climates, and creates unstable track conditions that require immediate attention from maintenance crews.
Targeted Ballast Removal
The rail-road ballast undercutter excavator addresses these issues through precise ballast removal beneath individual sleepers or track sections. Rather than replacing entire ballast beds, the undercutter selectively targets problem areas where fouling has reached critical levels. This approach allows railway operators to maintain track quality while minimizing disruption to train schedules and reducing material costs.
Modern undercutters can adjust their excavation depth based on ballast condition assessments, removing only the contaminated layers while preserving clean ballast underneath. This selective approach maximizes the useful life of existing ballast materials and reduces the environmental impact associated with complete ballast replacement projects.
Preserving Track Geometry
Maintaining proper track geometry requires consistent ballast support beneath each sleeper. Uneven ballast distribution or contamination creates soft spots that allow track settlement under train loads. The undercutter's ability to work beneath individual sleepers enables maintenance crews to address geometry issues before they become safety concerns.
By maintaining uniform ballast support, undercutters help preserve the precise track alignment required for safe train operation at design speeds. This preventive maintenance approach reduces the need for emergency track repairs and helps railway operators maintain their published timetables without service interruptions.
How It Works: Mechanism and Operation
Hydraulic Cutting Systems

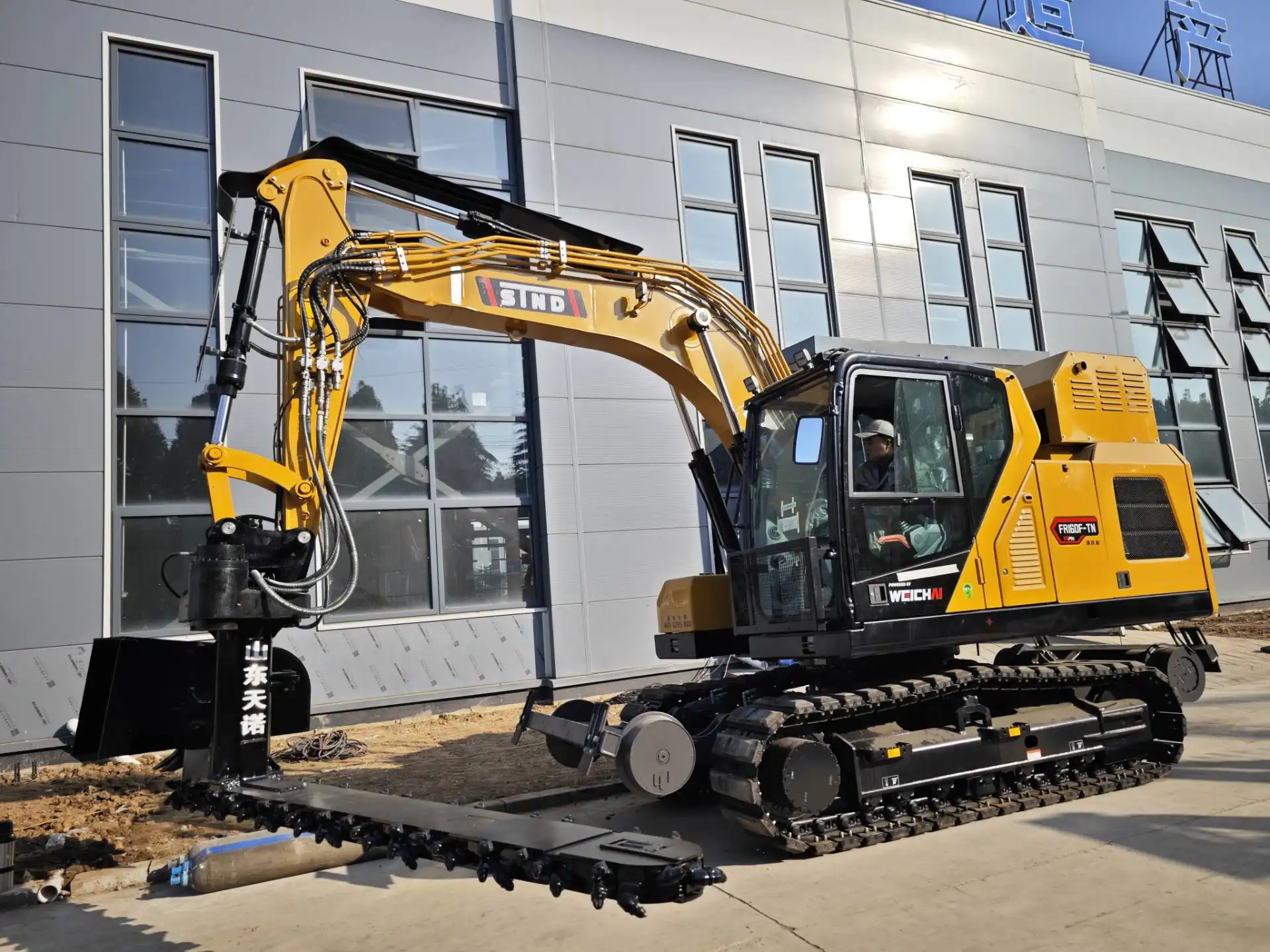

The operational heart of any rail-road ballast undercutter excavator lies in its hydraulic cutting system. These systems typically employ rotating chains or blade mechanisms that slice through compacted ballast using controlled hydraulic pressure. The cutting action breaks up fouled ballast while avoiding damage to sleepers, fasteners, or rail infrastructure.
Hydraulic power provides the precise control needed for undercutting operations. Operators can adjust cutting speed, penetration depth, and lateral movement to match specific track conditions and ballast types. Advanced systems include automatic depth control that maintains consistent excavation levels even when working over irregular terrain or varying ballast depths.
Side-Cutting Approach
Most modern undercutters employ a side-cutting methodology where the cutting mechanism approaches the track from one side and slides beneath the sleepers horizontally. This approach minimizes the need to lift or disturb the track structure while providing access to the ballast bed underneath.
The side-cutting technique allows continuous operation along extended track sections without repeated setup and positioning. As the undercutter moves forward, the cutting mechanism automatically adjusts to maintain proper depth and lateral positioning relative to the sleepers. This continuous operation significantly reduces the time required for ballast maintenance compared to traditional point-by-point methods.
Material Handling and Transport
Excavated ballast requires immediate removal from the cutting area to prevent interference with ongoing operations. Modern undercutters incorporate conveyor systems or pneumatic transport mechanisms that move loosened ballast away from the track structure. These systems can direct material to either side of the track depending on site conditions and disposal requirements.
Some advanced units include ballast screening capabilities that separate clean stone from contaminated material during the excavation process. This real-time separation allows immediate reuse of clean ballast while directing fouled material to appropriate disposal or cleaning facilities. The efficiency of material handling systems directly impacts overall productivity and determines how quickly track sections can return to service.
Key Benefits for Railway Maintenance
Operational Efficiency and Cost Reduction
Railway operators experience substantial cost savings when using rail-road ballast undercutter excavators compared to traditional ballast replacement methods. Undercutting eliminates the need for complete track reconstruction, reducing material costs by up to 60% in many applications. The targeted approach means less new ballast purchasing while extending the useful life of existing materials through selective cleaning and replacement.
Track possession time represents another significant cost factor in railway maintenance. Undercutters can complete ballast maintenance during standard maintenance windows without requiring extended track closures. This efficiency helps operators maintain service reliability while addressing infrastructure needs during scheduled downtime rather than emergency repairs.
Labor requirements decrease substantially when using mechanized undercutting equipment. Traditional ballast replacement requires large crews for manual excavation, material handling, and track reconstruction. Undercutters typically operate with minimal crew requirements, reducing labor costs and improving workplace safety by eliminating much of the manual handling associated with ballast maintenance.
Enhanced Safety and Track Performance
Proper ballast maintenance through undercutting directly contributes to railway safety by maintaining stable track geometry and adequate drainage. Clean ballast provides consistent support for track loads, reducing the risk of track buckling, rail breaks, or geometry defects that could lead to derailments or service disruptions.
Improved drainage resulting from clean ballast reduces water-related track problems including frost heave, subgrade softening, and accelerated component deterioration. Water that drains quickly through clean ballast doesn't accumulate to cause track instability or create conditions favorable to vegetation growth that could interfere with track maintenance access.
Regular undercutting maintenance allows railway operators to identify and address track problems before they become safety hazards. The detailed access provided during undercutting operations enables inspection of sleeper condition, fastener integrity, and subgrade stability that might not be visible during routine track inspections.
Environmental Sustainability
Environmental benefits represent an increasingly important consideration in railway maintenance planning. Undercutting operations support sustainability goals by maximizing the useful life of existing ballast materials rather than requiring complete replacement with newly quarried stone. This approach reduces the environmental impact associated with quarrying operations and transportation of new materials to maintenance sites.
Ballast cleaning and reuse capabilities integrated into modern undercutters enable circular economy approaches to track maintenance. Contaminated ballast can be processed on-site or at nearby facilities to remove fine particles and organic matter, returning cleaned stone to service rather than disposal. This process reduces waste generation while providing cost-effective ballast for future maintenance projects.
Reduced track possession requirements mean fewer service disruptions that could force passengers or freight onto less environmentally friendly transportation modes. Maintaining railway service reliability through efficient maintenance supports broader transportation sustainability goals by keeping traffic on the most energy-efficient transportation mode for both passenger and freight applications.
FAQ
①How deep can a railroad undercutter excavate?
Modern rail-road ballast undercutter excavators can typically excavate to depths of 800mm or more beneath the sleeper base. The exact depth depends on track configuration, ballast conditions, and equipment specifications. Operators adjust excavation depth based on contamination levels and maintenance objectives.
②Can undercutters work on different rail gauges?
Yes, undercutters can be configured for various rail gauges including standard gauge (1435mm) and narrow gauge systems. Equipment manufacturers offer customizable designs to match specific track configurations and operational requirements in different railway systems worldwide.
③How fast do undercutters operate?
Operating speeds typically range from 0.5 to 1.2 km/h depending on ballast conditions, excavation depth, and track configuration. Speed adjustments allow operators to optimize productivity while maintaining excavation quality and avoiding damage to track infrastructure.
④Do undercutters require special training to operate?
Operators need specialized training in both excavator operation and railway safety procedures. Most manufacturers provide training programs covering equipment operation, maintenance procedures, and safety protocols specific to railway work environments.
⑤How often should ballast undercutting be performed?
Undercutting frequency depends on traffic volume, environmental conditions, and ballast quality. High-traffic lines may require undercutting every 5-10 years, while lighter-use tracks might extend intervals to 15-20 years. Regular track inspections help determine optimal maintenance timing.
TianNuo Machinery's rail-road ballast undercutter excavator represents an essential tool in modern railway maintenance, providing efficient and cost-effective solutions for maintaining track stability and safety. Railway operators seeking to optimize their maintenance programs should consider the substantial benefits these machines offer in terms of operational efficiency, safety improvements, and environmental sustainability. For detailed information about customizable undercutter solutions that can be tailored to your specific railway maintenance requirements, please contact us at arm@stnd-machinery.com.
