What materials is the rail-road ballast undercutter excavator made of?

Railroad ballast undercutter excavators are primarily constructed using high-strength steel and wear-resistant alloys. These specialized machines, crucial for railway maintenance, incorporate a blend of materials designed to withstand the rigorous demands of ballast excavation and cleaning. The combination of robust steel frames, hardened cutting edges, and advanced composite materials ensures optimal performance in challenging rail environments. Let's delve into the key materials that make these powerful machines so effective in maintaining our railway infrastructure.

Key materials in undercutter design: High-strength steel & wear-resistant alloys

Steel grades for optimal strength-to-weight ratio

The backbone of any rail-road ballast undercutter excavator is its steel framework. Manufacturers carefully select high-strength steel grades that offer an ideal balance between durability and weight. These steels typically include alloys such as ASTM A572 Grade 50 or equivalent, known for their excellent strength-to-weight ratio. This characteristic is crucial for undercutters, as it allows for a robust machine that can withstand the stresses of ballast excavation without becoming too heavy for rail transport.

The use of advanced high-strength steels (AHSS) has become increasingly common in modern undercutter designs. These steels, with yield strengths exceeding 550 MPa, provide enhanced structural integrity while allowing for weight reduction. This translates to improved fuel efficiency and reduced track wear during operation and transportation of the undercutter.

Wear-resistant alloys for critical components

The cutting edges and excavation components of ballast undercutters face extreme abrasion and impact forces. To combat this, manufacturers employ wear-resistant alloys such as manganese steel or chromium-molybdenum alloys. These materials exhibit exceptional hardness and toughness, significantly extending the lifespan of critical parts.

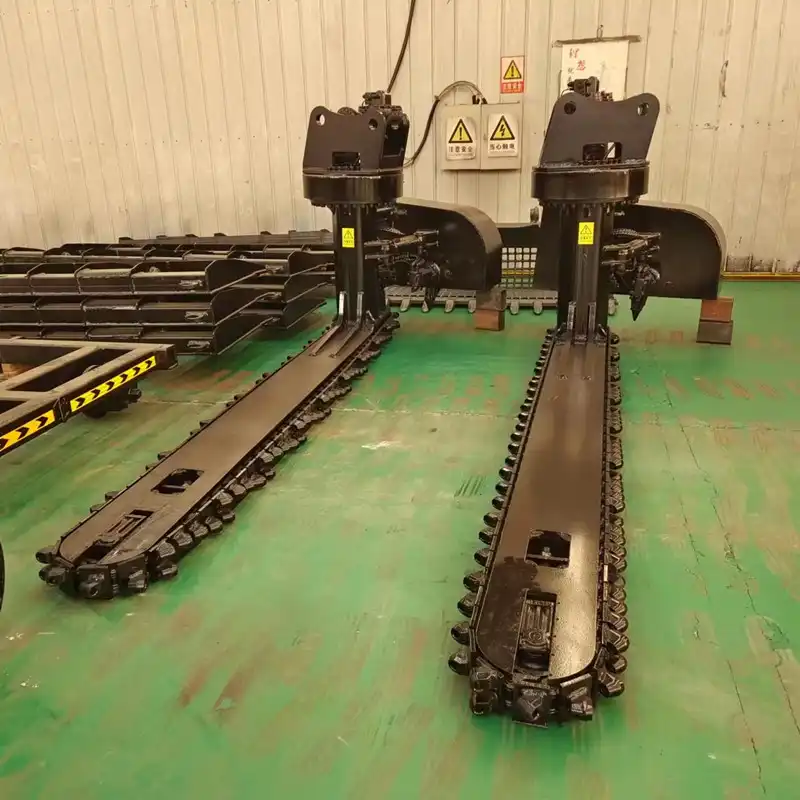

For instance, the cutting chain, which directly contacts the ballast, often utilizes manganese steel links with hardness values exceeding 500 HBW (Brinell hardness). This ensures that the chain maintains its integrity even when dealing with coarse, angular ballast materials. Similarly, the buckets or scoops that collect and transport the excavated ballast are typically lined with abrasion-resistant plates made from materials like Hardox or equivalent, offering up to 600 HBW hardness.

Composite materials for enhanced performance

While steel and alloys form the core of undercutter construction, composite materials play an increasingly important role in enhancing performance. Fiber-reinforced polymers (FRP) are utilized in non-load-bearing components to reduce weight without compromising strength. These materials find application in areas such as control cabins, protective covers, and even in some conveyor systems.

Advanced composites, such as carbon fiber-reinforced polymers (CFRP), are being explored for use in boom structures and excavation arms. Their high strength-to-weight ratio and excellent fatigue resistance make them attractive alternatives to traditional steel components, potentially revolutionizing undercutter design in the coming years.

Durability Test: Material Choice Affects Longevity

Fatigue resistance of high-strength steels

The longevity of rail-road ballast undercutter excavators heavily depends on the fatigue resistance of their primary structural materials. High-strength steels used in these machines undergo rigorous fatigue testing to ensure they can withstand the cyclic loading experienced during operation. Manufacturers often employ techniques such as shot peening to improve the fatigue life of critical components.

Studies have shown that high-strength steels with carefully controlled microstructures can achieve fatigue limits exceeding 400 MPa. This translates to undercutters that can operate for thousands of hours without significant structural degradation. The use of advanced finite element analysis (FEA) during the design phase helps identify potential stress concentration points, allowing engineers to optimize material distribution and further enhance fatigue resistance.

Corrosion protection for extended service life

Given the harsh operating conditions of ballast undercutters, corrosion protection is paramount for ensuring long-term durability. Manufacturers employ various strategies to shield the machine's components from corrosive elements. Hot-dip galvanization is commonly used for large steel structures, providing a zinc coating that offers both barrier and cathodic protection.

For more specialized components, advanced coating systems are applied. These may include zinc-rich epoxy primers followed by polyurethane topcoats, offering excellent corrosion resistance and UV stability. Some manufacturers are also exploring the use of thermal-sprayed aluminum (TSA) coatings, which can provide superior long-term protection in particularly aggressive environments.

Impact of material selection on maintenance intervals

The choice of materials directly influences the maintenance requirements of ballast undercutters. By utilizing high-performance alloys and composites, manufacturers can significantly extend the intervals between major maintenance operations. For example, the use of self-lubricating bearings made from advanced polymer composites can reduce the frequency of lubrication and potentially eliminate certain maintenance tasks altogether.

Moreover, the implementation of modular designs with easily replaceable wear components allows for quick and efficient maintenance. This approach, combined with the use of highly wear-resistant materials, can reduce downtime and increase the overall operational efficiency of the undercutter fleet.

Innovations in materials: Future of undercutter technology

Nanotechnology in ballast undercutter materials

The integration of nanotechnology in material science is opening new frontiers for rail-road ballast undercutter excavators. Nanostructured materials, such as nanocrystalline steels, offer unprecedented combinations of strength and toughness. These materials could potentially revolutionize the construction of cutting edges and wear surfaces, providing exceptional durability in a lighter package.

Nanomaterials are also being explored for their potential in creating self-healing coatings. These advanced coatings could automatically repair minor damage, significantly extending the service life of undercutter components exposed to harsh conditions. The incorporation of carbon nanotubes into composite materials is another area of research, promising to enhance the strength and conductivity of non-metallic parts used in undercutter construction.

Smart materials for self-monitoring undercutters

The future of ballast undercutter technology may lie in the development of smart materials capable of self-monitoring and adapting to changing conditions. Piezoelectric materials embedded in critical components could provide real-time stress and strain data, allowing for predictive maintenance and optimized operation. Shape memory alloys (SMAs) are being investigated for their potential in creating adaptive structures that can change shape or stiffness in response to varying loads or temperatures.

Moreover, the integration of fiber optic sensors into composite structures offers the possibility of continuous health monitoring. This technology could enable undercutters to detect and report potential issues before they lead to failures, dramatically improving safety and reliability in railway maintenance operations.

Eco-friendly materials in sustainable undercutter design

As environmental concerns become increasingly prominent, the rail industry is exploring more sustainable materials for undercutter construction. Bio-based composites, derived from renewable resources, are being developed as alternatives to traditional petroleum-based polymers. These materials could find applications in non-structural components, reducing the overall environmental impact of undercutter manufacturing.

Recycled materials are also gaining traction in undercutter design. Advanced metallurgical processes now allow for the production of high-quality steels from recycled scrap, reducing the need for virgin raw materials. Some manufacturers are experimenting with the use of recycled rubber from discarded tires in vibration-dampening components, further contributing to the circular economy.

The materials used in rail-road ballast undercutter excavators represent a culmination of advanced engineering and materials science. From high-strength steels to wear-resistant alloys and innovative composites, each component is carefully selected to ensure optimal performance and longevity. As technology continues to evolve, we can expect even more sophisticated materials to enhance the efficiency, durability, and sustainability of these crucial machines in railway maintenance. The future of undercutter technology looks promising, with smart materials and eco-friendly options paving the way for more advanced and environmentally conscious railway infrastructure management.

FAQ

1. How often do the wear-resistant components of a ballast undercutter need replacement?

The replacement frequency varies depending on usage and conditions, but typically, high-wear components like cutting edges may need replacement every 500-1000 hours of operation. However, with advanced materials, some parts can last up to 2000 hours or more.

2. Are there any new materials being considered for ballast undercutter blades?

Yes, researchers are exploring ceramic-metal composites (cermets) and ultra-high-molecular-weight polyethylene (UHMWPE) for blade applications. These materials promise extended wear resistance and reduced friction during operation.

3. How does the weight of modern undercutters compare to older models due to new materials?

Modern undercutters can be up to 20% lighter than older models of similar capacity, thanks to the use of high-strength steels and composite materials. This reduction in weight improves fuel efficiency and reduces track wear.

4. Can the materials used in ballast undercutters withstand extreme temperatures?

Yes, the materials are selected to perform in a wide range of temperatures. High-grade steels and special alloys used in undercutters can typically operate effectively from -40°C to +60°C (-40°F to 140°F).

5. Are there any special considerations for undercutter materials in coastal or high-humidity environments?

In coastal or high-humidity environments, manufacturers often use marine-grade stainless steels or apply specialized anti-corrosion coatings to protect against salt-induced corrosion. Additionally, sealed bearings and moisture-resistant composites are employed to prevent water ingress.
