When to Use a Ballast Scraper?
Railway track centers—the narrow, high-traffic area between rails—are the backbone of line stability, but they’re also a magnet for ballast buildup, debris, and uneven stone accumulation. Left unaddressed, excess track-center ballast clogs drainage, reduces track elasticity, and even risks rail misalignment. Yet traditional cleaning methods (manual shoveling, basic tools) struggle to reach tight spaces, adapt to diverse sleeper types, or work within tight maintenance “skylight” windows. That’s where TIANNUO Machinery’s Ballast Scraper steps in: a specialized tool engineered to solve track-center pain points. Let’s break down the critical scenarios where this attachment isn’t just helpful—it’s non-negotiable.
Scenario 1: When Track Centers Need Precision Cleaning (For Type II/III & Bridge Sleepers)
Not all sleepers are created equal: Type II, Type III, and bridge sleepers (common in high-speed or heavy-haul lines) have unique spacing and structural needs, making generic tools ineffective. If you’re maintaining tracks with these sleeper types, the TIANNUO Ballast Scraper is tailored for the job. Its design explicitly supports Type II/III and bridge sleepers, with a 1435mm standard track gauge (and customizable options for non-standard lines) that fits snugly between rails without damaging sleeper edges. For example, the TNDXGZ75 model (2800mm width) navigates the compact gaps of bridge sleepers, while the TNDJGZ75 (3400mm width) covers the wider spans of Type III sleepers—both ensure no corner of the track center is left uncleaned. Unlike manual teams (which take 2–3 hours per 100m of track), the scraper cuts this time to 30 minutes or less, making it ideal for busy lines where downtime is costly.
Scenario 2: When On-Site Conditions Demand Adjustable Angle Control
Track-center terrain is rarely uniform: ballast may pile higher on one side, or sleeper heights may vary slightly. In these cases, a one-size-fits-all tool will leave uneven cleanup. The TIANNUO Ballast Scraper’s 30° adjustable tilt angle solves this: operators can tweak the angle mid-job to match ballast depth, sleeper elevation, or even weather-related buildup (e.g., wet, compacted stone). For instance, if a section of track has ballast packed 5cm higher on the right side, the scraper’s tilt can be adjusted to scoop excess material without disturbing properly placed stone. This adaptability eliminates the need for rework—a major win when working within tight maintenance
Scenario 3: When You Need to Pair Tools for Fast, Efficient Workflows

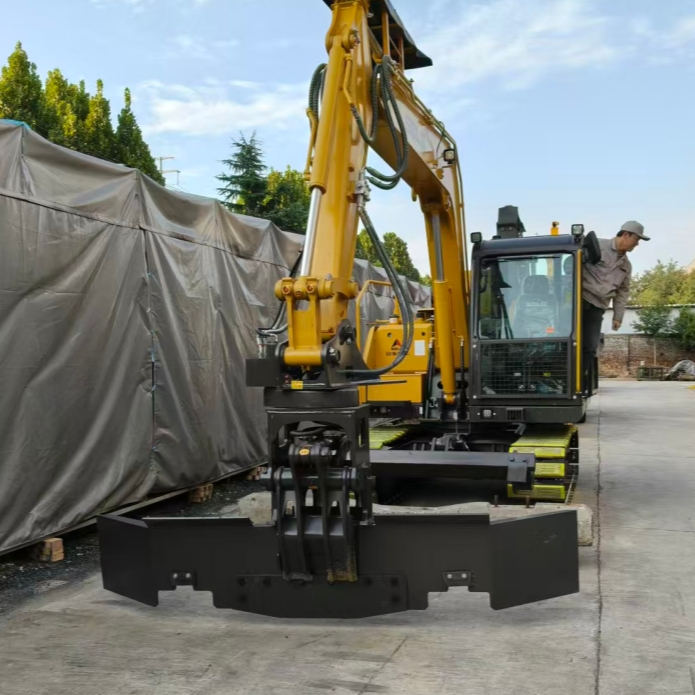

If you’re already using sleeper clamps (a staple in track maintenance), the TIANNUO Ballast Scraper integrates seamlessly with this equipment. Unlike standalone tools that require separate setup, the scraper is designed to pair directly with sleeper clamps, turning two discrete tasks (sleeper stabilization + ballast cleaning) into a single, streamlined process. For example: when resecuring Type II sleepers with clamps, the scraper can simultaneously clear excess ballast from the surrounding area—cutting labor requirements by 50% (from 4 workers to 2) and reducing equipment mobilization time. Its lightweight build (245kg for TNDXGZ75; 350kg for TNDJGZ75) also means it won’t overburden your railway excavator, keeping operation smooth and fuel-efficient.
Scenario 4: When You Need a Tool That Fits Tight Transport & Storage Constraints
Maintenance teams often juggle multiple tools across job sites, so equipment size and portability matter. The TIANNUO Ballast Scraper’s compact packing dimensions (e.g., 2800560460mm for TNDXGZ75) make it easy to transport in standard work vehicles, no specialized trailers required. Its modular design also means it can be disassembled for storage in small maintenance yards—critical for teams with limited on-site space. For regional rail operators that service multiple lines across remote areas, this portability turns a bulky tool into a deployable solution that can be moved between sites in hours, not days.
In the world of railway maintenance, track-center cleaning is often overlooked—until a problem arises. The TIANNUO Ballast Scraper turns this high-stakes, low-efficiency task into a precise, fast, and adaptable process. Whether you’re tending to Type III sleepers on a heavy-haul line, adjusting for uneven ballast on a bridge, or pairing with sleeper clamps for streamlined workflows, this tool ensures your track centers stay clean, stable, and ready for service.
