Can’t Reach Deep Dredging & Demolition? Try Our Custom Long Reach Boom
Deep excavation, river dredging, slope grading and long-distance material handling often push a standard excavator boom beyond its working range. Repositioning the carrier wastes time, while moving too close to water, unstable slopes or demolition zones can restrict safe and efficient operation. A properly matched Long Reach Boom for Excavator extends both horizontal reach and digging depth, allowing the existing carrier to handle specialized work from a more practical position.
As a source manufacturer of excavator booms and modification solutions, STND Machinery supplies factory-built long reach systems with project-specific length, structure, hydraulic piping and mounting dimensions.
What Is a Long Reach Boom for Excavator?

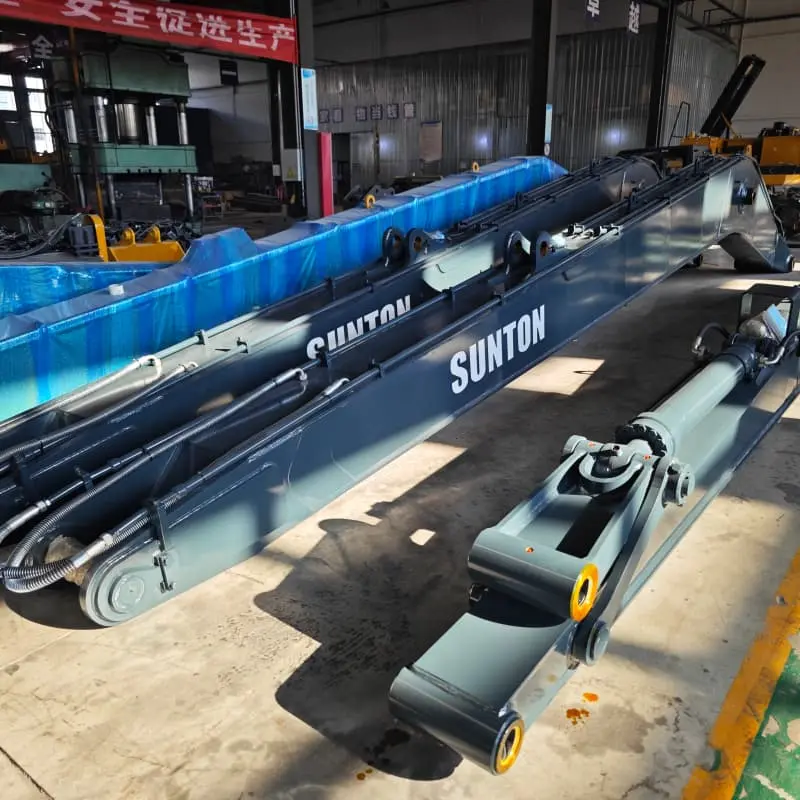

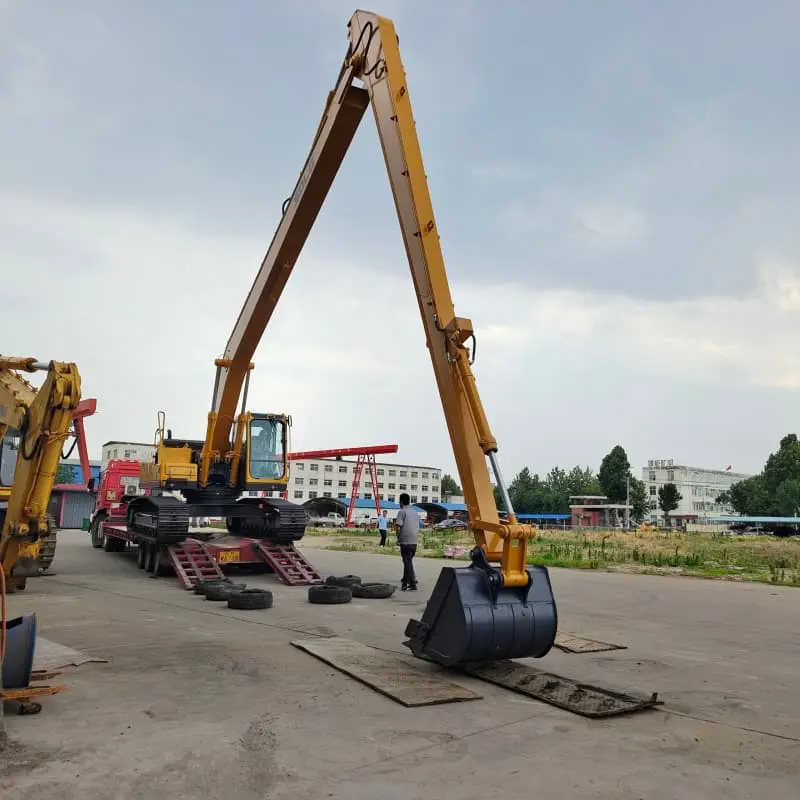

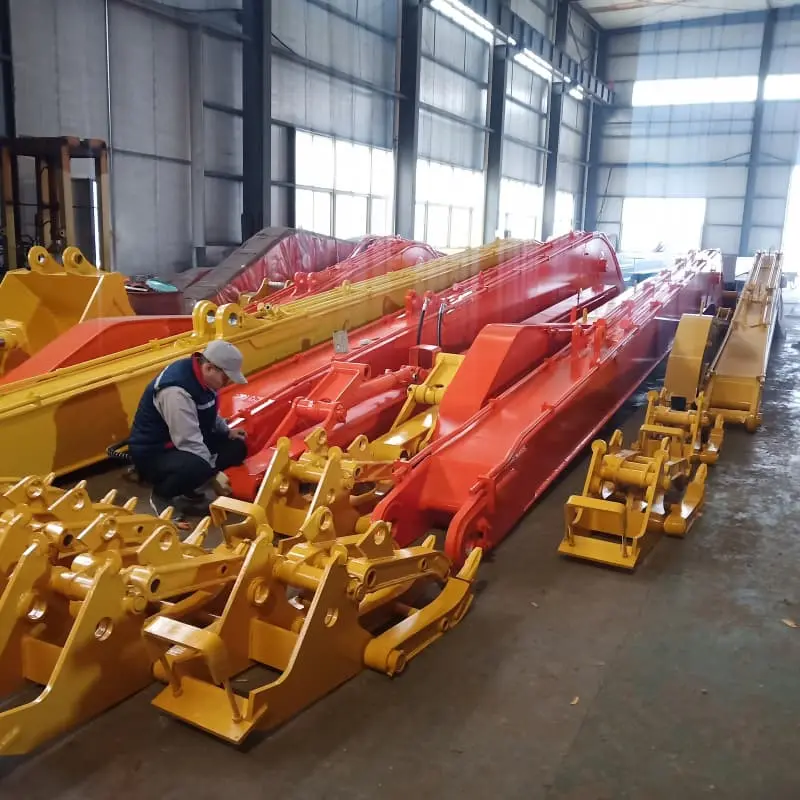

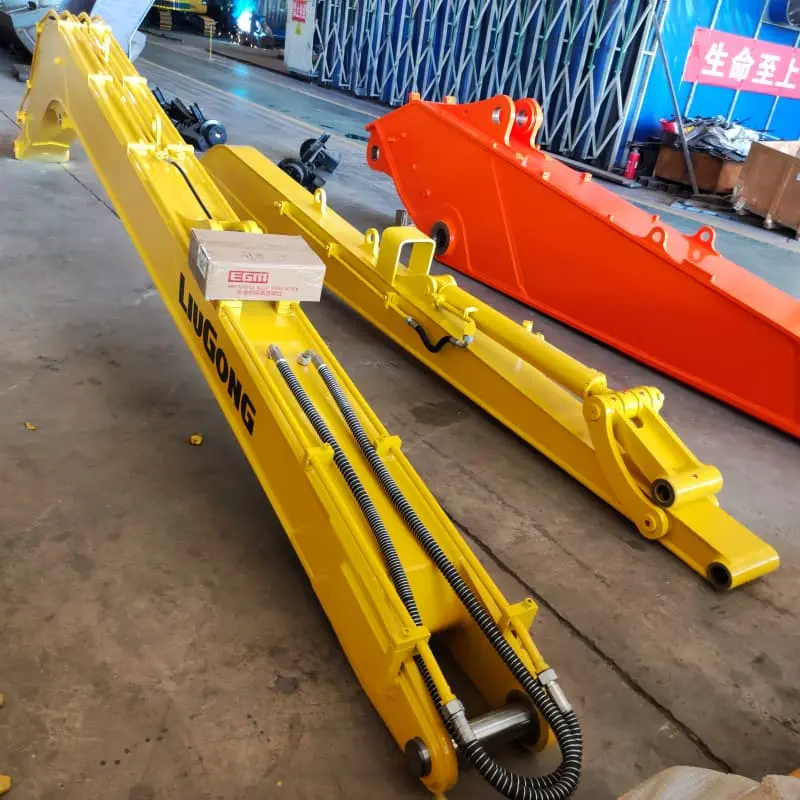

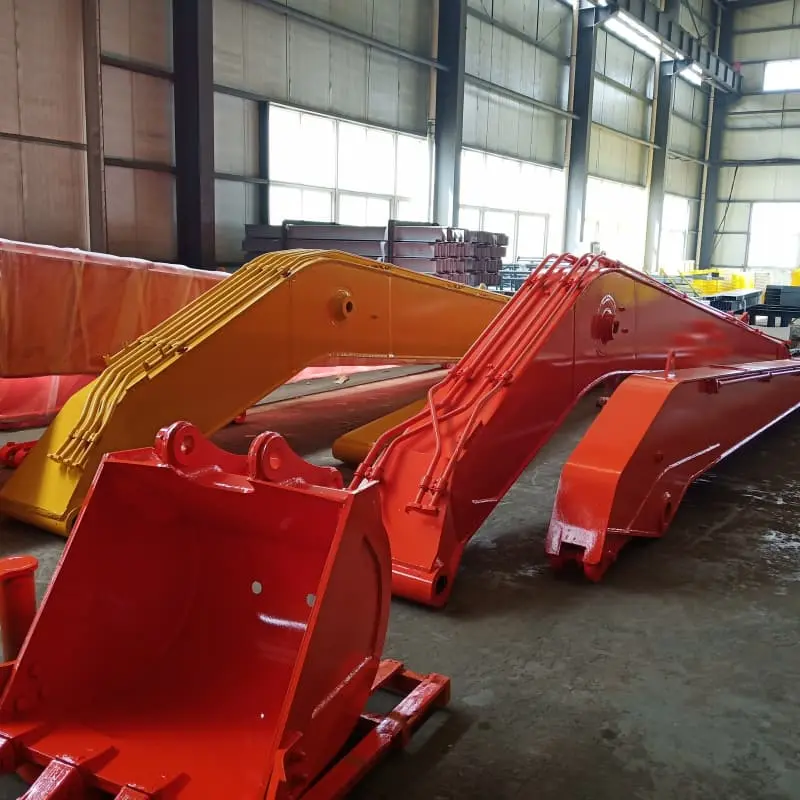

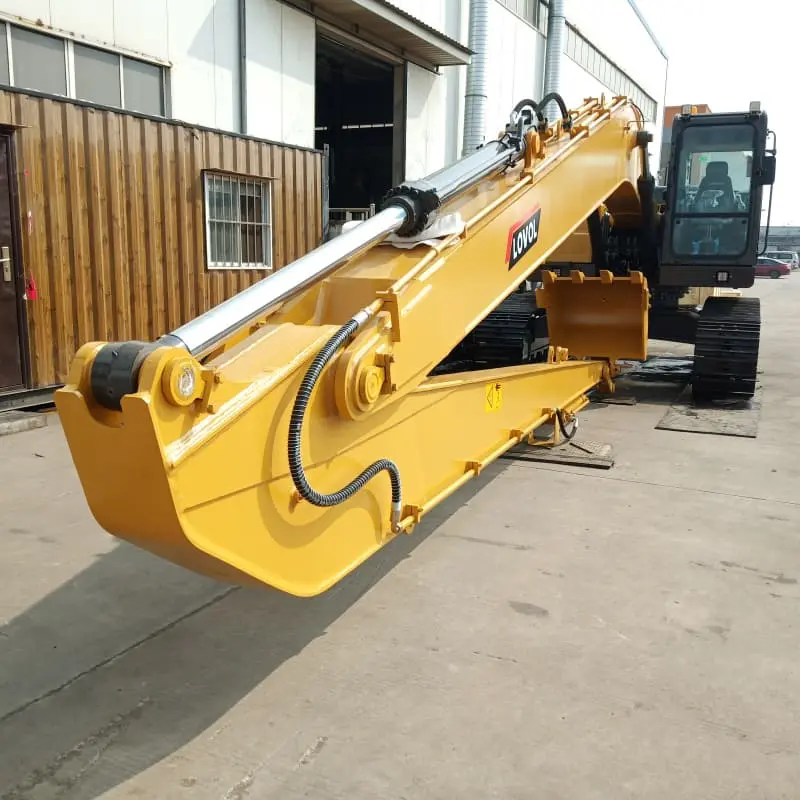

A Long Reach Boom for Excavator is a heavy-duty boom-and-arm system designed to replace the standard front attachment and increase the excavator’s working envelope. A complete set can include the main boom, arm, bucket or other working tool, linkage, pins, hydraulic piping and an optional counterweight. The final combination must balance reach, digging force, bucket capacity and carrier stability rather than simply maximize boom length.
Key Advantages of STND Excavator Long Reach Booms
STND long reach boom systems are engineered around structural strength, carrier compatibility and jobsite practicality:
1. Q460 or Q690 High-Strength Steel Structure
The boom structure uses Q460 or Q690 steel plates processed by CNC plasma cutting and stress-relief welding. Reinforcement is concentrated at critical load areas to support demanding excavation, dredging and grading work while controlling unnecessary structural weight.
2. Project-Matched Reach and Working Geometry
Available lengths range from 12 to 26 meters for 10–70 ton excavators. Boom curvature, arm length, bucket capacity and optional counterweight are selected as one operating system, helping the CAT carrier achieve the required reach without treating the longest configuration as the automatic best choice.
3. Reinforced Pins, Bushings and Hydraulic Routing
Oversized hardened pins and wear-resistant bushings improve connection durability and help reduce maintenance downtime. Hydraulic pipes are routed precisely and protected with wear sleeves to support stable operation over the extended boom geometry.
4. Modular Delivery and Custom Installation Support
The long reach system can be manufactured in modular sections for easier transportation and on-site assembly. STND can customize connection dimensions, working tools, color and logo, and provide installation guidance according to the excavator model and project requirements.
Reference Configurations from the Product Range
Excavator Class | Published Boom Length | Published Max. Digging Radius |
20–25 t | 16–18 m | 15.3–17.3 m |
30–36 t | 18–22 m | 17.3–21.02 m |
40–47 t | 20–24 m | 19.2–23.02 m |
The published product table also lists maximum digging depths from 11.2 to 16.5 meters across these reference configurations. Actual reach, depth, digging force, bucket size and counterweight depend on the selected carrier and final boom geometry.
Main Applications of Excavator Long Reach Booms
The extended working envelope supports projects where distance, depth or restricted access limits a standard boom:
Deep excavation: Dig trenches, ponds, lagoons and foundations without repeatedly moving the excavator closer to the edge.
Marine and dredging work: Maintain riverbanks, clean canals and handle dock construction from shore where the required reach is available.
Slope grading: Trim embankments and shape long slopes from a controlled carrier position.
Controlled demolition: Reach elevated or set-back work areas while maintaining the project’s required operating distance.
Environmental remediation: Access contaminated or difficult ground while reducing unnecessary carrier entry into the work zone.
Tips for Choosing the Right Long Reach Boom
First, provide the exact excavator model, operating weight and original front-end dimensions. Second, define the required horizontal reach, digging depth, working height and material density. Third, confirm the intended bucket or tool, expected load, hydraulic requirements and transport limits. Finally, review whether an additional counterweight is required for the selected geometry.
A longer boom reduces available digging force and allowable bucket capacity, so selection should be based on the real working envelope and material—not length alone. STND’s technical team can prepare a one-to-one matching proposal from your carrier data, site photos and operating target.
Why Choose STND Machinery for Excavator Boom Solutions?
Shandong Tiannuo Construction Machinery Co., Ltd. was founded in 2014 and specializes in excavator modification, custom engineering arms, railway maintenance equipment and hydraulic attachments. Its core technical team has more than ten years of retrofitting experience.
Every Long Reach Boom for CAT Excavator follows a controlled process covering material selection, cutting, welding, inspection and delivery. Buyers can also review the verified Tiannuo company profile and one-to-one customization process for more information about engineering and service support.
The Long Reach Boom for CAT Excavator is now available for sale, with customization based on carrier model, required reach, digging depth, working tool, material density and transport conditions. Please contact us for the latest catalog, quotation, matching proposal and product video. Shandong Tiannuo Construction Machinery Co., Ltd. is located at No.369, Hard Innovation Industrial Park, Deyuan Road, Yanzhou District, Jining City, Shandong Province. Visit www.stnd-machinery.com or contact us by email at arm@stnd-machinery.com for more information about the Long Reach Boom for CAT Excavator.
