Excavator Rail Handler Attachment: Fast Rail Replacement for 1435mm/1520mm/1000mm Gauges
Rail maintenance, especially segmental rail replacement during short “skylight” windows, requires high-efficiency, reliable attachments. Traditional manual methods are slow and risky.

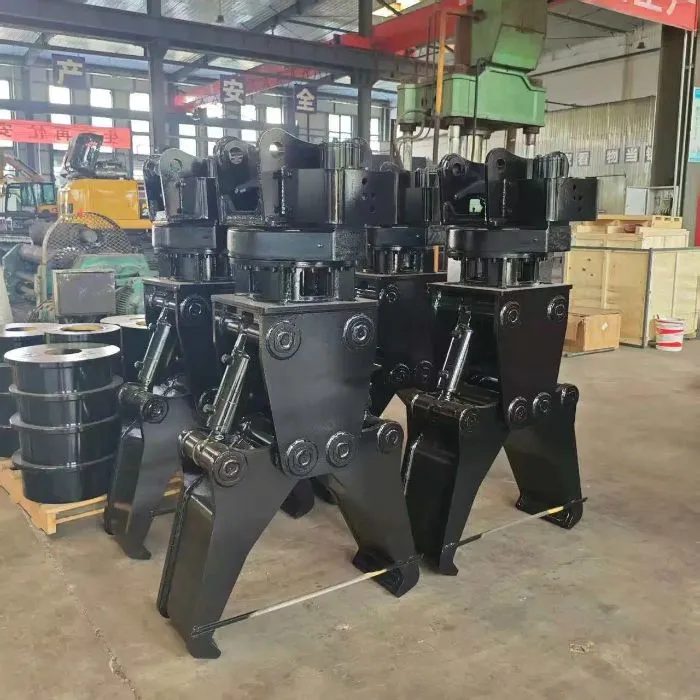

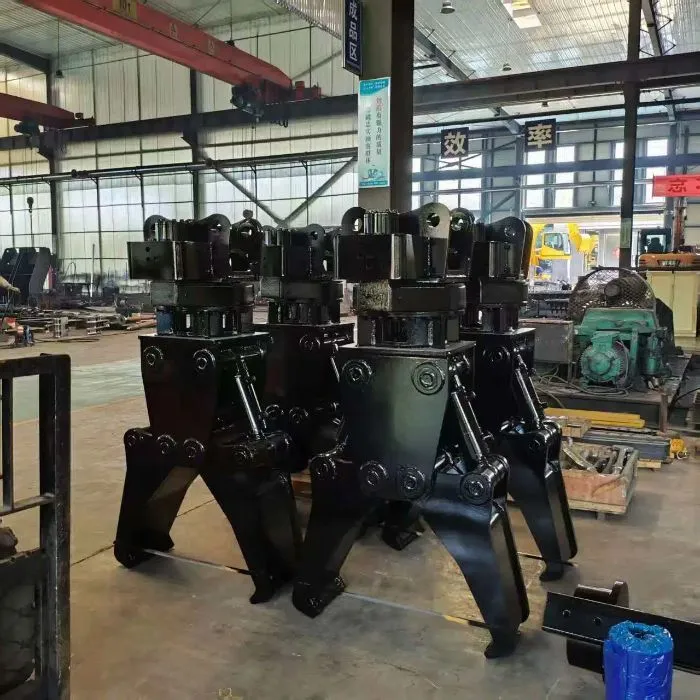

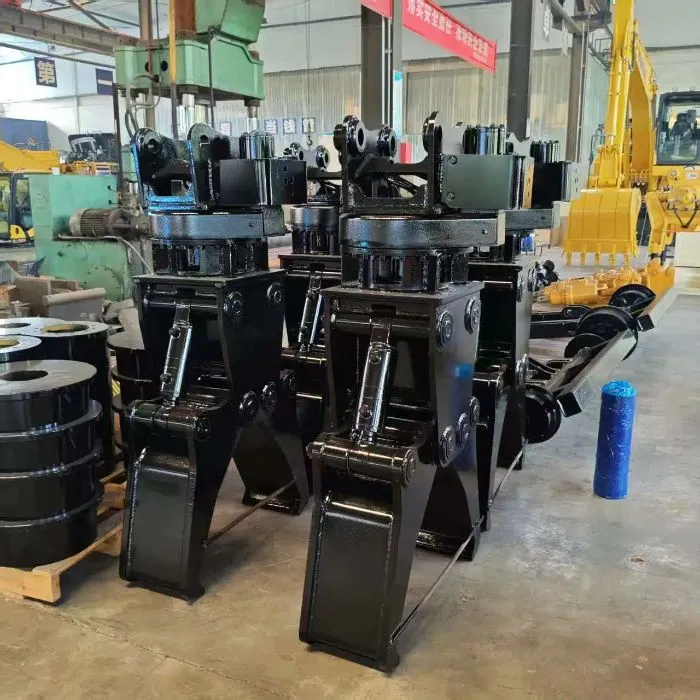

Shandong Tiannuo Construction Machinery Co., Ltd. (STND) offers a hydraulic rail handler attachment for excavators – designed to clamp, lift, and replace rail sections quickly under demanding track conditions.
This rail handler is not a one-size-fits-all tool. It is engineered for three major rail gauges:
1435mm (standard gauge)
1520mm (wide gauge, commonly used in CIS countries)
1000mm (meter gauge)
And supports 43kg/m, 50kg/m, 60kg/m, and 75kg/m rail types.
For each rail profile, the clamp opening and closing width are optimized, with a maximum clamp opening of 690mm, ensuring a secure grip on worn or new rails.
| Item / Model | Unit | TNDZLG75 | TNDZLA75 |
|---|---|---|---|
| Suitable excavator tonnage | ton | 7–10 | 7–10 |
| Applicable rail type | kg/m | 43/50/60/75 | 43/50/60/75 |
| Closing width | mm | 810 | 560 |
| Opening width | mm | 944 | 415 |
| Working angle | ° | 360 | 360 |
| Rated oil flow | L/min | 40 | 40 |
| Working pressure | MPa | 12 | 12 |
| Weight | kg | 670 | 600 |
| Packing size | mm | 1750×810×440 | 1430×720×440 |
These two models allow customers to choose based on working space and rail section length.
Why choose an excavator + rail clamp attachment?
1. Improved Efficiency During Rail Replacement Window Operations
A 360° rotation function enables precise positioning. The operator can pick, lift, align, and place a new rail section without additional lifting equipment.
2. Reduced Human Risk
Remote hydraulic control keeps workers away from the lifting path, significantly reducing accidents during rail replacement.
3. Quick Changeover, Compatible with Mainstream Excavators
The rail handler is designed for 7–10 ton excavators with standard hydraulic interfaces (40 L/min, 12 MPa). No complex modifications are required.
Real Factory + Customization Capabilities
Unlike trading companies, Shandong Tiannuo is a manufacturer with:
In-house welding and assembly lines
Custom design for special rail sections or limited working space
Strict load testing before shipment
We support:
Logo/color customization
Hydraulic hose length adjustment
Optional wear-resistant clamp plates for high-use conditions
Application Scenarios Summary (Suitable for Google's Featured Summary)
Nighttime railway maintenance
Tunnel or bridge track replacement
Port or mining railway line repair
Emergency derailment recovery
7. Ending and action guidance
If you are a railway contractor, equipment rental company, or excavator dealer serving rail sectors, STND rail handler attachments help you complete more “skylight” jobs per shift.
