Excavator Sleeper Changer Attachment: 30-60 Sleepers/Hour for 1000/1435/1520mm Gauges
Railway sleeper replacement is one of the most labor-intensive and time-critical maintenance tasks. Traditional manual methods are slow, back-breaking, and often cannot be completed within a short “skylight” window.

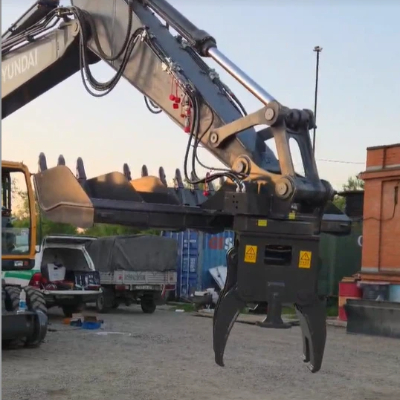

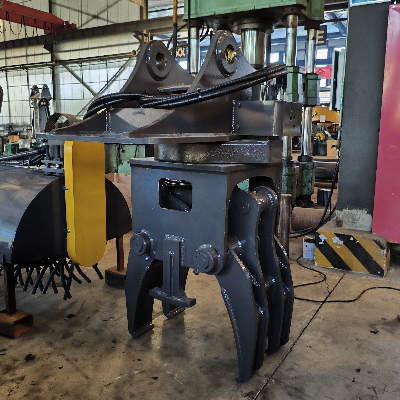

Shandong Tiannuo Construction Machinery Co., Ltd. (STND) offers a hydraulic sleeper clamp attachment for excavators – designed to grip, pull out old sleepers, and place new ones under the rails quickly and safely.
This sleeper changer is engineered for three major railway gauges:
1000mm (meter gauge)
1435mm (standard gauge)
1520mm (wide gauge, common in CIS countries)
The clamp is made of high-strength alloy steel Q460 + WH60C, ensuring durability under repeated heavy pulling and twisting forces.
| Item / Model | Unit | TNZMJ75 | TNZMJ150 |
|---|---|---|---|
| Suitable excavator tonnage | ton | 7–10 | 13–15 |
| Applicable track gauge | mm | 1000 / 1435 / 1520 | 1000 / 1435 / 1520 |
| Sleeper changing speed | pcs/h | 30–60 | 30–60 |
| Working angle | ° | 360 | 360 |
| Sleeper clamp opening | mm | 650 | 630 |
| Rated oil flow | L/min | 40 | 40 |
| Working pressure | MPa | 12 | 14 |
| Rotary turntable diameter | mm | 432 | 475 |
| Material | — | Q460 + WH60C high-strength alloy | Q460 + WH60C high-strength alloy |
| Weight | kg | 550 | 1100 |
| Dimensions (L×W×H) | mm | 1300×1450×900 | 1500×1600×1400 |
Why choose the excavator + sleeper clamp attachment?
1. Maximizes Efficiency During Skylight Window Operations
With a sleeper replacement speed of 30–60 sleepers per hour, one excavator with a sleeper clamp can complete what a 6–8 man crew would take 2–3 hours to complete – all within a single skylight window.
2. 360° Rotation for Precise Positioning
The 360° continuous rotation allows the operator to approach sleepers from any angle, even in tight track conditions or around obstacles like signal posts or switches.
3. Reduced Human Risk
Remote hydraulic operation keeps workers away from the lifting and pulling zone, significantly reducing the risk of back injuries, crush injuries, or rail contact accidents.
4. Quick Changeover, Compatible with Mainstream Excavators
The TNZMJ75 is designed for 7–10 ton excavators, while the TNZMJ150 fits 13–15 ton excavators. Both use standard hydraulic interfaces (40 L/min flow, 12–14 MPa pressure).
5. Real Factory + Customization Capabilities
Unlike trading companies, Shandong Tiannuo is a manufacturer with:
In-house welding and assembly lines using Q460 + WH60C high-strength steel
Custom design for special sleeper sizes or limited working space
Strict load testing before shipment
We support:
Logo/color customization
Hydraulic hose length adjustment
Optional wear-resistant clamp plates for concrete or wooden sleepers
Custom jaw opening for oversized sleepers
6. Summary of application scenarios (suitable for Google feature summary)
Nighttime railway sleeper replacement
Concrete or wooden sleeper change-out
Tunnel or bridge track maintenance
Emergency track repair after derailment
Narrow-gauge (1000mm) railway projects
7. Ending and action guidance
If you are a railway contractor, track maintenance company, or excavator dealer serving rail sectors, STND sleeper changer attachments help you replace more sleepers per skylight window – safely and efficiently.
